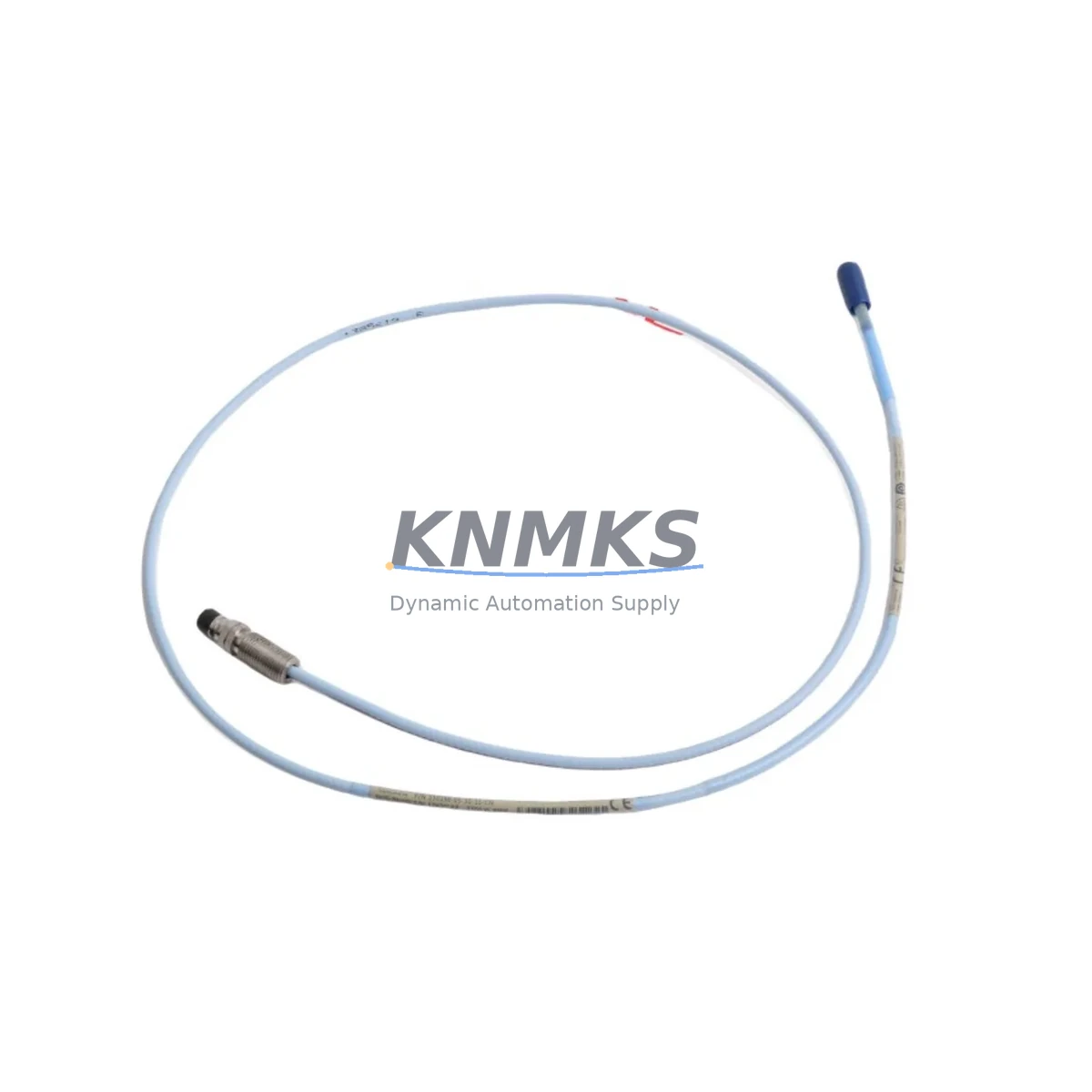

Bently Nevada 330196-05-30-50-00 Migration-Ready ETR Probe

Overview

Bently Nevada 330196-05-30-50-00 Migration-Ready ETR Probe: Legacy System Retrofit & Compatibility Upgrade

The Bently Nevada 330196-05-30-50-00 is an Extended Temperature Range (ETR) Reverse Mount Proximity Probe engineered for direct drop-in replacement within the Bently Nevada 3300 XL and 3500 Series continuous machinery monitoring platforms. As legacy vibration monitoring infrastructure ages and OEM support windows close, plant engineers and reliability teams increasingly rely on verified replacement units like the 330196-05-30-50-00 to sustain critical rotating equipment protection without triggering full system overhauls. This probe is purpose-built for retrofit scenarios where minimizing downtime, preserving existing wiring, and maintaining signal chain integrity are non-negotiable priorities.

The 330196-05-30-50-00 operates on the standard Bently Nevada Proximitor® signal conditioning architecture, making it directly compatible with the 3300 XL 8mm Proximitor® Sensor (such as the 330180 series) and the 3500/42M Proximitor®/Seismic Monitor module. When replacing a failed or end-of-life probe in an existing installation, engineers must confirm that the replacement probe’s gap voltage range, sensitivity (7.87 V/mm), and cable length (5 mm, 8 mm, or 11 mm system) match the original configuration recorded in the machinery protection system database. Mismatched sensitivity coefficients between the probe and its paired Proximitor® can introduce measurement offset errors that compromise vibration alarm setpoints and trip thresholds.

Before installation, verify the existing extension cable — typically a 330130 or 330140 series armored extension cable — for continuity and insulation integrity. The complete measurement loop (probe + extension cable + Proximitor®) must be treated as a matched system. If the extension cable has been previously cut or spliced, replacement with a factory-terminated cable of the correct length is strongly recommended to preserve the calibrated system response. The 330196-05-30-50-00’s reverse-mount configuration requires confirmation of available installation depth in the bearing housing or probe holder bracket, as clearance constraints in older machine frames can affect final gap setting.

For facilities migrating from older 3300 Series (non-XL) hardware to the 3300 XL platform, the 330196-05-30-50-00 supports a phased upgrade path. The 3500 rack system, including the 3500/01 Rack Interface Module and 3500/20 Rack Interface I/O Module, can accept probe inputs from this series without firmware modification, provided the Proximitor® module configuration in the 3500 System Configuration Utility (SCU) reflects the correct probe type and gap parameters. Technicians should export and archive the existing rack configuration file before any hardware swap to enable rapid restoration if commissioning issues arise.

Power supply integrity is a critical pre-retrofit checkpoint. The 330196-05-30-50-00 requires a stable -24 VDC bias supply delivered through the Proximitor® sensor. If the existing power distribution within the control cabinet — often sourced from a dedicated Bently Nevada power supply module or a third-party DIN-rail 24 VDC supply — shows voltage ripple exceeding ±0.25 VDC, probe output noise will increase and may trigger nuisance alarms. Measure supply voltage at the Proximitor® terminal block under loaded conditions before finalizing the probe installation.

HMI screen updates are frequently overlooked during probe replacement projects. If the plant’s DCS or SCADA system displays real-time vibration trend data sourced from the 3500 rack’s Modbus TCP or OPC DA/UA gateway, confirm that the tag mapping for the affected measurement point remains valid after the hardware change. In some legacy DCS integrations, the channel address within the 3500 rack is hard-coded in the HMI driver configuration, and a module slot reassignment during retrofit can silently break the data link without generating an alarm.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330196-05-30-50-00 into an operating plant environment requires coordinated planning across mechanical, electrical, and control system disciplines. The probe itself is one component in a measurement chain that also includes the 330180 Series 3300 XL 8mm Proximitor® Sensor, the 330130 or 330140 armored extension cable, and the 3500/42M monitor module housed in the 3500/01 rack. Each element must be individually verified before the system is returned to service.

In control cabinet retrofit projects, space allocation for the Proximitor® sensor and its associated wiring is a recurring constraint. The 3300 XL Proximitor® mounts externally to the rack, typically on a DIN rail or bracket inside the junction box or local control panel. Confirm that the existing cabinet layout accommodates the Proximitor® housing dimensions and that the terminal block wiring — probe cable shield grounding, -24 VDC supply, and signal output leads — can be routed without crossing high-voltage conductors or variable frequency drive (VFD) output cables that could induce electromagnetic interference on the low-level vibration signal.

For plants operating mixed-generation Bently Nevada hardware, the 330196-05-30-50-00 can coexist in racks alongside older 3300 Series Proximitor® sensors during a phased migration. The 3500 System Configuration Utility allows per-channel probe type assignment, enabling engineers to update individual measurement points without reconfiguring the entire rack. This approach is particularly valuable in large turbine-generator protection systems where simultaneous replacement of all probes would require an extended planned outage.

Signal isolation requirements should be assessed when the 330196-05-30-50-00 is installed in facilities where the machinery protection system shares a common ground reference with a DCS analog input card. In such configurations, a signal isolator or galvanic separator inserted between the Proximitor® output and the DCS input card prevents ground loop currents from corrupting the vibration measurement. The 3500 rack’s built-in isolation architecture typically handles this within the rack, but field-wired connections to external recorders or historian systems may require additional isolation hardware.

Programming compatibility is generally maintained when replacing within the 330196 series, as the probe’s output characteristics are identical to the original. However, if the replacement is part of a broader migration from a 3300 non-XL system to a 3300 XL or 3500 platform, the ladder logic or function block programs in the associated safety PLC or DCS controller must be reviewed to confirm that vibration trip interlock logic references the correct I/O channel addresses in the new rack configuration.

Downtime Control During System Migration

Minimizing unplanned downtime during a probe replacement or system migration project begins with pre-staging all replacement components — including the 330196-05-30-50-00 probe, the matched extension cable, and a spare 330180 Proximitor® — at the work site before the maintenance window opens. A pre-tested, bench-verified probe assembly reduces the risk of discovering a defective component after the machine has been taken offline.

Before disconnecting the existing probe, document the installed gap voltage reading from the 3500 rack’s front-panel display or the System Configuration Utility. This value serves as the baseline for setting the replacement probe’s gap during installation. The target gap voltage for an 8mm probe system is typically in the range of -10.0 to -11.0 VDC at the nominal air gap, but the exact value should be confirmed against the original machinery commissioning records or the OEM’s installation drawing for the specific bearing housing geometry.

To protect original program logic during the migration, export the full 3500 rack configuration file using the System Configuration Utility before any hardware changes are made. Store this file in a version-controlled location accessible to both the control system engineer and the site reliability team. If the migration involves replacing the 3500/01 Rack Interface Module or upgrading the rack firmware, the configuration file can be reloaded after the hardware change to restore all channel parameters, alarm setpoints, and communication settings without manual re-entry.

Field commissioning of the 330196-05-30-50-00 should include a full functional test: verify gap voltage at the Proximitor® output, confirm the vibration channel reads a plausible value (near zero for a stationary machine), check that the OK relay output is energized, and validate that the 3500 rack is transmitting the channel data correctly to the DCS or SCADA historian. Only after all channels in the affected measurement group have passed functional verification should the machine be returned to service and the maintenance window closed.

KNMKS ships all 330196-05-30-50-00 units with a pre-shipment functional test report, confirming gap voltage linearity and output signal integrity. This documentation supports site acceptance testing and provides a traceable quality record for regulated industries. All units are covered by a support terms confirmed by quotation against manufacturing defects and signal performance deviations.

Retrofit Support FAQ

Q: Is the 330196-05-30-50-00 a direct replacement for other 330196 series probes?
A: Yes, within the 330196 family, the primary variables are cable length (the third and fourth numeric segments) and connector type. The -05-30-50-00 designation indicates a 5mm probe with a 30-inch (762mm) cable, 50-ohm termination, and standard connector. Confirm that the replacement probe’s cable length matches the installed extension cable system. If the cable length differs, the Proximitor® sensitivity calibration must be adjusted accordingly in the System Configuration Utility.

Q: What wiring checks are required before installing the replacement probe?
A: Measure the extension cable for continuity (tip-to-tip resistance should be within the specified range for the cable length) and insulation resistance (megohm test between conductors and shield). Verify that the terminal block connections at the Proximitor® — typically labeled TIP, SHIELD, and COM — are clean, torqued to specification, and free of corrosion. Confirm the -24 VDC supply voltage at the Proximitor® input terminals under loaded conditions before connecting the probe.

Q: How is compatibility with the 3500/42M monitor module verified?
A: Open the 3500 System Configuration Utility and navigate to the channel configuration for the affected measurement point. Confirm that the probe type is set to “8mm Proximity” and that the sensitivity value matches the 330196-05-30-50-00 specification (7.87 V/mm). If the channel was previously configured for a different probe type or sensitivity, update the configuration, download it to the rack, and perform a full channel functional test before returning the machine to service.

Q: What does the support terms confirmed by quotation cover, and what is the typical lead time?
A: The support terms confirmed by quotation cover manufacturing defects, signal performance deviations outside published specifications, and connector integrity. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. KNMKS maintains in-stock inventory of the 330196-05-30-50-00 to support urgent replacement requirements. Standard lead time for in-stock units is 3–5 business days for international shipments. Contact [email protected] or +86 18359268345 for real-time stock confirmation and expedited shipping options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330196-05-30-50-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330196-05-30-50-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
