Bently Nevada 330196-05-30-10-CN Migration-Ready Proximity Sensor

Overview

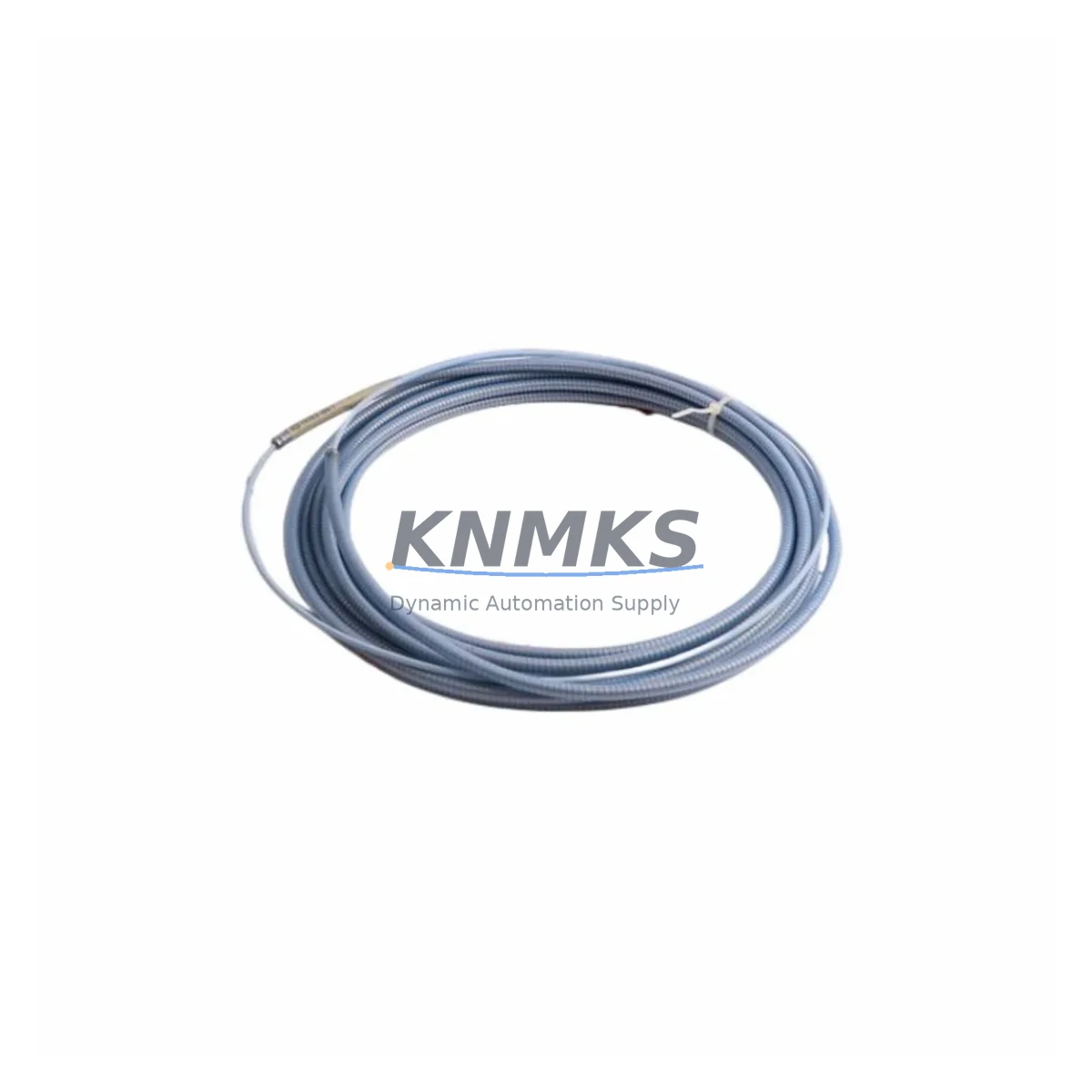

Bently Nevada 330196-05-30-10-CN Migration-Ready Proximity Sensor for Legacy Control Systems

The Bently Nevada 330196-05-30-10-CN is a high-precision eddy-current proximity sensor engineered for continuous shaft vibration and position monitoring in rotating machinery. As a migration-ready replacement for discontinued or end-of-life units within the Bently Nevada 3300 XL Series, this sensor supports direct drop-in installation into existing monitor racks without requiring panel redesign or cable rerouting. It is widely deployed in turbine protection systems, compressor trains, pump monitoring panels, and critical rotating equipment across oil and gas, power generation, and petrochemical industries.

When legacy 3300 XL proximity sensors reach end-of-life or fail in the field, procurement teams and reliability engineers face pressure to restore machine protection coverage with minimal downtime. The 330196-05-30-10-CN addresses this challenge by maintaining full electrical and mechanical compatibility with the original Bently Nevada 3300 XL monitor architecture, including the 3300/16 and 3300/20 series monitors. The sensor’s 5-metre integral cable and standard -18 mm thread body allow direct substitution without modifying existing conduit runs or terminal block assignments.

Before installation, engineers should verify power supply capacity at the junction box — the 3300 XL driver requires a regulated -24 VDC supply, and adding replacement sensors to an aging power distribution rail may require a capacity audit. Terminal wiring follows the standard Bently Nevada colour-coded scheme (shield, signal, and return), and technicians should confirm that the existing Proximitor® driver — such as the 3300 XL 8mm or 3300 XL 11mm driver — matches the sensor’s gap voltage range of -10 VDC to -18 VDC at the recommended installation gap of 1.0 mm to 2.0 mm.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 330196-05-30-10-CN retrofit begins well before the sensor arrives on site. Reliability teams should pull the existing System 1 configuration database to confirm the channel assignment, transducer type, and full-scale range programmed for the affected monitor slot. If the plant is running an older System 1 version, a software compatibility check against the current Bently Nevada firmware release matrix is recommended before committing to the replacement schedule.

In multi-channel monitor racks, replacing a single proximity sensor often surfaces adjacent issues. Technicians frequently discover that the companion Proximitor® driver — for example a 3300 XL 8mm Proximitor® or a 3300 XL 11mm Proximitor® — shows marginal output voltage, indicating it should be replaced concurrently to avoid a repeat outage. Similarly, the 3300/16 monitor card’s input impedance should be verified against the replacement sensor’s output characteristics to prevent false alarm trips during commissioning.

For plants migrating from older Bently Nevada 7200 Series or 9000 Series proximity systems to the 3300 XL platform, the 330196-05-30-10-CN serves as a standardisation anchor. The wiring transition typically involves re-terminating the existing shielded twisted-pair cable at the junction box terminal strip, confirming shield grounding at one end only, and updating the I/O list in the DCS or safety instrumented system to reflect the new channel tag. Where the control system interfaces with a Bently Nevada 3500 Series rack for machinery protection, engineers should also verify that the 3500/42M position monitor or 3500/40M proximitor I/O module is configured to accept the 3300 XL sensor’s output range.

HMI screen updates are a commonly overlooked step. After sensor replacement, the operator display in the DCS or the Bently Nevada System 1 Orbit software should be refreshed to confirm that the vibration trend, gap voltage bar graph, and alarm setpoints reflect the new sensor’s calibration data. Skipping this step can result in operators working from stale baseline data during the first post-retrofit run-up.

Downtime Control During System Migration

Minimising production loss during a proximity sensor replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, the replacement 330196-05-30-10-CN should be bench-tested against a calibrated Proximitor® driver to confirm gap voltage linearity across the full measurement range. This pre-shipment functional test is included with every unit supplied by KNMKS, and the test record is available upon request.

During the outage, the original program logic in the machinery protection system should be preserved by exporting a full configuration backup from System 1 before any hardware is disturbed. If the monitor rack requires a card pull to access the sensor wiring, the rack’s power sequencing procedure must be followed to avoid corrupting non-volatile memory in adjacent monitor cards such as the 3300/25 temperature monitor or the 3300/46M position monitor.

Re-commissioning should follow the Bently Nevada standard gap-setting procedure: power the Proximitor® driver, measure output voltage at the monitor terminal, adjust the sensor gap to achieve the target voltage, lock the sensor in position, and record the as-left gap and voltage in the maintenance management system. A 30-minute run-up observation period with System 1 trending active is recommended before returning the machine to full load. This approach consistently achieves sub-4-hour total replacement time for a single-channel proximity sensor swap on a standard 3300 XL rack.

Retrofit Support FAQ

Q1: Is the 330196-05-30-10-CN a direct drop-in replacement for the original Bently Nevada part?
Yes. The 330196-05-30-10-CN maintains the same thread size, cable length, output voltage range, and connector type as the original Bently Nevada specification. No mechanical adapters or wiring modifications are required for standard 3300 XL installations. Confirm the Proximitor® driver model and firmware revision before installation to ensure full system compatibility.

Q2: What pre-shipment testing is performed on each unit?
Every 330196-05-30-10-CN supplied by KNMKS undergoes a full functional test including gap voltage linearity verification, cable continuity check, and connector integrity inspection before dispatch. A test record is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q3: Can this sensor be used with Bently Nevada 3500 Series monitors?
The 330196-05-30-10-CN is designed and rated for the 3300 XL monitor platform. Use with 3500 Series monitors requires verification of input impedance compatibility and configuration of the 3500/42M or 3500/40M I/O module. Contact KNMKS technical support at [email protected] to confirm compatibility for your specific rack configuration before ordering.

Q4: What is the typical lead time and do you hold stock?
KNMKS maintains inventory of the 330196-05-30-10-CN to support urgent replacement and planned maintenance schedules. Standard lead time for in-stock units is 3–7 business days with global shipping. For large-quantity orders or scheduled plant turnarounds, contact [email protected] or call +86 18359268345 to confirm availability and arrange priority dispatch.
