Bently Nevada 330196-05-30-10-00 Migration-Ready Proximity Probe

Overview

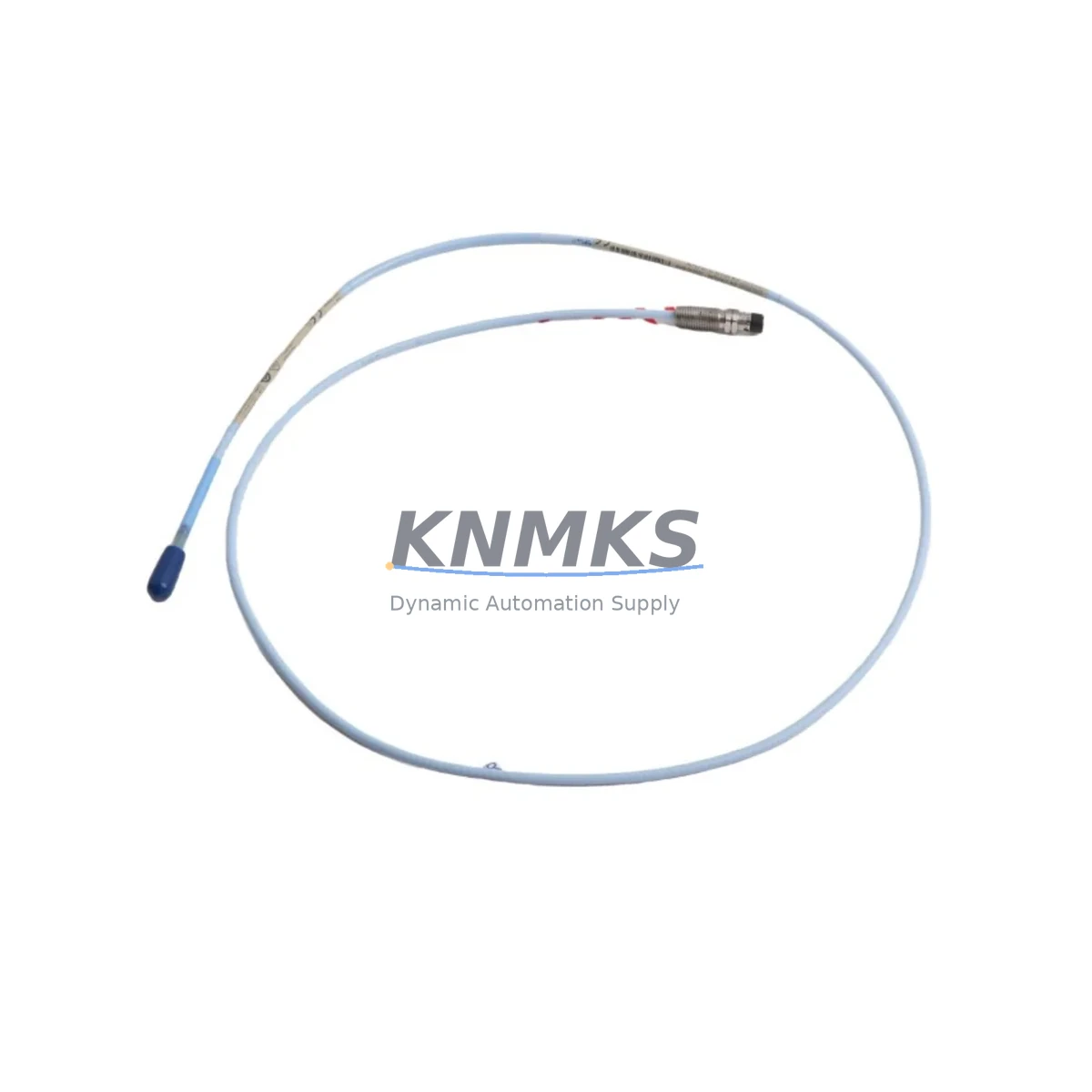

Bently Nevada 330196-05-30-10-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330196-05-30-10-00 is an 8mm proximity probe from the 3300 XL series, engineered for continuous shaft vibration and position monitoring in rotating machinery. As legacy Bently Nevada 3300 series installations approach end-of-support milestones, plant engineers and reliability teams are actively sourcing migration-ready replacements that preserve existing wiring infrastructure, signal conditioning chains, and machinery protection logic without requiring full system overhauls. This unit is stocked, tested, and ready to ship as a direct retrofit replacement for discontinued or aging 3300-series probe assemblies.

Whether you are upgrading a turbine protection panel, replacing a worn probe in a compressor train, or restoring a vibration monitoring loop after an unplanned failure, the 330196-05-30-10-00 delivers the electrical and mechanical compatibility required for drop-in installation. The probe is compatible with the Bently Nevada 3300 XL proximitor/extension cable system, maintaining the standard 5V/mm sensitivity output expected by existing signal conditioning hardware and ADRE or System 1 data acquisition platforms.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3300 XL probe retrofit begins well before the maintenance window opens. Engineers should pull the existing loop drawing to confirm the proximitor model — typically a 3300 XL 8mm proximitor such as the 330180-X1-05 — and verify that the extension cable assembly (part of the 330130 or 330140 series) is in serviceable condition. If the extension cable shows signs of jacket degradation or connector corrosion, replacing it alongside the probe eliminates a common source of post-retrofit signal noise.

At the junction box or marshalling cabinet, confirm terminal block wiring polarity and shield grounding practice. The 3300 XL system uses a coaxial signal path where improper shield termination introduces common-mode interference that can trigger false vibration alarms in the machinery protection system. If the installation feeds into a Bently Nevada 3500 rack — a common upgrade path where the 3300 XL field wiring is retained but the rack electronics are modernized — verify that the 3500/42M or 3500/45 monitor card input impedance and sensitivity settings are configured to match the 330196-05-30-10-00 output characteristics.

For plants running a hybrid architecture where the 3300 XL probes feed both a legacy 3300 rack and a modern DCS analog input module (such as a Honeywell HC900 or Emerson DeltaV AI card), the signal splitter or barrier configuration must be reviewed to ensure the additional load does not pull the proximitor output outside its linear operating range. In multi-machine trains — compressor, gearbox, and driven equipment — replacing probes in a planned sequence rather than all at once allows the control room to maintain partial vibration coverage and avoid a full machinery protection blackout during the retrofit window.

Where the installation includes a keyphasor probe (typically a 330980 series unit) for phase reference and balancing, confirm that the keyphasor gap and signal level are re-verified after any adjacent probe replacement, as mechanical disturbance during probe installation can shift the keyphasor target gap. HMI faceplate displays in System 1 or ADRE 408 DSPi should be reviewed post-installation to confirm that channel tags, engineering unit scaling, and alarm setpoints are correctly mapped to the new probe position.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3300 XL probe replacement requires a structured pre-outage checklist. Before the machine is taken offline, capture a full set of baseline vibration readings — overall vibration level, 1X and 2X amplitude, phase angle, and DC gap voltage — from the existing probe using the System 1 or ADRE trending database. These baseline values serve as the acceptance benchmark for the replacement probe after installation and gap setting.

During the outage, the probe replacement sequence should follow a lock-out/tag-out procedure that isolates the proximitor power supply without disturbing adjacent channel wiring. The 330196-05-30-10-00 can be installed and gap-set while the proximitor remains powered down, allowing the technician to use a feeler gauge or dial indicator to achieve the target gap before energizing the loop. Once powered, the DC gap voltage should be read at the proximitor output terminal and compared against the expected value from the linear range table before the machinery protection system is re-armed.

If the plant’s DCS or safety system requires a bypass or inhibit to be set during probe maintenance, coordinate with the control room to activate the bypass before disconnecting the old probe and to clear it only after the new probe has been verified in-range. This practice protects the original program logic — trip setpoints, alarm delays, and voting configurations — from triggering spurious shutdowns during the maintenance window. Post-installation, a slow-roll vibration check at reduced speed (typically 10–15% of operating speed) confirms probe linearity and signal integrity before the machine is returned to full load.

Retrofit Support FAQ

Q1: Is the 330196-05-30-10-00 a direct replacement for other 3300 XL 8mm probe part numbers?
Yes. The 330196-05-30-10-00 is dimensionally and electrically compatible with other 3300 XL 8mm probe assemblies sharing the same cable length and connector configuration. Always cross-reference the full part number — including cable length suffix — to confirm an exact match for your installation. If your existing probe is a different cable length variant, the extension cable assembly can be adjusted independently without replacing the probe body.

Q2: What pre-shipment testing is performed on this unit?
Each 330196-05-30-10-00 unit undergoes functional verification including DC resistance check, insulation integrity test, and dimensional inspection of the probe tip and thread before shipment. Units are packaged in anti-static, moisture-resistant packaging suitable for international air freight. A test report is available upon request for critical machinery applications.

Q3: Can this probe be used with a Bently Nevada 3500 rack after a rack upgrade?
Yes, provided the 3500 monitor card (such as the 3500/42M or 3500/45) is configured for the 3300 XL probe sensitivity and cable length. The field wiring — probe, extension cable, and proximitor — can be retained during a rack upgrade from 3300 to 3500, which significantly reduces the scope and cost of the modernization project.

Q4: What is the support terms coverage and lead time?
All units carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional non-conformance. Stock is maintained in regional warehouses to support urgent requirements. Standard lead time for in-stock units is 3–7 business days for international destinations. Contact our team for expedited shipping options for critical plant outages.
