Bently Nevada 330195-02-12-50-00 Maintenance-Proven Spare Part for Factory Uptime

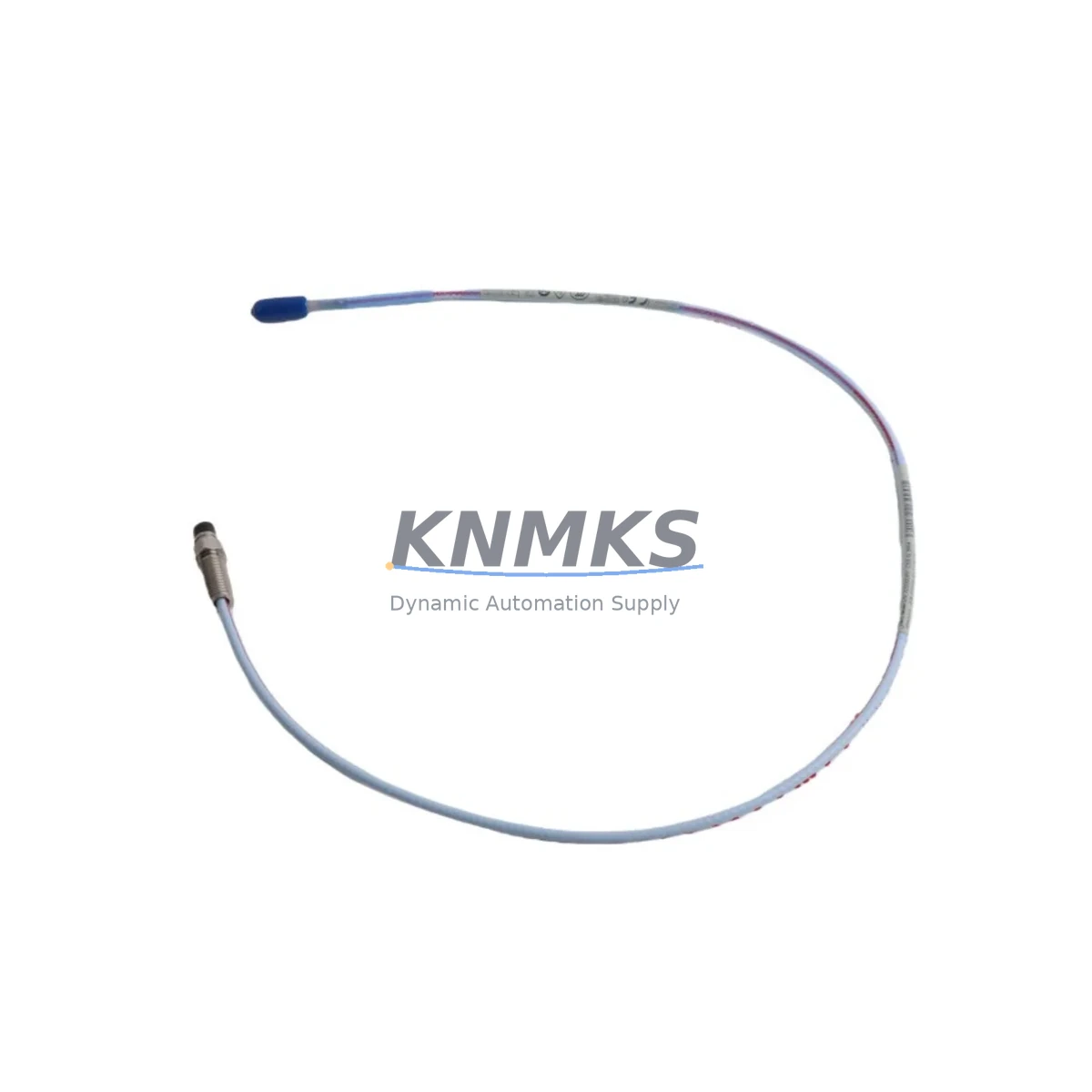

The Bently Nevada 330195-02-12-50-00 is an original proximity probe engineered for the 3300 XL Enhanced Transient Recording (ETR) vibration monitoring system. Designed for continuous-duty industrial environments, this probe delivers reliable shaft displacement and vibration measurements critical to rotating machinery protection in power generation, oil & gas, petrochemical, and heavy manufacturing facilities. Stocking this spare part is a proven strategy for maintenance engineers who cannot afford unplanned downtime on turbines, compressors, pumps, and gearboxes.

For maintenance and procurement engineers managing aging machinery protection systems, the 330195-02-12-50-00 represents a direct, drop-in replacement that preserves the calibration integrity of the 3300 XL ETR monitoring loop. Its 5-meter integral cable and standard 8 mm tip diameter ensure compatibility with existing probe holders and conduit runs without field modification. Every unit shipped by KNMKS is functionally tested and verified against OEM specifications before dispatch, reducing the risk of receiving a non-conforming part during a critical outage window.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a replacement of the 330195-02-12-50-00 proximity probe, a thorough inspection of the entire transducer loop is essential to prevent repeat failures and ensure measurement accuracy after restart. Maintenance engineers should begin by verifying the condition of the 330130-XX-XX extension cable that connects the probe to the driver. Extension cables are subject to mechanical fatigue at conduit entry points and connector corrosion in humid or chemically aggressive environments; a degraded cable will introduce gap voltage errors that mimic probe failure even after a new probe is installed.

Next, inspect the 3300 XL proximitor/driver module seated in the monitor rack. The driver converts the probe’s oscillator signal into a DC voltage proportional to gap distance, and a faulty driver will produce erratic output regardless of probe condition. During annual overhaul or after any electrical fault event, it is good practice to cross-check the driver’s output voltage at the known air-gap reference distance before declaring the probe as the root cause.

The 3300 XL monitor card itself — whether configured for radial vibration, axial position, or differential expansion — should be inspected for alarm relay contact wear and I/O terminal tightness. Loose field wiring at the terminal block is a common source of intermittent high-vibration alarms that are incorrectly attributed to the probe. While the cabinet is open, verify that the 3300 XL power supply module is delivering stable -24 VDC within the ±5% tolerance required by the transducer system; voltage sag under load can shift the probe’s operating point and trigger nuisance trips.

For facilities running distributed control or safety systems in parallel with the machinery protection rack, confirm that the 4–20 mA output signal isolator feeding the DCS historian is functioning correctly. Signal isolators degrade over time and can introduce ground loops that corrupt vibration trend data, making it difficult to distinguish genuine mechanical deterioration from instrumentation noise. Finally, check the barrier or Zener barrier if the probe is installed in a Zone 1 or Zone 2 hazardous area; a blown barrier will cut the probe circuit entirely and should be part of every planned replacement kit for Ex-rated installations.

Procurement engineers are advised to maintain a minimum of two 330195-02-12-50-00 probes per critical machine train in the on-site spare parts inventory. Given the long lead times historically associated with OEM channels, sourcing from KNMKS provides a reliable alternative supply path with confirmed stock availability, competitive pricing, and support terms confirmed by quotation coverage — reducing procurement risk for both planned turnarounds and emergency callouts.

Site Replacement Workflow

Step 1 — Isolate and de-energize: Follow your site’s lock-out/tag-out (LOTO) procedure. Remove the -24 VDC supply to the proximitor driver before disconnecting the probe to avoid electrostatic discharge damage to the driver input circuit.

Step 2 — Record the existing gap voltage: Before removal, note the DC gap voltage displayed on the 3300 XL monitor or read via the test point on the driver. This baseline value (typically -10 VDC at the nominal air gap) will be used to verify correct installation of the replacement probe.

Step 3 — Remove the old probe: Unscrew the probe from its holder using the appropriate spanner. Inspect the probe tip for impact damage or chemical attack, which may indicate a bearing or seal failure that should be addressed before restart.

Step 4 — Install the 330195-02-12-50-00 replacement: Thread the new probe into the holder and adjust the gap to achieve the target gap voltage recorded in Step 2. The 3300 XL system’s linear range allows fine adjustment without special tooling — a standard feeler gauge or the monitor’s built-in gap display is sufficient.

Step 5 — Reconnect and verify: Reconnect the extension cable and restore power. Confirm the gap voltage is within ±0.5 VDC of the baseline. Check that the monitor’s OK relay is energized and that no alarms are active at the normal shaft position.

Step 6 — Functional test and documentation: Perform a slow-roll vibration check if the machine can be safely barred over. Record the new gap voltage, probe serial number, and installation date in the maintenance management system. Update the spare parts inventory to trigger a replenishment order for the consumed unit.

This workflow is compatible with both direct replacement of the 330195-02-12-50-00 and substitution from older 3300 series probe variants, provided the extension cable and driver are confirmed to be 3300 XL ETR compatible. No firmware changes to the monitor card are required for a like-for-like probe swap.

Spare Parts Support FAQ

Q1: Is the 330195-02-12-50-00 compatible with older 3300 series monitors, or only the 3300 XL ETR?
The 330195-02-12-50-00 is designed and calibrated for the 3300 XL 8 mm transducer system. It is mechanically and electrically compatible with other 3300 XL monitor variants (radial vibration, axial position, thrust) that accept the standard 8 mm probe format. Compatibility with legacy 3300 (non-XL) monitors should be verified against the system’s transducer acceptance list, as sensitivity and linear range specifications may differ. KNMKS technical support can assist with compatibility confirmation before purchase.

Q2: How does KNMKS verify the quality of the 330195-02-12-50-00 before shipment?
Every 330195-02-12-50-00 unit undergoes a functional test that measures oscillator frequency, gap voltage linearity, and cable continuity before packaging. Units that do not meet OEM specification tolerances are quarantined and not shipped. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment, covering defects in materials and workmanship under normal operating conditions.

Q3: What is the recommended inventory strategy for this probe in a critical rotating machinery application?
Industry best practice for machinery protection spares recommends holding a minimum of one-to-two probes per critical machine train on-site, with a replenishment trigger set at one unit. For facilities with multiple identical machine trains (e.g., parallel compressor strings), a pooled spare of three to five units is cost-effective and reduces the risk of a stockout during a simultaneous multi-train outage. KNMKS supports blanket purchase orders and scheduled delivery programs to help procurement teams maintain optimal inventory levels without excessive capital tied up availability confirmed by RFQ.

Q4: Can KNMKS supply the 330195-02-12-50-00 on a long-term basis for multi-year maintenance contracts?
Yes. KNMKS maintains ongoing stock of the 330195-02-12-50-00 and related 3300 XL ETR components to support long-term supply agreements. We offer confirmed lead times, priority allocation for contract customers, and consistent pricing for annual or multi-year procurement plans. Contact our sales team to discuss a supply agreement tailored to your maintenance schedule and inventory policy.
