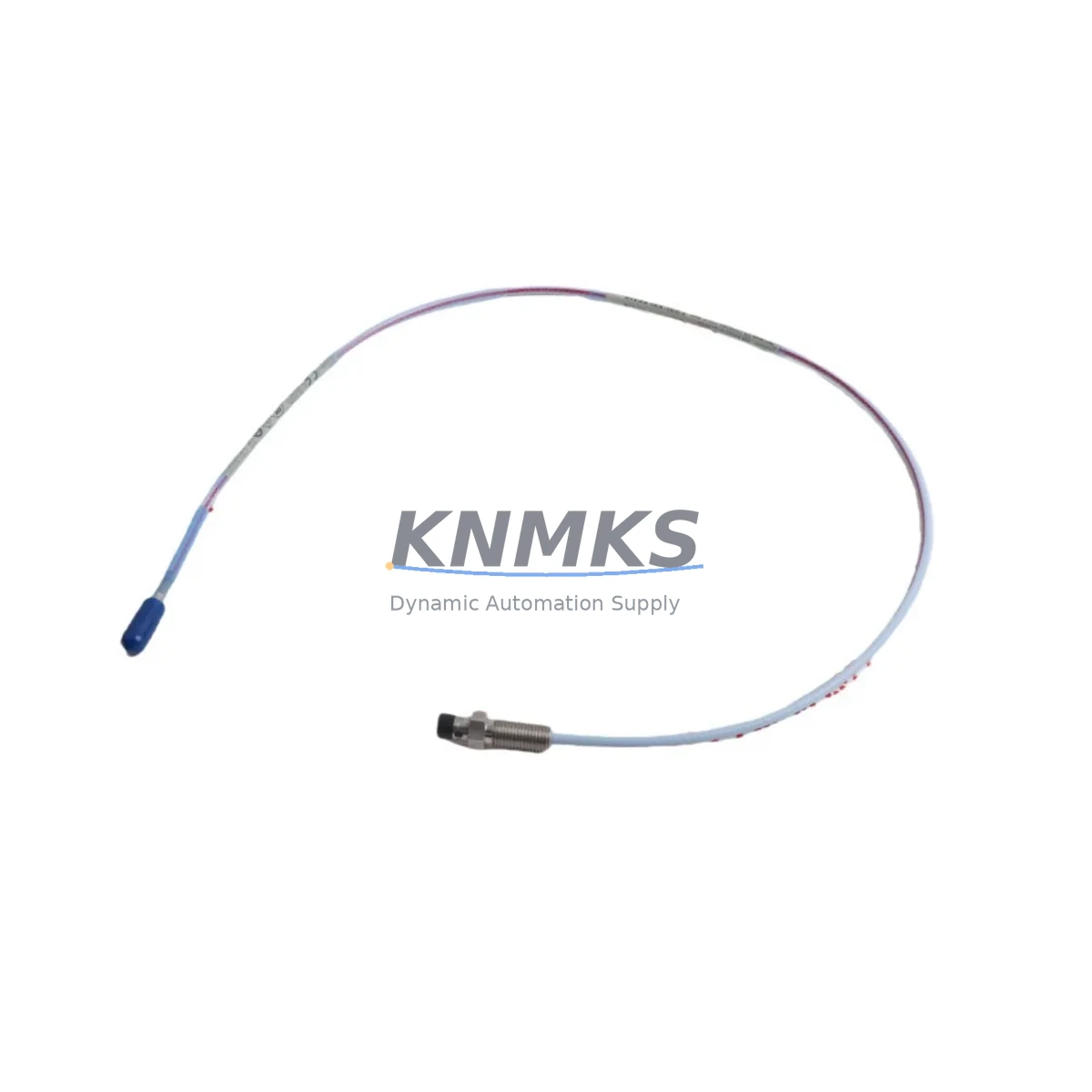

Bently Nevada 330195-02-12-10-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330195-02-12-10-00 is a 3300 XL Series proximity probe designed for continuous shaft vibration and position monitoring in rotating machinery. As legacy Bently Nevada 3300 XL ETR systems approach end-of-support and original spare parts become increasingly difficult to source, this migration-ready replacement unit provides a verified, drop-in solution for facilities undertaking control system modernization, predictive maintenance upgrades, and obsolescence management programs.

This probe is engineered to interface directly with the Bently Nevada 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor, maintaining the same eddy-current sensing principle and output signal characteristics as the original factory unit. Engineers responsible for turbine protection panels, compressor monitoring racks, and pump vibration systems will find that the 330195-02-12-10-00 integrates without requiring changes to existing Proximitor driver cards or signal conditioning modules already installed in the control cabinet.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful replacement of the 330195-02-12-10-00 in an operating plant requires a structured retrofit plan that accounts for every component in the measurement chain. Before removing the existing probe, technicians should document the installed gap voltage — typically between -10 VDC and -18 VDC for the 3300 XL system — and record the current Proximitor output to establish a baseline for post-installation verification.

The 3300 XL 8mm Extension Cable (330130 series) must be inspected for insulation integrity and connector condition. In many legacy installations, the extension cable has been in service for over a decade and may exhibit increased resistance or intermittent continuity faults that will affect the new probe’s calibration. Replacing the extension cable simultaneously with the probe is strongly recommended to avoid masking cable-related faults after commissioning.

At the rack level, engineers should verify that the installed Bently Nevada 3500/42M Proximitor I/O Module or equivalent 3500 Series vibration monitor card is configured for 8mm probe sensitivity (7.87 V/mm). If the rack was previously configured for a different probe diameter, the channel sensitivity setting must be updated in the System 1 configuration software before the new probe is energized. Failure to match sensitivity settings will result in incorrect vibration amplitude readings and may trigger spurious machinery protection trips.

For facilities also upgrading their condition monitoring infrastructure, the Bently Nevada 3500 Series Rack — including the 3500/01 Rack Interface Module and 3500/20 Power Supply Module — provides the communication backbone that links proximity probe data to the plant DCS or safety instrumented system. Confirming that the rack’s Modbus TCP or OPC-DA communication link to the control room historian remains intact during the probe swap is essential for maintaining continuous machinery health records without gaps in the trend data.

Where the control cabinet also houses a Bently Nevada TK3 Proximitor or an older 7200 Series probe system scheduled for parallel decommissioning, the wiring segregation between the legacy and new measurement channels must be verified to prevent ground loop interference. Proper shielding termination at the Proximitor barrier terminal block is critical in environments with variable-frequency drives or high-voltage switchgear in adjacent panels.

In applications where the 330195-02-12-10-00 is part of a broader I/O expansion or safety system upgrade, integration with the plant’s existing Bently Nevada System 1 Evolution software should be confirmed prior to commissioning. The software’s probe configuration wizard supports direct entry of the replacement probe’s serial number and calibration coefficients, enabling seamless handover from the legacy unit without requiring a full database rebuild.

Downtime Control During System Migration

Minimizing unplanned downtime during proximity probe replacement is a primary concern for rotating equipment engineers. The 330195-02-12-10-00 is supplied pre-tested and gap-verified, allowing installation teams to complete the physical swap and initial gap setting within a single planned maintenance window — typically under two hours for a single measurement point.

To protect the original program logic and alarm setpoints stored in the 3500 Series rack, all channel configuration data should be exported from System 1 or the rack’s front-panel keypad before work begins. This export serves as both a backup and a commissioning reference, allowing technicians to confirm that trip setpoints, alert levels, and time-constant filters are restored identically after the new probe is energized.

Where continuous process control is required and a brief bypass is unavoidable, the 3500 Series rack’s built-in bypass relay function can be activated to suppress machinery protection trips during the swap interval. This function should be coordinated with the control room operator and documented in the work permit to maintain safety system integrity throughout the procedure.

Post-installation, the gap voltage should be set to the midpoint of the linear range — typically -12 VDC for the 3300 XL 8mm system — and the probe output should be trended for a minimum of 30 minutes under normal operating conditions before the bypass is released. Any deviation from the pre-replacement baseline greater than 10% should be investigated before returning the machinery protection channel to automatic trip mode.

All units are shipped with an individual test report confirming output linearity, insulation resistance, and cable continuity. This documentation supports your site’s incoming inspection procedure and provides traceability for maintenance records and regulatory audits.

Retrofit Support FAQ

Q: Is the 330195-02-12-10-00 a direct replacement for the discontinued original Bently Nevada part?
A: Yes. This unit is a verified migration-ready replacement for the original 330195-02-12-10-00 proximity probe. It maintains identical mechanical dimensions, thread specification, cable length, and electrical output characteristics, allowing direct installation into existing 3300 XL probe brackets without modification.

Q: What commissioning steps are required after installation?
A: After physical installation, set the probe gap to achieve the target gap voltage per the 3300 XL calibration chart (typically -12 VDC at the design gap). Verify Proximitor output signal, confirm channel sensitivity in the 3500 Series rack configuration, and trend the output for 30 minutes under load before releasing any bypass. A full calibration record should be completed and filed with the equipment maintenance history.

Q: How do I confirm wiring compatibility with my existing terminal block layout?
A: The 330195-02-12-10-00 uses the standard 3300 XL integral cable color code (shield, center conductor). Terminal connections at the Proximitor barrier block follow the original Bently Nevada wiring diagram. No rewiring is required if the existing extension cable and Proximitor are retained. If the extension cable is being replaced simultaneously, refer to the 330130 series wiring guide for correct shield termination practice.

Q: What are the inventory availability and support terms terms?
A: Units are held availability confirmed by RFQ and available for immediate dispatch. Standard lead time for in-stock items is 3–5 business days for international shipments. Each unit is covered by a support terms confirmed by quotation against manufacturing defects from the date of shipment. Support requests are supported by the individual unit test report supplied with each shipment. Contact [email protected] or +86 18359268345 for current stock confirmation and volume pricing.
