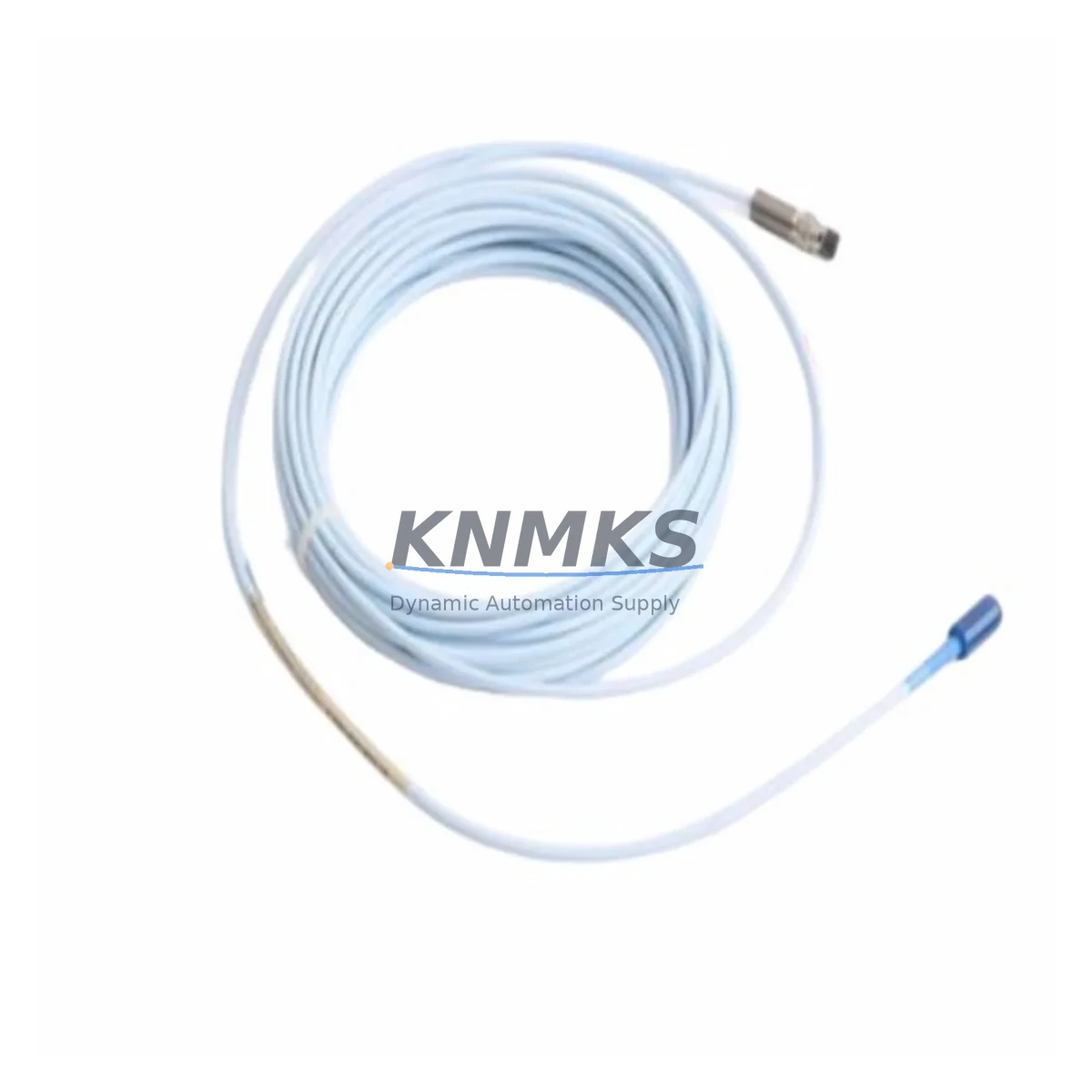

Bently Nevada 330195-02-12-05-CN Fail-Safe Proximity Probe

Overview

Bently Nevada 330195-02-12-05-CN Fail-Safe Proximity Probe: Fault-Tolerant Vibration Monitoring for Critical Industrial Sites

In continuous production environments where unplanned downtime carries severe operational and safety consequences, the Bently Nevada 330195-02-12-05-CN proximity probe delivers the fault-tolerant performance that rotating machinery protection demands. Part of the industry-proven Bently Nevada 3300 XL Series, this eddy-current proximity probe is engineered to maintain signal integrity under the most demanding field conditions — including high electromagnetic interference, mechanical vibration, thermal cycling, and moisture ingress — making it a cornerstone component in safety-critical vibration monitoring and machinery protection systems worldwide.

The 330195-02-12-05-CN is a 5-metre extension cable variant designed for precise radial and axial shaft displacement measurement on turbines, compressors, pumps, fans, and other rotating assets where early fault detection is non-negotiable. Its robust construction and SIL-rated signal chain ensure that control loop integrity is preserved even in the harshest petrochemical, power generation, mining, and metallurgical environments.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330195-02-12-05-CN proximity probe does not operate in isolation — its reliability is inseparable from the integrity of the complete vibration monitoring chain installed within the machinery protection cabinet. In a properly engineered protection system, this probe works in conjunction with the Bently Nevada 330180-X1-05 3300 XL 8mm Proximitor, which conditions the raw eddy-current signal into a calibrated DC voltage output suitable for the Bently Nevada 3500/42M Proximitor / Seismic Monitor rack module. Together, these components form a closed-loop vibration protection circuit capable of triggering automatic shutdown before catastrophic bearing failure occurs.

Within the control cabinet, signal integrity from the 330195-02-12-05-CN is further protected by proper grounding architecture and surge suppression. In high-EMI environments — such as those adjacent to variable frequency drives, large motor starters, or high-voltage switchgear — pairing the probe system with dedicated Bently Nevada I/O module barriers and shielded conduit runs is strongly recommended to prevent signal drift and false trips. For installations requiring redundant protection, dual-probe configurations using a second 330195-02-12-05-CN or a compatible 330105 series standard proximity probe provide the voting logic redundancy required by SIL 2 safety instrumented functions.

Power supply stability is equally critical. The 3300 XL Proximitor system requires a clean, regulated DC supply, and any fluctuation can introduce measurement offset errors. Deploying a Bently Nevada 3500/15 Power Supply module with built-in diagnostics ensures that the entire monitoring rack — including the proximity probe signal chain — remains energized and fault-free even during grid disturbances or cabinet power cycling events. This integrated approach to cabinet-level protection minimizes the risk of nuisance trips, missed alarms, and undetected machinery faults that could escalate into safety incidents.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous catalytic cracking units, ethylene compressor trains, and boiler feed pump systems, the 330195-02-12-05-CN provides real-time shaft displacement data that feeds directly into emergency shutdown (ESD) logic. Any deviation beyond alarm setpoints triggers protective action before seal failure or bearing seizure can propagate into a process safety event. The probe’s resistance to hydrocarbon vapors, high ambient temperatures, and aggressive cleaning agents makes it well-suited for Zone 1 and Zone 2 classified areas when installed with appropriate barriers.

Power Generation: Steam turbine and gas turbine protection systems in thermal and combined-cycle power plants rely on proximity probe arrays to monitor rotor eccentricity, differential expansion, and thrust position. The 330195-02-12-05-CN, integrated into a Bently Nevada 3500 Series rack, provides the sub-millisecond response time required to protect multi-hundred-megawatt generating assets from catastrophic overspeed or rotor rub events.

Mining & Mineral Processing: Ball mills, SAG mills, slurry pumps, and conveyor drive gearboxes in open-pit and underground mining operations are subject to extreme vibration, dust ingress, and shock loading. The robust mechanical construction of the 330195-02-12-05-CN probe — combined with its shielded extension cable — ensures reliable signal transmission even when mounted on equipment experiencing high-frequency structural vibration and intermittent electrical noise from nearby blasting operations or large crusher motors.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blower units in municipal water treatment facilities require continuous vibration monitoring to prevent unplanned outages that could disrupt water supply. The 330195-02-12-05-CN supports predictive maintenance programs by providing early warning of impeller imbalance, cavitation-induced vibration, and bearing wear — allowing maintenance teams to schedule interventions during planned downtime windows rather than responding to emergency failures.

Metallurgy & Steel Production: Rolling mill drives, continuous casting machines, and induction furnace cooling pumps operate in environments characterized by intense electromagnetic fields, high ambient temperatures, and heavy mechanical shock. The 330195-02-12-05-CN’s eddy-current sensing principle is inherently immune to contamination by metallic particles, making it the preferred displacement measurement technology in these environments where optical or capacitive sensors would fail rapidly.

Port & Marine Applications: Ship propulsion systems, crane slewing drives, and port terminal conveyor systems increasingly incorporate condition monitoring based on proximity probe technology. The 330195-02-12-05-CN’s corrosion-resistant construction and wide operating temperature range make it suitable for marine-grade installations where salt air, humidity cycling, and vibration from wave action present ongoing reliability challenges.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the Bently Nevada 330195-02-12-05-CN?
All 330195-02-12-05-CN proximity probes supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support requests are processed promptly with replacement or repair options to minimize your site downtime.

Q2: What pre-shipment testing and inspection is performed?
Every unit undergoes outgoing quality inspection prior to dispatch, including visual inspection for physical integrity, connector condition verification, and functional checks against Bently Nevada 3300 XL system specifications. Units sourced as surplus new are additionally inspected for storage condition and packaging integrity to ensure they meet field-ready standards.

Q3: Is the 330195-02-12-05-CN compatible with existing Bently Nevada 3300 XL installations?
Yes. The 330195-02-12-05-CN is a direct replacement for existing 3300 XL 8mm proximity probe assemblies with 5-metre extension cables and CN connectors. It is fully compatible with the Bently Nevada 330180 series Proximitor modules and the 3500 Series monitoring rack without requiring recalibration of the driver electronics, provided the target material and gap distance are set according to Bently Nevada installation guidelines.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
KNMKS maintains dedicated inventory of the 330195-02-12-05-CN and related 3300 XL series components to support planned maintenance schedules, annual turnaround shutdowns, and emergency replacement requirements. Our procurement network ensures access to genuine and surplus-new stock, providing supply chain resilience for facilities that depend on Bently Nevada systems for continuous machinery protection.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330195-02-12-05-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330195-02-12-05-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
