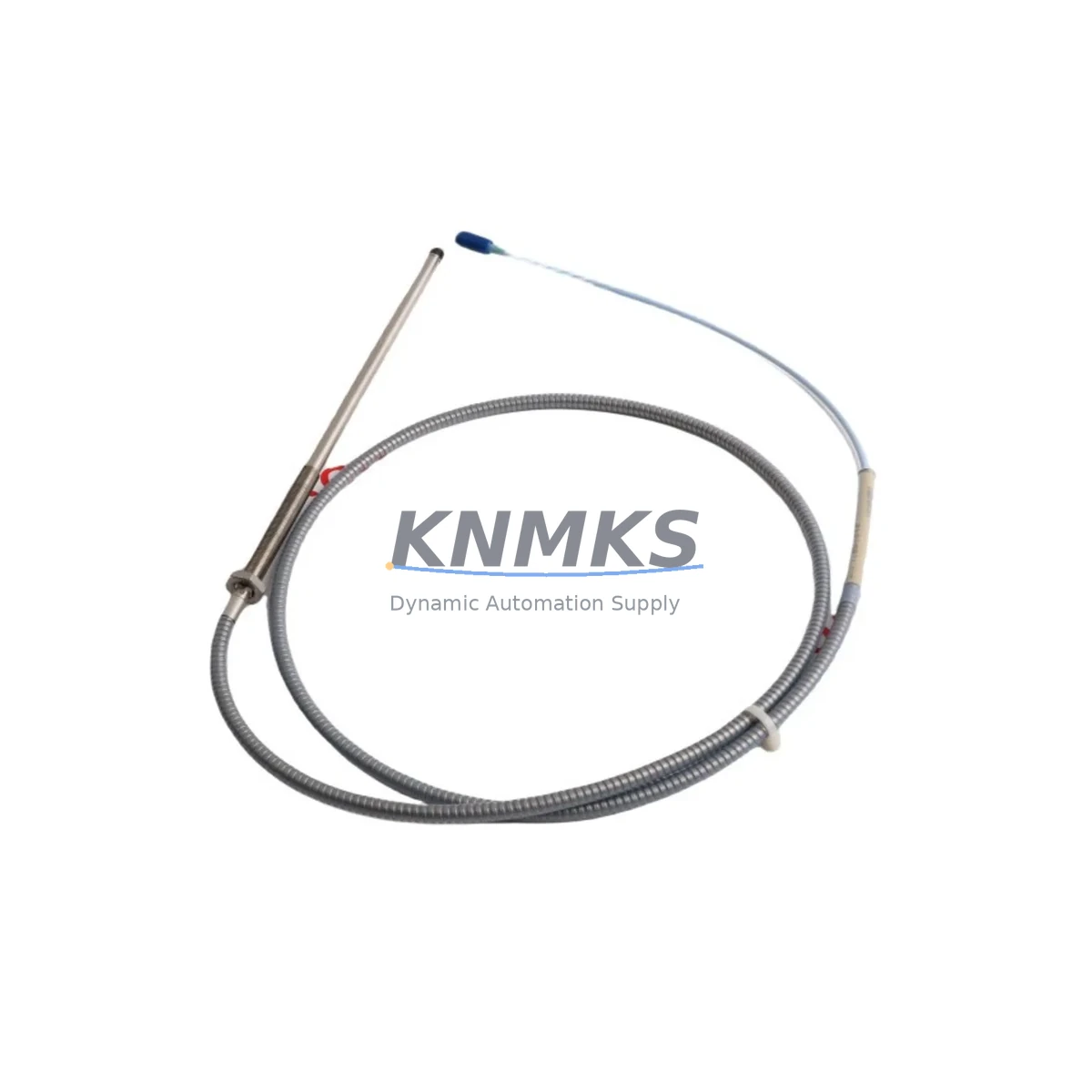

Bently Nevada 330194-18-25-50-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330194-18-25-50-00 Fail-Safe Proximity Probe: Fault-Tolerant Vibration Monitoring for Critical Industrial Sites

The Bently Nevada 330194-18-25-50-00 is an 8mm eddy-current proximity probe engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed as a core component of the Bently Nevada 3300 XL Series condition monitoring system, this probe delivers high-resolution, non-contact measurement of shaft radial vibration, axial position, and differential expansion — providing the real-time data that plant engineers rely on to prevent catastrophic rotating machinery failures.

In petrochemical refineries, power generation turbines, mining compressors, water treatment pump stations, metallurgical rolling mills, port crane drives, and continuous manufacturing lines, unplanned machinery downtime is not merely a productivity issue — it is a safety and financial crisis. The 330194-18-25-50-00 is purpose-built to eliminate the root causes of control interruption: signal drift under thermal cycling, measurement error from electromagnetic interference, and probe failure in high-vibration, high-humidity, or chemically aggressive atmospheres.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring is never a standalone function — it is the result of a carefully integrated protection architecture. The 330194-18-25-50-00 probe operates in conjunction with the Bently Nevada 330130-045-00-00 extension cable, which provides the critical signal path between the probe and the driver, maintaining signal integrity across long cable runs in high-EMI control cabinets. The probe connects to the Bently Nevada 3300 XL 8mm Driver (330180-X1-05), which conditions the raw eddy-current signal into a calibrated voltage output readable by the monitoring rack.

Within the control cabinet, the Bently Nevada 3500/42M Proximitor Monitor processes the conditioned signal, executing alarm and trip logic that feeds directly into the plant’s safety instrumented system (SIS). To protect the entire monitoring loop from power-side disturbances — including voltage sags, surges, and harmonic distortion common in heavy industrial facilities — a dedicated 24 VDC DIN-rail power supply with surge protection (such as the Phoenix Contact QUINT series or equivalent) is strongly recommended as the cabinet power source for the monitoring rack.

In high-vibration environments such as reciprocating compressor skids or large centrifugal pump stations, the probe mounting hardware — including the Bently Nevada 330105 proximity probe mounting bracket — must be torqued and locked to prevent gap drift caused by structural vibration. Additionally, for installations in hazardous classified areas (Zone 1 / Division 1), the Bently Nevada 3300 XL Zener Barrier or galvanic isolator must be inserted in the signal loop to maintain intrinsic safety compliance and prevent ignition risk from electrical faults in the field wiring.

This complete protection chain — probe, extension cable, driver, monitor rack, power supply, and safety barrier — ensures that the 330194-18-25-50-00 delivers uninterrupted, drift-free vibration data even under the most severe cabinet thermal loads, ground loop interference, and supply voltage fluctuations.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 330194-18-25-50-00 is deployed on centrifugal compressors, reactor feed pumps, and steam turbine-driven generators — machinery where a bearing failure without early warning can trigger a process shutdown, fire, or explosion. The probe’s API 670-compliant design ensures it meets the machinery protection requirements mandated by international process safety standards.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — this probe monitors shaft radial vibration on turbine-generator sets operating at 3000 or 3600 RPM. Its wide operating temperature range and resistance to steam and oil mist ingress make it suitable for both the hot end of the turbine and the generator bearing pedestals.

In mining and mineral processing operations, where ball mills, SAG mills, and large slurry pumps operate in dusty, wet, and high-vibration conditions, the 330194-18-25-50-00’s IP67-rated probe body and armored cable construction prevent moisture ingress and cable abrasion failures that would otherwise cause nuisance trips or, worse, missed alarm conditions.

In water and wastewater treatment plants, the probe is used on large vertical turbine pumps and blower trains, where continuous operation is critical to public health infrastructure. Its long-term stability and low maintenance requirements reduce the need for scheduled calibration outages.

In metallurgical and steel mill applications — including rolling mill drive trains and continuous casting machine drives — the probe withstands the intense electromagnetic interference generated by large variable-frequency drives and DC motor controllers, maintaining measurement accuracy without signal filtering delays that could mask developing faults.

In port and marine applications, including shipboard propulsion systems and harbor crane hoisting drives, the probe’s corrosion-resistant construction and sealed cable assembly provide reliable service in salt-air and high-humidity environments where standard instrumentation degrades rapidly.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330194-18-25-50-00?
The support terms confirmed by quotation cover all manufacturing defects, functional failures, and out-of-specification performance identified under normal operating conditions. If the probe fails to meet its published scale factor, linearity, or temperature specifications within the confirmed support period, KNMKS will provide a replacement unit or documented resolution support. The confirmed support period begins from the date of shipment.

Q2: What pre-shipment testing is performed on this proximity probe?
Every 330194-18-25-50-00 unit undergoes a functional verification test prior to shipment. This includes scale factor verification against a calibrated target, cable continuity and insulation resistance check, and connector integrity inspection. A test report is available upon request for critical plant applications requiring documented traceability.

Q3: Is the 330194-18-25-50-00 directly compatible with the Bently Nevada 3500 Series monitoring rack?
The 330194-18-25-50-00 is natively designed for the Bently Nevada 3300 XL monitoring system. It is compatible with the 3500 Series rack when used with the appropriate 3300 XL driver (330180 series) and the correct proximitor input module. For direct 3500/42M or 3500/40M compatibility, confirm the driver and cable assembly configuration with your system integrator before installation.

Q4: Can KNMKS guarantee long-term supply and replacement support for this part?
Yes. KNMKS maintains dedicated inventory of Bently Nevada 3300 XL series components, including the 330194-18-25-50-00 and its associated extension cables, drivers, and mounting hardware. For plants requiring ongoing spare parts programs or annual blanket orders, our sales team can arrange priority allocation and lead-time guarantees to support your planned maintenance and emergency replacement requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330194-18-25-50-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330194-18-25-50-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
