Bently Nevada 330194-13-20-10-00 Maintenance-Proven Spare Part for Factory Uptime

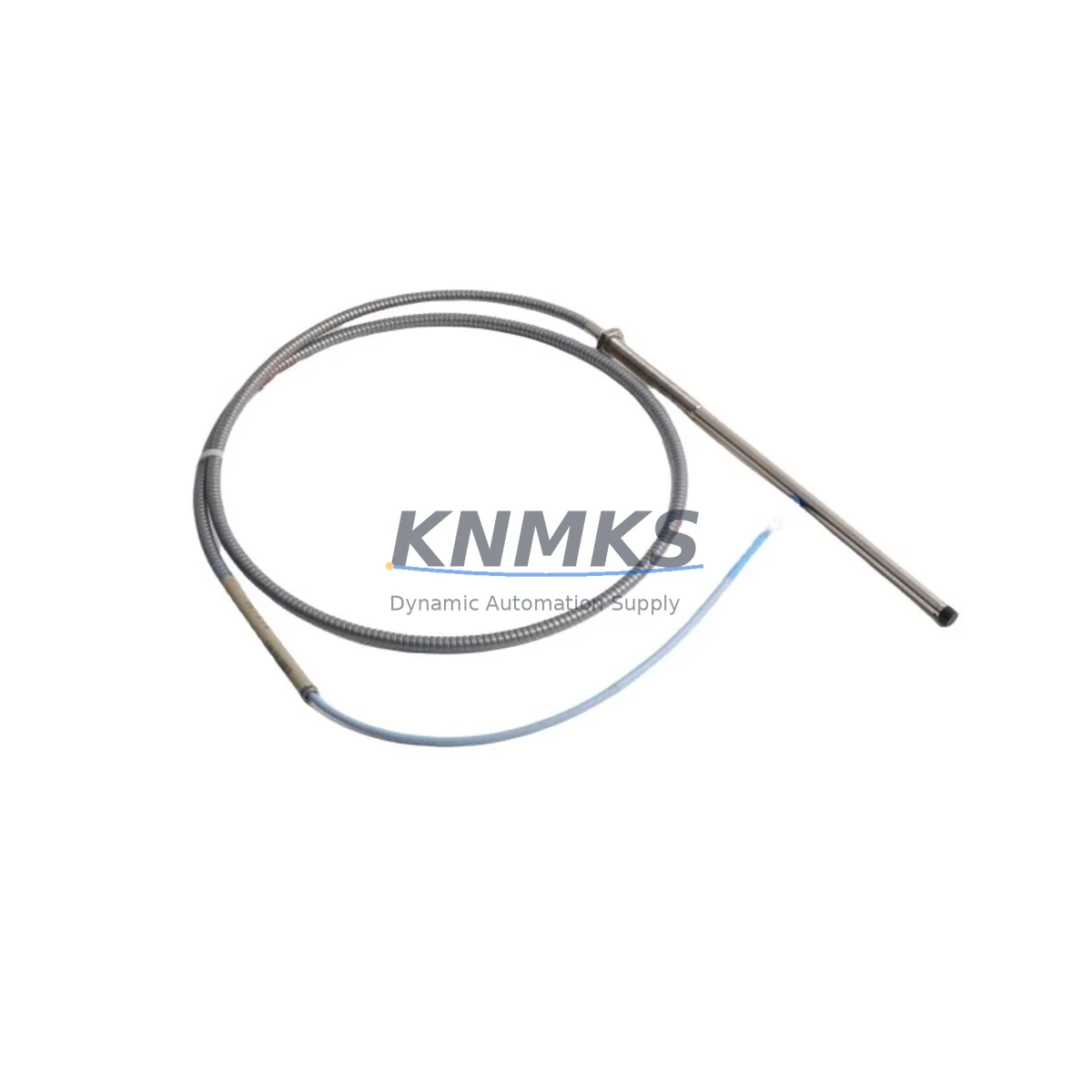

The Bently Nevada 330194-13-20-10-00 is an original proximity probe designed for the 3300 XL Extended Temperature Range (ETR) vibration monitoring system. As a critical sensing element in rotating machinery protection, this probe delivers reliable shaft displacement and vibration measurements in demanding industrial environments including turbines, compressors, pumps, and generators. Maintaining a verified spare of the 330194-13-20-10-00 in your critical spare parts inventory is a proven strategy to minimize unplanned downtime and protect high-value rotating assets.

For maintenance engineers managing continuous process plants, the 330194-13-20-10-00 represents a front-line defense against catastrophic machinery failure. Its eddy-current sensing principle provides non-contact, wear-free measurement, making it a long-service component — but one that must be replaced immediately upon calibration drift, cable damage, or tip contamination. Procurement engineers sourcing this part should verify the full part number suffix (-13-20-10-00) to confirm probe length, cable length, and connector type before ordering.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330194-13-20-10-00 proximity probe in the field, a thorough inspection of the surrounding measurement chain is essential to ensure the replacement restores full system integrity. The probe alone does not operate in isolation — it is part of a complete vibration monitoring loop that must be validated end-to-end.

Begin by inspecting the Bently Nevada 330130 extension cable, which connects the probe to the proximitor/driver. Cable jacket abrasion, connector corrosion, or shield continuity loss are common failure modes in high-vibration environments and can cause false readings even with a new probe installed. Next, verify the Bently Nevada 3300 XL Proximitor/Seismic Monitor (such as the 3300/16 or 3300/20 series) for correct gap voltage output — typically -10 VDC at the nominal 1.0 mm gap — using a calibrated gap simulator.

Check the 24 VDC power supply module feeding the monitor rack. Voltage sag or ripple on the DC bus can introduce noise into the proximity signal and trigger nuisance trips. If the control cabinet houses a Bently Nevada 3500 series rack alongside legacy 3300 XL hardware, inspect the rack backplane connectors and I/O terminal blocks for oxidation or loose terminations. For plants running DCS integration via 4–20 mA or FOUNDATION Fieldbus, confirm that the signal conditioner or isolator module (such as a Phoenix Contact or Pepperl+Fuchs signal isolator) is within calibration and free of ground loops.

During annual shutdown maintenance, it is good practice to simultaneously inspect keyphasor probes (e.g., Bently Nevada 330180 series) mounted on the same shaft, as these share the same environmental exposure and wear profile. Relay output modules connected to the monitor’s trip outputs should also be tested for contact resistance and actuation time. Finally, review the junction box terminal strips and cable glands for moisture ingress — a leading cause of insulation resistance degradation in outdoor or wash-down installations.

Stocking the 330194-13-20-10-00 alongside its companion extension cable and a spare proximitor module is the recommended approach for plants with API 670 compliance requirements, ensuring that a complete measurement channel can be restored within a single maintenance window.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the monitor channel at the 3300 XL rack. Note the current gap voltage and vibration baseline values from the DCS historian before disconnecting.

Step 2 — Probe Removal: Disconnect the extension cable at the junction box. Unthread the probe from its mounting bracket using the correct spanner. Inspect the probe tip for mechanical damage, target surface condition, and thread integrity.

Step 3 — New Probe Installation: Install the 330194-13-20-10-00 replacement probe. Set the air gap to the manufacturer-specified nominal value (typically 1.0 mm / 40 mil) using a feeler gauge or gap voltage measurement. Torque the locknut to specification.

Step 4 — System Verification: Reconnect the extension cable. Power up the monitor channel and verify gap voltage is within the linear range (-10 VDC ±0.5 VDC). Confirm vibration readings are stable and within baseline. Check for any alert or danger setpoint violations before returning the channel to service.

Step 5 — Documentation: Record the replacement date, new probe serial number, gap voltage, and technician ID in the plant CMMS. Update the spare parts inventory to trigger reorder of the consumed 330194-13-20-10-00 unit.

This workflow is compatible with direct replacement of legacy 330100 series probes in existing 3300 XL installations, provided the cable length and connector suffix are matched. No firmware changes to the monitor are required for a like-for-like probe swap.

Spare Parts Support FAQ

Q1: Is the 330194-13-20-10-00 a direct replacement for older Bently Nevada 330100 series probes?
A: In most 3300 XL ETR installations, yes — the 330194 series is the current production replacement for the legacy 330100 series. However, always verify the cable length suffix and connector type against your existing installation drawing before ordering to ensure a drop-in fit without rewiring.

Q2: How should I verify the probe is functioning correctly before installation?
A: Each 330194-13-20-10-00 unit shipped by KNMKS undergoes pre-shipment functional testing including gap voltage linearity verification and insulation resistance check. Upon receipt, inspect the probe tip and cable jacket for transit damage, then perform a bench gap test using a steel target and a calibrated power supply before installing in the machine.

Q3: What is the recommended spare parts stocking strategy for this probe?
A: For critical rotating machinery (API 670 applications), maintain a minimum of one spare probe per monitored shaft, plus one spare extension cable and one spare proximitor module per monitor rack. For non-critical applications, a shared pool of two to three probes per plant site is typically sufficient to cover emergency replacements within a planned maintenance window.

Q4: What support terms and long-term supply support does KNMKS provide?
A: All 330194-13-20-10-00 units carry a support terms confirmed by quotation covering manufacturing defects and functional performance. KNMKS maintains long-term inventory of Bently Nevada 3300 XL series spare parts to support plants operating legacy systems beyond OEM active production. Contact our team for volume pricing, consignment stock agreements, and expedited shipping options for emergency breakdown situations.
