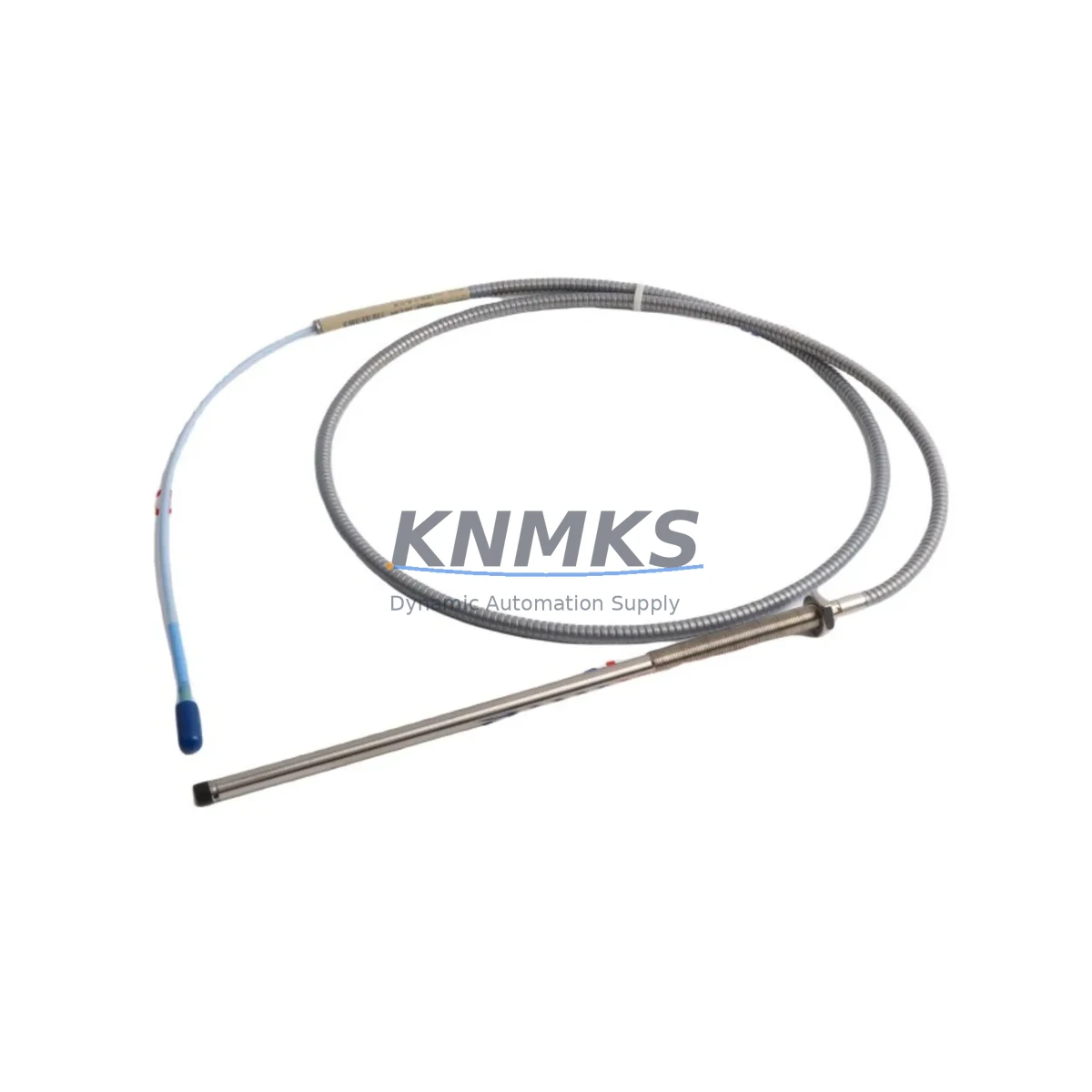

Bently Nevada 330194-11-21-15-00 Migration-Ready Proximity Probe

Overview

Bently Nevada 330194-11-21-15-00 Migration-Ready Proximity Probe: Legacy System Retrofit & Compatibility Upgrade

The Bently Nevada 330194-11-21-15-00 is a migration-ready proximity probe engineered for seamless integration into aging 3300 XL Extended Temperature Range (ETR) vibration monitoring systems. As industrial facilities face increasing pressure to extend the operational life of legacy control architectures while maintaining measurement accuracy and system reliability, this probe serves as a verified drop-in replacement for discontinued or end-of-life proximity sensing components across rotating machinery protection platforms.

Designed for eddy-current non-contact displacement measurement, the 330194-11-21-15-00 operates within the Bently Nevada 3300 XL system framework, delivering consistent gap voltage output compatible with the 3300 XL 8mm Proximitor Sensor signal conditioning modules. Engineers undertaking control cabinet upgrades or brownfield automation retrofits will find this probe particularly valuable when the original sensing chain — from probe tip through extension cable to Proximitor — must be preserved without reprogramming the vibration monitor’s alarm setpoints or recalibrating the full measurement loop.

When planning a retrofit around the 330194-11-21-15-00, the first verification step is confirming power supply capacity within the existing control cabinet. The 3300 XL Proximitor requires a regulated –24 VDC supply, and any upgrade to the Bently Nevada 3300/16-24-01 Power Supply or equivalent must account for the total current draw across all active Proximitor channels. Undersized power rails are a common root cause of intermittent signal dropout during post-retrofit commissioning, particularly in multi-channel machinery protection panels where I/O density is high.

Terminal wiring compatibility is the next critical checkpoint. The 330194-11-21-15-00 uses a standard armored coaxial cable assembly with a defined characteristic impedance, and the extension cable — typically a 330130 Series Extension Cable — must match the probe’s cable length specification to maintain the correct system scale factor (mV/mil or mV/µm). Mismatched cable lengths alter the Proximitor’s output sensitivity and will produce erroneous vibration amplitude readings unless the monitor’s scale factor is reconfigured. During legacy system migration, always document the original cable length before removal.

Backplane interface and module addressing are equally important when this probe is deployed within a Bently Nevada 3500 Series rack-based machinery protection system during a phased migration from 3300 XL architecture. The 3500/42M Proximitor I/O Module accepts the same eddy-current probe signal format, but rack slot addressing and channel configuration must be re-established through the 3500 Rack Configuration Software. Failure to correctly map probe channels to the corresponding I/O module addresses will result in the System 1 condition monitoring software displaying incorrect machine train data or triggering spurious trip signals.

Program logic compatibility deserves careful attention when the 330194-11-21-15-00 is integrated into a control system where the vibration monitor’s relay outputs feed a Bently Nevada 3500/32 4-Channel Relay Module or a third-party PLC safety interlock. The relay trip setpoints, time delays, and latching behavior configured in the original system must be verified against the new probe’s sensitivity and the updated signal chain before live commissioning. HMI screen templates linked to vibration trend displays should also be reviewed to confirm that engineering unit scaling and alarm threshold annotations remain accurate after the probe swap.

Communication link integrity is a frequently overlooked aspect of proximity probe migration. In systems where the 3300 XL or 3500 rack communicates with a DCS or SCADA platform via Modbus RTU, the data register map for vibration gap, direct, and 1X/2X amplitude values must be validated post-replacement. Any change in Proximitor channel assignment or rack slot configuration can shift register addresses, causing the upstream control system to read stale or misaligned vibration data. Coordinating with the DCS engineering team before cutover significantly reduces the risk of communication link errors during the migration window.

Installation space confirmation is a practical prerequisite often underestimated in retrofit planning. The 330194-11-21-15-00 probe body dimensions and mounting thread specification (typically 3/8-24 UNF) must be verified against the existing probe holder or bracket on the machine casing. In tight bearing housing configurations, the available clearance for the armored cable exit and the minimum bend radius of the coaxial assembly can constrain installation options. Pre-staging the probe assembly on a bench mockup before machine outage reduces on-site fitting time and supports downtime control objectives.

Firmware version compatibility applies when the 330194-11-21-15-00 is used alongside updated Bently Nevada 3500/22M Transient Data Interface modules or newer System 1 software releases. Confirm that the Proximitor firmware revision is consistent with the rack’s current software baseline to avoid feature incompatibilities in transient capture or waveform buffering functions.

All units supplied by KNMKS undergo pre-shipment functional testing, including gap voltage output verification at the specified probe-to-target gap distance, insulation resistance check on the coaxial cable assembly, and connector integrity inspection. Each 330194-11-21-15-00 is backed by a support terms confirmed by quotation covering manufacturing defects and functional performance, supporting your spare parts lifecycle management strategy for critical rotating machinery protection systems.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the 330194-11-21-15-00 requires a structured bill-of-materials review across the entire sensing chain and associated control infrastructure. Beyond the probe itself, the most commonly required companion components in a 3300 XL or 3500 Series migration project include the Bently Nevada 330130-080-00-00 Extension Cable for signal transmission between the probe and Proximitor, the 3300 XL 8mm Proximitor Sensor (330180 Series) for signal conditioning, and the Bently Nevada 3500/20 Rack Interface Module for system communication and configuration access.

In control cabinets where the vibration monitoring rack shares a backplane with process I/O, the Bently Nevada 3500/32 4-Channel Relay Module is frequently reviewed during retrofit planning to confirm that trip relay wiring to the machine’s emergency shutdown system remains intact after the probe channel is remapped. For facilities migrating from standalone 3300 XL monitors to integrated 3500 rack architecture, the Bently Nevada 3500/42M Proximitor I/O Module provides the interface layer that accepts the 330194-11-21-15-00 signal and presents it to the rack’s internal communication bus.

Where the legacy system includes a dedicated operator interface, HMI screen templates linked to vibration gap and amplitude trend displays must be updated to reflect any changes in channel addressing or engineering unit scaling introduced during the retrofit. Coordinating HMI updates with probe installation during a planned maintenance window minimizes the risk of operators responding to stale or incorrectly scaled vibration data during the post-retrofit stabilization period.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe migration requires pre-staging all replacement components — including the 330194-11-21-15-00, extension cable, and any updated Proximitor modules — before the machine outage window begins. A parallel verification bench, where the new probe assembly is powered and gap voltage output is confirmed against a steel target at the specified gap distance, eliminates the risk of discovering a defective component after the machine is already offline.

Preserving the original program logic is equally critical. Before disconnecting the existing probe, document all vibration monitor setpoints, relay configurations, and communication register assignments. Where the 3500 rack configuration is managed through software, export and archive the current rack configuration file so that it can be restored immediately if the new probe assembly requires troubleshooting during commissioning. This approach protects the original control logic and allows the engineering team to compare pre- and post-retrofit vibration baselines without ambiguity.

Field commissioning should follow a structured sequence: power-on verification of Proximitor output voltage, gap setting confirmation at the machine bearing housing, alarm setpoint validation through a simulated trip test, and communication link verification with the upstream DCS or SCADA system. Completing each step in sequence before returning the machine to service ensures that the retrofit does not introduce latent faults that could trigger nuisance trips or, more critically, fail to detect genuine machinery faults during normal operation.

Retrofit Support FAQ

Q: Is the 330194-11-21-15-00 a direct replacement for the original Bently Nevada probe in my 3300 XL system?
A: Yes. The 330194-11-21-15-00 is designed as a drop-in replacement for the corresponding 3300 XL 8mm proximity probe assembly. Verify that the total cable length (probe + extension) matches the original configuration to maintain the correct system scale factor without recalibration.

Q: What wiring changes are required when installing this probe in an existing control cabinet?
A: No wiring changes to the Proximitor terminal block are required for a like-for-like replacement. If the probe is being integrated into a 3500 Series rack for the first time, terminal assignments follow the 3500/42M I/O Module wiring diagram. Always de-energize the Proximitor supply before disconnecting or reconnecting probe cables.

Q: How do I confirm compatibility with my current firmware and System 1 software version?
A: The 330194-11-21-15-00 is compatible with current 3500 rack firmware baselines and System 1 condition monitoring software. Contact KNMKS with your rack firmware revision and System 1 version number for a specific compatibility confirmation before ordering.

Q: What does the support terms confirmed by quotation cover, and how quickly can replacement stock be supplied?
A: The support terms confirmed by quotation cover manufacturing defects and verified functional performance failures under normal operating conditions. KNMKS maintains inventory of the 330194-11-21-15-00 and can confirm lead time and availability at the time of inquiry. Contact [email protected] or +86 18359268345 for stock confirmation and expedited shipping options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330194-11-21-15-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330194-11-21-15-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
