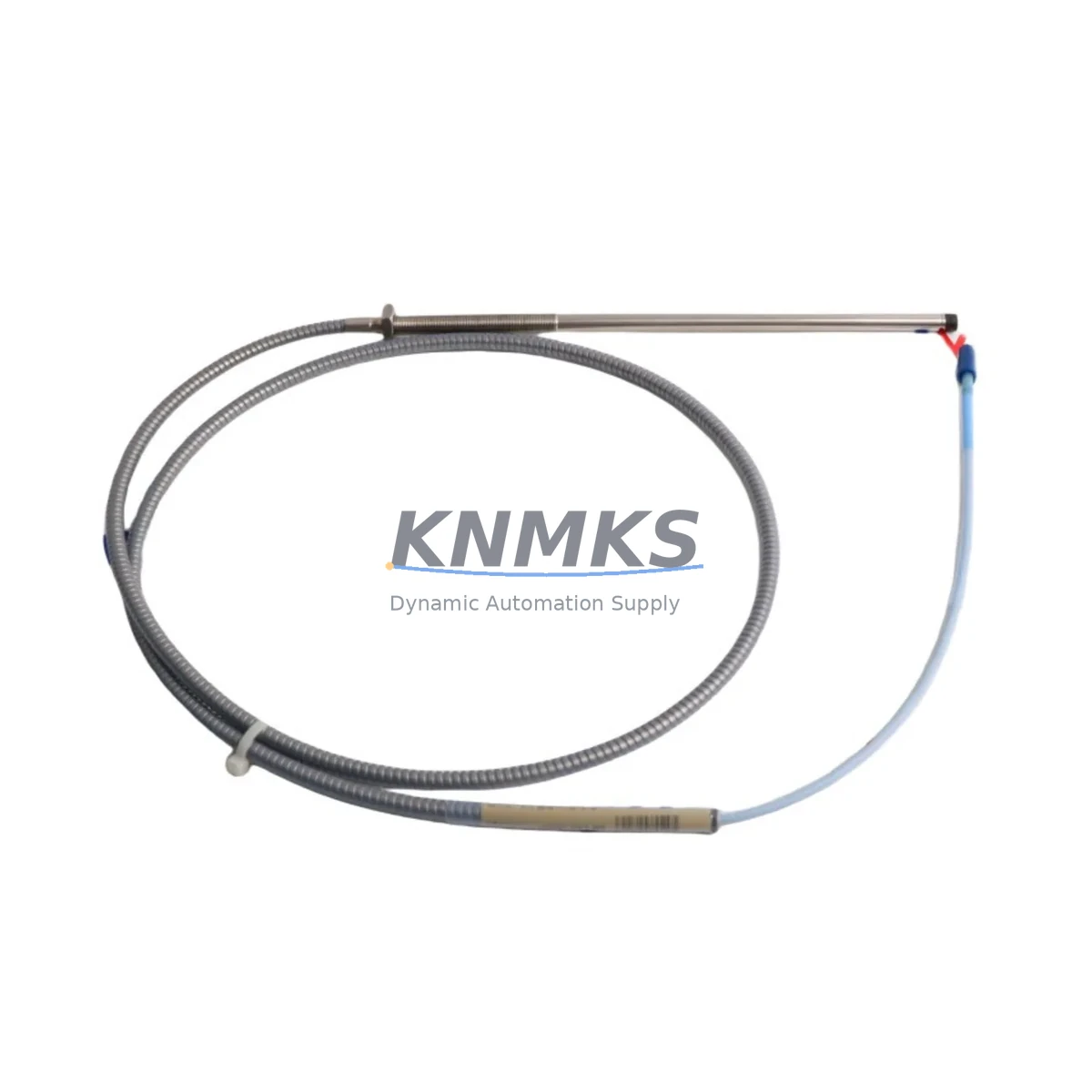

Bently Nevada 330194-00-05-90-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330194-00-05-90-00 Fail-Safe Proximity Probe: Industrial Control Reliability & Fault Protection

The Bently Nevada 330194-00-05-90-00 is a precision eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed to deliver fail-safe performance in the most demanding industrial environments, this probe is a critical component in rotating machinery protection circuits across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, and continuous manufacturing lines. With a 5-metre armored cable, 90-mil tip diameter, and a calibrated output range optimized for API 670-compliant monitoring loops, the 330194-00-05-90-00 provides the signal integrity and mechanical robustness required to protect high-value rotating assets around the clock.

In critical interlock and safety instrumented systems (SIS), signal reliability is non-negotiable. The 330194-00-05-90-00 is factory-calibrated to interface directly with the Bently Nevada 3300 XL Proximitor® Sensor (such as the 330180-X1-05 series), ensuring a matched, drift-free measurement chain from probe tip to control room. When paired with the 3300/16 Dual Voting Logic or a 3500/42M Proximitor®/Seismic Monitor module, the system achieves the redundancy and voting architecture demanded by IEC 61511 safety loops. Any deviation in gap voltage, signal amplitude, or cable continuity is immediately flagged, preventing false trips and undetected failures alike — the two failure modes most damaging to plant uptime and personnel safety.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection cabinet, the 330194-00-05-90-00 probe is never an isolated component — it is the sensing front-end of a layered protection architecture. The probe’s coaxial signal is routed through the Bently Nevada 330130-045-00-00 Extension Cable, which maintains signal integrity over long field runs between the machine bearing housing and the control room rack. At the rack, the 3300 XL Proximitor® Sensor (330180-X1-05) conditions the raw probe signal into a calibrated DC voltage and current output, feeding both the 3500/42M Proximitor®/Seismic Monitor for alarm and trip processing and the plant DCS historian for trend analysis.

Power supply stability is equally critical. The Proximitor and monitor modules are typically powered by a Bently Nevada 3500/15 Power Supply Module with redundant input capability, ensuring that a single power rail fault does not interrupt vibration monitoring. In high-EMI environments — common in variable-frequency drive (VFD) cabinets, large motor control centers, and arc furnace control rooms — the armored construction of the 330194-00-05-90-00 cable provides a first line of defense against induced noise that could cause spurious trips or mask genuine vibration events.

For plants operating under functional safety management, the probe is often deployed alongside a Bently Nevada 3500/22M Transient Data Interface, which captures high-resolution waveform data during startup and shutdown transients — the periods of greatest mechanical stress and highest risk of bearing damage. Together, these components form a complete, fail-safe vibration monitoring chain that protects compressors, turbines, pumps, and fans from undetected mechanical degradation, signal drift, surge events, and catastrophic failure.

Critical Industrial Safety Applications

Petrochemical & Refinery: In continuous process plants, an unplanned compressor or pump trip can trigger cascading shutdowns costing hundreds of thousands of dollars per hour. The 330194-00-05-90-00 is deployed on critical rotating equipment — centrifugal compressors, boiler feed pumps, and reactor agitators — where its fail-safe signal chain ensures that any probe fault is immediately detected and annunciated, allowing operators to take controlled action rather than face a sudden, uncontrolled trip.

Power Generation: Steam turbines and gas turbines operate at speeds where bearing clearance changes of just a few microns can indicate imminent failure. The 330194-00-05-90-00, calibrated to the 3300 XL system’s sensitivity range, provides the sub-micron resolution needed for early warning of oil whirl, rub, and unbalance — enabling condition-based maintenance rather than time-based overhaul schedules.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust loading, high vibration, and wide temperature swings. The armored cable and robust tip construction of the 330194-00-05-90-00 withstand these conditions without signal degradation, maintaining reliable shaft position monitoring even when ambient conditions would compromise lesser sensors.

Water & Wastewater Treatment: Large vertical turbine pumps and blower trains in water treatment facilities run continuously, often unattended. The 330194-00-05-90-00 provides the continuous radial vibration monitoring needed to detect bearing wear, impeller imbalance, and cavitation damage before they escalate to catastrophic failure and service interruption.

Metallurgy & Steel: Rolling mill drives, continuous casters, and induction furnace cooling pumps operate in environments with intense electromagnetic interference from high-current bus bars and induction heating systems. The double-shielded cable of the 330194-00-05-90-00 maintains signal integrity in these high-EMI environments, ensuring that vibration alarms are not masked by electrical noise.

Marine & Port Equipment: Ship propulsion systems, crane drives, and port conveyor systems require vibration monitoring solutions that tolerate salt air, humidity, and mechanical shock. The 330194-00-05-90-00’s environmental ratings make it suitable for these demanding marine and port applications, supporting predictive maintenance programs that minimize vessel downtime and cargo handling disruptions.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330194-00-05-90-00?
Every 330194-00-05-90-00 unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Support requests are processed promptly, with replacement or repair dispatched to minimize your equipment downtime.

Q2: How is each unit tested before shipment?
All units undergo a comprehensive pre-shipment inspection that includes visual examination, cable continuity and insulation resistance testing, and functional verification against Bently Nevada calibration standards. Only units that pass all checks are released for shipment, ensuring you receive a fully operational probe ready for immediate installation.

Q3: Is the 330194-00-05-90-00 compatible with my existing 3300 XL or 3500 Series system?
Yes. The 330194-00-05-90-00 is designed for direct compatibility with the Bently Nevada 3300 XL Proximitor® Sensor family and is also compatible with 3500 Series monitor modules including the 3500/42M and 3500/40M when used with the appropriate Proximitor. Always verify the extension cable length and connector type match your existing installation before ordering.

Q4: Can KNMKS support long-term and emergency spare parts requirements?
Yes. KNMKS maintains stock of the 330194-00-05-90-00 and related 3300 XL series components to support both planned maintenance schedules and emergency breakdown situations. We offer global delivery details confirmed by RFQ and can provide documentation packages including test reports and certificates of conformance to support your maintenance management system and regulatory compliance requirements.
