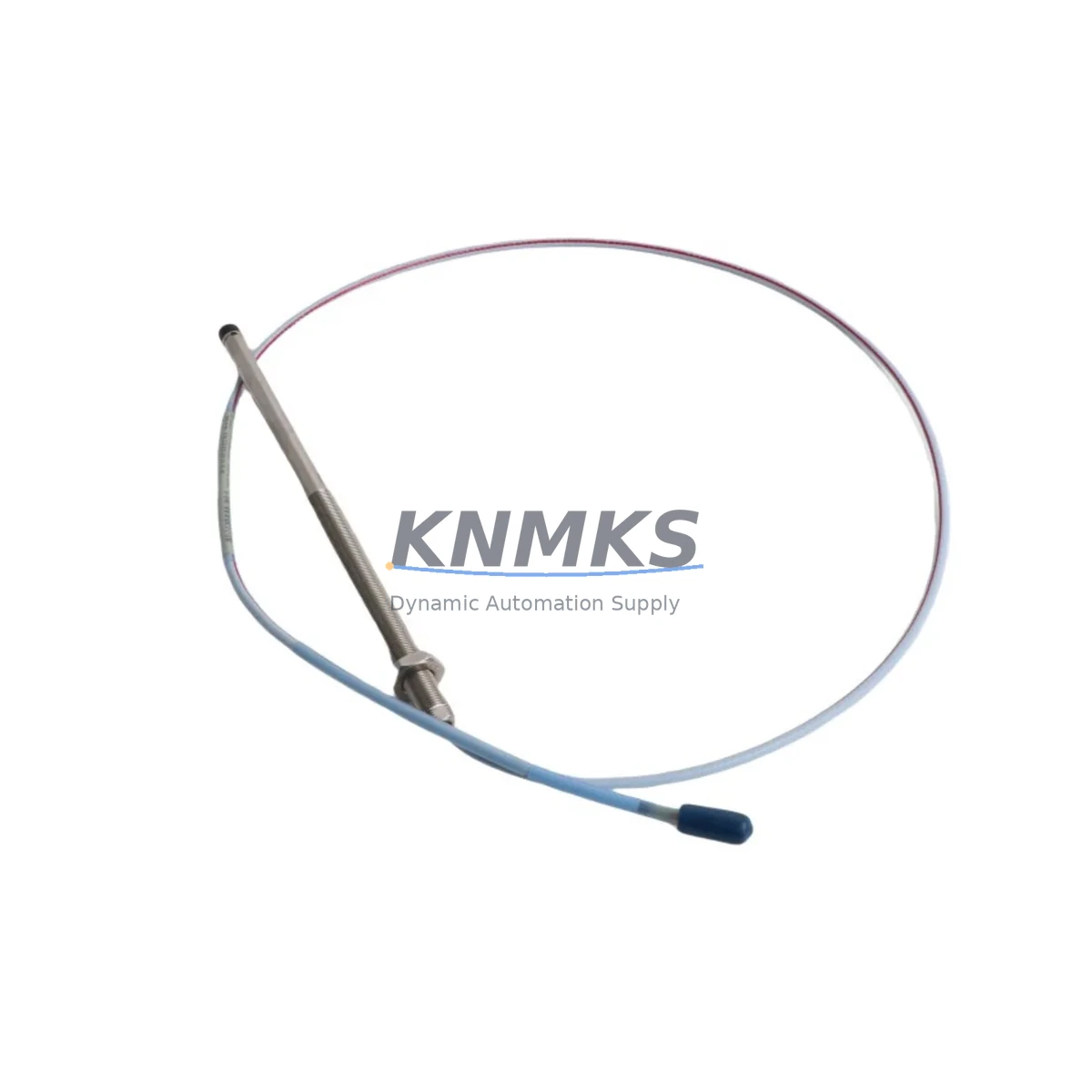

Bently Nevada 330193-00-08-10-00 Migration-Ready Proximity Probe

Overview

Bently Nevada 330193-00-08-10-00 Migration-Ready Proximity Probe: Legacy System Retrofit & Upgrade

The Bently Nevada 330193-00-08-10-00 is an 8mm proximity probe engineered for direct integration into legacy vibration monitoring and machinery protection systems. As industrial facilities accelerate the retirement of aging control infrastructure, this probe has become a critical component in retrofit projects targeting the Bently Nevada 3300 XL Extended Temperature Range (ETR) platform and its predecessor architectures. Whether you are replacing a discontinued spare, restoring a dormant monitoring loop, or upgrading an entire machinery protection cabinet, the 330193-00-08-10-00 delivers the dimensional accuracy, signal integrity, and system compatibility required to minimize engineering risk and reduce commissioning time on the plant floor.

Procurement teams and reliability engineers sourcing this model are typically managing one of three scenarios: an emergency replacement for a failed probe on a critical rotating asset, a planned retrofit during a scheduled outage, or a long-term spares strategy to extend the operational life of a 3300 XL monitoring system beyond the original OEM support window. In all three cases, the 330193-00-08-10-00 provides a verified drop-in solution with documented compatibility across the standard Bently Nevada signal chain — from the probe tip through the extension cable to the proximitor/driver and ultimately to the monitor module in the rack.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the 330193-00-08-10-00 requires a systematic review of the entire measurement chain, not just the probe itself. Engineers who have completed similar projects on compressor trains, steam turbines, and large induction motors consistently identify the same set of interdependencies that must be resolved before the replacement probe is installed.

The first consideration is the proximitor driver. The 330193-00-08-10-00 is designed to operate with the Bently Nevada 3300 XL 8mm Proximitor, and the pairing must be verified before any field work begins. If the existing proximitor has been in service for more than ten years, it is common practice to replace it simultaneously with the probe rather than risk a second outage for a proximitor failure shortly after the probe swap. The extension cable — typically a 330130 series cable in lengths from 5 to 9 meters — must also be inspected for jacket integrity, connector corrosion, and continuity, as a degraded cable will introduce noise into the gap voltage signal and trigger false alarms on the monitor module.

Within the control cabinet, the monitor module receiving the proximitor output must be confirmed as compatible. In 3300 XL rack installations, the 3300/16 or 3300/20 monitor cards handle the signal conditioning and alarm setpoint logic. If the retrofit is part of a broader migration from a 3300 XL rack to a 3500 series rack, the monitor module, I/O module, and rack backplane all change simultaneously, and the probe-to-proximitor pairing must be re-evaluated against the new 3500/42M or 3500/40M monitor specifications. In these cases, the power supply module within the 3500 rack — typically a 3500/15 or 3500/05 — must be sized to support the additional channel load introduced by the expanded I/O configuration.

For facilities running DCS or PLC-based supervisory systems, the 4–20 mA or voltage output from the monitor module feeds into analog input cards on platforms such as the Rockwell Automation ControlLogix or Siemens S7-300/400 series. The signal scaling, engineering unit conversion, and alarm threshold configuration in the PLC program must be reviewed and updated to reflect the new probe’s scale factor if it differs from the unit being replaced. HMI screens displaying vibration trend data, gap voltage, and alarm status should be validated against the updated tag database before the machine is returned to service.

Finally, if the retrofit involves a machine that has been offline for an extended period, the gap voltage should be verified at the nominal air gap using a calibrated voltmeter before the bearing housing is closed. This step confirms that the probe, extension cable, and proximitor are functioning as a matched system and that the monitor module is receiving a signal within its configured input range.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary driver behind most proximity probe replacement projects, and the 330193-00-08-10-00 is stocked specifically to support rapid deployment in emergency and planned outage scenarios. The following practices have been validated across multiple industrial retrofit projects and are recommended for any facility managing a 3300 XL or legacy Bently Nevada system migration.

Pre-staging the replacement kit — probe, extension cable, proximitor, and any required connector adapters — before the machine is taken offline eliminates the most common source of outage extension: waiting for parts. Because the 330193-00-08-10-00 is a passive transducer with no firmware or configuration requirements of its own, the installation sequence is straightforward: remove the failed probe, inspect the probe boss thread and bearing housing bore, install the new probe to the specified gap, route and connect the extension cable, verify gap voltage at the proximitor output, and confirm the monitor module is reading within the expected range before closing the loop.

For facilities with redundant monitoring channels, the replacement can often be performed with the machine running at reduced load, provided the redundant channel remains active and the alarm management system is configured to bypass the channel under maintenance. This approach is particularly effective on large compressor trains where a full shutdown carries significant production cost.

Preserving the original PLC and HMI program logic is essential during any probe replacement that also involves a monitor module or rack upgrade. Before any hardware is removed, a full backup of the monitor configuration — including alarm setpoints, scale factors, and communication parameters — should be exported and stored. If the migration includes a rack change from 3300 XL to 3500 series, the configuration export from the 3300 System Monitor software should be used as the reference document for rebuilding the channel configuration in the 3500 Configuration Software, reducing the risk of setpoint transcription errors that could result in missed alarms or nuisance trips after restart.

All units shipped are functionally tested and dimensionally verified prior to dispatch. The support terms confirmed by quotation cover both functional performance and dimensional conformance, providing assurance that the replacement probe will perform to specification from the first day of operation.

Retrofit Support FAQ

Q: Is the 330193-00-08-10-00 a direct replacement for my existing 8mm Bently Nevada proximity probe?
A: In most 3300 XL ETR installations, yes. The 330193-00-08-10-00 is dimensionally and electrically compatible with the standard 8mm probe boss and the 3300 XL 8mm Proximitor. However, you should confirm the thread specification (M10 × 1.0), the cable length requirement, and the proximitor model before ordering to ensure the full system kit is correct for your application.

Q: Do I need to update any firmware or reconfigure the monitor module after replacing the probe?
A: The probe itself has no firmware. If you are replacing a probe with the same model number and scale factor, no monitor reconfiguration is required. If you are replacing a probe with a different scale factor or sensitivity, the monitor channel scale factor must be updated in the 3300 or 3500 System Monitor configuration software before the machine is returned to service.

Q: How do I verify correct installation before restarting the machine?
A: Set the probe gap to the nominal value specified in your machinery protection system documentation (typically 1.0 mm for 8mm probes). Measure the DC gap voltage at the proximitor output — it should read between −10 VDC and −18 VDC at nominal gap. Confirm the monitor module is displaying a valid gap voltage within the configured input range and that no fault or not-OK alarms are active before closing the bearing housing and restarting the machine.

Q: What is covered under the support terms confirmed by quotation, and what is your stock availability?
A: The support terms confirmed by quotation cover functional performance and dimensional conformance from the date of shipment. Units are tested prior to dispatch. Stock is maintained for rapid deployment to support both emergency replacements and planned outage schedules. Contact our team for current availability and lead time confirmation before your outage window.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330193-00-08-10-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330193-00-08-10-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
