Bently Nevada 330193-00-05-10-00 Maintenance-Proven Spare Part for Factory Uptime

Overview

Bently Nevada 330193-00-05-10-00 Maintenance-Proven Spare Part for Factory Uptime

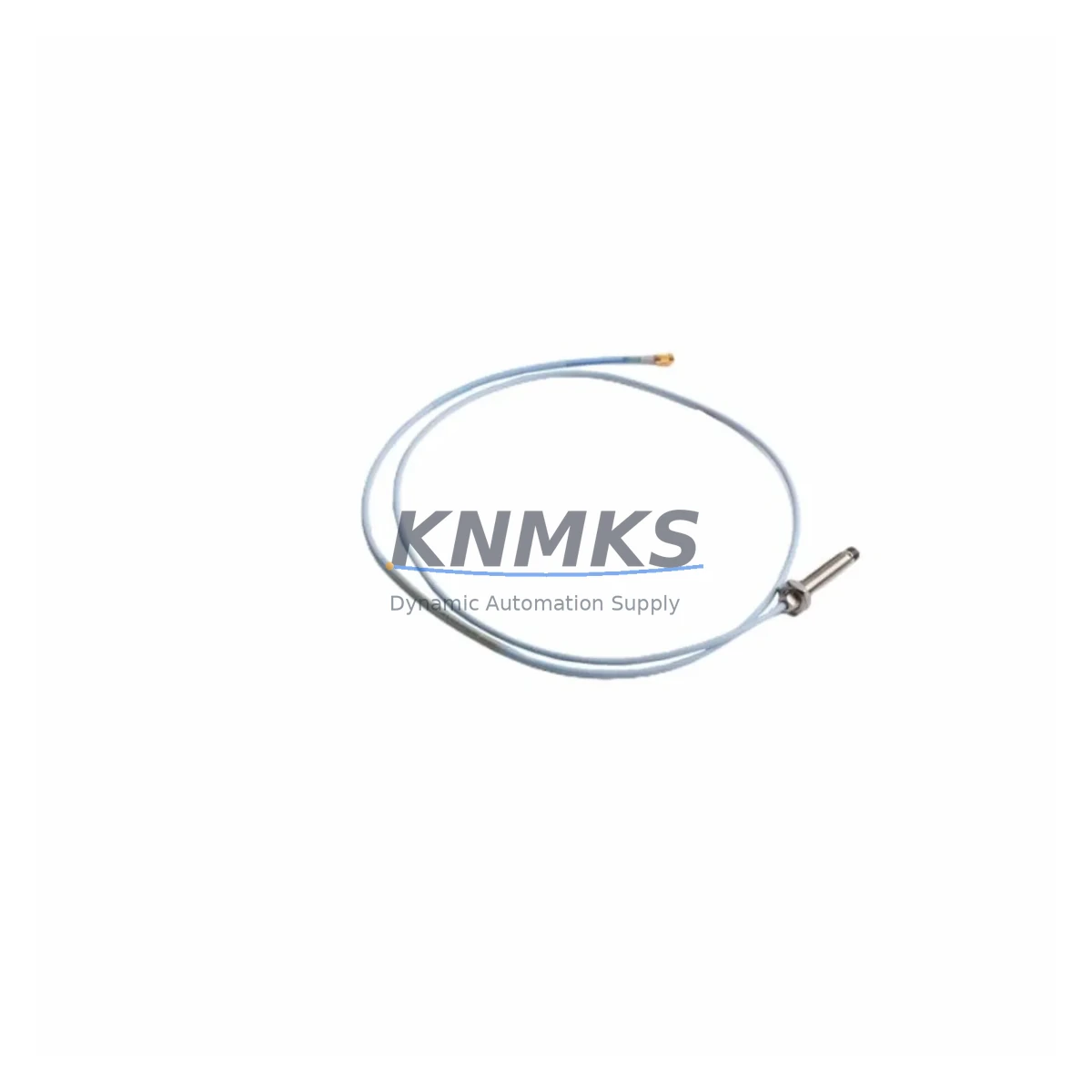

The Bently Nevada 330193-00-05-10-00 is an 8mm proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed for rotating machinery protection in turbines, compressors, pumps, and gearboxes, this probe delivers precise non-contact displacement measurement critical to plant uptime and predictive maintenance programs. Sourced as an original spare, the 330193-00-05-10-00 is a direct OEM-compatible replacement that integrates without recalibration into existing 3300 XL monitor racks.

For maintenance engineers managing aging rotating equipment, having a verified stock of 330193-00-05-10-00 probes eliminates the most common cause of unplanned vibration monitor downtime: probe failure or cable degradation. For procurement engineers, this part represents a low-risk, high-value line item in any annual spare parts budget — particularly for facilities operating API 670-compliant machinery protection systems.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330193-00-05-10-00 proximity probe in the field, a thorough inspection of the surrounding monitoring circuit is essential to prevent repeat failures and ensure measurement accuracy. Maintenance engineers should treat a probe replacement as a system-level checkpoint, not an isolated swap.

Begin by inspecting the extension cable (typically a 330130 or 330180 series cable) for jacket cracking, connector corrosion, or continuity loss — cable degradation is the leading cause of false vibration alarms and probe signal dropout. Next, verify the condition of the 3300 XL Proximitor sensor (e.g., 330180-X1-05), which converts the probe’s eddy current signal into a usable voltage output. A worn or thermally stressed Proximitor will produce drift even with a new probe installed.

Check the 3300 XL monitor module in the rack — models such as the 3300/16 or 3300/20 — for firmware version compatibility and channel configuration. Confirm that the I/O terminal block connections are torqued to spec and free of oxidation, particularly in humid or chemically aggressive environments. If the installation is in a hazardous area, inspect the Zener barrier or galvanic isolator in the intrinsic safety circuit for degradation.

For facilities running integrated condition monitoring, also verify the communication module (e.g., 3500/92 Ethernet I/O module or equivalent) to ensure data is transmitting correctly to the DCS or historian after the probe swap. Where the 3300 XL rack feeds a relay output module for trip or alarm logic, test the relay setpoints post-replacement to confirm no drift has occurred. Finally, check the rack power supply (e.g., 3300/20 power supply module) output voltage — an under-voltage condition can cause erratic probe readings that mimic mechanical faults.

Stocking one spare 330193-00-05-10-00 probe per monitored machine train, alongside a matched extension cable and Proximitor, is the industry-standard approach for facilities targeting MTTR under four hours on critical rotating equipment.

Site Replacement Workflow

Step 1 — Isolation: Coordinate with operations to place the affected machine in a safe state. Isolate the monitor channel at the rack before disconnecting the probe to avoid false trip signals.

Step 2 — Probe Removal: Loosen the probe locknut and back the probe out of the bracket. Record the gap voltage reading prior to removal if the machine is still rotating at low speed — this provides a baseline for the new probe setup.

Step 3 — Cable Inspection: Disconnect the extension cable at both the probe and Proximitor ends. Inspect connectors for moisture ingress, bent pins, or corrosion. Replace the cable if continuity or insulation resistance is out of spec.

Step 4 — New Probe Installation: Thread the 330193-00-05-10-00 into the bracket. Set the probe gap to the manufacturer-specified air gap (typically 1.0 mm / 40 mil for 8mm probes on AISI 4140 targets). Verify gap voltage at the Proximitor output — target approximately -10.0 VDC at the nominal gap.

Step 5 — System Verification: Restore the monitor channel and confirm the OK relay is energized. Perform a slow-roll check if possible to verify signal quality before returning the machine to full-speed operation.

Step 6 — Documentation: Log the replacement in the CMMS with the new probe serial number, gap voltage, and date. Update the spare parts inventory to trigger reorder of the consumed 330193-00-05-10-00 unit.

This workflow is applicable as a direct replacement for legacy 330103 series probes in older 3300 installations, provided the Proximitor and cable are also updated to 3300 XL-compatible versions. The upgrade eliminates the need for system reconfiguration and maintains backward compatibility with existing monitor rack wiring.

Spare Parts Support FAQ

Q1: Is the 330193-00-05-10-00 a direct replacement for older Bently Nevada 8mm probes?
Yes. The 330193-00-05-10-00 is designed as the current-generation 8mm probe for the 3300 XL system and is backward-compatible with earlier 3300 series installations when used with the appropriate 3300 XL Proximitor and extension cable. Always verify the Proximitor model matches the probe series before installation.

Q2: What is included with each shipment, and how is the part tested before dispatch?
Each 330193-00-05-10-00 unit is inspected for physical integrity, connector condition, and cable continuity prior to shipment. Parts are shipped with protective packaging to prevent transit damage. A support terms confirmed by quotation is provided from the shipment date, covering manufacturing defects and functional failure under normal operating conditions.

Q3: Can you support long-term or blanket purchase orders for this part?
Yes. We maintain ongoing stock of the 330193-00-05-10-00 and can support scheduled releases, annual maintenance contracts, and emergency orders. For facilities with multiple monitored machine trains, we recommend establishing a standing order to ensure availability during planned outages and unplanned failures.

Q4: How do I confirm compatibility before ordering if my system has been modified?
Provide your Proximitor model number, extension cable part number, and monitor module type. Our technical team will verify full system compatibility before order confirmation. For non-standard target materials or modified gap configurations, we can advise on recalibration requirements to maintain measurement accuracy.
