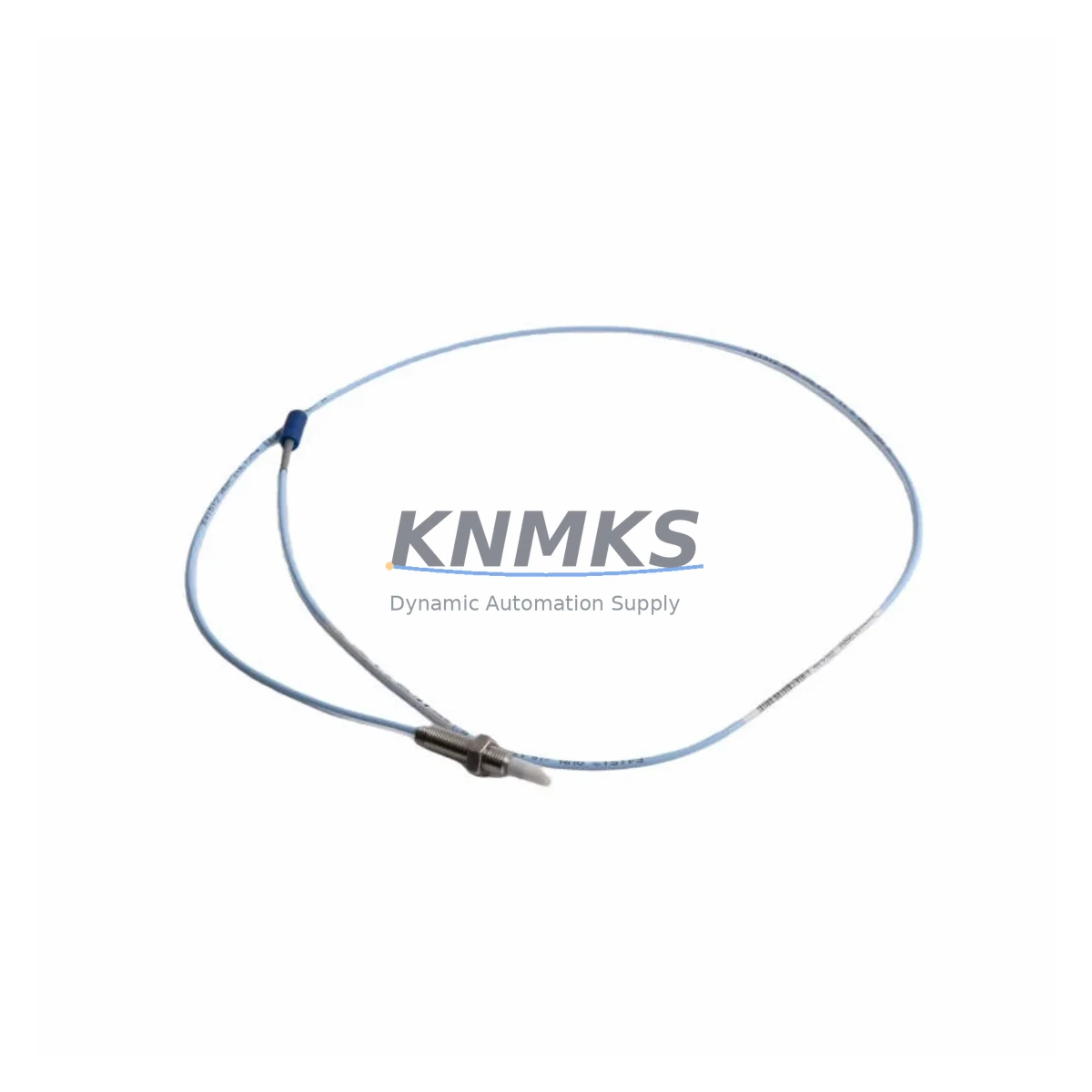

Bently Nevada 330192-00-60-10-00 Fail-Safe Proximity Transducer

Overview

Bently Nevada 330192-00-60-10-00 Fail-Safe Proximity Transducer: Industrial Control Reliability

The Bently Nevada 330192-00-60-10-00 is an 8mm eddy-current proximity transducer from the renowned 3300 XL Series, engineered for fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to deliver continuous, high-accuracy shaft displacement and vibration data, this transducer is a cornerstone component in critical machinery protection systems across petrochemical, power generation, mining, metallurgy, and continuous manufacturing facilities worldwide.

In high-stakes industrial operations — where an unplanned shutdown can cost tens of thousands of dollars per hour — the reliability of every sensor in the control loop is non-negotiable. The 330192-00-60-10-00 is built to eliminate signal drift, resist electromagnetic interference, and maintain measurement integrity even under extreme thermal cycling, mechanical vibration, and high-humidity or dusty conditions. Its robust stainless-steel housing and hermetically sealed construction ensure long-term stability in environments where lesser sensors fail within months.

When integrated into a complete Bently Nevada 3300 XL monitoring system, this transducer works in concert with the 3300 XL Extension Cable and 3300 XL Proximitor Sensor to form a fully calibrated, impedance-matched measurement chain. This matched system approach is critical: mismatched components introduce gain errors and phase shifts that can mask real machinery faults or trigger false trips — both of which carry severe safety and financial consequences. The 330192-00-60-10-00 is factory-calibrated and tested to ensure it integrates seamlessly with the Bently Nevada 3500 Series Machinery Protection System, providing the precise -18V DC bias voltage and sensitivity (200 mV/mil, 7.87 V/mm) required for accurate machinery health assessment.

In control cabinet environments, where multiple high-current drives, relay modules, and communication gateways share confined enclosures, electromagnetic compatibility is paramount. The 330192-00-60-10-00 features a shielded coaxial cable design that rejects common-mode noise and prevents ground loop interference — a frequent cause of spurious alarms and nuisance trips in dense control panels. When paired with properly grounded Bently Nevada junction boxes and shielded conduit runs, the system maintains signal integrity across cable runs exceeding 9 meters, ensuring that the monitoring rack receives clean, accurate data regardless of cabinet-level EMI conditions.

For facilities operating rotating machinery in hazardous or classified areas — including offshore platforms, chemical reactors, and gas compression stations — the 330192-00-60-10-00 supports integration with Bently Nevada 3300 XL Intrinsically Safe Barriers, enabling deployment in Zone 1 and Zone 2 explosive atmospheres without compromising measurement performance. This capability is essential for safety instrumented systems (SIS) where the transducer feeds directly into a Safety Integrity Level (SIL)-rated voting logic solver, and any sensor failure must be detectable and fail-safe by design.

Beyond its primary vibration monitoring role, the 330192-00-60-10-00 is widely used for axial position (thrust) monitoring on compressors and turbines, differential expansion measurement on steam turbines, and eccentricity monitoring during slow-roll startup sequences. In each of these applications, the transducer’s linear measurement range (up to 2.54 mm / 100 mil gap), combined with its temperature-compensated output, ensures that the Bently Nevada 3500/42M or 3500/45 monitor modules receive accurate, repeatable data across the full operating temperature range of -35°C to +121°C.

Every 330192-00-60-10-00 unit supplied by KNMKS undergoes a rigorous pre-shipment inspection protocol, including impedance verification, sensitivity calibration check, insulation resistance testing, and visual inspection of the cable jacket and connector. Units are shipped in anti-static, moisture-resistant packaging with full traceability documentation, supporting your site’s spare parts management and maintenance records requirements.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the Bently Nevada 330192-00-60-10-00 as part of a comprehensive control cabinet protection strategy requires careful attention to the entire signal chain and power architecture. In a typical critical machinery protection cabinet, the transducer signal is routed through a Bently Nevada 3300 XL Extension Cable (330130-080-00-00) to a 3300 XL Proximitor Sensor (330180-X1-05), which conditions the raw eddy-current signal into a calibrated voltage output suitable for the monitoring rack. The Proximitor Sensor requires a stable, low-noise -24 VDC power supply — any ripple or transient on this rail directly corrupts the displacement measurement. For this reason, KNMKS recommends pairing the system with a dedicated, isolated DC/DC converter module rated for industrial environments, rather than sharing the supply rail with relay coils or solenoid drivers.

Within the Bently Nevada 3500 Series rack, the conditioned signal feeds into a 3500/42M Four-Channel Proximitor/Seismic Monitor or a 3500/45 Position Monitor, depending on the measurement application. These monitor modules provide configurable alert and danger setpoints, OK relay outputs, and Modbus/TCP or FOUNDATION Fieldbus communication to the plant DCS or safety PLC. In high-EMI environments — such as those adjacent to variable frequency drives (VFDs) or large motor starters — the use of Bently Nevada shielded junction boxes and proper single-point grounding of cable shields is essential to prevent ground loops that would appear as low-frequency noise on the displacement signal, potentially masking real shaft orbit changes or triggering false danger trips.

For cabinet thermal management, particularly in outdoor or poorly ventilated enclosures in tropical or desert climates, the 330192-00-60-10-00‘s wide operating temperature range provides a significant reliability margin. However, the associated Proximitor Sensor electronics are more temperature-sensitive, and KNMKS recommends verifying that cabinet internal temperatures remain within the Proximitor’s rated range, using thermostatically controlled cabinet heaters or coolers as appropriate. Surge protection on the -24 VDC supply line — using a transient voltage suppressor (TVS) rated for industrial DC systems — further protects the entire measurement chain from lightning-induced surges or switching transients from nearby high-power equipment.

Critical Industrial Safety Applications

The Bently Nevada 330192-00-60-10-00 proximity transducer is deployed across a wide spectrum of critical industrial safety applications where continuous, fail-safe machinery monitoring is a regulatory and operational requirement.

In petrochemical and refinery environments, this transducer monitors shaft vibration and axial position on centrifugal compressors, boiler feed pumps, and reactor agitators. API 670 — the industry standard for machinery protection systems — mandates the use of non-contacting eddy-current transducers for radial vibration and axial position monitoring on critical rotating equipment. The 330192-00-60-10-00 is fully compliant with API 670 requirements, making it the preferred choice for new installations and direct replacements in existing API 670-compliant systems.

In power generation facilities — including coal-fired, gas turbine, and nuclear power plants — the transducer is used for turbine shaft eccentricity monitoring during startup, differential expansion measurement on large steam turbines, and thrust position monitoring on generator shafts. Any deviation beyond setpoint triggers an automatic turbine trip via the Bently Nevada 3500 Series protection system, preventing catastrophic bearing failure or blade rub events that could result in extended outages and significant safety hazards.

In mining and mineral processing operations, the 330192-00-60-10-00 monitors vibration on ball mills, SAG mills, conveyor drive gearboxes, and slurry pump shafts. The IP67-rated housing and stainless-steel construction provide reliable performance in the high-dust, high-moisture, and chemically aggressive environments typical of mineral processing plants. Early detection of bearing wear or shaft imbalance through continuous vibration monitoring enables condition-based maintenance scheduling, reducing unplanned downtime and extending equipment life.

In water and wastewater treatment plants, the transducer is applied to large centrifugal pumps, blowers, and compressors in both above-ground and below-grade installations. The ability to operate reliably in high-humidity and condensation-prone environments — combined with compatibility with IS barriers for potentially explosive atmospheres in digester gas handling areas — makes the 330192-00-60-10-00 a versatile and dependable choice for municipal and industrial water infrastructure.

In metallurgical and steel production facilities, where high-temperature radiant heat, heavy mechanical shock, and intense electromagnetic fields from arc furnaces and induction heaters are constant challenges, the transducer’s robust construction and wide temperature rating ensure sustained measurement accuracy on rolling mill drives, continuous caster pinch rolls, and blast furnace blower trains.

Safety and Quality FAQ

Q1: What support terms does KNMKS provide for the Bently Nevada 330192-00-60-10-00?
Every unit is covered by a support terms confirmed by quotation from the date of shipment. If the unit fails under normal operating conditions within the confirmed support period, KNMKS will provide a replacement or documented resolution support. Our support terms reflects our confidence in the quality of every unit we supply — all stock is sourced from verified channels and undergoes pre-shipment functional testing before dispatch.

Q2: What pre-shipment testing is performed on each unit?
Each 330192-00-60-10-00 undergoes a multi-point inspection before shipment: coil impedance measurement (verified against factory specification), sensitivity check using a calibrated test rig, insulation resistance test on the cable jacket, and visual inspection of the connector, cable, and housing. A test report is available upon request for quality-critical applications.

Q3: Is the 330192-00-60-10-00 compatible with existing Bently Nevada 3300 XL and 3500 Series systems?
Yes. The 330192-00-60-10-00 is a direct, drop-in compatible replacement for all standard 3300 XL 8mm proximity transducer positions within the Bently Nevada ecosystem. It is calibrated to the same sensitivity and bias voltage specifications as the original factory unit, ensuring seamless integration with 3300 XL Proximitor Sensors, 3500 Series monitor modules, and all associated extension cables without requiring system recalibration.

Q4: Can KNMKS support long-term supply and emergency replacement needs?
KNMKS maintains dedicated inventory of the 330192-00-60-10-00 and related 3300 XL Series components to support both planned maintenance programs and emergency breakdown situations. We offer expedited shipping for critical plant shutdowns and can provide advance replacement units under a consignment arrangement for facilities with high-availability requirements. Contact our technical sales team to discuss long-term supply agreements and spare parts stocking strategies tailored to your maintenance schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330192-00-60-10-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330192-00-60-10-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
