Bently Nevada 330191-00-33-90-05 Maintenance-Proven Spare Part for Factory Uptime

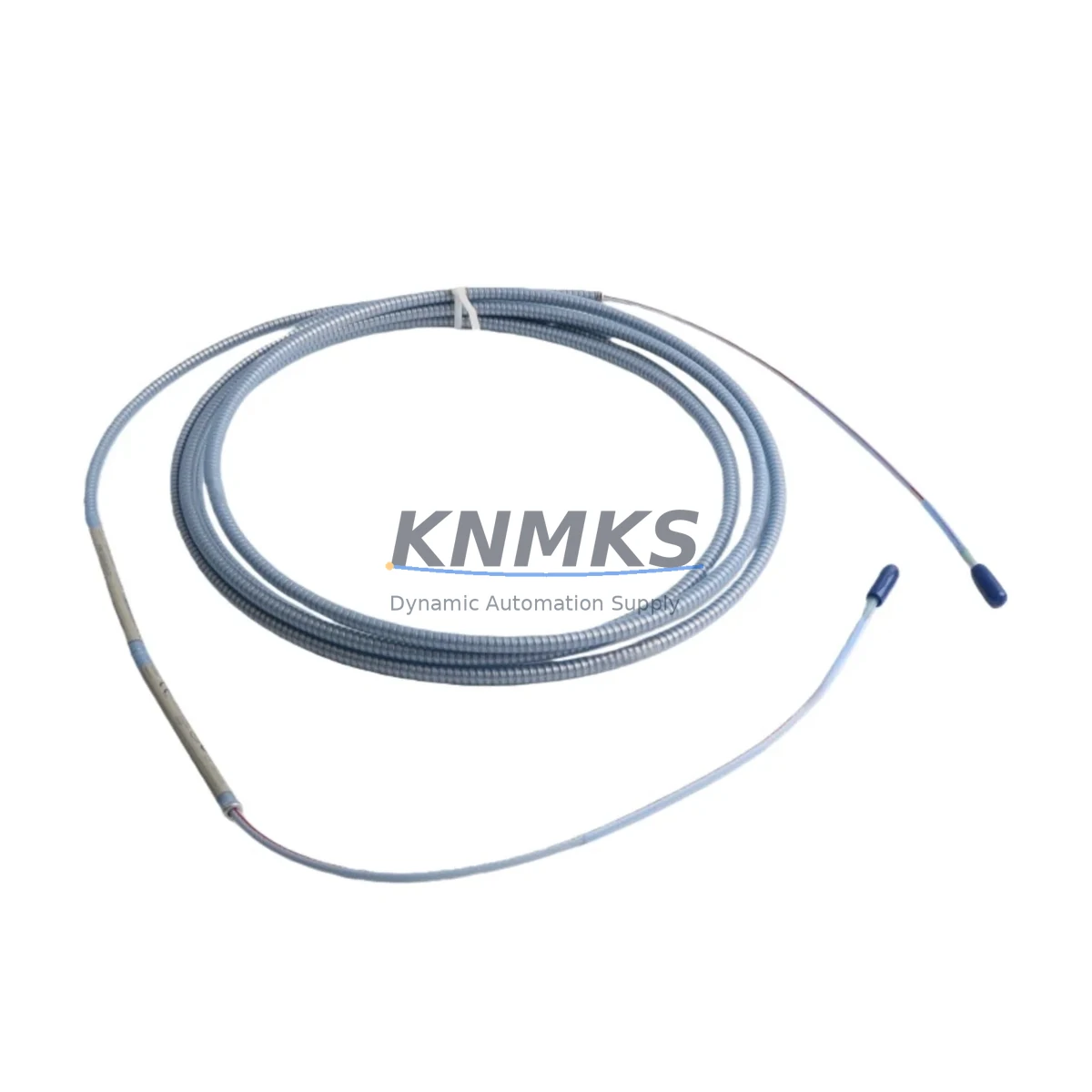

The Bently Nevada 330191-00-33-90-05 is an original proximity probe engineered for the 3300 XL Series continuous vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications across energy, petrochemical, power generation, and heavy manufacturing industries. This spare part is sourced, inspected, and dispatched to support maintenance engineers and procurement teams who cannot afford unplanned downtime on critical rotating assets such as compressors, turbines, pumps, and gearboxes.

Whether you are executing a scheduled annual overhaul, responding to a vibration alarm, or building a strategic spare parts inventory for your control room, the 330191-00-33-90-05 delivers the dimensional accuracy, signal linearity, and environmental resilience required for reliable proximity measurement in demanding industrial environments. Each unit is tested prior to shipment and backed by a support terms confirmed by quotation, ensuring confidence from procurement through installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a fault or degraded signal from the 330191-00-33-90-05 proximity probe, the replacement workflow should extend beyond the probe itself. The 3300 XL proximity transducer system is a three-component assembly: the probe, the extension cable, and the Proximitor sensor (driver). A worn or damaged probe tip may indicate that the 3300 XL 8mm Proximitor Sensor (e.g., 330180-X1-05) has also been subjected to abnormal electrical loading or moisture ingress — both components should be inspected simultaneously to avoid repeat failures.

In the control cabinet, verify the 3500/22M Transient Data Interface or the relevant 3500 Series rack monitor card is receiving a clean -24 VDC supply. Power supply modules such as the 3500/15 Power Supply should be checked for output stability, as voltage fluctuations directly affect probe gap voltage and vibration signal accuracy. If the rack is shared with other measurement channels, inspect the 3500/42M Proximitor I/O Module for any channel-level faults or blown protection fuses on the terminal block.

For installations where the probe cable runs through conduit near high-voltage drives or motor starters, signal integrity should be validated using a 330130 Series extension cable of matching length. Damaged cable shielding is a common root cause of noise-induced false alarms. Additionally, if the machine train includes a 3300 XL Velomitor or seismic sensor on the same bearing housing, inspect its mounting and connector condition during the same maintenance window to maximize efficiency.

Procurement engineers building a strategic spare parts kit for turbomachinery or compressor trains should consider stocking the 330191-00-33-90-05 alongside the matching Proximitor sensor, at least one spare extension cable, and a set of terminal block fuses for the 3500 rack. This approach reduces mean time to repair (MTTR) and eliminates the risk of a single-component stockout extending an unplanned outage. Long-term supply agreements are available for facilities requiring guaranteed inventory across multi-year maintenance cycles.

Site Replacement Workflow

Step 1 — Isolation & Safety: De-energize the 3500 rack channel associated with the faulty probe. Confirm the machine is in a safe state before accessing the bearing housing or probe mounting bracket.

Step 2 — Gap Measurement Baseline: Record the existing probe gap voltage (typically -10 to -11 VDC at nominal gap) from the Proximitor output before removal. This baseline confirms whether the fault is in the probe, cable, or driver.

Step 3 — Probe Removal: Unthread the 330191-00-33-90-05 from the probe holder. Inspect the probe tip for mechanical damage, corrosion, or contamination. Inspect the extension cable connector for pin damage or moisture.

Step 4 — Installation of Replacement: Thread the new 330191-00-33-90-05 into the probe holder. Set the air gap to the manufacturer-specified distance (typically 1.0 – 1.5 mm for 8mm probes) using a feeler gauge. Verify gap voltage at the Proximitor output matches the expected -10 to -11 VDC range.

Step 5 — System Verification: Re-energize the channel and confirm the 3500 monitor clears the channel fault. Observe vibration readings for at least 15 minutes under normal operating conditions before returning the machine to service.

Step 6 — Documentation: Log the replacement in the CMMS with the new part serial number, installation date, and gap voltage reading. Update the spare parts inventory to trigger reorder of the consumed 330191-00-33-90-05 unit.

Spare Parts Support FAQ

Q1: Is the 330191-00-33-90-05 compatible with both the 3300 XL and 3500 Series monitoring systems?
Yes. The 330191-00-33-90-05 is designed for the 3300 XL 8mm proximity transducer system and is fully compatible with 3500 Series rack monitors when used with the appropriate Proximitor sensor. Always verify the Proximitor model and extension cable length match the probe specifications before installation.

Q2: How is each unit tested before shipment?
Every 330191-00-33-90-05 unit undergoes functional verification including output sensitivity check, insulation resistance test, and connector integrity inspection prior to dispatch. A test report is available upon request. Units are packaged in anti-static, moisture-resistant packaging to preserve condition during transit.

Q3: What is the support terms coverage and what does it include?
All units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, signal output failures, and connector faults under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside specified environmental limits.

Q4: Can you support long-term or blanket purchase orders for ongoing maintenance programs?
Yes. We support long-term supply agreements, blanket POs, and consignment stock arrangements for facilities with recurring demand for the 330191-00-33-90-05 and related 3300 XL / 3500 Series components. Contact our team to discuss pricing, lead time guarantees, and inventory reservation options tailored to your annual maintenance schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330191-00-33-90-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330191-00-33-90-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
