Bently Nevada 330190-085-00-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330190-085-00-05 Migration-Ready Proximity Probe for Legacy Control Systems

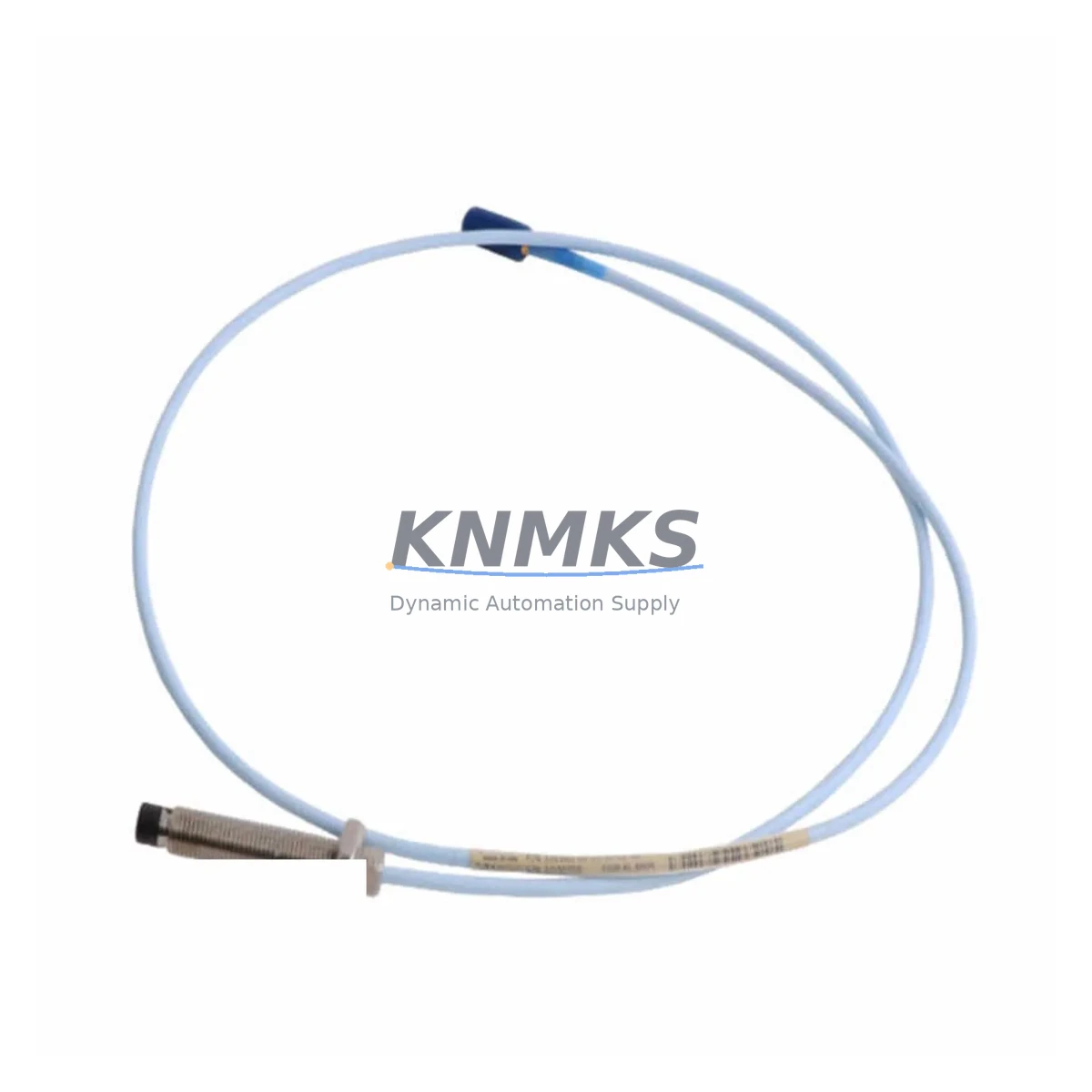

The Bently Nevada 330190-085-00-05 is an 8mm eddy-current proximity probe engineered for continuous shaft vibration and position monitoring in rotating machinery. Designed as a migration-ready replacement for aging 3300 XL Series installations, this probe delivers direct dimensional and electrical compatibility with legacy Bently Nevada field wiring, extension cables, and Proximitor® sensor assemblies already installed in your control cabinet or field junction box. Whether you are executing a planned spare parts replenishment, an unplanned emergency replacement, or a full machinery protection system upgrade, the 330190-085-00-05 is pre-tested and ready to ship from verified stock.

Industrial facilities operating turbines, compressors, pumps, and gearboxes in petrochemical, power generation, LNG, mining, and water treatment environments rely on the 3300 XL proximity probe system for API 670-compliant vibration monitoring. When the original probe reaches end-of-life or is discontinued, sourcing a validated replacement without disrupting the existing Proximitor® signal chain is critical. The 330190-085-00-05 maintains the same 8mm tip diameter, 5-meter armored cable assembly, and -24 VDC bias voltage characteristics required by the 3300 XL Proximitor® sensor, eliminating the need to recalibrate the gap voltage or reroute field wiring during the swap.

Before installation, engineers should confirm the existing extension cable — typically a 330130 or 330140 series — is undamaged and that the Proximitor® sensor (such as the 330180 or 330100 series) is within its calibrated range. The probe tip-to-target gap should be reset to the manufacturer-specified voltage window (typically -10 VDC ±0.5 VDC at the Proximitor® output) using a calibrated gap tool. If the machinery protection monitor — for example a 3500/42M or 3500/40M Proximitor®/Seismic Monitor — has been in service for more than ten years, this replacement event is an appropriate trigger to audit the monitor’s OK relay logic, alarm setpoints, and Keyphasor® reference channel wiring simultaneously.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 330190-085-00-05 retrofit begins well before the maintenance window opens. Start by pulling the as-built wiring diagram for the affected machine train and confirming the Proximitor® sensor model number stamped on the housing — most installations use a 330180-51-00 or 330100-00-01 Proximitor® mounted in a stainless steel junction box within 0.5 meters of the probe tip. Verify that the 330130 or 330140 extension cable connecting the probe to the Proximitor® is free of kinks, corrosion, or shield breaks, as a degraded extension cable will introduce noise into the 3500/42M monitor channel even after the probe is replaced.

Inside the control cabinet, the 3500 rack housing the 3500/42M or 3500/40M monitor card should be inspected for backplane connector integrity and slot assignment. If the rack also contains a 3500/22M Transient Data Interface or a 3500/32 relay module, confirm that the channel mapping in System 1 Evolution or the legacy System 1 software still reflects the correct machine tag and alarm group. Any mismatch between the physical channel address and the software configuration will cause false OK status or missed alarms during the post-replacement functional test.

For facilities running a mixed fleet — for example, combining older 3300/16 monitors with newer 3500 Series racks — the 330190-085-00-05 probe is electrically compatible with both platforms, provided the Proximitor® sensor in the field matches the monitor’s input impedance specification. If the site is also migrating from a legacy DCS to a modern safety instrumented system, coordinate the probe replacement with the SIS engineer to ensure the vibration trip signal is correctly mapped in the new logic solver before the machine is returned to service. A 3500/20 Power Supply Module with redundant input should be confirmed operational before energizing the replacement probe channel.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured hot-swap protocol. Where process conditions permit, place the affected monitor channel in bypass mode within the 3500 rack before disconnecting the field wiring — this prevents a spurious trip signal from propagating to the emergency shutdown system while the probe is out of circuit. Document the existing gap voltage reading at the Proximitor® output terminal before removal; this baseline value allows the commissioning technician to restore the air gap to within ±0.25 VDC of the original setting without requiring a full recalibration run.

Once the 330190-085-00-05 is threaded into the probe mount and the locknut is torqued to specification, reconnect the extension cable and power the Proximitor® sensor. Measure the output voltage at the monitor input terminal and adjust the probe tip-to-shaft gap until the DC bias falls within the linear range. Confirm the OK relay on the 3500/42M channel closes and that the vibration amplitude reading in the DCS historian is consistent with the pre-outage baseline. Remove the channel bypass only after the functional test is complete and the shift supervisor has acknowledged the return-to-service checklist. This sequence protects the original PLC program logic, preserves HMI alarm display continuity, and keeps the communication link between the 3500 rack and the plant DCS uninterrupted throughout the replacement.

For sites where a cold shutdown is unavoidable, pre-stage the 330190-085-00-05 alongside the required extension cable, Proximitor® sensor, and gap-setting tool before the outage begins. Having all components bench-verified and gap-checked in advance compresses the critical-path replacement time to under two hours for a single channel, significantly reducing the revenue impact of an unplanned machinery outage.

Retrofit Support FAQ

Q1: Is the 330190-085-00-05 a direct drop-in replacement for all 3300 XL 8mm proximity probes?
Yes. The 330190-085-00-05 shares the same tip diameter, cable length, sensitivity, and bias voltage as the original 3300 XL 8mm probe family. It is compatible with all 330130 and 330140 series extension cables and all 330180 and 330100 series Proximitor® sensors without any wiring modification. Only a gap voltage reset is required after installation.

Q2: Has this unit been tested before shipment?
Yes. Every 330190-085-00-05 unit shipped by KNMKS undergoes pre-shipment electrical verification including bias voltage output, sensitivity linearity check, and cable continuity test. A test report is available upon request. All units carry a support terms confirmed by quotation from the date of shipment.

Q3: Can this probe be used with a 3500/42M monitor running an older firmware version?
Yes. The 330190-085-00-05 is a passive eddy-current probe and does not contain firmware-dependent components. Compatibility is determined by the Proximitor® sensor and monitor input specification, not the monitor firmware version. No firmware update is required on the 3500/42M to accept this replacement probe.

Q4: What is the lead time and do you maintain stock?
KNMKS maintains verified inventory of the 330190-085-00-05 to support emergency replacement and planned maintenance programs. Standard lead time for in-stock units is 3–5 business days for international shipment. For large-quantity spare parts programs or multi-site framework agreements, contact our sales team for dedicated stock allocation and priority dispatch.
