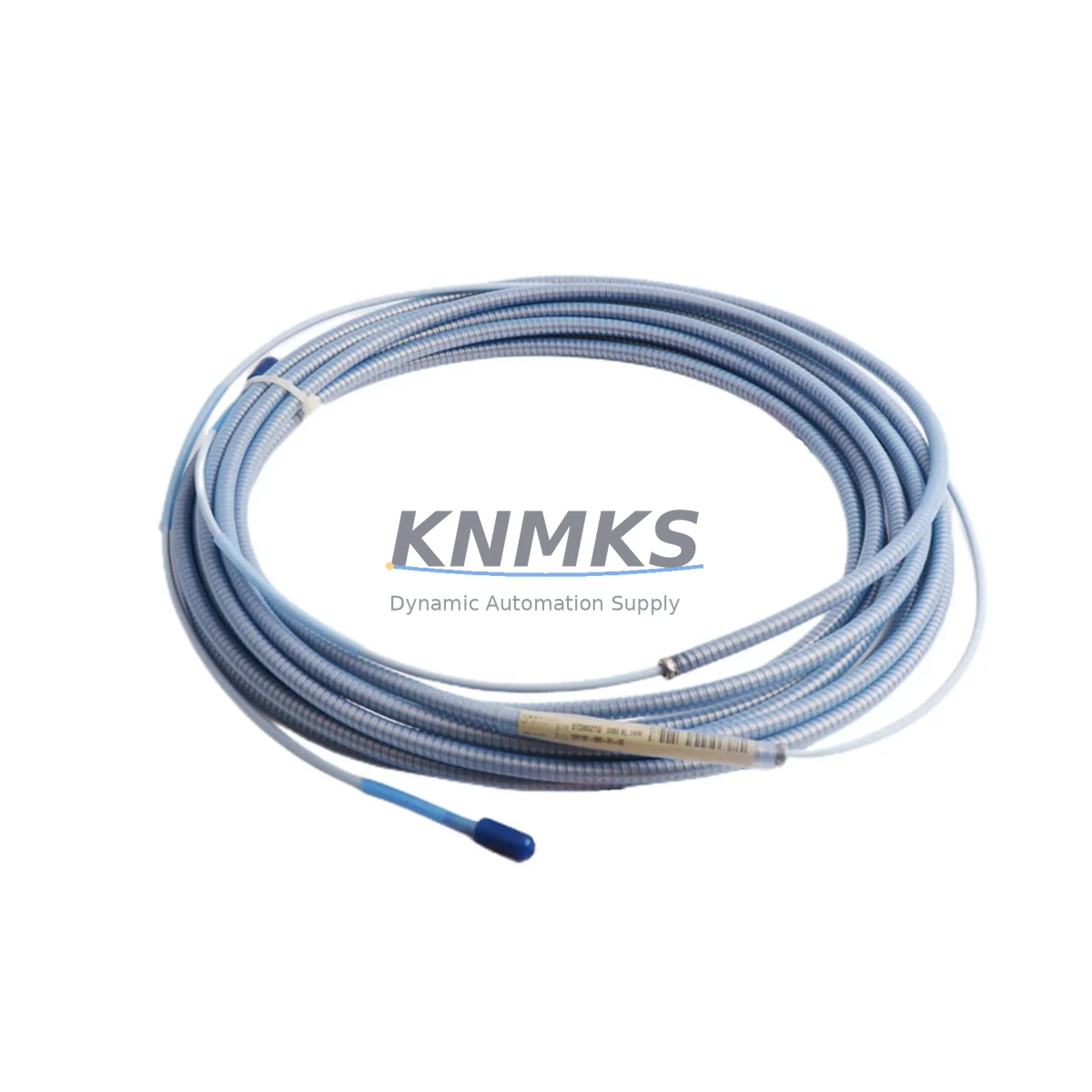

Bently Nevada 330190-080-01-00 Fail-Safe Proximity Cable: Fault-Protected Vibration Monitoring for Critical Industrial Sites

The Bently Nevada 330190-080-01-00 is an 8-meter proximity transducer extension cable engineered for the 3300 XL Series machinery protection system. Designed to operate in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, and continuous manufacturing lines — this extension cable forms a critical link in the eddy-current proximity measurement chain between the transducer and the proximitor/driver module.

In high-stakes rotating machinery protection applications, signal integrity is non-negotiable. The 330190-080-01-00 uses precision-matched coaxial construction with controlled impedance and low-loss dielectric materials to ensure that gap voltage signals are transmitted without drift, attenuation, or phase distortion — even across long cable runs in electrically noisy control cabinets. This directly reduces the risk of false trips, missed alarms, and unplanned shutdowns caused by signal degradation.

The cable’s ruggedized outer jacket and shielded construction provide robust protection against electromagnetic interference (EMI), radio-frequency interference (RFI), and electrostatic discharge — common threats in heavy industrial environments where variable frequency drives (VFDs), high-voltage switchgear, and large motor starters operate in close proximity to instrumentation wiring. When paired with the Bently Nevada 3300 XL Proximitor Sensor and a matched 330130-series proximity transducer, the system delivers a fully calibrated, fail-safe measurement loop that meets the signal chain requirements of Safety Instrumented Systems (SIS) and API 670-compliant machinery protection.

For control cabinet integrators and reliability engineers, the 330190-080-01-00 eliminates the guesswork of field-fabricated cable assemblies. Its factory-terminated, impedance-matched design ensures plug-and-play compatibility with the 3300 XL system architecture, reducing commissioning time and eliminating the risk of measurement error introduced by non-standard cable substitutions. This is especially critical in applications where the proximity system feeds directly into a Bently Nevada 3500 Series Rack or interfaces with a DCS/PLC safety layer for automatic shutdown logic.

In environments characterized by high vibration, thermal cycling, condensation, or airborne particulates — such as compressor halls, turbine enclosures, and offshore platforms — the cable’s mechanical durability ensures long-term signal stability without requiring frequent inspection or replacement. When used alongside Bently Nevada 330180-series armored extension cables in particularly harsh zones, the system maintains measurement continuity even under sustained mechanical stress.

All units are sourced from authorized supply channels, individually inspected prior to shipment, and backed by a support terms confirmed by quotation covering manufacturing defects and functional performance. Inventory is maintained for immediate dispatch, supporting both planned maintenance schedules and emergency spare-part requirements.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable machinery protection loop depends on every component in the signal chain performing to specification. The 330190-080-01-00 extension cable is the critical interconnect between the field-mounted proximity transducer and the proximitor module housed in the control cabinet. In a well-engineered protection architecture, this cable works in concert with the Bently Nevada 3300 XL Proximitor/Velomitor Signal Conditioner to deliver a conditioned, calibrated output to the monitoring rack.

Within the control cabinet, the proximity signal is typically received by a Bently Nevada 3500/40M Proximitor Monitor or equivalent channel card, which processes the gap voltage into engineering units for display, alarming, and trip logic. To protect the entire measurement chain from power-side disturbances, cabinet designers frequently install Phoenix Contact TRABTECH surge protection devices on the signal input terminals, preventing transient overvoltages from corrupting proximity readings or damaging sensitive front-end electronics.

In applications where the proximity system must interface with a safety PLC — such as a Rockwell Automation GuardLogix or Siemens S7-300F safety controller — the 4–20 mA or relay outputs from the 3500 Series rack are wired through galvanically isolated signal conditioners to maintain SIL-rated loop integrity. For cabinet thermal management in high-density instrumentation enclosures, Rittal TopTherm fan-and-filter units are commonly deployed to prevent heat-induced signal drift in the proximitor electronics.

This integrated approach — precision extension cable, calibrated proximitor, surge-protected signal terminals, safety PLC interface, and thermally managed enclosure — forms a complete, fail-safe protection strategy for rotating machinery in continuous industrial operations.

Critical Industrial Safety Applications

The Bently Nevada 330190-080-01-00 is deployed across a wide range of critical industrial sectors where rotating machinery protection is essential to operational safety and regulatory compliance:

Petrochemical & Refining: Used in compressor trains, centrifugal pumps, and turbine-driven process equipment where shaft displacement monitoring is required for API 670 compliance and process safety management (PSM) programs. Undetected rotor instability in these environments can lead to catastrophic mechanical failure and hazardous material release.

Power Generation: Applied to steam turbines, gas turbines, and boiler feed pumps in thermal and combined-cycle power plants. The extension cable’s signal fidelity is critical for detecting sub-synchronous vibration, oil whirl, and rotor rub conditions before they escalate to forced outages.

Mining & Mineral Processing: Installed on large ball mills, SAG mills, crusher drives, and slurry pump systems operating in high-dust, high-vibration environments. The cable’s ruggedized construction maintains measurement integrity even under the severe mechanical stress typical of mineral processing facilities.

Water & Wastewater Treatment: Used on high-speed centrifugal blowers, vertical turbine pumps, and digester gas compressors where continuous operation is required and unplanned downtime directly impacts treatment capacity and regulatory discharge compliance.

Metallurgy & Steel: Deployed on rolling mill drives, converter fans, and continuous casting equipment in steel plants, where high ambient temperatures, electromagnetic interference from arc furnaces, and heavy vibration demand the highest levels of signal shielding and mechanical durability.

Marine & Offshore: Fitted to main propulsion shafting, diesel generator sets, and auxiliary machinery on vessels and offshore platforms, where the combination of salt-air corrosion, vessel motion, and vibration requires cables that maintain calibration stability over extended service intervals.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330190-080-01-00?
All units are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, connector integrity, and verified functional performance of the cable assembly. Support requests are processed promptly with replacement units dispatched from stock.

Q2: What pre-shipment testing is performed on each cable?
Every 330190-080-01-00 unit undergoes continuity testing, impedance verification, and insulation resistance measurement prior to dispatch. This ensures that each cable meets the electrical specifications required for accurate gap voltage transmission in the 3300 XL measurement chain, eliminating the risk of field failures caused by latent manufacturing defects.

Q3: Is this cable compatible with all 3300 XL system configurations?
Yes. The 330190-080-01-00 is factory-terminated and impedance-matched for direct compatibility with the full range of Bently Nevada 3300 XL Proximitor modules and 330130-series proximity transducers. It is also compatible with 3500 Series rack inputs when used as part of a complete proximity measurement loop. No field modification or re-termination is required.

Q4: Can long-term supply be guaranteed for maintenance and spare-parts programs?
Yes. We maintain dedicated inventory of the 330190-080-01-00 to support both scheduled maintenance programs and emergency replacement requirements. For customers operating large fleets of rotating machinery, we recommend establishing a consignment or blanket-order arrangement to ensure uninterrupted spare-parts availability. Contact our team to discuss long-term supply agreements tailored to your maintenance schedule.
