Bently Nevada 330190-080-00-00 Migration-Ready Extension Cable

Overview

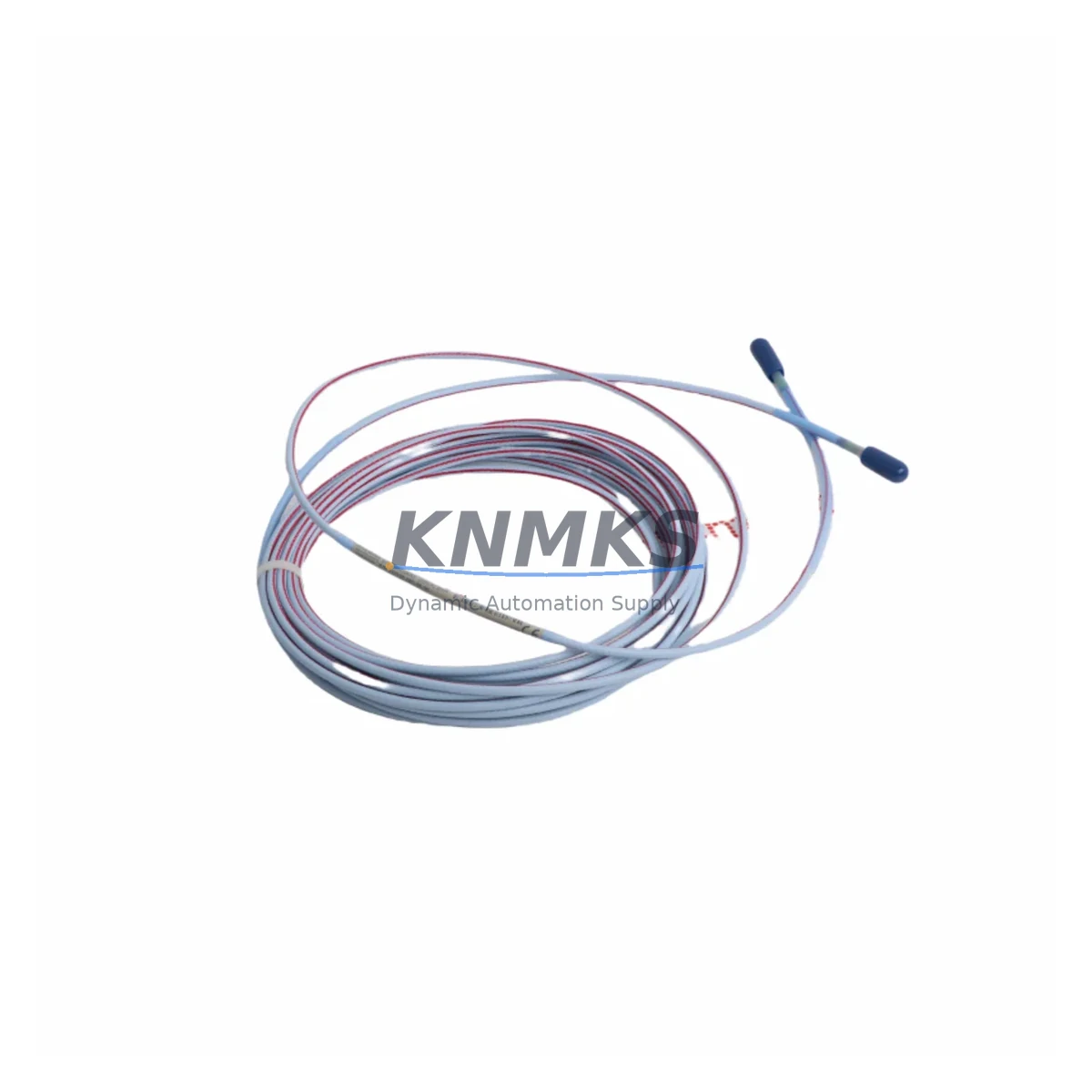

Bently Nevada 330190-080-00-00 Migration-Ready Extension Cable for Legacy Control Systems

The Bently Nevada 330190-080-00-00 is an 8-metre (26.2 ft) extension cable engineered for the 3300 XL Series proximity transducer system — one of the most widely deployed vibration monitoring platforms in rotating machinery protection. As legacy 3300 Series installations approach end-of-support milestones and plant operators accelerate migration toward modern condition monitoring architectures, this extension cable serves as a critical continuity component, enabling drop-in replacement without rewiring the probe or driver circuit.

In retrofit and upgrade projects, the extension cable is the mechanical and electrical bridge between the proximity probe tip and the Bently Nevada 3300 XL proximitor/driver module. Maintaining the correct cable length — in this case 8 metres — is essential to preserve the system’s calibrated gap voltage, sensitivity, and scale factor. Substituting an incorrect length or an incompatible cable type will shift the output linearity and invalidate the vibration alarm setpoints programmed in the monitoring rack. During migration planning, engineers must confirm that the replacement cable matches the original part number’s impedance characteristics, connector type (standard TNC), and jacket material rating for the installation environment.

When integrating the 330190-080-00-00 into an existing 3300 XL rack, the associated Bently Nevada 3300 XL Proximitor Sensor (such as the 330130 or 330180 series probe) must be verified for compatibility with the new cable run. The proximitor module mounted in the 3300 XL rack — typically a 3300/16 or 3300/20 monitor card — reads the DC gap voltage and AC vibration signal transmitted through this cable. Any change in cable routing, conduit bending radius, or junction box termination must be documented before commissioning to avoid signal attenuation or ground loop interference.

For plants migrating from older 7200 Series or 3000 Series Bently Nevada systems to the 3300 XL platform, the 330190-080-00-00 extension cable is compatible with the updated proximitor architecture and does not require driver recalibration when the probe-cable-driver combination is replaced as a matched set. Maintenance teams should also verify the rack backplane slot assignments and I/O channel mapping in the System 1 or System 1 Evolution software to ensure the new cable’s channel is correctly associated with the machine train’s vibration trend database.

Pre-shipment testing is performed on every unit. Each 330190-080-00-00 cable is verified for continuity, insulation resistance, and connector integrity before dispatch. Stock is maintained across multiple warehouse locations to support emergency replacement orders with rapid global dispatch. All units are covered by a support terms confirmed by quotation from the date of shipment.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330190-080-00-00 extension cable begins with a full audit of the existing probe-cable-driver circuit. Maintenance planners should pull the original loop drawing to confirm the cable routing from the machine bearing housing to the junction box and onward to the 3300 XL rack. In many legacy installations, the extension cable passes through cable trays shared with power conductors, creating potential for electromagnetic interference; re-routing or adding shielded conduit sections may be required during the upgrade.

The 3300 XL rack itself typically houses multiple monitor modules — including the 3300/16 dual-channel vibration monitor, the 3300/46 temperature monitor for bearing RTD inputs, and the 3300/55 keyphasor module for phase reference. When replacing the extension cable on one channel, it is good practice to inspect the adjacent channel’s cable and proximitor for wear, since both channels share the same environmental exposure. If the rack also includes a 3300/25 relay module for alarm and trip output, verify that the relay setpoints remain valid after the cable swap and gap voltage re-establishment.

For plants that have already migrated their condition monitoring software to System 1 Evolution, the channel configuration — including the machine train tag, alarm levels, and trend storage interval — is preserved in the software database and does not need to be re-entered after a cable replacement. However, the commissioning engineer should perform a live gap voltage check using a calibrated voltmeter at the proximitor output terminals to confirm the probe is operating within the linear range (typically −10 VDC ± 2 VDC for a standard 3300 XL gap). If the installation also includes a Bently Nevada 3500 Series rack for overspeed or thrust position monitoring, ensure that the 3500/42M position monitor’s channel assignments are not affected by the 3300 XL cable work being performed in the same control cabinet.

Where the retrofit involves extending the cable run beyond the original 8-metre design — for example, when relocating a junction box during a control room consolidation project — engineers must recalculate the total probe-cable-driver system length and select the appropriate matched extension cable length from the 330190 series. Mixing cable lengths without recalibrating the proximitor will introduce a scale factor error that cannot be corrected in software alone.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3300 XL extension cable replacement requires careful pre-outage preparation. Before the machine is taken offline, the maintenance team should document the current gap voltage reading, vibration baseline trend, and alarm setpoint values from the System 1 or DCS historian. This baseline serves as the acceptance criterion for post-installation commissioning and allows the team to confirm that the new cable has restored the circuit to its original operating condition.

The physical cable swap — disconnecting the TNC connectors at the junction box and proximitor, routing the new 330190-080-00-00 cable, and re-terminating — can typically be completed within a planned maintenance window of two to four hours, depending on cable routing complexity and access constraints. To protect the original control logic, no changes should be made to the 3300 XL monitor module’s configuration or the System 1 database during the cable replacement. The monitor module should be left in its current configuration, and only the physical cable assembly should be changed.

After re-termination, the commissioning sequence should follow the standard Bently Nevada startup procedure: power the proximitor, measure the gap voltage at the monitor module’s test points, adjust the probe gap if necessary to bring the voltage within the linear range, and then confirm the vibration reading against the pre-outage baseline. If the plant’s safety instrumented system (SIS) includes a trip on high vibration from the 3300 XL channel, the SIS bypass should be engaged during commissioning and removed only after the channel has been verified. This approach keeps the machine protection system active on all other channels throughout the cable replacement, limiting the window of reduced protection to the single channel under maintenance.

Retrofit Support FAQ

Q1: Can the 330190-080-00-00 directly replace an older 330190-080-00-00 from a legacy 3300 Series installation without recalibration?
Yes — provided the replacement cable is the same part number and length, and the probe and proximitor remain unchanged. The system’s calibrated scale factor and gap voltage setpoint are determined by the matched probe-cable-driver combination. A like-for-like cable replacement does not require recalibration, but a post-installation gap voltage verification is always recommended to confirm correct probe positioning.

Q2: What wiring checks are required before installing the replacement cable?
Inspect the TNC connectors at both ends of the existing cable for corrosion, mechanical damage, or loose coupling nuts. Check the junction box terminals for moisture ingress or oxidation. Verify that the cable jacket is intact along the full routing path. At the proximitor end, confirm that the coaxial center pin is not recessed or damaged. Document all findings before installing the new 330190-080-00-00 cable.

Q3: Is pre-shipment testing performed, and what does it cover?
Yes. Every 330190-080-00-00 unit undergoes 100% pre-shipment testing covering electrical continuity of the center conductor and shield, insulation resistance between conductor and shield, and mechanical integrity of both TNC connectors. A test record is available upon request. Units that do not pass all criteria are not dispatched.

Q4: What is the support terms coverage and what does it include?
All units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects in materials and workmanship, including connector failure, cable jacket integrity, and electrical performance. It does not cover damage resulting from incorrect installation, mechanical abuse, or use outside the specified environmental ratings. Replacement or repair is arranged through our sales team at [email protected].

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330190-080-00-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 330190-080-00-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
