Bently Nevada 330190-045-01-CN Maintenance-Proven Spare Part

Overview

Bently Nevada 330190-045-01-CN Maintenance-Proven Spare Part for Factory Uptime

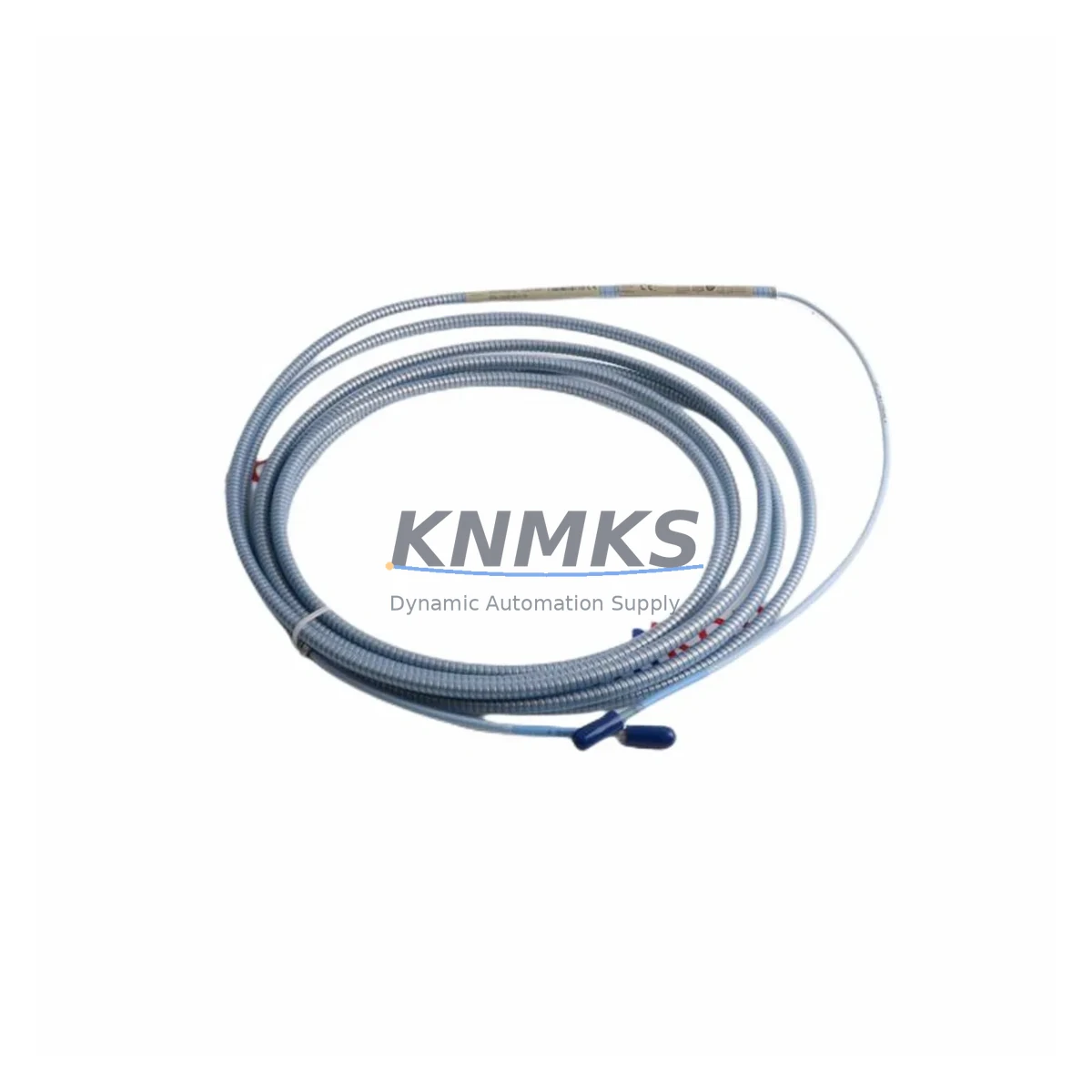

The Bently Nevada 330190-045-01-CN is an original proximity extension cable engineered for the 3300 XL vibration monitoring system — one of the most widely deployed condition monitoring platforms in rotating machinery applications worldwide. Designed to transmit low-level signals from proximity probes to the 3300 XL monitor modules with minimal signal degradation, this cable is a critical link in continuous machinery protection systems covering turbines, compressors, pumps, and gearboxes across oil & gas, power generation, petrochemical, and heavy manufacturing facilities.

For maintenance engineers managing aging machinery protection infrastructure, the 330190-045-01-CN represents a high-priority spare. Signal integrity failures in proximity extension cables are a leading cause of false trips and nuisance alarms in vibration monitoring systems. Keeping a verified OEM replacement on the shelf eliminates the risk of extended downtime caused by cable degradation, connector corrosion, or mechanical damage during routine inspection cycles.

Each unit supplied by KNMKS is sourced from authorized channels, inspected for physical integrity, and tested for signal continuity and impedance compliance before shipment. A support terms confirmed by quotation is included with every order.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330190-045-01-CN in the field, a thorough inspection of the surrounding signal chain is essential to prevent repeat failures and ensure the vibration monitoring system returns to full accuracy. Maintenance engineers should begin by verifying the condition of the proximity probe itself — typically a Bently Nevada 330101 or 330103 series eddy-current probe — since cable failures are often preceded or accompanied by probe tip damage or contamination. The probe driver or proximitor, such as the Bently Nevada 330180 series, should also be checked for output voltage stability and correct gap voltage before the new cable is terminated.

At the monitor end, inspect the 3300 XL monitor module input card for connector pin integrity and confirm that the channel configuration (gap, direct, 1X, 2X) matches the probe-cable-driver assembly specification. If the system uses a 3300/16 or 3500 rack, verify that the I/O module and terminal block connections are secure and free of oxidation. Loose or corroded terminal connections at the rack backplane are a common secondary cause of signal noise after cable replacement.

For facilities running extended cable runs through cable trays shared with power conductors, consider inspecting signal isolation barriers or galvanic isolators installed in the signal path. Induced noise from adjacent VFD power cables can corrupt proximity probe signals even when the extension cable itself is intact. Barrier modules from the same 3300 XL accessory family should be verified for correct input/output range and isolation rating.

Procurement engineers building annual spare parts kits for 3300 XL-equipped machinery trains should treat the 330190-045-01-CN as a consumable-tier spare alongside probe assemblies, proximitor modules, and rack power supply units. A recommended minimum stock of two cables per monitored shaft position reduces the risk of extended lead times impacting planned outage schedules. KNMKS maintains long-term supply capability for this part number and can support blanket purchase orders for multi-site maintenance programs.

Site Replacement Workflow

Step 1 — Isolate and document: Before disconnecting the existing 330190-045-01-CN, record the gap voltage reading at the monitor channel (typically –10.0 VDC ±0.5 VDC for a correctly gapped probe). This baseline confirms whether the cable or the probe/driver is the root cause of the fault.

Step 2 — Disconnect safely: De-energize the proximitor or driver module at the junction box. Disconnect the cable at both the probe end and the monitor rack end. Inspect both connectors for bent pins, moisture ingress, or corrosion before discarding the failed cable.

Step 3 — Install replacement: Route the new 330190-045-01-CN along the existing cable path. Avoid sharp bends below the minimum bend radius. Secure with cable ties at existing support points. Reconnect at the probe junction box and monitor rack input.

Step 4 — Verify signal: Re-energize the driver and confirm gap voltage returns to the documented baseline. Check the 3300 XL monitor channel for alarm status and confirm 1X and 2X amplitude readings are within normal operating range before returning the machine to service.

Step 5 — Update maintenance records: Log the replacement date, cable serial number, and post-installation gap voltage in the equipment maintenance management system (CMMS). Schedule the next cable inspection at the next planned outage or 12-month interval, whichever comes first.

This workflow applies equally to planned outage replacements and emergency in-service swaps. The 330190-045-01-CN is a direct OEM replacement that requires no reconfiguration of the monitor module, making it suitable for rapid field replacement by maintenance technicians without specialist instrumentation training.

Spare Parts Support FAQ

Q1: Is the 330190-045-01-CN compatible with both the 3300 XL and 3500 series monitor racks?
The 330190-045-01-CN is designed and specified for the Bently Nevada 3300 XL system. Compatibility with 3500 series racks depends on the specific I/O module and connector interface in use. In many installations, the cable is used with a 3500/42 or 3500/45 proximity monitor module using the same MIL-spec coaxial connector standard. We recommend confirming the rack model and I/O module part number before ordering for 3500 series applications. KNMKS technical support can assist with compatibility verification.

Q2: How does KNMKS verify the condition of spare cables before shipment?
Each 330190-045-01-CN unit undergoes a pre-shipment inspection covering physical cable jacket integrity, connector pin condition, and DC continuity and impedance testing. Units that do not meet OEM specification are quarantined and not shipped. A test report is available upon request for quality-critical procurement programs. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q3: What is the recommended inventory strategy for this cable in a multi-train facility?
For facilities with four or more monitored machinery trains using 3300 XL systems, a minimum stock of one cable per two shaft positions is recommended as a baseline. Facilities with critical continuous-duty machines (compressors, turbines, boiler feed pumps) should maintain at least one cable per monitored position in the on-site spare parts store. KNMKS supports blanket order agreements and scheduled delivery programs to help procurement teams maintain optimal stock levels without excessive capital tied up in inventory.

Q4: Can KNMKS supply the 330190-045-01-CN on a long-term basis for multi-year maintenance contracts?
Yes. KNMKS maintains a dedicated supply pipeline for Bently Nevada 3300 XL series spare parts, including extension cables, probe assemblies, and proximitor modules. Long-term supply agreements with fixed pricing and priority allocation are available for industrial customers with ongoing maintenance requirements. Contact our sales team to discuss contract terms and lead time commitments.
