Bently Nevada 330190-040-01-05 Fail-Safe Probe Cable for Industrial Control

Overview

Bently Nevada 330190-040-01-05 Fail-Safe Probe Cable for Industrial Control

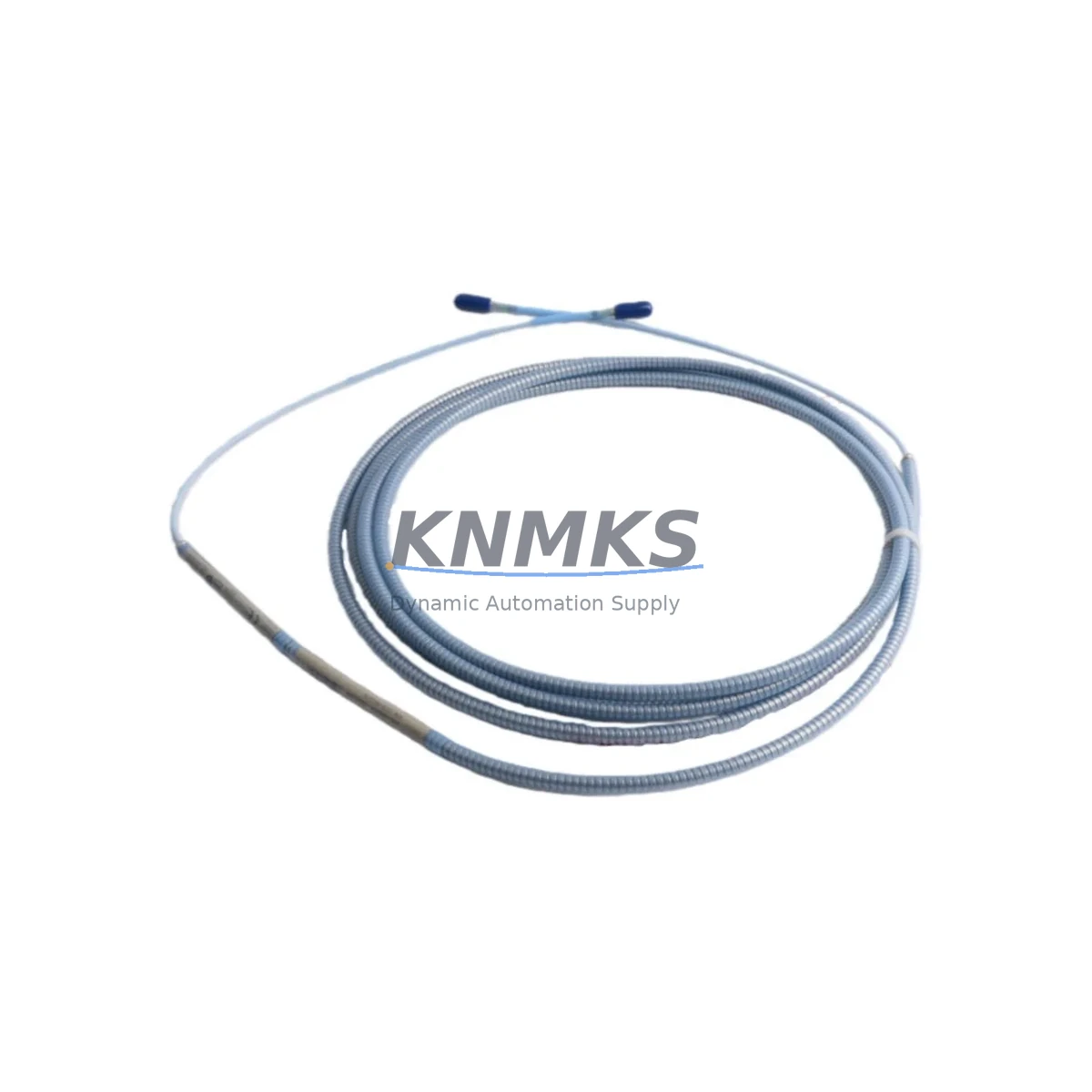

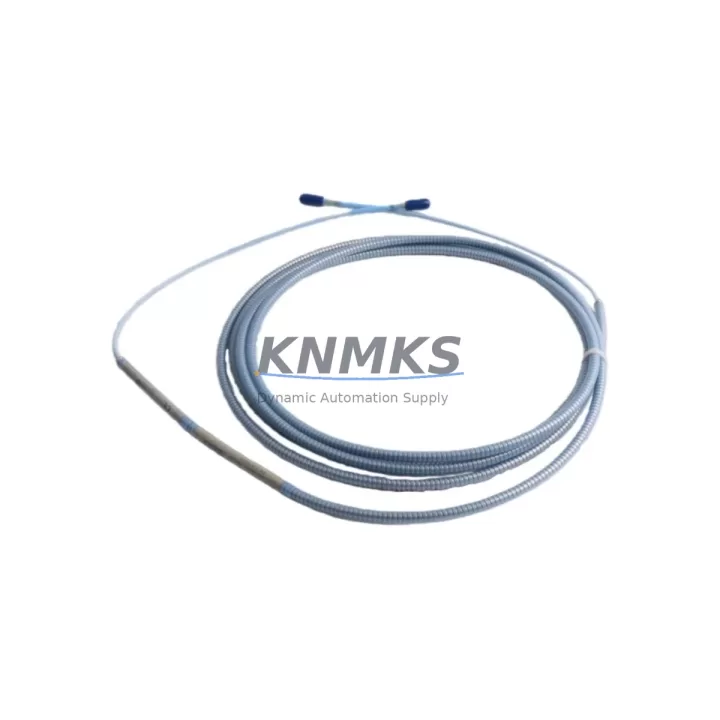

The Bently Nevada 330190-040-01-05 is an 8mm proximity probe extension cable engineered for the 3300 XL Series machinery protection system. Designed to deliver uninterrupted signal integrity in the most demanding industrial environments, this extension cable is a critical link between the proximity probe and the vibration monitor — a link where failure is not an option. In continuous production facilities, petrochemical plants, power generation stations, and heavy manufacturing lines, signal drift or cable degradation can trigger false trips, missed alarms, or undetected rotor instability. The 330190-040-01-05 is built to eliminate these failure modes through precision shielding, controlled impedance, and robust mechanical construction.

Industrial control cabinets housing Bently Nevada 3300 XL monitors are frequently exposed to high electromagnetic interference from variable frequency drives, high-voltage switchgear, and adjacent power distribution equipment. The 330190-040-01-05 extension cable features a double-shielded coaxial construction that suppresses EMI-induced signal noise, ensuring that the eddy-current gap signal transmitted from the probe tip to the proximitor remains clean and accurate across the full operating range. This directly reduces the risk of nuisance trips and missed vibration events — both of which carry severe safety and financial consequences in critical rotating machinery applications.

In harsh field environments — including dusty mining galleries, humid water treatment facilities, high-temperature turbine halls, and vibration-intensive compressor trains — cable integrity is a persistent maintenance concern. The 330190-040-01-05 is rated for continuous operation across a wide temperature range and is mechanically reinforced to resist abrasion, flexing fatigue, and connector loosening under sustained vibration. Its armored jacket and gold-plated SMA-style connectors maintain low-resistance contact even after years of field service, reducing the probability of intermittent faults that are notoriously difficult to diagnose during live operation.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reliable machinery protection system depends on the integrity of every component in the signal chain. When deploying the 330190-040-01-05 extension cable in a critical control cabinet, it should be paired with a properly calibrated Bently Nevada 3300 XL 8mm Proximitor Sensor to ensure the gap voltage output remains within the linear range specified for the target rotor material. The proximitor’s output feeds directly into a Bently Nevada 3500/42M Proximitor Monitor, which processes the vibration and position signals and triggers relay outputs for alarm and danger setpoints. Surge protection at the cabinet entry point — typically a Bently Nevada 3500/15 Power Supply Module — safeguards the entire monitoring rack from voltage transients caused by nearby switching equipment or lightning-induced surges on field cable runs.

In installations where the control cabinet also integrates safety instrumented system (SIS) functions, the vibration monitor’s relay outputs are often wired into a Triconex or equivalent TMR safety controller for voted shutdown logic. Maintaining the signal path integrity of the 330190-040-01-05 is therefore directly linked to the reliability of the final safety function. Additionally, in cabinets with dense wiring, the use of a Bently Nevada 3300 XL Field Wiring Termination Module ensures that extension cable connections are made at a dedicated, labeled terminal block — reducing the risk of miswiring during maintenance and enabling faster cable replacement without disturbing adjacent circuits. For installations in Zone 1 or Zone 2 hazardous areas, the extension cable must be routed through certified conduit or cable tray systems with appropriate intrinsic safety barriers to maintain the explosion-proof integrity of the measurement loop.

Critical Industrial Safety Applications

The Bently Nevada 330190-040-01-05 extension cable is deployed across a wide range of critical industrial safety applications where rotating machinery protection is non-negotiable. In petrochemical and refinery environments, it connects proximity probes on centrifugal compressors and steam turbines to the 3300 XL monitoring system, providing continuous shaft vibration and eccentricity data that feeds into emergency shutdown (ESD) logic. A cable failure in this context could mask a developing bearing fault or rotor rub, leading to catastrophic equipment failure and potential process safety incidents.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the 330190-040-01-05 is used on turbine-generator sets where axial position and radial vibration monitoring are mandatory under API 670 and IEC 61511 standards. The cable’s EMI resistance is particularly valuable in generator halls where high magnetic flux levels from the generator stator can induce noise on unshielded signal cables. In mining and mineral processing operations, the cable is installed on large ball mills, SAG mills, and crusher drives, where dust ingress and mechanical shock are constant threats to instrumentation reliability. The robust jacket and secure connectors of the 330190-040-01-05 maintain signal continuity even under these extreme conditions.

Water and wastewater treatment plants rely on this extension cable for pump and blower vibration monitoring, where early detection of imbalance or bearing wear prevents unplanned outages that could disrupt municipal water supply. In metallurgical and steel production facilities, the cable operates reliably in high-temperature, high-vibration environments adjacent to rolling mills and continuous casting machines. Port and marine applications — including shipboard machinery monitoring and port crane drives — also benefit from the cable’s corrosion-resistant construction and wide operating temperature range, ensuring reliable operation in salt-air and high-humidity environments.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330190-040-01-05?
All units are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, connector integrity, and signal performance under normal operating conditions. Support requests are supported with direct technical assistance and expedited replacement to minimize downtime.

Q2: What pre-shipment testing is performed on each cable?
Every 330190-040-01-05 unit undergoes outgoing quality inspection including continuity testing, shield integrity verification, connector torque check, and visual inspection for jacket damage. Units are shipped with test records available upon request, ensuring traceability for safety-critical installations.

Q3: Is the 330190-040-01-05 compatible with all 3300 XL proximity probes and proximitors?
Yes. The 330190-040-01-05 is designed as a direct replacement for the standard Bently Nevada 3300 XL 8mm extension cable and is fully compatible with all 3300 XL Series 8mm proximity probes and proximitors. It maintains the system’s calibrated sensitivity and linear range when used with the correct probe-proximitor combination as specified in the Bently Nevada system TK-3 calibration documentation.

Q4: Can long-term supply and replacement support be guaranteed for critical plant spares programs?
Yes. We maintain dedicated inventory of the 330190-040-01-05 to support planned maintenance shutdowns, emergency replacements, and long-term spares programs. Bulk orders and consignment stock arrangements are available for facilities with high-reliability requirements. Our team provides technical support for installation, commissioning, and compatibility verification to ensure safe and correct field replacement.
