Bently Nevada 330190-040-01-00 Maintenance-Proven Spare Part for Factory Uptime

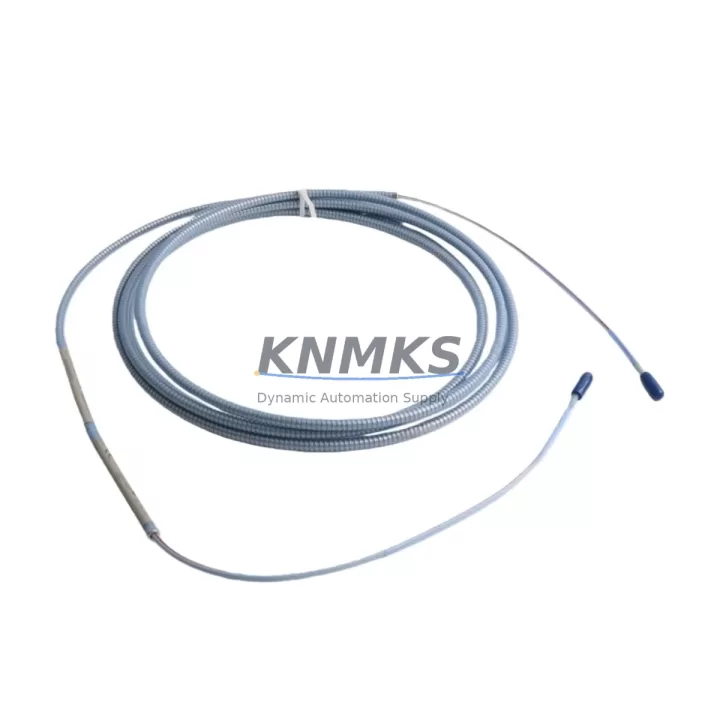

The Bently Nevada 330190-040-01-00 is a 40-foot (approximately 12-meter) extension cable engineered for the 3300 XL Enhanced Transient Recording (ETR) proximity probe system — one of the most widely deployed vibration and position monitoring platforms in rotating machinery protection. Designed to bridge the gap between the proximity probe tip and the Proximitor® sensor, this cable is a precision-matched component that directly affects signal integrity, measurement accuracy, and overall system reliability. For maintenance engineers managing turbines, compressors, pumps, and generators, keeping a verified spare of the 330190-040-01-00 on hand is a fundamental element of any proactive maintenance strategy.

At KNMKS, every 330190-040-01-00 unit is sourced, inspected, and dispatched with full traceability. We supply original and OEM-equivalent spare parts to maintenance teams and procurement engineers across petrochemical, power generation, oil & gas, and heavy manufacturing sectors. Each unit ships with a support terms confirmed by quotation and pre-shipment functional verification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the 330190-040-01-00 extension cable in the field, a thorough maintenance workflow extends well beyond the cable itself. The 3300 XL proximity probe system is an integrated measurement chain, and signal quality depends on the condition of every component in that chain.

Begin by verifying the condition of the proximity probe at the measurement end — typically a 330100-series or 330130-series probe — checking for tip damage, contamination, or mechanical wear that could introduce measurement error even with a new cable installed. At the Proximitor® sensor end, inspect the 3300 XL Proximitor® sensor module (such as the 330180-X1-05 or equivalent) for secure mounting, correct gap voltage output, and absence of moisture ingress. A degraded Proximitor® sensor will mask the benefit of a new extension cable entirely.

Within the control cabinet, check the 3500/22M Transient Data Interface or the relevant 3300 XL monitor card for alarm setpoint integrity and channel health. If the system uses a 3500-series rack, inspect the backplane connectors and the power supply module — a marginal rack power supply can introduce noise that mimics cable faults. Verify that the 3500/15 Power Supply or equivalent is within specification and that all terminal block connections on the I/O side are torqued correctly and free of corrosion.

For installations where the 3300 XL system feeds into a DCS or safety system, confirm that the 4-20 mA output signal from the Proximitor® sensor is reaching the receiving card without offset. Signal isolators or barriers in the loop — particularly in hazardous area installations — should be tested for drift. Fuse holders and protection fuses on the sensor supply lines are often overlooked during cable replacement; these should be inspected and replaced on a scheduled basis as part of the same work order.

Finally, if the machine is part of an API 670-compliant protection system, document the replacement in the maintenance management system and re-verify the overall channel response before returning the machine to service. Keeping a matched set of spare cables, probes, and Proximitor® sensors in your local spare parts inventory eliminates the risk of extended downtime caused by single-component shortages.

Site Replacement Workflow

Step 1 — Isolate and de-energize: Follow site LOTO procedures. De-energize the Proximitor® sensor supply before disconnecting the extension cable. Note the existing gap voltage reading from the monitor display for reference after reinstallation.

Step 2 — Disconnect and inspect: Remove the 330190-040-01-00 from both the probe connector and the Proximitor® sensor input. Inspect both mating connectors for pin damage, contamination, or corrosion. Clean with appropriate contact cleaner if required.

Step 3 — Install the replacement cable: Connect the new 330190-040-01-00 extension cable, ensuring hand-tight plus quarter-turn on coaxial connectors. Avoid over-torquing. Route the cable away from high-voltage conductors and secure with appropriate cable ties or conduit as per original installation.

Step 4 — Re-energize and verify gap voltage: Restore power to the Proximitor® sensor. Measure the gap voltage output and compare to the pre-removal reference value. Acceptable gap voltage for most 3300 XL installations is in the –10 VDC to –18 VDC range depending on probe-to-target gap; consult the system datasheet for exact values.

Step 5 — Confirm alarm and trip setpoints: Verify that the monitor channel is reading correctly and that no spurious alarms are active. Perform a functional test of the OK relay output if site procedures require it.

Step 6 — Document and close out: Record the replacement in the CMMS, update the spare parts inventory, and flag the next scheduled inspection interval. Replenish the 330190-040-01-00 spare stock to maintain minimum inventory levels.

Spare Parts Support FAQ

Q1: Is the 330190-040-01-00 a direct drop-in replacement for older 3300 XL extension cables?
Yes. The 330190-040-01-00 is designed as a direct replacement within the 3300 XL proximity probe system. No recalibration of the Proximitor® sensor is required provided the replacement cable is the same length and impedance specification as the original. Always verify the cable length suffix in the part number matches your installation requirement.

Q2: How do I confirm compatibility with my existing probe and Proximitor® sensor?
The 330190-040-01-00 is compatible with Bently Nevada 330100, 330130, and 330180 series probes and Proximitor® sensors operating in the 3300 XL system. Cross-reference your existing probe part number and Proximitor® model against the Bently Nevada 3300 XL system compatibility matrix. If you require compatibility confirmation before purchase, contact our technical team with your full system part numbers.

Q3: What pre-shipment testing is performed on each unit?
Every 330190-040-01-00 dispatched from KNMKS undergoes continuity testing, insulation resistance measurement, and connector integrity inspection before shipment. Units that do not meet specification are quarantined and not dispatched. A support terms confirmed by quotation cover manufacturing defects and verified performance failures from the date of shipment.

Q4: Can KNMKS support long-term or blanket purchase orders for this part?
Yes. KNMKS supports long-term supply agreements, blanket purchase orders, and scheduled replenishment programs for the 330190-040-01-00 and related 3300 XL system components. This is particularly valuable for facilities managing multiple machines on the same monitoring platform, where maintaining a consistent spare parts inventory is critical to uptime assurance. Contact our procurement team to discuss volume pricing and lead time commitments.
