Bently Nevada 330180-X2-00 Migration-Ready Proximity Sensor

Overview

Bently Nevada 330180-X2-00 Migration-Ready Proximity Sensor: Legacy System Retrofit & Upgrade

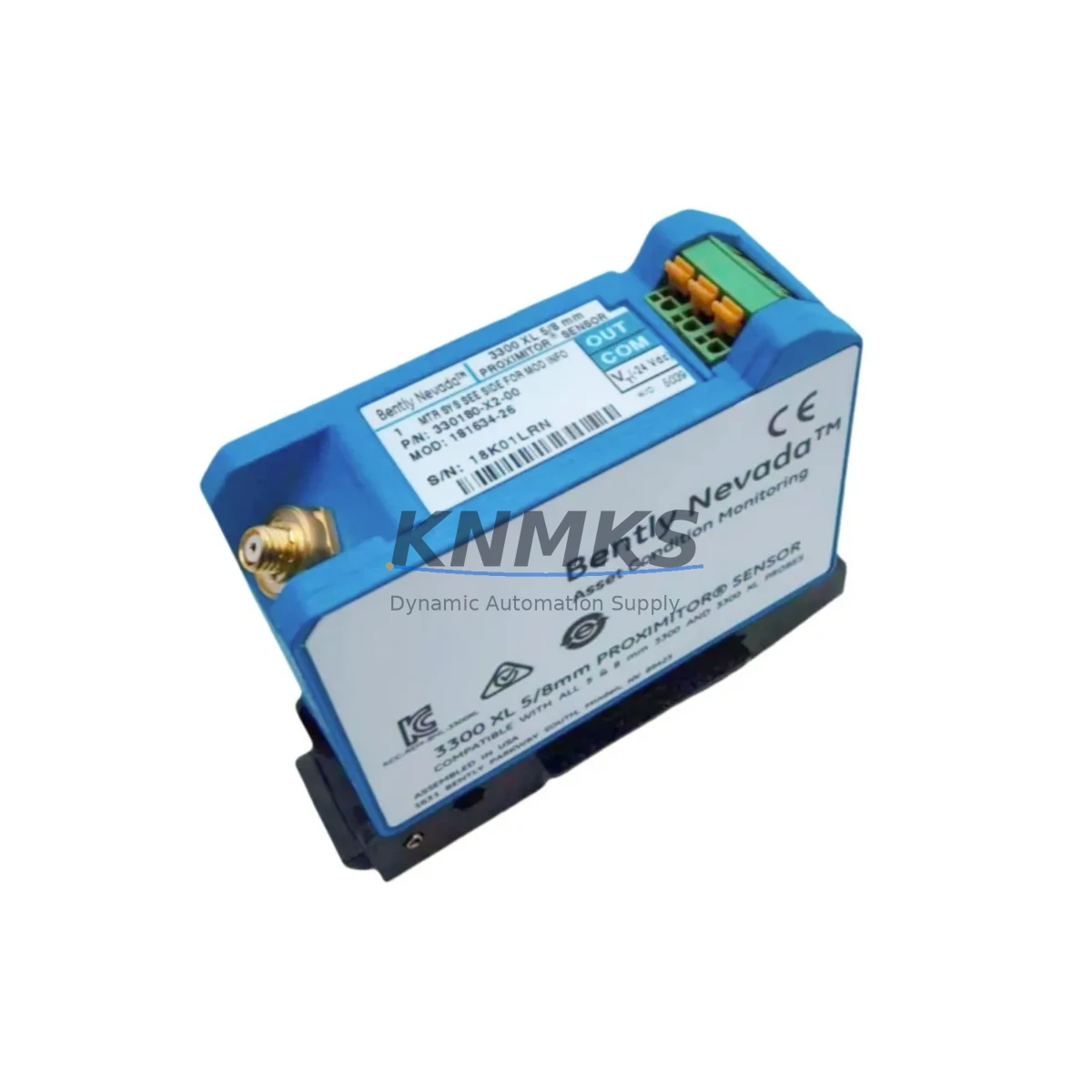

The Bently Nevada 330180-X2-00 (MOD:181634-27) is an 8mm eddy current proximity sensor engineered for drop-in replacement within the 3300 XL Series vibration monitoring platform. As legacy Bently Nevada 3300 Series installations approach end-of-life, maintenance engineers and reliability teams face increasing pressure to source certified replacement components that preserve existing wiring, signal conditioning, and monitor compatibility without requiring full system redesign. The 330180-X2-00 addresses this challenge directly — it is dimensionally and electrically compatible with the original 3300 XL proximity sensor family, enabling controlled, low-risk migration with minimal downtime.

When planning a retrofit around this sensor, engineers must verify several critical parameters before installation. Power supply capacity at the field junction box should be confirmed against the sensor’s operating range (typically -18 VDC to -24 VDC), and the existing 3300 XL proximitor/driver — such as the 330180 Series proximitor — must be checked for firmware revision compatibility. Terminal wiring at the proximitor enclosure follows the standard three-wire configuration (PWR, COM, SIG), and any deviation from the original cable routing or extension cable length will affect the system scale factor and gap voltage calibration. Engineers should document the original gap voltage (typically -10.0 VDC at 1.0 mm) before removal to serve as the baseline for post-installation verification.

For installations where the 3300 XL monitor rack — including the 3300/16 or 3300/20 monitor modules — remains in service, the 330180-X2-00 integrates without rack reconfiguration. However, if the migration path involves transitioning to the System 1 condition monitoring platform or upgrading to a 3701 Series rack-mounted monitor, the sensor output signal chain must be re-validated against the new monitor’s input impedance and scale factor settings. In multi-channel installations, replacing sensors one channel at a time while maintaining the remaining channels in service is the recommended approach to preserve continuous vibration monitoring during the retrofit window.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the 330180-X2-00 requires a structured bill-of-materials review across the entire signal chain. The sensor itself is only one element; the associated 330180 Series proximitor/driver, the armored extension cable (typically a 330130 or 330140 Series cable assembly), and the barrier or isolator module at the monitor rack input all contribute to overall system accuracy. In hazardous area installations, the Zener barrier or galvanic isolator must be rated for the sensor’s output impedance to avoid signal attenuation that could trigger false alerts on the 3300 XL monitor.

For control cabinets that also house a Bently Nevada 3500 Series rack — a common configuration in turbomachinery protection systems — the migration plan should account for the difference in I/O module addressing between the 3300 and 3500 platforms. If the upgrade path includes transitioning vibration data to a DCS or SCADA system via a 3500/92 communication gateway module, the Modbus or FOUNDATION Fieldbus configuration must be updated to reflect the new channel assignments. Similarly, any HMI screens built on the original 3300 XL channel map will require tag remapping to maintain accurate display of shaft vibration, axial position, and phase reference data.

In plants where the control system also integrates Allen-Bradley or Siemens PLCs for sequence logic, the analog input cards receiving the proximity sensor signal should be verified for input range compatibility. A 3300 XL sensor operating at standard scale factor produces a gap voltage in the -2 VDC to -18 VDC range; PLC analog input modules must be configured accordingly. Signal isolators — such as DIN-rail mounted loop-powered isolators — are recommended at the PLC cabinet entry point to protect against ground loops introduced during the retrofit.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity sensor replacement on a running machine train requires a phased approach. Before any physical work begins, the original sensor gap voltage, proximitor output voltage, and monitor channel OK status should be recorded and archived. This baseline serves as the acceptance criterion for post-installation verification and protects the original program logic from being inadvertently altered during the retrofit.

Where process conditions allow, the affected monitor channel should be placed in bypass mode on the 3300 XL monitor prior to sensor removal. This prevents a spurious trip signal from propagating to the turbine control system or ESD logic during the gap between sensor removal and reinstallation. Once the 330180-X2-00 replacement is installed and the extension cable is reconnected, the gap voltage should be adjusted to the documented baseline value before the channel bypass is released. Final verification includes confirming the OK LED status on the proximitor, checking the monitor channel for valid vibration amplitude and phase readings, and reviewing the DCS or historian trend for signal continuity.

For critical machinery where even a brief monitoring gap is unacceptable, a temporary portable vibration analyzer can be connected in parallel during the swap window to maintain continuous shaft vibration surveillance. This approach is particularly valuable in single-train configurations — such as main feed pumps, compressors, or steam turbines — where the 3300 XL system provides the sole source of machinery protection data.

Retrofit Support FAQ

Q1: Is the 330180-X2-00 a direct replacement for all 330180 Series proximity sensors?
The 330180-X2-00 (MOD:181634-27) is compatible with the 330180 Series sensor family used in 3300 XL installations. Always verify the MOD revision on the existing sensor label before ordering, as different MOD revisions may have minor dimensional or cable termination differences. Our team can cross-reference your existing part number prior to shipment.

Q2: What pre-shipment testing is performed on this sensor?
Each 330180-X2-00 unit undergoes functional output verification and dimensional inspection prior to dispatch. Test records confirming gap voltage linearity and OK threshold performance are available upon request. Units are shipped in anti-static packaging with protective tip covers to prevent probe damage in transit.

Q3: Can this sensor be used with a 3500 Series monitor rack?
The 330180-X2-00 is designed for the 3300 XL platform. While the physical sensor probe may be mechanically compatible with some 3500 Series applications, the proximitor/driver pairing and scale factor calibration must be validated against the specific 3500 I/O module in use. Contact our technical team for cross-platform compatibility confirmation before ordering for a 3500 Series application.

Q4: What is covered under the support terms confirmed by quotation?
The support terms confirmed by quotation cover manufacturing defects, signal output integrity, and mechanical integrity of the sensor probe and connector. It does not cover damage resulting from incorrect installation gap, over-voltage conditions, or physical impact. Support requests are processed with a replacement unit dispatched within 5 business days of fault confirmation.
