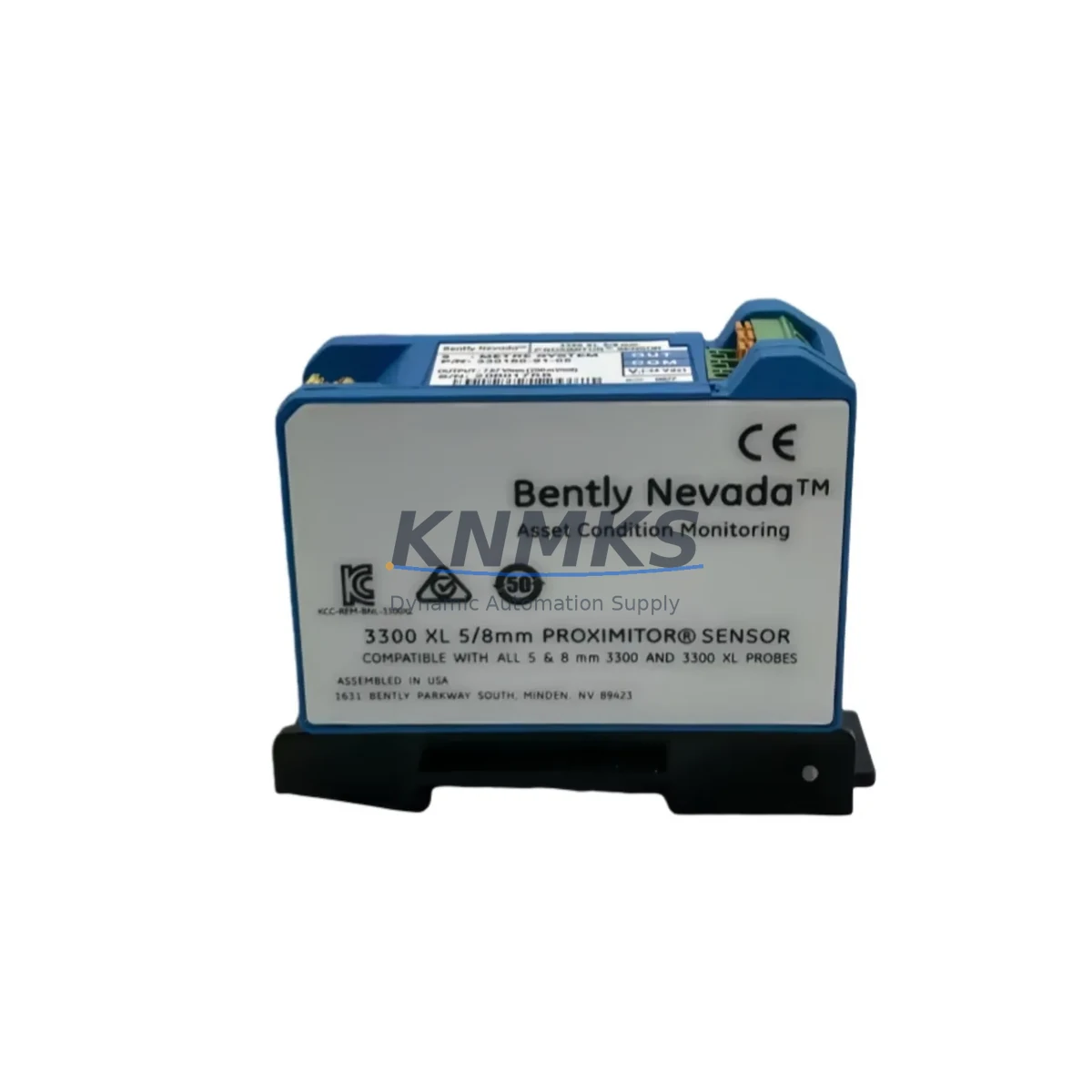

Bently Nevada 330180-X1-CN Spare Part for Factory Uptime

Overview

Bently Nevada 330180-X1-CN Maintenance-Proven Spare Part for Factory Uptime

The Bently Nevada 330180-X1-CN is an original proximitor sensor engineered for the 3300 XL vibration monitoring system — one of the most widely deployed condition monitoring platforms in rotating machinery protection across power generation, oil & gas, petrochemical, and heavy manufacturing industries. Sourced directly from verified supply channels, this spare part is tested before shipment and backed by a support terms confirmed by quotation, making it a reliable choice for both emergency replacement and planned maintenance inventory.

Maintenance engineers and procurement teams managing turbine protection panels, compressor monitoring racks, and critical rotating equipment rely on the 330180-X1-CN to restore system integrity with minimal downtime. Whether you are responding to an unplanned trip event, executing a scheduled turnaround, or building a strategic spare parts buffer, this proximitor sensor delivers the signal conditioning performance required by the 3300 XL monitor series.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330180-X1-CN proximitor sensor in a 3300 XL monitoring rack, a thorough site inspection is essential to prevent repeat failures and ensure the restored system performs reliably through the next maintenance interval. Maintenance engineers should begin by verifying the integrity of the extension cable connecting the proximity probe to the proximitor — damaged or improperly terminated cables are a leading cause of signal drift and false trips. The 3300 XL 8mm proximity probe itself should be inspected for tip wear, contamination, and correct gap setting, as a misaligned probe will produce erroneous vibration readings even with a new proximitor installed.

The 3300 XL monitor card receiving the proximitor output signal should be checked for firmware version compatibility and channel calibration. If the monitor card — such as the 3300/16 or 3300/25 — has not been recalibrated recently, this is an ideal opportunity to perform a full channel verification. Procurement teams should also consider stocking the companion 3300 XL power supply module, as power quality issues are frequently implicated in premature proximitor failures. A regulated, noise-free DC supply is critical to maintaining the -18 VDC bias voltage that the 330180-X1-CN requires for accurate gap measurement.

For facilities running Bently Nevada System 1 software or a 3500 series rack alongside legacy 3300 XL panels, ensure that the communication module and I/O termination boards are inspected during the same maintenance window. Signal isolation barriers between the proximitor output and the DCS or safety system input should be tested for correct scaling and loop integrity. Fuse holders and terminal blocks within the monitoring cabinet should be inspected for corrosion, loose connections, and correct fuse ratings — a blown or undersized fuse can mimic a proximitor failure and lead to unnecessary component replacement. Where HMI displays are used to trend vibration data, verify that the engineering unit scaling matches the new proximitor’s output range to avoid alarm setpoint errors after replacement.

Site Replacement Workflow

Replacing the 330180-X1-CN on-site is a straightforward procedure when the correct spare is on hand and the replacement workflow is followed systematically. Begin by isolating the affected monitoring channel at the 3300 XL monitor card — most 3300 XL monitors support channel bypass or inhibit functions that allow the replacement to proceed without triggering a machine trip. Disconnect the extension cable from the existing proximitor, noting the cable routing and connector orientation to ensure correct reinstallation.

Install the 330180-X1-CN replacement unit, reconnect the extension cable, and restore power to the channel. Allow the proximitor a brief warm-up period before verifying the DC gap voltage at the monitor card input — the gap voltage should fall within the linear range specified for the probe-to-target gap used at your installation. Confirm that the vibration and position readings displayed on the 3300 XL monitor and the plant DCS are consistent with pre-fault baseline values before releasing the channel from inhibit.

For aging 3300 XL systems where original Bently Nevada spare parts are becoming harder to source through standard distribution channels, maintaining a dedicated spare parts inventory that includes the 330180-X1-CN proximitor, matched extension cables, and at least one spare monitor card significantly reduces mean time to repair (MTTR) and protects against extended lead times during supply chain disruptions. This proactive inventory strategy is particularly important for facilities operating in remote locations or running continuous processes where unplanned downtime carries high financial and safety consequences.

Spare Parts Support FAQ

Q1: Is the 330180-X1-CN compatible with all 3300 XL monitor cards?
The 330180-X1-CN is designed for use within the Bently Nevada 3300 XL vibration monitoring system and is compatible with the standard 3300 XL monitor series, including the 3300/16, 3300/20, 3300/25, and 3300/55 cards, when used with the correct 8mm proximity probe and extension cable. Always verify the probe system configuration — probe, extension cable, and proximitor — matches the monitor card’s input specifications before installation.

Q2: How is the 330180-X1-CN tested before shipment?
Each unit undergoes functional verification prior to dispatch, including output voltage checks and signal integrity testing. A test report is available upon request. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment.

Q3: Can the 330180-X1-CN replace older or discontinued Bently Nevada proximitor models?
In many cases, yes — the 330180-X1-CN can serve as a direct replacement for earlier 3300 XL proximitor variants, provided the probe and extension cable specifications are compatible. For cross-reference verification or assistance confirming compatibility with your specific installation, contact our technical support team before ordering.

Q4: What is the long-term supply availability for the 330180-X1-CN?
We maintain ongoing inventory of the 330180-X1-CN and other 3300 XL series spare parts to support long-term maintenance programs. For facilities managing aging Bently Nevada systems, we recommend establishing a blanket purchase agreement or annual stocking arrangement to ensure availability and price stability over multi-year maintenance cycles.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330180-X1-CN?MOD:1450004-82
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330180-X1-CN?MOD:1450004-82
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
