Bently Nevada 330180-X1-CN Maintenance-Proven Spare Part for Factory Uptime

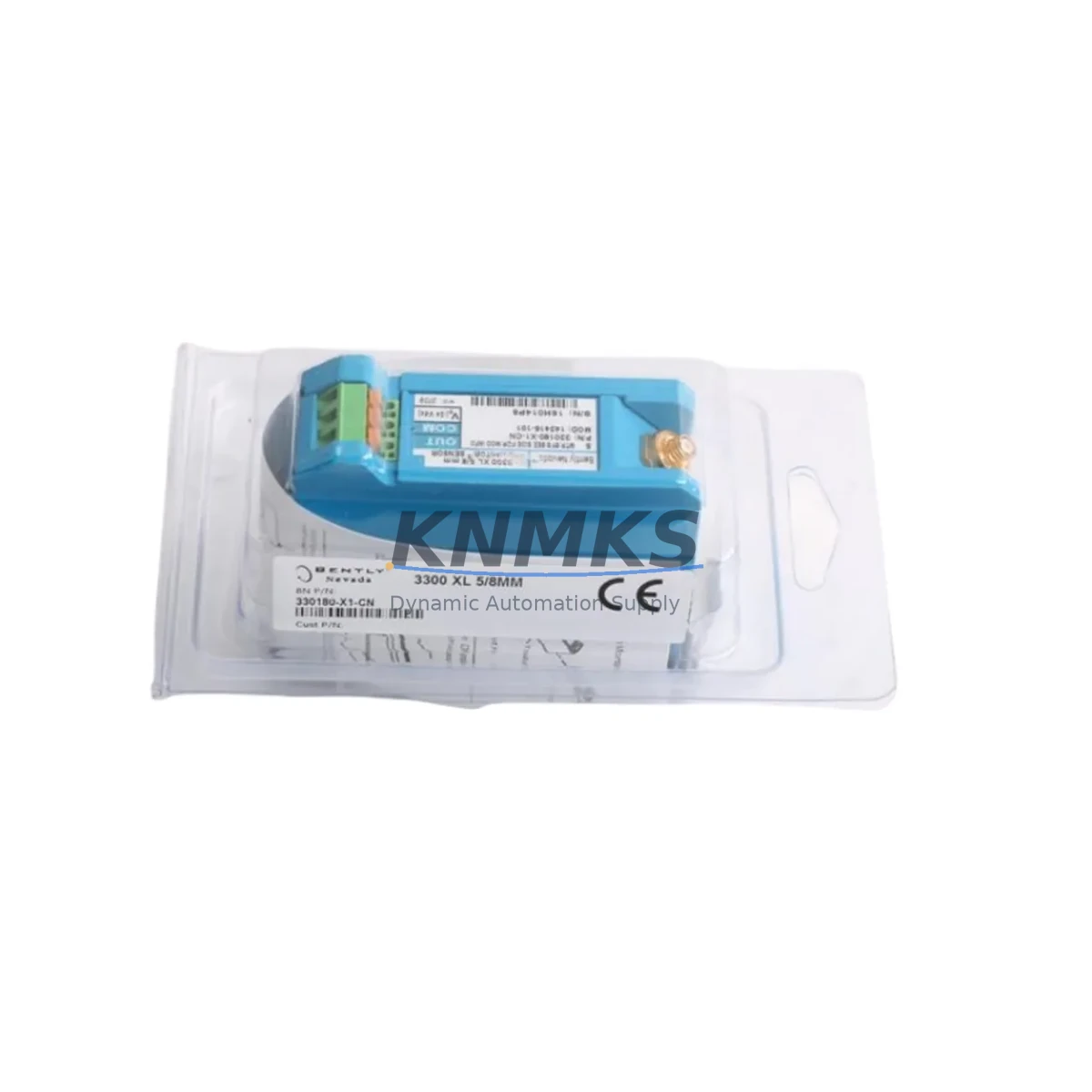

The Bently Nevada 330180-X1-CN (MOD:145193-09) is a field-proven proximity transducer engineered for continuous vibration monitoring in rotating machinery applications. Designed as a core component of the Bently Nevada 3300 XL Series monitoring system, this transducer delivers reliable non-contact displacement measurement critical to turbine protection, compressor health monitoring, and pump shaft surveillance in high-demand industrial environments including petrochemical plants, power generation facilities, LNG terminals, and offshore platforms.

Sourced as an original spare and pre-shipment tested to OEM specifications, the 330180-X1-CN is stocked to support both emergency breakdown recovery and planned annual maintenance cycles. Whether you are replacing a failed transducer during an unplanned shutdown or building out your site spare parts inventory ahead of a scheduled turnaround, this unit ships ready for immediate installation with full traceability documentation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330180-X1-CN in the field, a thorough inspection of the surrounding measurement loop is essential to prevent repeat failures and ensure accurate vibration data after recommissioning. Maintenance engineers should verify the condition of the 330130-080-00-00 extension cable connecting the transducer to the proximitor — cable damage, connector corrosion, or impedance drift are common root causes of transducer signal degradation that are frequently misdiagnosed as transducer failure.

The Bently Nevada 3300 XL 8mm Proximitor (typically mounted in the junction box or field enclosure) should be inspected for moisture ingress, terminal corrosion, and output voltage stability. A proximitor that has been in service for more than five years in a high-vibration or high-humidity environment should be considered for simultaneous replacement to avoid a secondary failure shortly after the transducer swap.

At the monitor rack level, confirm that the corresponding channel card in the Bently Nevada 3300/16 Dual Voting Monitor or 3500/42M Proximitor Monitor is reading within the expected gap voltage range after installation. If the channel is showing a NOT OK status or gap voltage out of range, inspect the rack backplane connectors and verify the monitor firmware is compatible with the transducer configuration.

For sites running integrated machinery protection, also check the Bently Nevada 3500/20 Power Supply output voltage — a degraded power supply can cause intermittent transducer faults that are difficult to isolate without a stable reference voltage. Terminal blocks and field wiring in the junction box should be inspected for loose connections, especially in high-vibration environments where terminal screws can back out over time.

If the plant uses a DCS integration module or Modbus/OPC gateway to relay vibration data to the control room, verify that the signal chain is intact after replacement and that alarm setpoints are correctly configured in the monitoring software. Proximity transducer replacements that alter the gap calibration can shift baseline vibration readings and trigger nuisance alarms if setpoints are not reviewed post-installation.

For long-term spare parts planning, procurement engineers managing rotating equipment fleets should consider stocking at least one spare 330180-X1-CN per critical machine train, alongside matched extension cables and a spare proximitor. This three-component spare set — transducer, cable, and proximitor — covers the full field-replaceable measurement loop and eliminates the risk of a secondary delay if one component is found defective during emergency replacement.

Site Replacement Workflow

Step 1 – Isolation and Lockout: Follow site LOTO procedures. Confirm the machine is at rest and the monitoring channel is bypassed or inhibited in the 3300/3500 monitor to prevent spurious trips during installation.

Step 2 – Remove the Failed Transducer: Disconnect the extension cable at the transducer connector. Unthread the transducer from the mounting bracket. Note the installed gap measurement (typically measured with a feeler gauge or recorded from the monitor’s gap voltage reading prior to shutdown).

Step 3 – Install the 330180-X1-CN Replacement: Thread the new transducer into the bracket. Set the gap to the OEM-specified value (typically 1.0–1.5 mm for 8mm probes, confirm against the original commissioning record). Reconnect the extension cable and verify connector seating.

Step 4 – Verify Gap Voltage: With the machine still at rest, confirm the gap voltage at the monitor channel is within the acceptable range (typically -10 VDC ± 1 VDC for a 1.0 mm gap). Adjust gap as needed.

Step 5 – Recommission and Monitor: Remove the bypass/inhibit. Run the machine up to operating speed and verify vibration readings are stable and within historical baseline. Document the replacement in the site maintenance management system (CMMS).

This workflow minimizes downtime, preserves system compatibility, and ensures the replacement transducer is correctly calibrated before returning the machine to service — reducing the risk of a repeat trip or false alarm during the post-maintenance run-in period.

Spare Parts Support FAQ

Q1: Is the 330180-X1-CN compatible with both the 3300 and 3500 Series Bently Nevada monitors?
Yes. The 330180-X1-CN is designed for use within the 3300 XL proximity transducer system and is compatible with Bently Nevada 3300 Series and 3500 Series monitor channels configured for 8mm eddy-current probes. Always verify the channel configuration and gap voltage range against your site’s commissioning documentation before installation.

Q2: What is included with the shipment and how is the unit tested before dispatch?
Each 330180-X1-CN is functionally tested prior to shipment to verify output signal integrity and connector condition. The unit ships with basic documentation. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can this transducer be used as a long-term replacement for discontinued or end-of-life Bently Nevada configurations?
Yes. The 330180-X1-CN is stocked specifically to support aging 3300 XL installations where OEM supply has become unreliable or lead times are extended. It is suitable for use in legacy machine protection systems as a direct replacement, provided the gap, cable, and proximitor configuration match the original installation parameters.

Q4: What is the recommended spare parts strategy for sites with multiple 3300 XL measurement points?
For sites with five or more 3300 XL measurement points, we recommend maintaining a minimum of two 330180-X1-CN transducers in site stock, along with matched extension cables and at least one spare proximitor. This inventory level supports emergency replacement on critical machines without waiting for international shipping, and aligns with best-practice spare parts strategies for rotating equipment in continuous-process industries.
