Bently Nevada 330180-X1-CN Maintenance-Proven Spare for 3300 XL

Overview

Bently Nevada 330180-X1-CN Maintenance-Proven Spare for 3300 XL: Reliable Proximitor Sensor for Factory Uptime

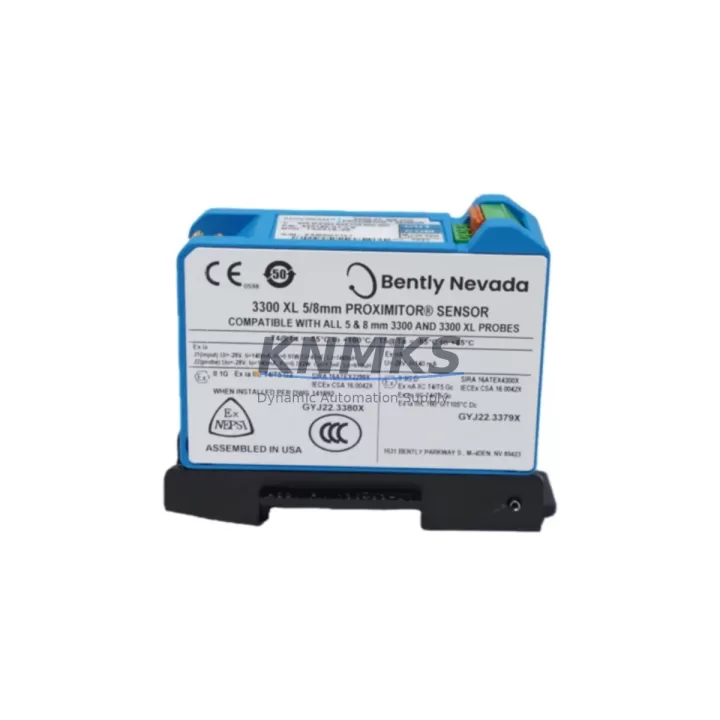

The Bently Nevada 330180-X1-CN MOD:145004-47 is an original proximitor sensor engineered for the 3300 XL vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications across energy, petrochemical, power generation, and heavy manufacturing facilities. Maintaining an on-hand spare of this sensor is a fundamental element of any predictive maintenance program where unplanned downtime carries significant operational and financial consequences.

This proximitor sensor converts the eddy-current signal from the 3300 XL proximity probe into a DC voltage proportional to the gap between the probe tip and the target shaft surface. It is a critical link in the vibration measurement chain, and its failure — whether from power surge, moisture ingress, connector fatigue, or end-of-life drift — can immediately disable shaft displacement monitoring and trigger protective shutdowns. Stocking a verified replacement unit eliminates the lead-time risk associated with sourcing this component during an emergency outage.

Each unit supplied by KNMKS is sourced from original manufacturer channels or verified industrial surplus, inspected for physical integrity, and functionally tested prior to shipment. A support terms confirmed by quotation is provided on all spare parts, covering defects in materials and workmanship under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330180-X1-CN proximitor sensor is flagged for replacement during a scheduled outage or emergency shutdown, maintenance engineers should treat the event as an opportunity to audit the entire vibration measurement loop and adjacent protection circuits. The proximitor does not operate in isolation — its accuracy and reliability depend on the condition of every upstream and downstream component in the measurement chain.

Begin with the 3300 XL proximity probe (typically an 8mm probe such as the 330103 or 330104 series) paired with this proximitor. Probe tip wear, cable damage at the conduit entry, or connector corrosion will produce erratic gap readings even with a new proximitor installed. Inspect the probe cable and extension cable for continuity and insulation resistance before commissioning the replacement sensor.

Next, verify the 3300 XL power supply module supplying –24 VDC to the proximitor rack. A degraded power supply with excessive ripple or voltage sag under load will introduce noise into the vibration signal and may cause nuisance trips. If the power supply has not been replaced within its recommended service interval, consider scheduling it alongside the proximitor swap.

The 3300 XL I/O module and associated terminal block assemblies within the machinery protection rack should also be inspected. Loose terminations, oxidized contacts, or damaged ribbon connectors between the I/O module and the monitor card can introduce signal offsets that are difficult to distinguish from a faulty proximitor. Torque-check all field wiring terminals and verify shield grounding continuity.

For facilities running Bently Nevada 3500 series monitors in parallel or as part of a migration path, confirm that the signal conditioning output from the 330180-X1-CN is compatible with the monitor card’s input range. In mixed-generation installations, a signal isolator or barrier module may be required to prevent ground loops between the 3300 XL rack and the 3500 monitor chassis.

Finally, review the fuse and surge protection devices on the –24 VDC supply rail feeding the proximitor. A blown fuse or degraded transient voltage suppressor (TVS) is a common root cause of proximitor failure in environments with frequent electrical transients from variable-frequency drives (VFDs) or large motor starts. Replacing the proximitor without addressing the upstream protection exposes the new unit to the same failure mode.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and coordinate with the control room to acknowledge the vibration channel being taken out of service. Inhibit the associated trip function in the machinery protection system to prevent a spurious shutdown during the swap.

Step 2 — Document Baseline: Record the current gap voltage reading from the monitor display or DCS historian before disconnecting the old proximitor. This value will be used to verify correct reinstallation gap after the new unit is connected.

Step 3 — Disconnect and Remove: Disconnect the probe cable, extension cable, and power/signal connectors from the existing 330180-X1-CN. Label all connectors before removal. Inspect the connector pins and sockets for damage or corrosion.

Step 4 — Install Replacement Unit: Mount the new 330180-X1-CN MOD:145004-47 in the same rack position. Reconnect all cables in the correct sequence per the 3300 XL installation drawing. Do not overtighten connector locking rings.

Step 5 — Gap Verification: Power up the proximitor and verify the gap voltage matches the pre-removal baseline (±0.5 VDC tolerance is typical). If the reading deviates significantly, re-check probe position and cable connections before proceeding.

Step 6 — Functional Test and Re-enable: Confirm the vibration channel is reading correctly on the monitor and DCS. Remove the trip inhibit, restore normal protection status, and update the maintenance record with the replacement date, new unit serial number, and gap voltage reading.

This workflow minimizes downtime, ensures system compatibility, and provides a documented audit trail for reliability-centered maintenance (RCM) programs.

Spare Parts Support FAQ

Q1: Is the 330180-X1-CN MOD:145004-47 a direct drop-in replacement for earlier 330180 series proximitors?
The MOD:145004-47 designation indicates a specific hardware revision. In most 3300 XL installations, this revision is backward-compatible with earlier 330180 variants, but compatibility should be confirmed against the system’s rack configuration drawing and the Bently Nevada 3300 XL product manual before installation. KNMKS can assist with compatibility verification prior to shipment.

Q2: How is each unit tested before shipment?
All proximitor sensors are inspected for physical condition (connector integrity, housing, labeling) and functionally verified for output signal response. Units that do not meet acceptance criteria are quarantined and not shipped. A test report is available upon request for critical applications.

Q3: What is the recommended spare parts inventory strategy for 3300 XL proximitor sensors?
For facilities with four or more 3300 XL measurement channels, maintaining a minimum of two spare proximitor units on-site is recommended. For critical machinery (gas turbines, large compressors, boiler feed pumps), a one-for-one hot spare policy is advisable. KNMKS offers long-term supply agreements to support annual maintenance budgets and multi-year stocking programs.

Q4: What support terms and after-sales support does KNMKS provide?
All spare parts carry a support terms confirmed by quotation from the date of shipment, covering defects in materials and workmanship under normal operating conditions. Support requests are processed within 5 business days. KNMKS maintains long-term supply commitments for 3300 XL series components to support facilities managing aging automation infrastructure.
