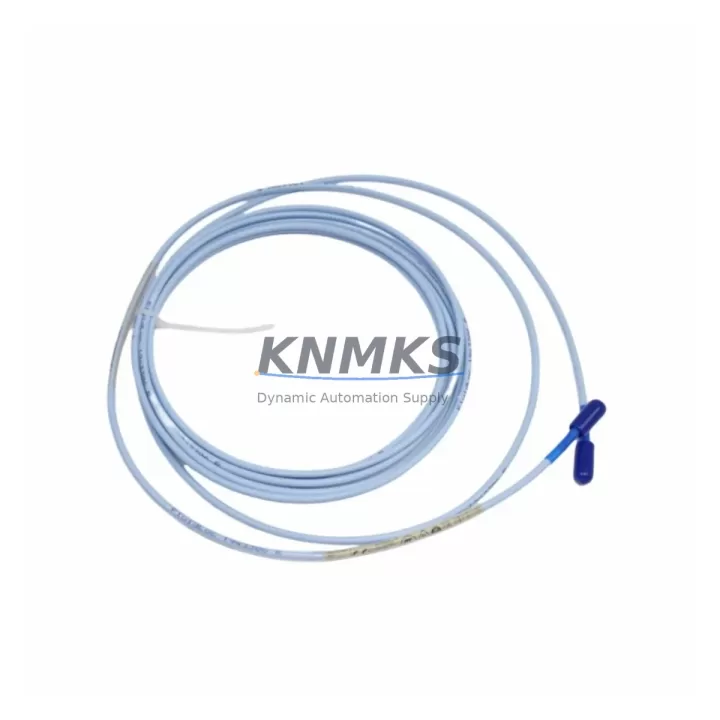

Bently Nevada 330180-X1-05 Spare Part for Factory Uptime

The Bently Nevada 330180-X1-05 is an original 8mm Proximitor® Sensor designed for the 3300 XL Machinery Protection System. As a maintenance-proven spare part, it delivers reliable non-contact vibration and position measurement for rotating machinery in energy, petrochemical, power generation, and heavy manufacturing environments. Stocking the 330180-X1-05 as a ready-to-deploy spare is a proven strategy for minimizing unplanned downtime and sustaining continuous plant operation.

The 330180-X1-05 operates within the Bently Nevada 3300 XL ecosystem, converting eddy-current signals from the probe tip into a voltage output proportional to the gap between the probe and the target shaft. This signal is fed directly into the 3300 XL monitor rack for real-time vibration trending, alarm triggering, and machinery trip logic. Maintaining a verified spare on-site ensures that any sensor failure during a critical production run can be resolved within a single shift rather than waiting weeks for procurement.

For maintenance engineers managing aging turbomachinery, compressors, or pump trains, the 330180-X1-05 is a high-priority line item on any annual spare parts review. Its compatibility with the broader 3300 XL platform means it integrates directly with existing field wiring, extension cables, and monitor cards without requiring system reconfiguration. Procurement engineers sourcing this part should verify the full probe-cable-proximitor assembly to ensure matched system performance and avoid signal chain mismatches that can trigger nuisance trips.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330180-X1-05 Proximitor Sensor during a scheduled or emergency maintenance window, a thorough inspection of the surrounding signal chain and power infrastructure is essential to prevent repeat failures and ensure measurement accuracy after recommissioning.

Begin by verifying the 330100 or 330130 series probe paired with this Proximitor. Probe tip wear, contamination, or physical damage will degrade the eddy-current field and produce erroneous gap readings even with a new Proximitor installed. Simultaneously, inspect the 330130 extension cable for insulation damage, connector corrosion, or impedance mismatch — a faulty cable is a common root cause of Proximitor failures that goes undetected until the sensor is replaced.

Check the 3300 XL monitor card (such as the 3300/16 or 3300/20 series) for proper power rail voltage and channel configuration. A degraded monitor card power supply can stress the Proximitor and shorten its service life. If the control cabinet houses a Bently Nevada 3500 series rack alongside the 3300 XL system, verify that inter-rack communication and common power distribution are not affected by the maintenance activity.

Inspect terminal blocks and field wiring for loose connections, oxidation, or incorrect shielding termination. Signal integrity issues at the terminal level are frequently misdiagnosed as Proximitor failures. Also review any signal isolators or barriers in the circuit — particularly in hazardous area installations where galvanic isolators protect the monitor from field-side transients.

Finally, confirm that cabinet fusing and surge protection components are intact. A blown fuse or degraded transient voltage suppressor upstream of the Proximitor power supply can cause intermittent sensor behavior that mimics mechanical faults. Replacing the 330180-X1-05 without addressing upstream power quality issues will result in premature failure of the new spare.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement unit is the 330180-X1-05 and not a cross-series variant. Verify the probe-cable-Proximitor system is a matched set per Bently Nevada system specifications. Document the existing gap voltage reading before disconnection.

Step 2 — Safe Isolation: Follow site LOTO procedures. In most 3300 XL installations, the Proximitor can be replaced without a full system shutdown by placing the affected channel in bypass mode at the monitor card. Confirm bypass status before proceeding.

Step 3 — Physical Replacement: Disconnect the extension cable from the old Proximitor. Mount the new 330180-X1-05 in the same housing or bracket. Reconnect the extension cable, ensuring the connector is fully seated and the locking ring is secure.

Step 4 — Gap Calibration: After power-up, verify the output gap voltage falls within the linear range specified for the probe-Proximitor combination (typically -10V ±1V at nominal gap). Adjust probe position if required.

Step 5 — Functional Test: Confirm the monitor card displays correct vibration and position readings. Clear any latched alarms. Remove bypass mode and return the channel to normal protection status. Log the replacement in the site maintenance record.

This workflow supports a rapid return-to-service target of under four hours for a single-channel replacement, minimizing production impact and maintaining system protection continuity.

Spare Parts Support FAQ

Q1: Is the 330180-X1-05 compatible with all 3300 XL monitor cards?
The 330180-X1-05 is designed for the Bently Nevada 3300 XL platform and is compatible with standard 3300 XL monitor cards that accept 8mm probe system inputs. Always verify the specific monitor card model and channel configuration against the Bently Nevada system documentation before installation to confirm full compatibility.

Q2: How should I manage long-term spare parts inventory for the 330180-X1-05?
For critical rotating machinery applications, we recommend maintaining a minimum of one to two units of the 330180-X1-05 on-site as a hot spare. Given the extended lead times that can affect legacy Bently Nevada components, securing a long-term supply agreement ensures availability during annual turnarounds and emergency outages. We offer long-term supply commitments to support multi-year maintenance contracts.

Q3: What testing is performed before shipment?
Each 330180-X1-05 unit is functionally tested prior to dispatch to verify output voltage characteristics and signal integrity. Units are shipped with protective packaging to prevent transit damage. A support terms confirmed by quotation cover manufacturing defects and performance deviations under normal operating conditions.

Q4: Can the 330180-X1-05 replace older or discontinued Bently Nevada Proximitor models?
The 330180-X1-05 is the current production variant for the 3300 XL 8mm Proximitor system. It is the recommended replacement for earlier 330180 series variants used in the same probe-cable-monitor configuration. For cross-series compatibility questions or legacy system upgrades, contact our technical team to confirm the correct replacement path before ordering.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330180-X1-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330180-X1-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
