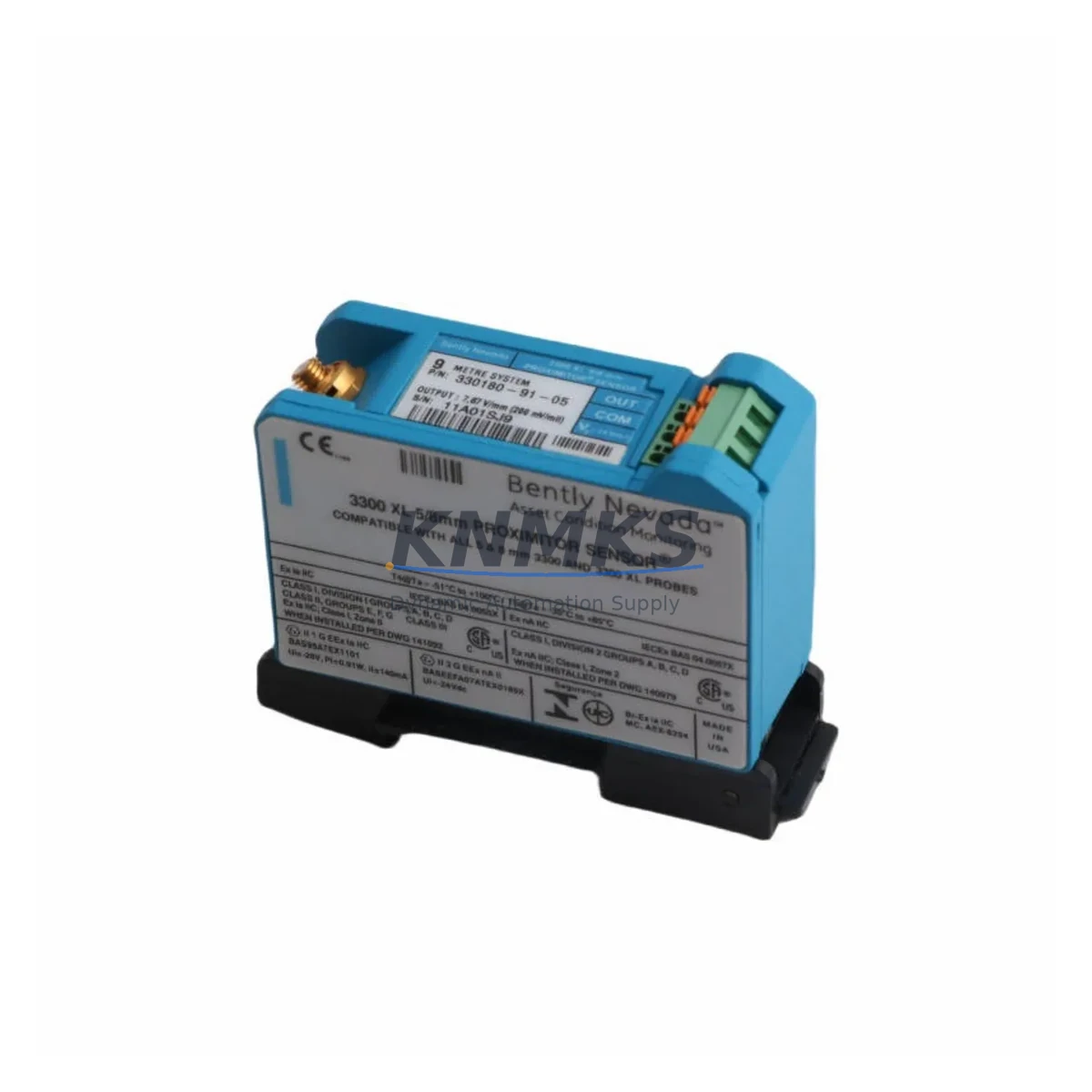

Bently Nevada 330180-X1-05-MOD145004-67 Fail-Safe Proximity Transducer

Overview

Bently Nevada 330180-X1-05-MOD145004-67 Fail-Safe Proximity Transducer for Industrial Control Reliability

The Bently Nevada 330180-X1-05-MOD145004-67 is an 8mm eddy-current proximity transducer engineered as part of the industry-proven 3300 XL Series — a platform trusted across the world’s most demanding continuous-process industries for shaft vibration, radial position, and axial displacement monitoring. Designed with fail-safe architecture at its core, this transducer delivers uninterrupted signal integrity in environments where control interruption, signal drift, or unplanned downtime carry severe operational and safety consequences.

In rotating machinery protection systems — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — the 330180-X1-05-MOD145004-67 serves as the primary sensing element in critical interlock and trip circuits. Its precision-wound coil and temperature-compensated electronics maintain stable output across wide ambient temperature swings, resisting the signal drift that can cause nuisance trips or, more dangerously, missed fault detection. When paired with the Bently Nevada 3300 XL Proximitor Sensor (such as the 330130 series) and a compatible monitor module, the system forms a complete, certified vibration monitoring loop capable of driving emergency shutdown relays with sub-millisecond response.

Heavy industrial control cabinets operating near variable-frequency drives, large contactors, and high-current bus bars generate intense electromagnetic interference. The 330180-X1-05-MOD145004-67 is shielded and impedance-matched to reject common-mode EMI, preventing the false readings that could mask developing bearing faults or trigger spurious shutdowns. In petrochemical and refinery environments where classified-area installations demand intrinsically safe or explosion-proof signal paths, this transducer integrates cleanly with Bently Nevada’s barrier and isolator accessories, maintaining the galvanic separation required by IEC 60079 and ATEX directives.

Surge and transient protection is equally critical in field-installed instrumentation. Lightning-induced surges, capacitive discharge from nearby switching equipment, and ground-loop potentials can destroy unprotected sensor electronics within milliseconds. The 330180-X1-05-MOD145004-67 incorporates internal transient suppression, and when installed alongside dedicated signal conditioners such as the Bently Nevada 3500/42M Proximitor Monitor or the 3500/22M Transient Data Interface, the entire measurement chain benefits from coordinated surge clamping — protecting both the transducer and the downstream rack from voltage spikes that would otherwise corrupt vibration trend data or damage input cards.

Dust ingress, condensation, and mechanical vibration are persistent threats in mining, cement, and port-crane applications. The transducer’s sealed housing and robust cable assembly resist moisture penetration and particulate contamination, maintaining calibrated sensitivity even after extended exposure to high-humidity or dusty atmospheres. In high-temperature environments such as steel mill auxiliary drives or glass furnace blower trains, the transducer’s rated operating range ensures that thermal expansion of the target shaft does not introduce measurement error, preserving the accuracy of gap voltage readings that operators rely on for bearing condition trending.

For facilities managing planned maintenance cycles, the 330180-X1-05-MOD145004-67 supports hot-swap replacement without full system shutdown when used within a redundant monitoring architecture. Maintenance teams can pre-verify the replacement unit’s sensitivity coefficient and gap voltage against the original calibration certificate before installation, minimizing the window of reduced protection. Keeping a verified spare — alongside compatible components such as the Bently Nevada 330130-040-00-00 Proximitor Sensor, 330104 extension cable, and 3500 rack power supply module — in the site’s critical-spares inventory is a recognized best practice for ISO 13373-compliant machinery protection programs.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection architecture extends well beyond the transducer itself. The 330180-X1-05-MOD145004-67 is designed to operate as part of a coordinated protection chain. In a typical critical-machinery control cabinet, the transducer signal is routed through a Bently Nevada 330104 armored extension cable to a 330130-series Proximitor Sensor, which conditions the raw eddy-current signal into a calibrated voltage output. This signal then feeds into a Bently Nevada 3500 Series rack — commonly equipped with the 3500/42M six-channel Proximitor Monitor card — where configurable alert and danger setpoints drive relay outputs to the plant’s emergency shutdown system (ESD) or safety instrumented system (SIS).

Power supply integrity within the rack is maintained by the 3500/15 Power Supply module, which provides redundant 24 VDC rails with automatic failover, ensuring that a single power supply fault does not interrupt the monitoring loop. For facilities requiring time-synchronized vibration data across multiple machine trains, the 3500/22M Transient Data Interface captures high-resolution waveform snapshots during trip events, enabling post-incident root-cause analysis without requiring additional portable instrumentation. Together, these components form a closed-loop protection strategy that addresses signal generation, conditioning, processing, power integrity, and data capture — eliminating the single points of failure that lead to undetected machinery degradation or catastrophic mechanical failure.

Critical Industrial Safety Applications

The 330180-X1-05-MOD145004-67 is deployed across a broad spectrum of safety-critical industrial environments. In petrochemical and refinery operations, it monitors the radial vibration of centrifugal compressor impeller shafts, where a bearing failure can escalate within seconds to a seal breach and potential hydrocarbon release. In power generation facilities — both thermal and combined-cycle — it provides continuous axial position monitoring on steam turbine rotors, detecting thrust bearing wear before it progresses to rotor-stator contact. Mining and mineral processing plants rely on this transducer to protect large SAG mill pinion drives and slurry pump shafts operating in high-dust, high-vibration environments where manual inspection intervals are impractical.

In water and wastewater treatment facilities, it monitors the shaft condition of high-speed centrifugal blowers supplying aeration basins — equipment whose unplanned failure disrupts biological treatment processes and triggers regulatory non-compliance. Metallurgical and steel plants use it on rolling mill main drive motors and continuous caster withdrawal rolls, where thermal cycling and heavy shock loads accelerate bearing wear. Port and marine applications include monitoring of propulsion shaft bearings and cargo pump drives aboard LNG carriers and bulk carriers, where classification society rules mandate continuous vibration surveillance on propulsion-critical machinery. Across all these sectors, the 330180-X1-05-MOD145004-67 delivers the measurement stability and fail-safe signal behavior that safety engineers and reliability teams depend on.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330180-X1-05-MOD145004-67?
The support terms confirmed by quotation cover all manufacturing defects, calibration deviations, and functional failures under normal operating conditions. If the unit fails to meet its specified sensitivity coefficient or exhibits signal instability within the confirmed support period, we provide a replacement or documented resolution support. The confirmed support period begins from the date of confirmed delivery.

Q2: How is the unit tested before shipment?
Every 330180-X1-05-MOD145004-67 undergoes a full pre-shipment inspection that includes coil resistance verification, sensitivity coefficient measurement against the Bently Nevada standard (approx. 200 mV/mil), insulation integrity check, and visual inspection of the cable assembly and connector. A test report is available upon request and can be included with the shipment documentation.

Q3: Is this transducer compatible with existing Bently Nevada 3300 XL and 3500 Series systems?
Yes. The 330180-X1-05-MOD145004-67 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor family and the 3500 Series monitoring rack. It uses the standard TNC connector interface and conforms to the 3300 XL sensitivity and impedance specifications, allowing direct replacement of existing transducers without recalibration of the monitor setpoints in most installations. Always verify the gap voltage and sensitivity coefficient against your system’s calibration record after installation.

Q4: Can long-term supply and replacement support be guaranteed?
We maintain dedicated inventory of the 330180-X1-05-MOD145004-67 and its compatible accessories to support both immediate replacement needs and planned maintenance programs. For facilities requiring guaranteed spare availability under a long-term supply agreement, please contact our sales team to discuss consignment stock or scheduled replenishment arrangements. Our global logistics network supports expedited shipping to minimize machinery downtime in emergency replacement scenarios.
