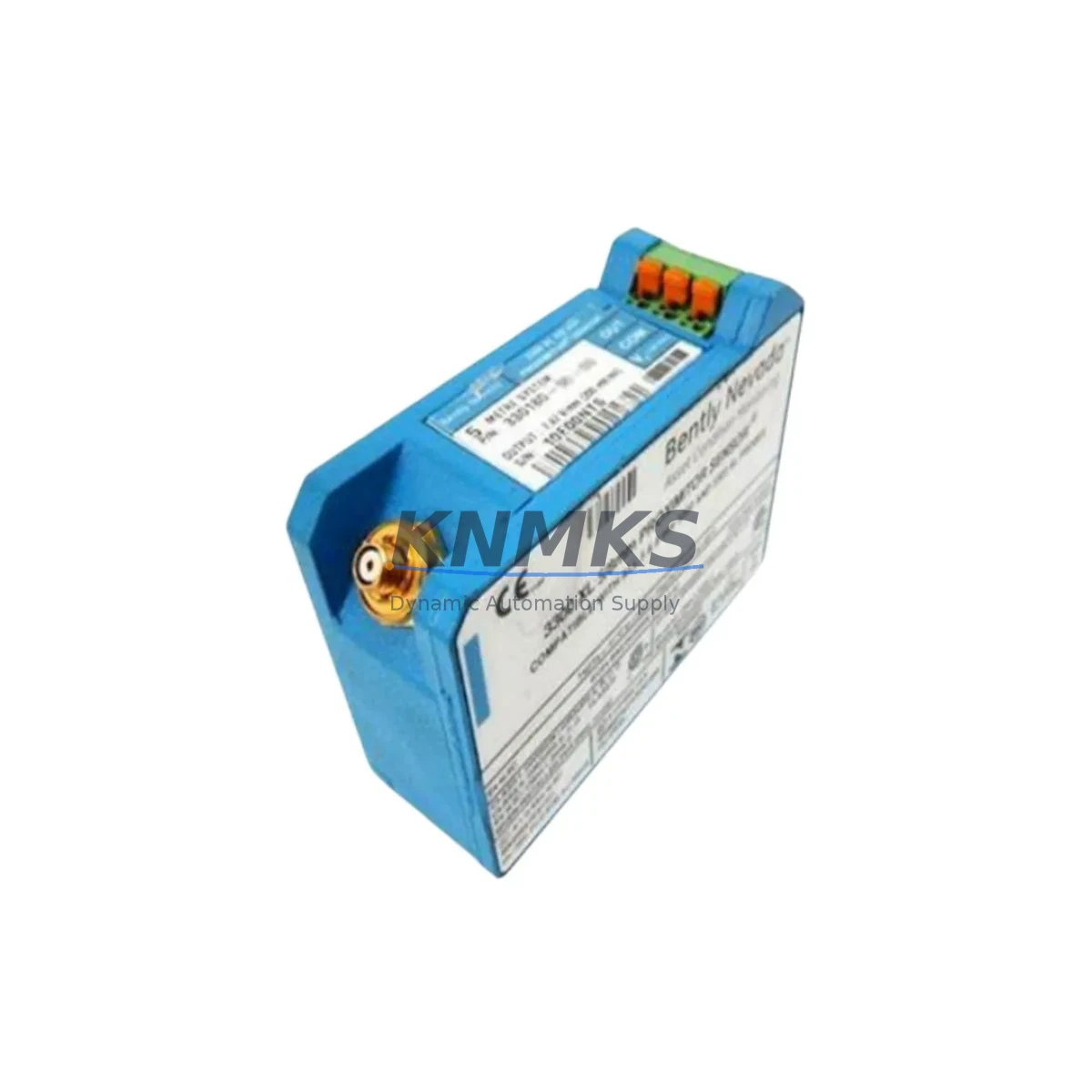

Bently Nevada 330180-X1-05 Migration-Ready Proximity Sensor for Legacy Control Systems

The Bently Nevada 330180-X1-05 is a high-precision eddy-current proximity sensor engineered for the 3300 XL Series vibration monitoring platform. Designed as a migration-ready replacement for discontinued and end-of-life proximity transducer assemblies, this sensor supports direct integration into existing Bently Nevada rack-based monitoring systems without requiring full system overhaul. Whether you are managing a planned retrofit, responding to an unplanned failure, or executing a phased control system upgrade, the 330180-X1-05 provides a reliable, field-proven solution with a support terms confirmed by quotation and pre-shipment functional testing on every unit.

Industrial facilities operating legacy rotating machinery — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — frequently rely on the 3300 XL platform for continuous shaft vibration and position monitoring. When original proximity sensors reach end-of-life or become unavailable through OEM channels, the 330180-X1-05 serves as a validated drop-in replacement, preserving existing wiring, connector pinouts, and signal conditioning compatibility with the 3300 XL Proximitor® sensor driver already installed in the field.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330180-X1-05 into an operating plant requires careful pre-installation planning across several interdependent system layers. Begin by auditing the existing 3300 XL monitor rack configuration — specifically the installed monitor cards such as the 3300/16 Dual Voting Machine or 3300/20 Radial Vibration Monitor — to confirm that the replacement sensor’s output voltage range and sensitivity factor (mV/mil or mV/µm) match the monitor’s configured scale. Mismatched sensitivity factors are a common source of false alerts during commissioning and must be corrected in the monitor’s configuration software before the machine is returned to service.

Terminal wiring at the 3300 XL I/O terminal block should be documented with photographs before disconnection. The coaxial cable shield grounding practice — whether grounded at the driver end or the monitor end — must be preserved to avoid introducing electrical noise into the vibration signal chain. If the existing 3300 XL Proximitor® extension cable shows signs of insulation degradation or connector corrosion, replace it simultaneously with the probe to avoid a repeat outage. Extension cable lengths must match the original specification, as cable length directly affects the system’s calibrated sensitivity.

For facilities planning a phased migration from the 3300 XL platform toward the Bently Nevada 3500 Series machinery protection system, the 330180-X1-05 can serve as an interim solution that maintains monitoring continuity while the new rack infrastructure is being installed and configured. The 3500 Series uses the same eddy-current probe technology but requires updated Proximitor® sensor drivers and a reconfigured I/O module assignment within the 3500/22M Transient Data Interface or equivalent. Planning the probe replacement and rack migration as separate phases reduces the risk of simultaneous multi-system outages.

Where the control system includes a DCS or PLC integration layer — for example, a Honeywell Experion or Emerson DeltaV system receiving vibration OK relay outputs from the 3300 XL rack — verify that the relay output wiring and logic assignments remain unchanged after the sensor swap. Changes to the monitor card’s OK relay setpoints during reconfiguration can inadvertently alter the DCS alarm logic if not coordinated with the control system engineer. Similarly, if an HMI faceplate displays real-time vibration trend data sourced from the 3300 XL rack, confirm that the engineering unit scaling on the HMI matches the recalibrated sensor output after installation.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity sensor replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, verify that the replacement 330180-X1-05 unit has been bench-tested and that the gap voltage at the nominal installation distance has been confirmed against the system’s calibration record. Prepare all required tools — including the appropriate spanner wrench for the probe mounting boss, a calibrated digital voltmeter for gap setting, and a laptop loaded with the 3300 XL configuration software — so that the installation team can work without interruption.

During the outage, follow a defined sequence: isolate the monitor channel, remove the failed probe, install the replacement 330180-X1-05, set the air gap to the documented nominal value (typically 1.0 mm ± 0.05 mm for standard steel targets), and verify the output voltage before reconnecting the monitor channel. Do not restore the monitor channel to the OK state until the gap voltage is within the system’s configured OK band. This prevents nuisance trips during machine restart and protects the original program logic in the associated safety or control system from responding to a transient sensor fault.

For critical machines where continuous monitoring is contractually or regulatorily required, consider deploying a temporary portable vibration analyzer — such as a handheld data collector compatible with the existing accelerometer or proximity probe outputs — to maintain data continuity during the brief period when the permanent monitor channel is isolated. This approach is particularly valuable in power generation, petrochemical, and offshore applications where machinery protection requirements are enforced by insurance or regulatory bodies. Once the 330180-X1-05 is installed and the monitor channel is restored, perform a full system functional test including alert and danger setpoint verification before releasing the machine to operations.

Retrofit Support FAQ

Q1: Is the 330180-X1-05 a direct replacement for my existing 330180 series proximity probe?
Yes, the 330180-X1-05 is designed as a direct replacement for 330180 series proximity probes used in Bently Nevada 3300 XL monitoring systems. The -X1-05 suffix designates the cable length and connector configuration. Confirm that your existing installation uses the same cable length specification before ordering. If your original probe has a different suffix, contact our technical team to verify cross-compatibility.

Q2: What commissioning steps are required after installing the 330180-X1-05?
After mechanical installation, set the probe-to-target air gap to the system’s documented nominal value using a calibrated voltmeter to measure the Proximitor® output voltage. Verify that the output voltage falls within the monitor’s configured OK band. Update the monitor’s configuration record to reflect the replacement date and the as-found gap voltage. Perform a channel functional test by simulating an alert condition and confirming that the monitor responds correctly before returning the machine to service.

Q3: Can I use the 330180-X1-05 in a system that is being migrated to the Bently Nevada 3500 Series?
Yes. The 330180-X1-05 can be used as an interim solution during a phased migration to the 3500 Series. The probe itself is compatible with 3500 Series Proximitor® drivers, but the driver module and I/O configuration in the 3500 rack must be set up to match the probe’s sensitivity factor. Plan the probe replacement and rack migration as separate phases to reduce risk and maintain monitoring continuity throughout the upgrade.

Q4: What does the support terms confirmed by quotation cover, and how is pre-shipment testing performed?
Every 330180-X1-05 unit undergoes a 100% functional test before shipment, including gap voltage verification and sensitivity confirmation against the manufacturer’s specification. The support terms confirmed by quotation cover manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from improper installation, incorrect gap setting, or operation outside the specified environmental limits. A test report is available on request for quality assurance documentation purposes.
