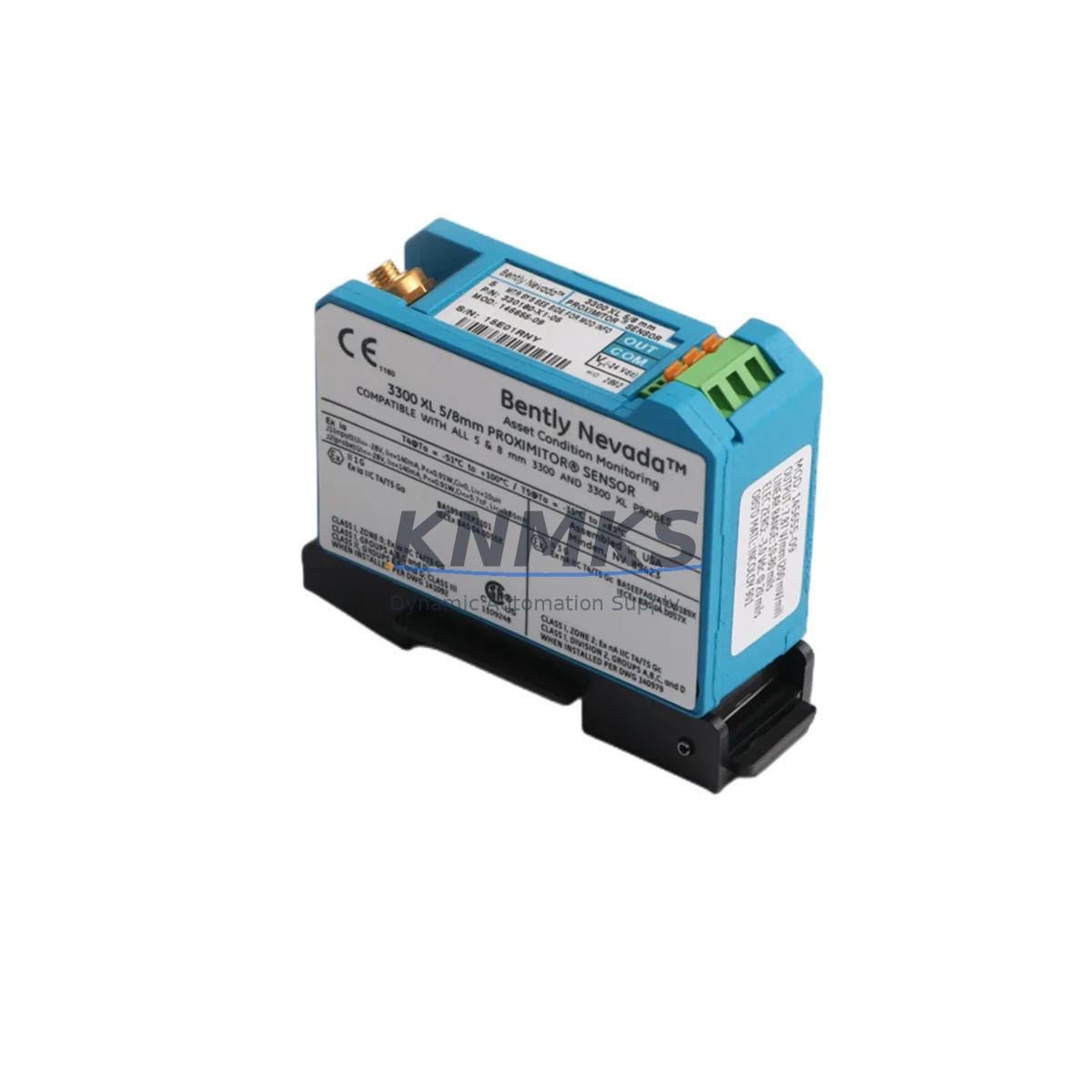

Bently Nevada 330180-X1-05 Migration-Ready Proximitor for Legacy Control Systems

The Bently Nevada 330180-X1-05 MOD:145004-13 is a migration-ready proximitor sensor engineered for seamless integration into existing 3300 XL Series vibration monitoring architectures. As legacy control systems age and original components reach end-of-life, maintenance and reliability engineers face increasing pressure to source verified drop-in replacements that preserve system continuity without requiring full platform overhauls. This proximitor delivers exactly that — a functionally equivalent, field-proven unit that slots directly into established 3300 XL installations with minimal disruption to ongoing operations.

Designed to interface with standard 8mm and 11mm proximity probe assemblies, the 330180-X1-05 provides the conditioned output signal required by Bently Nevada monitoring racks and vibration monitoring systems. Its compact form factor and standardized connector pinout make it a practical choice for control cabinet retrofits where installation space is constrained and downtime windows are narrow. Engineers replacing aging proximitor units in turbine, compressor, pump, and motor protection applications will find this unit fully compatible with existing field wiring, eliminating the need for terminal block rewiring or signal recalibration in most standard configurations.

For procurement teams managing spare parts inventories across multi-unit facilities, the 330180-X1-05 MOD:145004-13 represents a reliable long-term supply option. KNMKS maintains verified stock with pre-shipment functional testing, support terms confirmed by quotation coverage, and documented traceability — critical requirements for regulated industries including oil and gas, petrochemical, power generation, and heavy manufacturing.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330180-X1-05 begins well before the unit arrives on site. Reliability engineers should audit the existing installation to confirm power supply capacity — the proximitor requires a stable -24 VDC feed, typically sourced from the monitoring rack’s internal supply or a dedicated Bently Nevada 3300/20 Power Supply module. Verifying that the power rail can support the replacement unit without voltage droop is a critical pre-installation step, particularly in older racks where capacitors and regulators may have degraded.

Terminal wiring should be documented and photographed before disconnection. The 330180-X1-05 uses the same coaxial cable interface as its predecessors, meaning existing 330130 extension cables and field-routed probe cables typically require no modification. However, engineers should inspect cable shielding continuity and connector condition — corroded or intermittently connected coaxial fittings are a common source of false vibration alarms after proximitor replacement.

In installations where the proximitor feeds a 3300/16 or 3300/46 monitor module, confirm that the monitor’s gap voltage setpoints and alarm thresholds remain valid for the replacement unit. Minor gap voltage differences between old and new proximitors can shift the operating point and trigger nuisance alarms if not rechecked. Similarly, if the vibration signal feeds downstream to a System 1 Evolution software platform or a third-party DCS via a 4–20 mA output module, verify that the analog output scaling remains consistent post-replacement.

For facilities running parallel redundant monitoring configurations, it is advisable to replace proximitors in matched pairs to maintain balanced signal characteristics across redundant channels. Procurement teams should also consider stocking a 330104 proximity probe alongside the proximitor — probe and proximitor are a matched system, and replacing one without inspecting the other introduces unnecessary diagnostic uncertainty during the next fault event.

Downtime Control During System Migration

Minimizing downtime during proximitor replacement requires a structured approach that begins with pre-staging the replacement unit and all associated tools before the maintenance window opens. The 330180-X1-05 is a plug-and-play replacement in most 3300 XL installations, but engineers should allocate time for gap voltage verification using a calibrated DC voltmeter — typically 15 to 30 minutes per channel — to confirm the probe-proximitor system is operating within the linear range before returning the machine to service.

Where the monitoring system is integrated with a plant DCS or safety instrumented system (SIS), coordinate with the control room to place the affected channel in bypass or maintenance override before disconnecting the proximitor. This prevents spurious shutdown signals from propagating to the process control layer during the swap. Restore the channel from bypass only after gap voltage and signal output have been verified at the monitoring rack.

For sites with limited maintenance windows, KNMKS supports pre-shipment functional testing and same-day dispatch on confirmed stock items. All units ship with test documentation, enabling site engineers to proceed directly to installation without incoming inspection delays. The support terms confirmed by quotation cover functional failure under normal operating conditions, providing procurement teams with a defined risk boundary for budget planning and spare parts lifecycle management.

Retrofit Support FAQ

Q1: Is the 330180-X1-05 MOD:145004-13 a direct drop-in replacement for the standard 330180-X1-05?
A: Yes. The MOD:145004-13 designation reflects a factory modification level and is functionally equivalent to the base 330180-X1-05 in standard 3300 XL installations. No wiring changes or recalibration are required in most applications. Confirm gap voltage after installation as a standard commissioning step.

Q2: What compatibility checks should be completed before installation?
A: Verify power supply voltage (-24 VDC), coaxial cable and connector condition, monitor module gap voltage setpoints, and downstream signal scaling if the output feeds a DCS or SIS. Document existing alarm thresholds before replacement to enable rapid restoration if setpoint drift is detected.

Q3: Does KNMKS provide pre-shipment testing for this unit?
A: Yes. All 330180-X1-05 MOD:145004-13 units undergo functional testing prior to dispatch. Test records are available upon request. Units are shipped with protective packaging to prevent transit damage to the coaxial connector interface.

Q4: What support terms and long-term supply support is available?
A: KNMKS provides a support terms confirmed by quotation covering functional failure under normal operating conditions. For facilities requiring long-term supply continuity, KNMKS can support blanket order arrangements and reserved stock allocation. Contact [email protected] for volume pricing and supply agreement options.
