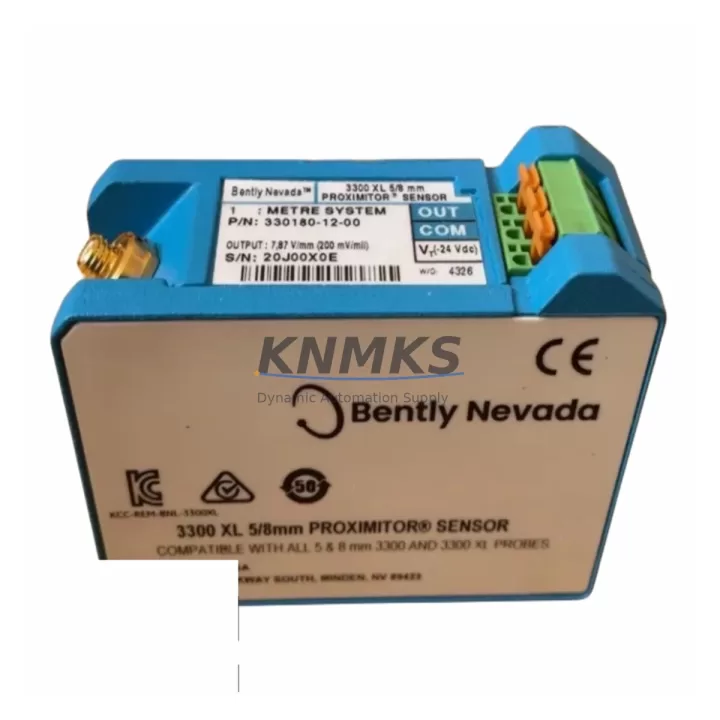

Bently Nevada 330180-X1-05 Migration-Ready Proximitor for Legacy Control Systems

Overview

Bently Nevada 330180-X1-05 Migration-Ready Proximitor for Legacy Control Systems

The Bently Nevada 330180-X1-05 MOD145004-02 is a migration-ready Proximitor sensor engineered for direct replacement in legacy 3300 XL Series vibration monitoring systems. As industrial facilities accelerate the retirement of aging condition monitoring infrastructure, this unit provides a verified drop-in solution that preserves existing wiring, signal conditioning architecture, and system calibration — minimizing retrofit risk and eliminating the need for full panel redesign. Whether you are replacing a failed unit on a critical rotating machine or building a spare parts inventory ahead of a planned system upgrade, the 330180-X1-05 delivers the signal integrity and dimensional compatibility required for seamless integration into your existing 3300 XL rack.

This Proximitor is designed to interface directly with the Bently Nevada 3300 XL series monitor modules, including the 3300/16 and 3300/20 series cards. During migration planning, engineers must confirm the gap voltage range, driver sensitivity (typically 200 mV/mil), and cable length compensation to ensure the replacement unit matches the original calibration baseline. The 330180-X1-05 operates on the standard -24 VDC supply rail common to 3300 XL backplane configurations, and no power supply modification is required when replacing a like-for-like unit within the same rack assembly.

Field teams executing a swap-out should verify the existing Proximitor extension cable — typically the 330130 series — for continuity and connector integrity before installing the replacement. The armored coaxial cable assembly, driver, and Proximitor form a matched system; substituting only the Proximitor while retaining a degraded cable can introduce signal noise that masks true vibration readings. Where the original cable is suspect, a full probe-cable-Proximitor assembly replacement using the 330104 or 330105 probe series is recommended to restore measurement confidence.

For facilities running parallel condition monitoring on multiple machine trains, the 330180-X1-05 is compatible with the Bently Nevada System 1 software platform, allowing historical trend data to be preserved across the replacement event without requiring a new machine configuration. Technicians should confirm the monitor channel address and rack slot assignment in System 1 prior to the swap to avoid alert threshold mismatches during the post-installation verification run.

In broader system migration scenarios — such as transitioning from a 3300 XL rack to a newer 3500 Series monitoring system — the 330180-X1-05 can serve as an interim replacement to maintain uptime while the new rack is commissioned in parallel. The 3500/42M and 3500/45 monitor modules accept the same eddy-current probe signal format, and the existing field wiring can often be reused with appropriate terminal block adaptation. During this transition period, maintaining a verified spare of the 330180-X1-05 ensures that any unexpected failure on the legacy rack does not force an unplanned shutdown before the new system is fully validated.

Retrofit planning should also account for the condition of the 3300 XL rack backplane connectors and the monitor module firmware version. Older firmware revisions may require an update to correctly process signals from replacement Proximitor units if the original unit had been in service for an extended period. Coordination with the site’s DCS or safety system — particularly where the vibration monitor feeds a Bently Nevada 3500/33 relay output module or a third-party safety PLC — is essential to prevent nuisance trips during the commissioning window.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 330180-X1-05 retrofit requires a structured review of all interfacing components within the 3300 XL rack. Begin by auditing the existing 330104 or 330105 eddy-current probe for tip damage and gap setting accuracy. Confirm that the 330130 extension cable shows no shield continuity faults using a cable tester before reuse. Within the rack, inspect the 3300/16 or 3300/20 monitor module for alarm setpoint configuration and ensure the channel is placed in bypass mode during the physical swap to prevent false trip signals from propagating to the relay output module or the plant DCS. Where the rack also houses a 3300/55 keyphasor module, verify that the reference signal is stable and unaffected by the replacement activity. For sites using a Bently Nevada TDXnet or Ethernet-based data acquisition gateway, confirm that the channel mapping in the gateway configuration matches the physical slot assignment after reinstallation. Document all pre- and post-swap gap voltage readings as part of the commissioning record.

Downtime Control During System Migration

Minimizing unplanned downtime during a 330180-X1-05 replacement requires pre-staging the spare unit with a verified gap voltage check on a bench fixture before the maintenance window opens. Where the machine cannot be taken offline, coordinate with operations to confirm that the monitor channel can be placed in bypass without triggering a process interlock. Retain the original program logic and alarm setpoints in the System 1 database so that post-swap recommissioning is limited to a gap voltage confirmation and a 15-minute trend verification run. For critical machines where continuous monitoring is mandatory, consider deploying a portable vibration analyzer in parallel during the swap window to maintain measurement coverage. Ensure that all field personnel are briefed on the terminal block wiring diagram and the correct torque specification for the Proximitor connector to avoid signal degradation from a loose termination. A structured pre-swap checklist — covering power isolation, bypass confirmation, cable inspection, installation, gap setting, and alarm reinstatement — reduces total swap time and protects the integrity of the existing control logic.

Retrofit Support FAQ

Q: Is the 330180-X1-05 MOD145004-02 a direct replacement for the original Bently Nevada unit?
A: Yes. The 330180-X1-05 MOD145004-02 is a verified drop-in replacement for the original Bently Nevada Proximitor of the same part number. No wiring modification or recalibration of the monitor module is required when replacing a like-for-like unit within the same 3300 XL rack slot.

Q: What pre-installation checks are required before fitting the replacement Proximitor?
A: Confirm the extension cable continuity, inspect the probe tip gap, verify the monitor channel is in bypass mode, and record the existing gap voltage. After installation, set the gap voltage to the specified range and confirm the output signal is within the monitor module’s acceptance window before removing the bypass.

Q: Has the unit been tested before shipment?
A: Yes. All units undergo functional output verification and visual inspection prior to dispatch. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and functional performance under normal operating conditions.

Q: What is the stock availability and lead time?
A: Units are held availability confirmed by RFQ and available for immediate dispatch. Export documentation and compliance packaging are prepared at the time of order. Contact our team for current inventory confirmation and expedited shipping options for critical maintenance requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

BENTLY NEVADA
Bently Nevada

Model / Series

330180-X1-05 MOD145004-02
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: BENTLY NEVADA 330180-X1-05 MOD145004-02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
