Bently Nevada 330180-X1-05 Maintenance-Proven Spare Part for Factory Uptime

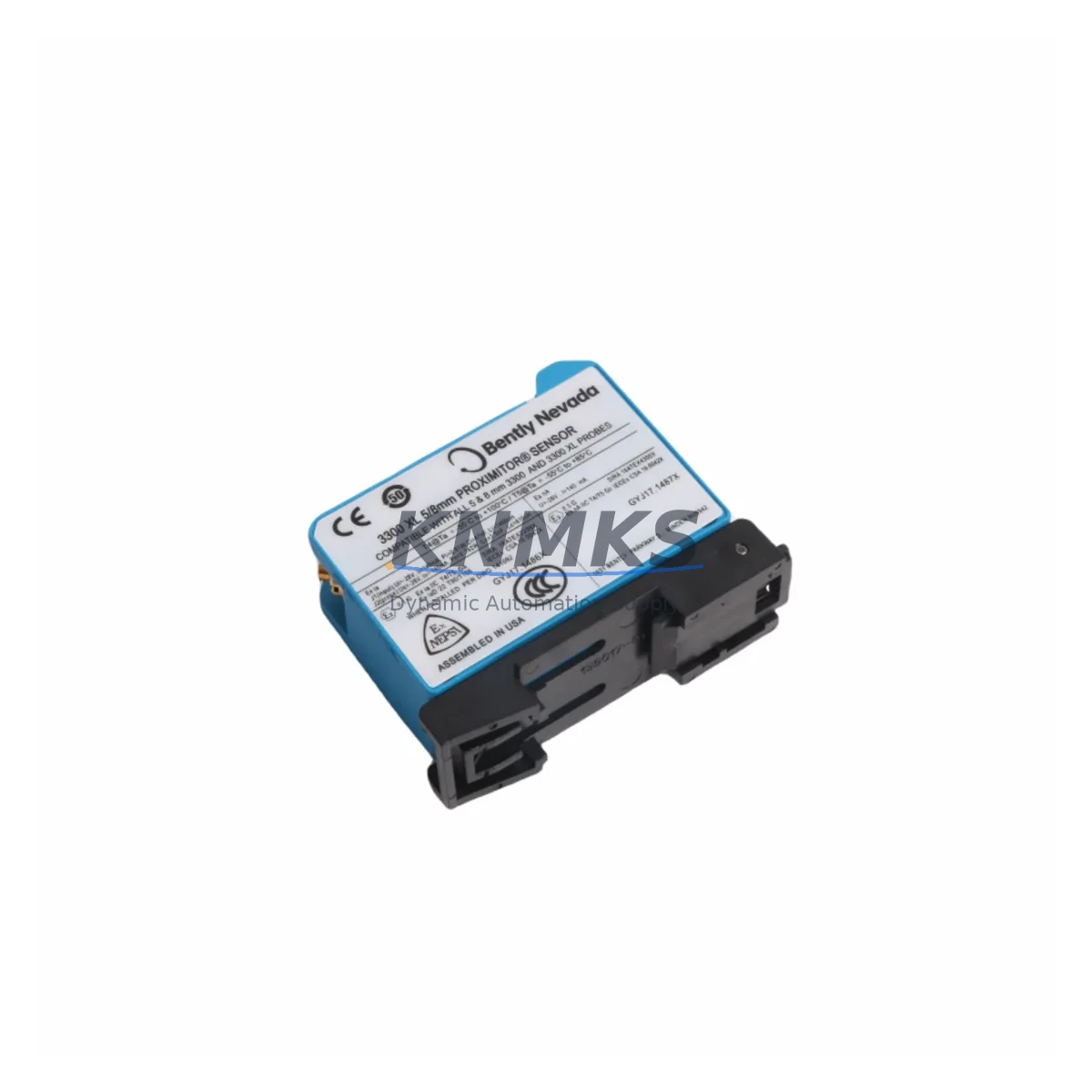

The Bently Nevada 330180-X1-05 is an original 8mm proximity transducer engineered for the 3300 XL Series continuous vibration monitoring system. Designed for critical rotating machinery — including turbines, compressors, pumps, and motors — this transducer delivers precise radial shaft vibration, axial position, and speed measurement in demanding industrial environments. Maintaining a verified stock of the 330180-X1-05 is a cornerstone of any proactive maintenance strategy for facilities running Bently Nevada 3300 XL monitor racks.

Every unit supplied by KNMKS is sourced from authorized channels, subjected to pre-shipment functional verification, and backed by a support terms confirmed by quotation. Multi-region stock ensures fast global dispatch to support both emergency replacements and scheduled outage windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the 330180-X1-05 proximity transducer, maintenance engineers should treat the event as a full vibration monitoring loop audit. The transducer is only one element of a signal chain that must be verified end-to-end to restore reliable machinery protection.

Begin with the 3300 XL Proximitor module — the signal conditioning unit paired with this probe. A degraded or mismatched proximitor will produce erroneous gap voltage readings even with a new transducer installed. Inspect the extension cable assembly (typically 330130 or 330180 series cables) for insulation damage, connector corrosion, and continuity; cable faults are a leading cause of false vibration alarms and should be replaced as a set during planned outages.

At the monitor rack level, verify the 3300 XL monitor card (such as the 3300/16 or 3300/20 series) for correct gap voltage acceptance range and alarm setpoint configuration. Simultaneously inspect the rack power supply module — an unstable DC supply rail will introduce noise into proximity measurements and compromise trip accuracy. If the installation includes a Keyphasor module (e.g., 3300/25), confirm its signal integrity, as speed and phase reference data depend on a clean transducer signal from the same probe family.

For facilities running integrated condition monitoring, cross-check the System 1 Evolution software configuration to ensure the new transducer’s sensitivity factor and gap voltage are correctly entered. Where applicable, inspect terminal strip wiring and shielding grounds within the monitor cabinet — improper grounding is a persistent source of electrical noise in proximity transducer circuits. Finally, review any barrier or galvanic isolator installed in the signal path for hazardous area installations, as these components have independent service life limits and should be replaced on a coordinated schedule.

Stocking the 330180-X1-05 alongside its associated proximitor, extension cable, and a spare monitor card creates a complete vibration channel replacement kit — reducing mean time to repair (MTTR) from days to hours during unplanned outages.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow site LOTO procedures. De-energize the monitor rack and confirm zero energy state before disconnecting the transducer coaxial cable.

Step 2 — Gap measurement baseline: Record the existing transducer gap voltage (typically -10 VDC ±1 VDC for 8mm probes at nominal gap) using a calibrated voltmeter before removal. This baseline confirms whether the fault is in the probe, cable, or proximitor.

Step 3 — Physical removal: Unthread the probe from the bracket, noting the exact thread engagement depth. Clean the mounting threads and inspect the bracket for wear or misalignment.

Step 4 — Install 330180-X1-05: Thread the new probe to the same engagement depth. Do not use thread-locking compounds unless specified by the OEM. Reconnect the coaxial cable and extension cable, ensuring connectors are fully seated and finger-tight.

Step 5 — Gap voltage verification: Re-energize the proximitor supply and measure output voltage. Adjust probe gap to achieve the nominal -10 VDC output. Confirm reading stability over 2–3 minutes.

Step 6 — Monitor rack confirmation: Verify the 3300 XL monitor card accepts the signal within its configured OK limits. Clear any latched alarms and confirm the channel returns to normal status in System 1 or the local display.

Step 7 — Documentation: Record the replacement in the maintenance log with the new part serial number, gap voltage achieved, and technician sign-off. Update the spare parts inventory to trigger reorder of the consumed 330180-X1-05 unit.

Spare Parts Support FAQ

Q1: Is the 330180-X1-05 a direct drop-in replacement for older 3300 series proximity transducers?
The 330180-X1-05 is designed for the 3300 XL system architecture. Compatibility with earlier 3300 (non-XL) monitor racks depends on the specific monitor card revision and proximitor pairing. KNMKS recommends confirming the monitor card model and proximitor part number before ordering to ensure full signal chain compatibility. Our technical team can assist with cross-reference verification.

Q2: What pre-shipment testing is performed on each unit?
Every 330180-X1-05 supplied by KNMKS undergoes functional verification including output voltage check, insulation resistance test, and connector integrity inspection prior to dispatch. Units are shipped with a test record and are covered by a support terms confirmed by quotation from the shipment date.

Q3: Can KNMKS support long-term supply agreements for the 330180-X1-05?
Yes. KNMKS maintains multi-region stock of the 330180-X1-05 and can support blanket purchase orders, annual supply agreements, and emergency call-off arrangements. Long-term agreements help facilities lock in availability and pricing for critical spare parts that are increasingly difficult to source as the 3300 XL platform matures.

Q4: What is the recommended spare parts holding strategy for a 3300 XL vibration monitoring system?
For facilities with four or more 3300 XL monitor channels, KNMKS recommends holding a minimum of two 330180-X1-05 transducers, one matched proximitor module, one extension cable assembly, and one spare monitor card as a cold standby kit. This configuration supports full channel restoration within a single shift without waiting for expedited freight.
