Bently Nevada 330180-X1-05 Maintenance-Proven Spare Part for Factory Uptime

Overview

Bently Nevada 330180-X1-05 Maintenance-Proven Spare Part for Factory Uptime

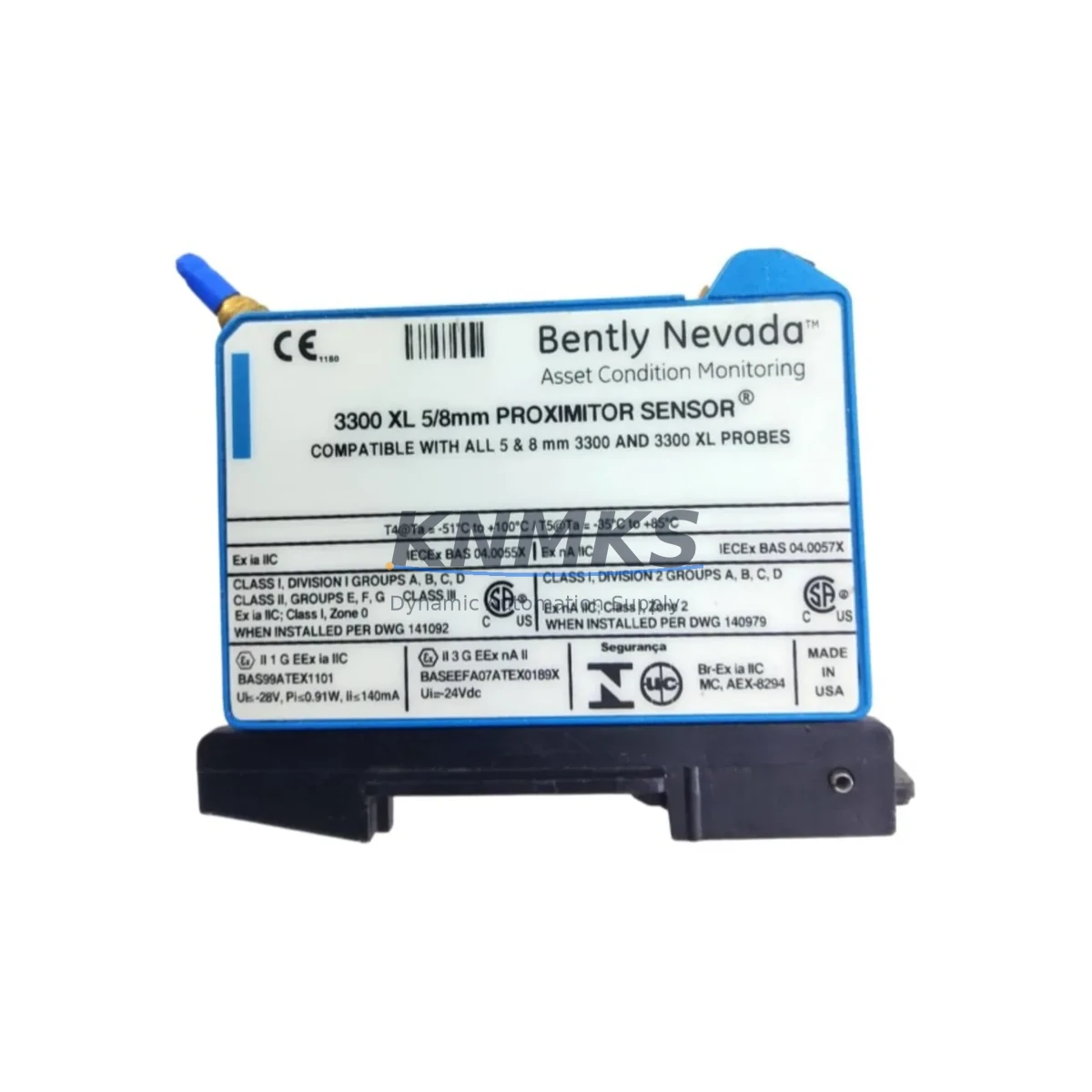

The Bently Nevada 330180-X1-05 is an original 8mm Proximitor Sensor designed for the Bently Nevada 3300 XL vibration monitoring system. As a critical component in rotating machinery protection, this sensor delivers precise eddy-current proximity measurements essential for continuous shaft vibration and position monitoring in turbines, compressors, pumps, and other rotating equipment. Sourced as a genuine OEM spare, the 330180-X1-05 is the preferred replacement for maintenance engineers who cannot afford unplanned downtime or signal integrity failures in their machinery protection systems.

For maintenance and procurement engineers managing aging 3300 XL installations, having a verified spare of the 330180-X1-05 on the shelf is a fundamental risk-reduction strategy. Sensor degradation is often gradual — gap voltage drift, cable insulation breakdown, or connector corrosion can cause intermittent alarms before a full failure. Proactive replacement during scheduled outages, rather than reactive replacement during emergency shutdowns, is the industry-standard approach for high-availability plants.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330180-X1-05 Proximitor Sensor during a planned or emergency maintenance window, a thorough inspection of the surrounding measurement chain and control cabinet is essential to prevent repeat failures and ensure signal integrity across the entire protection loop.

Begin with the Bently Nevada 330130 Extension Cable — the interconnect between the probe and the Proximitor. Cable insulation breakdown, connector oxidation, or mechanical damage from vibration fatigue are common failure modes that can mimic sensor faults. Always replace or bench-test the extension cable when swapping the probe. Next, verify the Bently Nevada 3300 XL Proximitor/Velomitor Signal Conditioner (typically rack-mounted in the 3500 monitoring rack) for correct gap voltage output and alarm setpoint configuration. A faulty signal conditioner will cause the new sensor to report erroneous readings immediately after installation.

Within the Bently Nevada 3500 Series monitoring rack, inspect the 3500/42M Proximitor/Seismic Monitor I/O module for channel configuration integrity and relay output status. Relay contacts on the trip output module should be tested for continuity and proper setpoint response. If the plant uses a 3500/20 Rack Interface Module (RIM) for Modbus or Ethernet communication to the DCS or SCADA, verify that the communication link is active and that the channel data is being correctly received by the control system after sensor replacement.

For installations where the 3300 XL feeds into a broader GE / Baker Hughes System 1 condition monitoring platform, confirm that the new sensor’s calibration data is updated in the software database to avoid false baseline alarms. Additionally, check the 24 VDC power supply feeding the Proximitor rack — voltage sag or ripple can cause measurement instability that is often misattributed to the sensor itself. A dedicated DIN-rail power supply with adequate current margin is recommended for critical machinery protection circuits.

Finally, inspect all terminal blocks and signal wiring within the junction box and control cabinet. Loose terminations on the millivolt-level proximity signal wires introduce noise that degrades vibration measurement accuracy. For plants with long cable runs, verify that signal isolators are in place to prevent ground loops between the field junction box and the control room rack.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement part number 330180-X1-05 against the existing probe label and the 3300 XL system documentation. Verify the gap voltage specification (typically -10.0 VDC ± 0.5 VDC at the nominal air gap) for your specific shaft target material.

Step 2 — Safe isolation: Follow plant LOTO (Lockout/Tagout) procedures. Bypass the vibration trip channel in the 3500 rack before disconnecting the sensor to prevent spurious machinery trips during the swap.

Step 3 — Physical replacement: Remove the old 330180-X1-05 probe from the bracket. Install the new probe, set the air gap per the OEM specification using a gap-setting tool, and torque the locknut to the specified value. Reconnect the extension cable and verify connector seating.

Step 4 — Functional verification: With the machine at rest, measure the gap voltage at the Proximitor output. Confirm the reading is within the acceptable window. Restore the trip bypass and monitor the channel for at least one full machine start-up cycle before returning to normal operation.

Step 5 — Documentation: Record the replacement date, new part serial number, measured gap voltage, and technician sign-off in the plant maintenance management system (CMMS). Update the spare parts inventory to trigger a replenishment order for the next 330180-X1-05 unit.

This structured workflow minimizes downtime, ensures system compatibility, and maintains the audit trail required for machinery protection compliance in ISO 13373 and API 670 environments.

Spare Parts Support FAQ

Q1: Is the 330180-X1-05 compatible with both the 3300 XL and the 3500 Series monitoring racks?
The 330180-X1-05 is natively designed for the Bently Nevada 3300 XL system. It is also compatible with 3500 Series racks when used with the appropriate Proximitor signal conditioner module. Always verify the gap voltage range and output scaling against your specific rack channel configuration before installation.

Q2: What pre-shipment testing is performed on the 330180-X1-05 before delivery?
Each unit undergoes functional output verification and gap voltage measurement prior to shipment. Units are inspected for physical integrity, connector condition, and cable continuity. A support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions.

Q3: How should the 330180-X1-05 be stored as a long-term shelf spare?
Store in the original anti-static packaging in a dry, temperature-controlled environment (10°C–35°C, <70% RH non-condensing). Avoid storage near strong magnetic fields or vibration sources. Inspect the probe tip and connector annually. Shelf life under proper storage conditions is typically 5–7 years without functional degradation.

Q4: Can KNMKS supply the 330180-X1-05 on a long-term or blanket order basis for multi-site maintenance programs?
Yes. KNMKS supports long-term supply agreements for critical spare parts including the 330180-X1-05. We maintain stock for rapid dispatch and can accommodate scheduled delivery programs aligned with annual maintenance outage calendars. Contact our team to discuss volume pricing, lead time commitments, and consignment stock options.
