Bently Nevada 330180-X1-05 Fail-Safe Proximitor Sensor

Overview

Bently Nevada 330180-X1-05 Fail-Safe Proximitor Sensor: Industrial Control Reliability and Critical Field Protection

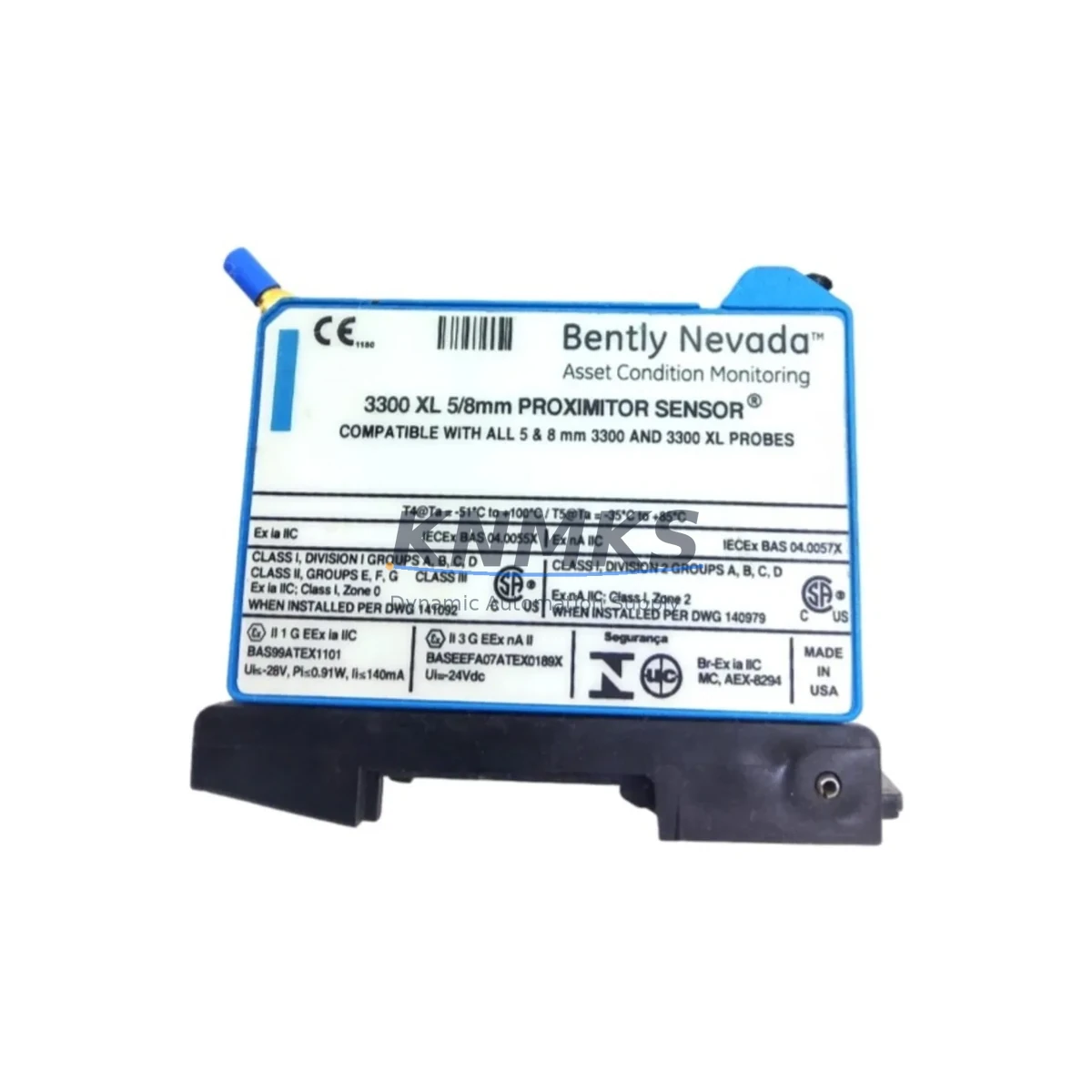

The Bently Nevada 330180-X1-05 (MOD: 145347-05) is a precision Proximitor Sensor from the renowned 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to meet the rigorous requirements of rotating machinery protection systems, this sensor delivers stable, interference-resistant signal output even under conditions of high electromagnetic interference (EMI), mechanical vibration, elevated temperature, and moisture ingress — conditions routinely encountered in petrochemical plants, power generation facilities, mining operations, and heavy manufacturing sites.

In critical industrial control cabinets where unplanned downtime carries severe operational and safety consequences, the 330180-X1-05 serves as a cornerstone component of the machinery protection loop. Its eddy-current sensing principle provides non-contact, wear-free measurement of shaft displacement and vibration, eliminating the mechanical degradation that plagues contact-based sensors in high-cycle applications. The sensor’s output signal remains consistent across its full operating range, minimizing the risk of signal drift that can trigger false trips or, more dangerously, mask developing faults in rotating equipment.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330180-X1-05 Proximitor does not operate in isolation. Its signal integrity and fail-safe performance depend on a carefully coordinated ecosystem of components. The Bently Nevada 3300/16 Vibration Monitor receives and processes the Proximitor’s output, applying configurable alarm and trip setpoints that protect turbines, compressors, and pumps from destructive vibration events. Upstream, a dedicated Bently Nevada 3300/05 Power Supply provides the stable -24 VDC rail that the Proximitor requires — any ripple or dropout on this supply directly compromises measurement accuracy, making a high-quality, redundant power supply non-negotiable in SIL-rated loops.

Cable routing is equally critical. The Bently Nevada 330130 Extension Cable connects the proximity probe to the Proximitor, and its shielding integrity must be maintained throughout the conduit run to prevent EMI-induced signal noise — a common failure mode in motor control centers and variable frequency drive (VFD) environments. For installations near high-power switchgear or bus ducts, additional ferrite suppression and separated cable trays are recommended.

At the system level, the Proximitor’s output feeds into the plant’s DCS or Safety Instrumented System (SIS) — often a Triconex or Yokogawa CENTUM VP platform — where it contributes to the overall machinery health picture alongside temperature inputs from Bently Nevada 3300/20 Temperature Monitor modules. In redundant protection architectures, dual Proximitor channels are cross-validated to prevent single-point failures from causing spurious trips or, critically, from allowing a genuine fault to go undetected. This voting logic, combined with the 330180-X1-05’s inherent fail-safe signal behavior, forms the backbone of a robust, defense-in-depth protection strategy for high-value rotating assets.

Critical Industrial Safety Applications

The 330180-X1-05 is deployed across a wide spectrum of critical industrial applications where rotating machinery reliability is directly linked to process safety and production continuity:

Petrochemical and Refinery Plants: Monitoring shaft vibration on centrifugal compressors in ethylene crackers and hydrocracker units, where an undetected bearing failure can escalate to a process safety incident. The sensor’s IP67 rating and wide temperature tolerance make it suitable for outdoor compressor trains exposed to hydrocarbon vapors and seasonal temperature extremes.

Power Generation: Axial position monitoring on steam turbine rotors in coal-fired and combined-cycle power plants. The 330180-X1-05 provides the real-time displacement data that allows operators to detect rotor thermal bow during startup and prevent blade-to-casing contact — a catastrophic failure mode with multi-week repair timelines.

Mining and Mineral Processing: Vibration monitoring on large ball mill drive trains and slurry pump assemblies operating in high-dust, high-vibration environments. The sensor’s non-contact design eliminates the contamination sensitivity that limits accelerometer-based systems in these applications.

Water and Wastewater Treatment: Continuous monitoring of vertical turbine pumps and blower units in municipal water infrastructure, where 24/7 uptime is a regulatory requirement and maintenance windows are tightly constrained.

Metallurgy and Steel Production: Monitoring of rolling mill drive motors and continuous casting machine drives, where high ambient temperatures and intense electromagnetic fields from arc furnaces demand sensors with proven EMI immunity.

Port and Marine Applications: Shaft monitoring on large diesel generator sets and propulsion system auxiliaries aboard vessels and at port power facilities, where saltwater corrosion resistance and vibration immunity are essential for long-term reliability.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330180-X1-05?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional deviations from Bently Nevada specifications. If the unit fails to perform within its rated parameters under normal operating conditions during the confirmed support period, we provide replacement or documented resolution support. Support requests are processed within 5 business days of unit receipt.

Q2: What pre-shipment testing is performed on this Proximitor?
Every 330180-X1-05 unit undergoes a full functional test prior to shipment, including output voltage verification at rated supply voltage, scale factor confirmation, and insulation resistance check. Test records are available upon request. Units are shipped in anti-static packaging with individual serial number documentation.

Q3: Is the 330180-X1-05 compatible with existing 3300 XL Series installations?
Yes. The 330180-X1-05 is a direct replacement for earlier 3300 XL Proximitor variants and is fully compatible with Bently Nevada 3300/16 monitors, 3300 XL 8mm proximity probes, and 330130 extension cables. No recalibration of the monitor is required when replacing a like-for-like Proximitor in an established installation.

Q4: Can long-term supply commitments be arranged for critical spare parts programs?
Yes. We support planned maintenance programs and critical spare parts inventories with scheduled delivery agreements. For facilities managing multiple Bently Nevada protection systems, we offer priority allocation, consignment stock arrangements, and advance notification of lead time changes to ensure your spare parts program remains uninterrupted. Contact our team to discuss your site’s specific requirements.
