Bently Nevada 330180-X1-00 MOD 145004-63 Maintenance-Proven Spare Part for Factory Uptime

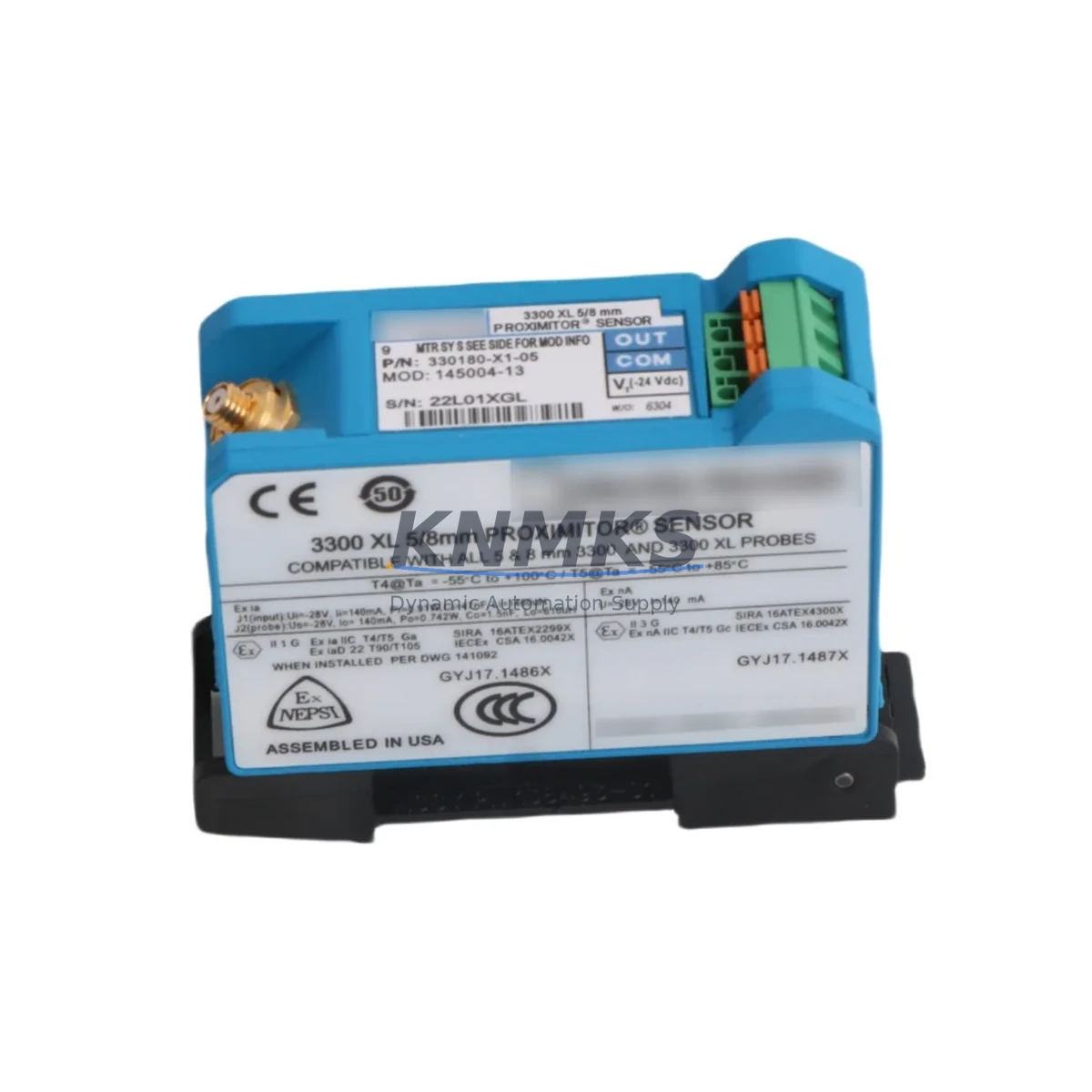

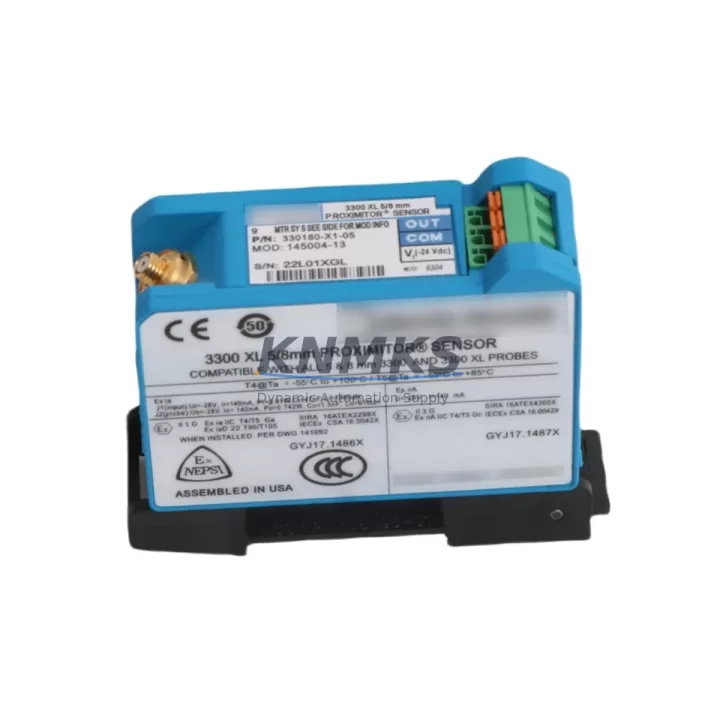

The Bently Nevada 330180-X1-00 MOD 145004-63 is a field-proven Proximitor Sensor designed for continuous vibration monitoring in rotating machinery protection systems. As a core component of the Bently Nevada 3300 XL Series, this sensor converts mechanical shaft displacement into a precise DC voltage signal, enabling real-time detection of radial vibration, axial position, and differential expansion across turbines, compressors, pumps, and critical rotating assets. For maintenance engineers managing aging DCS or machinery protection infrastructure, maintaining a verified stock of the 330180-X1-00 MOD 145004-63 is a non-negotiable element of any uptime strategy.

This unit ships fully tested, with original-specification output characteristics verified prior to dispatch. Each spare is backed by a support terms confirmed by quotation covering manufacturing defects and functional performance, giving procurement teams the confidence to hold this part as a long-cycle buffer stock item without risk of shelf degradation concerns.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330180-X1-00 MOD 145004-63 Proximitor Sensor is flagged for replacement during a scheduled outage or emergency fault isolation, experienced maintenance engineers know that the sensor itself is rarely the only component requiring attention. A complete site inspection should encompass the full signal chain to prevent repeat failures and ensure the replacement unit performs to specification from the first power-on.

Begin with the 3300 XL Series Extension Cable connecting the probe tip to the Proximitor housing. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation breakdown — particularly in high-vibration or high-temperature environments. A degraded cable will introduce signal noise or offset errors that can mask true shaft behavior even after a new Proximitor is installed. Inspect connector pins, cable jacket integrity, and continuity before commissioning the replacement sensor.

Next, verify the 3300 XL Eddy Current Probe (typically an 8mm or 11mm tip diameter probe matched to the Proximitor). Probe tip wear, contamination, or physical damage from shaft contact events will corrupt gap calibration. If the probe has been in service for more than three years or has experienced a shaft rub event, replacement alongside the Proximitor is strongly recommended to maintain system accuracy.

At the rack level, inspect the Bently Nevada 3500 Series Monitor Rack or the associated 3300 XL monitor card receiving the Proximitor output. Confirm that the monitor’s input channel is reading within the expected voltage window (typically -2 VDC to -18 VDC for a healthy gap range). A monitor card with a degraded input amplifier can misinterpret a correctly functioning Proximitor, leading to nuisance trips or missed alarms.

The -24 VDC power supply feeding the Proximitor system deserves particular scrutiny. Proximitor sensors are sensitive to supply voltage ripple and transient spikes. Use a calibrated multimeter to verify supply voltage stability under load. If the power supply is shared with other instrumentation — such as 4-20 mA transmitters or signal isolators — confirm that load sharing is not causing voltage sag that could affect Proximitor output linearity.

For facilities running integrated machinery protection alongside process control, also inspect the terminal blocks and field wiring in the junction box or marshalling cabinet. Loose terminations, corroded lugs, or undersized conductors are a common root cause of intermittent Proximitor faults that are misdiagnosed as sensor failures. Tighten all terminations and verify wire labeling matches the as-built drawings before energizing the replacement unit.

Finally, if the 3300 XL system feeds vibration data into a DCS historian or condition monitoring platform, confirm that the analog input scaling and alarm setpoints are correctly configured for the replacement sensor’s output characteristics. Mismatched scaling will result in incorrect vibration readings being logged and trended, undermining the value of the entire machinery protection investment.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. De-energize the Proximitor supply circuit at the rack. Confirm zero voltage at the Proximitor connector before disconnecting.

Step 2 — Document As-Found Condition: Record the existing gap voltage reading from the monitor display or DCS historian. Note any active alarms or diagnostic flags. Photograph the existing cable routing and connector orientation.

Step 3 — Remove the Existing Unit: Disconnect the extension cable from the Proximitor housing. Remove the Proximitor from its mounting bracket. Inspect the mounting surface for corrosion or mechanical damage.

Step 4 — Install the 330180-X1-00 MOD 145004-63 Replacement: Mount the new Proximitor in the same orientation as the original. Reconnect the extension cable, ensuring the connector is fully seated and the locking collar is engaged. Do not overtighten.

Step 5 — Gap Calibration Verification: Re-energize the supply circuit. Using the monitor display or a calibrated voltmeter at the output terminal, verify the gap voltage falls within the manufacturer’s specified linear range for the installed probe-to-shaft gap. Adjust the probe position if required.

Step 6 — Functional Test and Return to Service: Confirm that the monitor channel is reading correctly, alarms are cleared, and the DCS historian is logging the new sensor’s output. Document the as-left gap voltage and update the maintenance record. Return the machine to service.

This workflow is applicable whether replacing a failed unit during an emergency shutdown or performing a planned swap during a scheduled turnaround. The 330180-X1-00 MOD 145004-63 is a direct form-fit-function replacement for the original specification, requiring no firmware changes or monitor reconfiguration in standard 3300 XL installations.

Spare Parts Support FAQ

Q1: Is the 330180-X1-00 MOD 145004-63 a direct replacement for earlier 3300 XL Proximitor variants?
Yes. The 330180-X1-00 MOD 145004-63 is designed as a form-fit-function replacement within the Bently Nevada 3300 XL Series. It is compatible with standard 3300 XL probes and extension cables. Always verify the probe tip diameter and cable length match the original installation specification before ordering.

Q2: What pre-shipment testing is performed on each unit?
Every 330180-X1-00 MOD 145004-63 unit undergoes full functional output verification prior to dispatch. This includes supply voltage application, output voltage linearity check across the specified gap range, and connector integrity inspection. A test report is available upon request for critical applications.

Q3: What is the recommended inventory strategy for this Proximitor Sensor?
For facilities operating multiple 3300 XL-protected machines, we recommend maintaining a minimum of one spare 330180-X1-00 MOD 145004-63 per monitored machine train, with an additional buffer unit held at the site warehouse for emergency response. Given the long lead times associated with OEM procurement channels, holding verified aftermarket stock significantly reduces mean time to repair (MTTR) during unplanned outages.

Q4: What is covered under the support terms confirmed by quotation?
The support terms confirmed by quotation cover manufacturing defects and functional performance failures under normal operating conditions. It does not cover damage resulting from incorrect installation, supply voltage exceedance, mechanical impact, or exposure to environments beyond the rated operating temperature range. Support requests are processed with a replacement unit dispatched upon receipt and inspection of the returned part.
