Bently Nevada 330180-X0-05 Migration-Ready Proximity Sensor

Overview

Bently Nevada 330180-X0-05 Migration-Ready Proximity Sensor for Legacy Control Systems

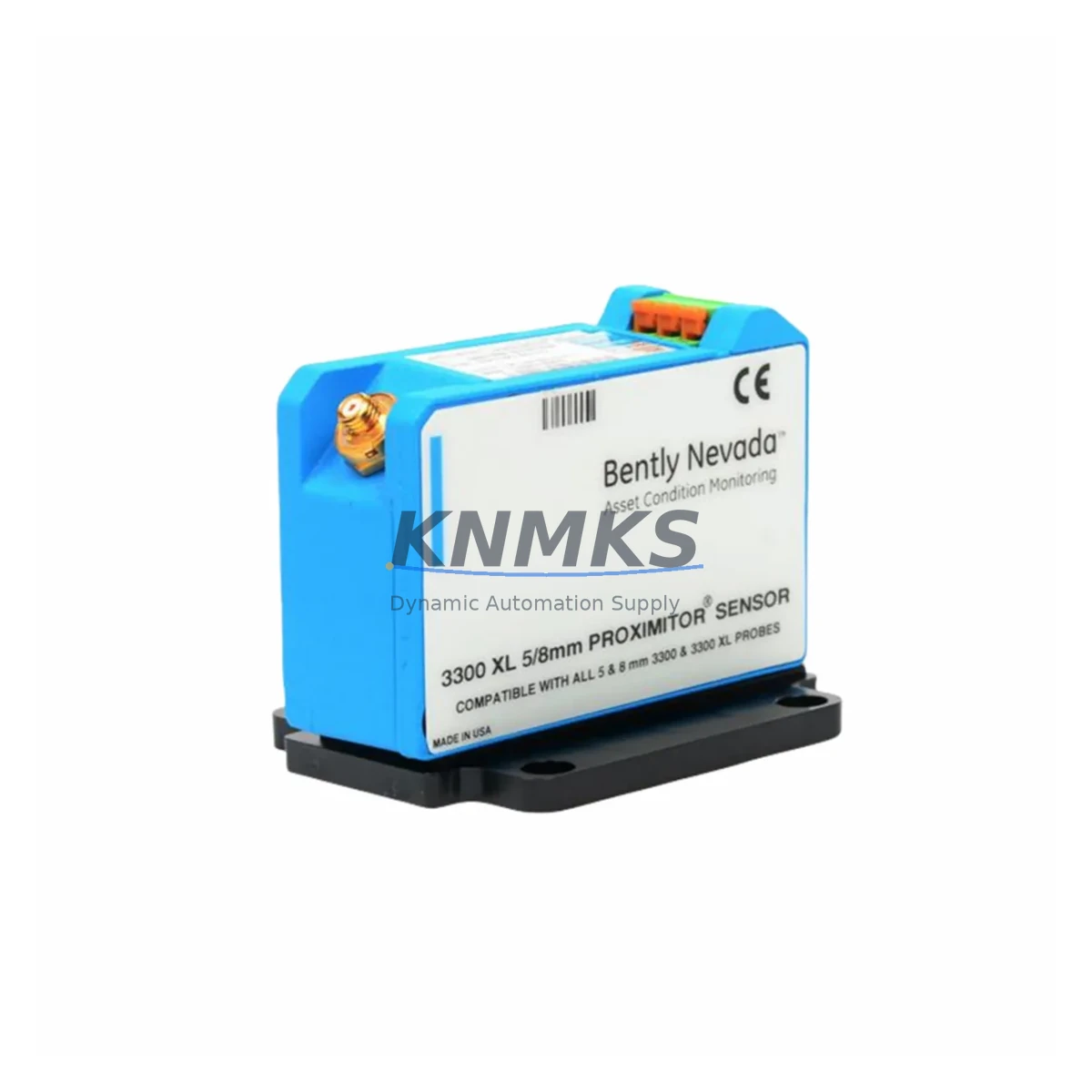

The Bently Nevada 330180-X0-05 (MOD:143416-05) is a migration-ready proximity sensor engineered for direct replacement and retrofit integration within Bently Nevada 3300 XL vibration monitoring systems. As legacy 3300 XL installations approach end-of-support milestones, engineering teams managing turbine protection, compressor monitoring, and rotating machinery health face increasing pressure to source verified replacement components that maintain signal integrity, rack compatibility, and protocol continuity without requiring full system redesign. This unit is pre-tested, in-stock, and ships with a support terms confirmed by quotation to support both emergency replacement and planned outage windows.

The 330180-X0-05 operates as an eddy-current proximity transducer, delivering a linear DC voltage output proportional to the gap between the probe tip and the observed shaft or target surface. It is designed for use with the Bently Nevada 3300 XL proximitor/seismic monitor series and is compatible with standard 3300 XL extension cables and proximitor housings. When replacing a failed or end-of-life sensor in an existing rack, engineers must confirm the probe series designation, cable length, and gap voltage calibration range to ensure the replacement unit matches the original channel configuration. The 330180-X0-05 maintains the same connector interface and output characteristics as the original factory specification, enabling drop-in installation without recalibrating the 3300 XL monitor card or modifying the existing Bently Nevada System 1 software configuration.

For sites running Bently Nevada 3500 series monitors in parallel or planning a phased migration from 3300 XL to 3500 architecture, the 330180-X0-05 can serve as a bridging component during the transition period. The 3500/42M proximity monitor and the 3500/22M transient data interface are commonly deployed alongside legacy 3300 XL racks during staged upgrades, and maintaining a verified stock of 330180-X0-05 sensors ensures that the legacy channels remain operational while the new 3500 infrastructure is commissioned. This approach minimizes unplanned downtime and preserves the original vibration alarm setpoints and trip logic during the cutover phase.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330180-X0-05 into an operating 3300 XL system begins with a thorough review of the existing channel documentation. Engineers should pull the original loop drawing to confirm the probe series, extension cable part number, proximitor model, and the gap voltage setpoint recorded during the last calibration. The 3300 XL monitor card — typically a 3300/16 or 3300/20 series — must be verified for slot address and I/O mapping before the replacement probe is installed, as incorrect slot assignment can cause the System 1 software to misidentify the channel or suppress alarms.

Power supply capacity is a critical checkpoint. The 3300 XL proximitor requires a stable –24 VDC supply, and sites with aging power distribution panels should verify that the supply rail can sustain the full load of all active channels during the replacement window. If the control cabinet houses a Bently Nevada 3300/05 power supply module, its output capacity and fuse ratings should be confirmed before adding or swapping transducer channels. Similarly, the terminal block wiring at the junction box must be inspected for corrosion, loose terminations, or incorrect shielding — issues that are common in installations that have been in service for more than a decade and that can introduce noise into the proximity signal chain.

For sites that also operate Bently Nevada 3500/15 power supply modules or 3500/92 communication gateway cards as part of a hybrid 3300/3500 architecture, the 330180-X0-05 replacement can be coordinated with a broader I/O audit. If the site is also upgrading HMI displays — for example, migrating from a legacy operator workstation running System 1 version 5.x to a current System 1 Evolution platform — the vibration channel tag names and alarm group assignments should be exported and validated before the probe swap to ensure that the new HMI screens correctly reflect the updated channel status after the replacement is complete. Signal isolators or barriers installed between the proximitor output and the DCS analog input card should also be checked for compatibility with the 330180-X0-05 output range.

Downtime Control During System Migration

Minimizing downtime during a 330180-X0-05 replacement requires a structured pre-outage preparation sequence. Before the maintenance window opens, the engineering team should export the current System 1 configuration database, document all active alarm setpoints and trip multipliers for the affected channel, and photograph the existing terminal wiring at both the junction box and the monitor rack. This documentation baseline ensures that the replacement can be reversed or re-verified quickly if an unexpected issue arises during commissioning.

During the replacement, the affected channel should be placed in bypass mode within the 3300 XL monitor to prevent a spurious trip while the probe is disconnected. Once the 330180-X0-05 is installed and the extension cable is reconnected, the gap voltage should be measured at the proximitor output terminals and compared against the original calibration record before the channel bypass is removed. If the gap voltage falls outside the acceptable linear range, the probe mounting position should be adjusted before the machine is returned to service. The entire swap — from channel bypass to gap verification — can typically be completed within a two-hour maintenance window on a well-documented system, keeping the impact on production schedules to a minimum.

For sites where the 3300 XL rack is located in a hazardous area or where access requires a hot-work permit, the pre-outage documentation and spare parts staging process is especially important. Having a verified, pre-tested 330180-X0-05 unit on-site before the permit window opens eliminates the risk of a failed replacement extending the outage due to a parts delay. Our multi-region stock ensures same-day dispatch for emergency orders, and our technical team can provide gap calibration data and installation guidance to support the on-site commissioning team.

Retrofit Support FAQ

Q1: Is the 330180-X0-05 a direct drop-in replacement for the original Bently Nevada probe in a 3300 XL system?
Yes. The 330180-X0-05 (MOD:143416-05) maintains the same connector interface, probe body dimensions, and output characteristics as the original factory specification. No modifications to the extension cable, proximitor housing, or monitor card configuration are required for a like-for-like replacement. Confirm the probe series designation and cable length from the original loop drawing before installation.

Q2: What commissioning steps are required after installing the replacement probe?
After installation, measure the gap voltage at the proximitor output terminals with the machine at rest and compare the reading against the original calibration record. Verify that the voltage falls within the linear range specified for the 3300 XL channel. Remove the channel bypass in the monitor card and confirm that System 1 software is displaying the correct gap value and that no spurious alarms are active before returning the machine to service.

Q3: Has the 330180-X0-05 been tested before shipment, and what support terms is provided?
Yes. Every unit undergoes functional testing and gap calibration verification before shipment. A support terms confirmed by quotation covering manufacturing defects and functional performance is included with each unit. Test certificates are available on request. Units are dispatched from multi-region stock to support both emergency replacements and scheduled outage windows.

Q4: Can this probe be used during a phased migration from a 3300 XL to a 3500 series monitoring architecture?
Yes. The 330180-X0-05 is well-suited for use as a bridging component during a staged 3300-to-3500 migration. It keeps the legacy 3300 XL channels operational while the new 3500 infrastructure — including 3500/42M proximity monitors and 3500/22M transient data interfaces — is installed and commissioned in parallel. This approach preserves the original alarm setpoints and trip logic during the cutover phase and reduces the risk of unplanned downtime.
