Bently Nevada 330180-X0-00 Maintenance-Proven Spare Part for Factory Uptime

Overview

Bently Nevada 330180-X0-00 Maintenance-Proven Spare Part for Factory Uptime

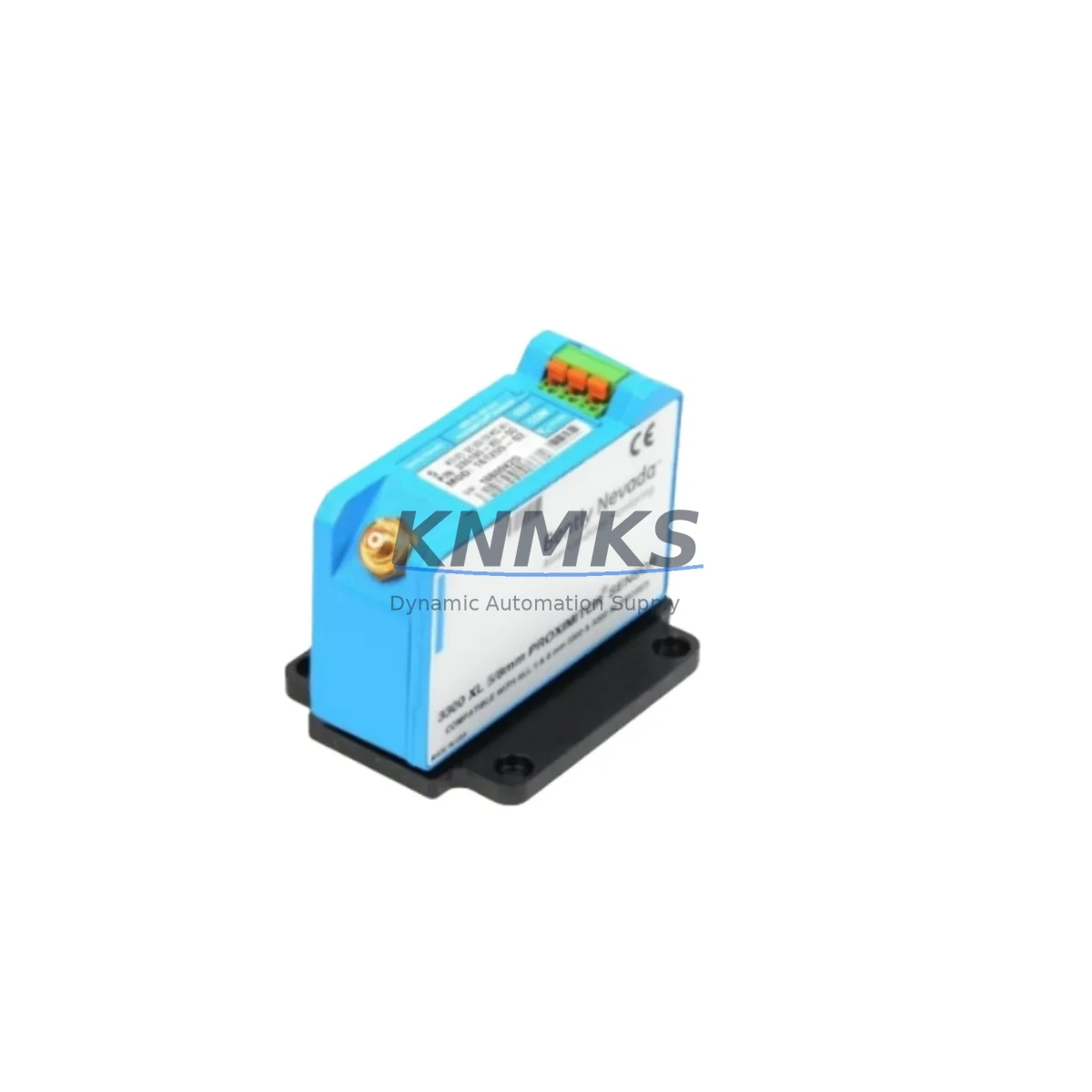

The Bently Nevada 330180-X0-00 is a field-proven Proximitor Sensor designed for continuous vibration monitoring within the 3300 XL Series machinery protection system. As rotating equipment ages and OEM support windows narrow, maintaining a verified stock of the 330180-X0-00 is a frontline strategy for maintenance engineers who cannot afford unplanned downtime on critical turbines, compressors, pumps, and motors. This unit ships pre-tested, with full electrical verification completed before dispatch, and is backed by a support terms confirmed by quotation covering both parts and workmanship.

Whether you are executing a scheduled annual overhaul, responding to a vibration alarm, or building a resilient spare parts inventory for a multi-train facility, the 330180-X0-00 delivers the signal integrity and installation compatibility that the 3300 XL platform demands. KNMKS maintains long-term supply agreements to support procurement engineers who require consistent availability across 12–36 month maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A Proximitor Sensor replacement is rarely an isolated event. When a 330180-X0-00 is flagged during a vibration alarm or routine point inspection, experienced maintenance engineers treat it as a trigger for a broader control cabinet audit. The 3300 XL system relies on a tightly integrated signal chain, and a degraded sensor can mask or amplify faults elsewhere in the loop.

Begin by inspecting the TK3 Series extension cable connecting the probe to the Proximitor. Cable jacket abrasion, connector corrosion, or a pinched run near a hot surface are common causes of intermittent signal loss that are misdiagnosed as sensor failure. Simultaneously, verify the 3300 XL monitor module power supply rail — a sagging –24 VDC supply will shift the sensor’s bias voltage and produce false proximity readings. If the cabinet houses a 3300/16 or 3300/20 monitor card, pull and inspect the card edge connector for oxidation before reinstalling the new 330180-X0-00.

For facilities running parallel protection channels, cross-check the 3300 XL I/O terminal block wiring against the as-built drawing. Loose terminations at the Proximitor output or the monitor input are a leading cause of nuisance trips after sensor replacement. If the system feeds a Bently Nevada 3500/22M transient data interface or a DCS historian, confirm that the scale factor and gap setpoints are correctly configured after the swap — a mismatch here will generate erroneous trend data and complicate future fault isolation.

Where the 3300 XL system interfaces with a safety relay module or a hardwired trip circuit, test the relay output continuity and setpoint calibration as part of the replacement workflow. Finally, if the machine train includes a keyphasor probe (such as the 330180 series keyphasor variant), verify its gap and signal output independently — keyphasor signal degradation is often concurrent with radial vibration sensor issues on aging shafts.

Procurement engineers supporting multi-site operations should consider stocking the 330180-X0-00 alongside compatible 3300 XL extension cables and a spare monitor power supply module to ensure a complete replacement kit is available at each facility, eliminating secondary lead times during emergency shutdowns.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the 3300 XL monitor channel associated with the 330180-X0-00 before disconnecting the extension cable. Do not remove the probe under live –24 VDC supply.

Step 2 — Gap Measurement: Before removing the old sensor, record the installed gap distance using a calibrated gap meter or the monitor’s DC gap reading. This baseline is essential for setting the replacement probe to the correct operating point.

Step 3 — Probe Removal & Inspection: Unthread the probe from the bracket. Inspect the probe tip for mechanical damage, shaft contact marks, or contamination. Inspect the probe mounting threads and bracket for wear. Replace the bracket if thread engagement is compromised.

Step 4 — Install 330180-X0-00: Thread the new probe to the manufacturer’s specified torque. Set the gap to the system-documented setpoint (typically 50 mil / 1.27 mm for standard radial applications — confirm with the machine train datasheet). Reconnect the TK3 extension cable and verify connector seating.

Step 5 — Signal Verification: Re-energize the monitor channel. Confirm the DC gap voltage is within the linear range (typically –9 to –11 VDC for a 50 mil gap). Check for alarm and danger setpoint integrity on the 3300 XL monitor display or DCS faceplate.

Step 6 — Documentation: Record the replacement in the equipment maintenance log, including the new probe serial number, installed gap, and post-installation gap voltage. Update the spare parts inventory to trigger reorder of the consumed 330180-X0-00 unit.

Spare Parts Support FAQ

Q1: Is the 330180-X0-00 a direct drop-in replacement for all 3300 XL Proximitor applications?
The 330180-X0-00 is designed for the Bently Nevada 3300 XL platform. Compatibility depends on the specific monitor card, extension cable length, and target material. Always verify the probe series, cable length code, and target material specification against your system documentation before installation. KNMKS technical support can assist with compatibility confirmation prior to shipment.

Q2: What pre-shipment testing is performed on each unit?
Every 330180-X0-00 supplied by KNMKS undergoes full electrical verification before dispatch, including bias voltage output, scale factor check, and connector integrity test. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q3: Can KNMKS support long-term or blanket purchase orders for this part?
Yes. KNMKS offers 12–36 month supply agreements for the 330180-X0-00 and associated 3300 XL components. This is particularly suited to multi-site operators and EPC contractors who require guaranteed availability across planned maintenance windows. Contact [email protected] to discuss volume and scheduling terms.

Q4: What is the recommended spare parts holding strategy for the 330180-X0-00?
For critical rotating machinery (turbines, compressors, large pumps), industry best practice recommends holding a minimum of one spare Proximitor per monitored shaft, plus one additional unit per machine train as an emergency buffer. For facilities with 10+ monitored points on the 3300 XL platform, a consignment or VMI arrangement with KNMKS can reduce carrying costs while maintaining on-site availability.
