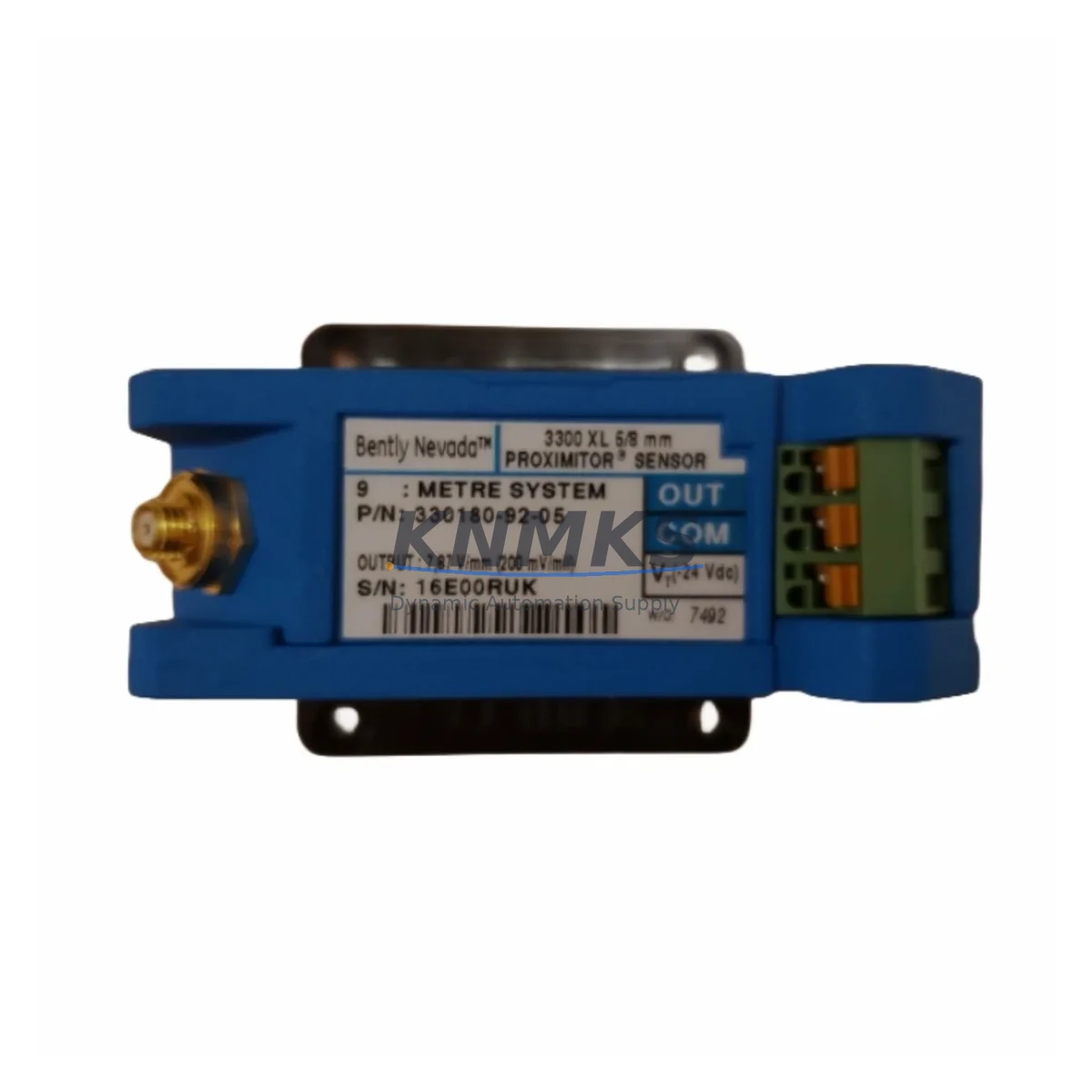

Bently Nevada 330180-92-05 Migration-Ready Proximitor for Legacy Control Systems

The Bently Nevada 330180-92-05 is an 8mm eddy-current Proximitor sensor engineered for direct integration into Bently Nevada 3300 XL Series vibration monitoring systems. As legacy rotating machinery protection platforms approach end-of-life, the 330180-92-05 serves as a validated, drop-in migration solution that preserves existing wiring infrastructure, signal conditioning architecture, and rack-mounted monitor configurations without requiring full system replacement. Operating on a –24 VDC bias voltage with a standard 5-metre armoured cable assembly, this Proximitor delivers the gap voltage linearity and sensitivity specifications required by 3300 XL monitor cards, including the 3300/16 and 3300/20 series, ensuring seamless signal handoff during cutover.

For facilities managing aging turbomachinery protection panels, the 330180-92-05 addresses the most critical procurement challenge: sourcing a replacement that eliminates the need to recalibrate monitor setpoints, reroute field wiring, or modify DCS input scaling. The sensor’s 200 mV/mil (7.87 V/mm) output scale factor aligns directly with the factory configuration of installed 3300 XL monitors, allowing maintenance teams to complete a probe swap during a planned outage window without extended commissioning time. This is particularly valuable in compressor trains, steam turbines, and pump sets where unplanned downtime carries significant operational cost.

When planning a retrofit around the 330180-92-05, engineers must verify the existing extension cable assembly — typically a Bently Nevada 330130 series cable — for continuity, shield integrity, and connector compatibility before reuse. The Proximitor driver circuit within the 3300 XL monitor must also be confirmed against the probe’s gap range (0.25 mm to 2.29 mm linear range) to ensure the installed target material and air gap fall within the calibrated zone. Where the original probe was mounted in a custom bracket or proximity housing, the 330180-92-05’s 8mm body diameter and M10 thread pitch allow direct mechanical substitution in most OEM probe holders.

In broader system migration scenarios — such as transitioning from a 3300 XL rack to a System 1 Evolution platform or integrating with a third-party condition monitoring gateway — the 330180-92-05 can continue to serve as the field sensing element while the signal processing layer is upgraded. This approach protects the capital investment in field wiring and probe mounting hardware while enabling the control room to adopt modern vibration analysis software, alarm management, and historian connectivity. During such migrations, the 3500/42M Proximitor I/O module or equivalent interface card must be confirmed for input impedance compatibility with the 330180-92-05 output characteristics.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centred on the 330180-92-05 requires a structured pre-outage audit of the surrounding monitoring architecture. Begin by documenting the installed 3300 XL rack configuration: identify each occupied slot, confirm the monitor card model (3300/16 or 3300/20), and record the current gap voltage readings for all active channels. This baseline allows the maintenance team to verify post-swap signal integrity without relying on historical calibration records that may be incomplete for ageing installations.

The extension cable assembly — most commonly a Bently Nevada 330130-080-00-00 or equivalent length variant — should be tested for shield-to-conductor isolation resistance before the outage begins. A degraded shield on the extension cable is a frequent source of noise injection that can mask a successful probe replacement, leading to unnecessary repeat outages. Where the extension cable shows insulation resistance below 100 MΩ, replacement concurrent with the probe swap is strongly recommended to avoid a second intervention.

For installations where the 3300 XL rack also houses a 3300/55 Keyphasor module or a 3300/46M temperature monitor, these adjacent modules should be inspected for backplane connector wear during the same outage window. The 3300 XL backplane uses a passive bus architecture, meaning a faulty backplane connector on an adjacent slot can introduce ground loops that affect Proximitor signal quality even after a clean probe replacement. Confirming backplane integrity before closing the rack prevents post-commissioning signal anomalies.

Where the control system includes a Bently Nevada 3500 rack operating in parallel — a common configuration in turbine protection upgrades — the 330180-92-05 output can be split to feed both the legacy 3300 XL monitor and a 3500/42M Proximitor I/O module simultaneously during a parallel-run validation period. This approach allows the new platform to accumulate baseline vibration data before the legacy system is decommissioned, significantly reducing migration risk. During this period, the plant DCS should be configured to accept inputs from both systems, with alarm priority assigned to the validated channel.

In facilities where HMI screens display real-time vibration trends sourced from the 3300 XL system, the HMI tag database must be reviewed before cutover. If the HMI communicates with the monitor rack via a Modbus RTU or OPC DA server, the tag addresses associated with the replaced probe channel must be verified against the new monitor card’s register map. A mismatch between the HMI tag and the monitor register will result in a frozen or zero-value trend display that can be misinterpreted as a sensor fault during the post-commissioning period.

Downtime Control During System Migration

Minimising downtime during a Proximitor replacement on a live rotating machinery protection system requires pre-staging all replacement components — including the 330180-92-05, the extension cable assembly, and any required probe holder adapters — at the work site before the outage window opens. A pre-outage bench test of the replacement Proximitor using a portable driver/monitor unit confirms sensor functionality before installation, eliminating the risk of discovering a defective unit after the machine has been taken offline.

The original program logic within the 3300 XL monitor — including alarm setpoints, danger setpoints, time delays, and relay output assignments — should be documented in full before any hardware is disturbed. Most 3300 XL monitors do not retain configuration in non-volatile memory independently of the rack power supply, meaning an unplanned power interruption during the swap can result in loss of setpoint data. Where possible, a configuration backup should be extracted using the Bently Nevada System 1 software or a direct serial connection to the monitor card before the outage begins.

During the physical swap, the machine should be confirmed at rest and the rack power supply de-energised before the probe is disconnected. After installation of the 330180-92-05, the gap voltage should be measured at the monitor card’s test point with the machine still at rest, confirming the probe is positioned within the linear range before the machine is returned to service. A gap voltage outside the –10 VDC to –18 VDC window at the expected air gap indicates either a probe positioning error or a target material incompatibility that must be resolved before restart.

Post-commissioning, the first 30 minutes of machine operation should be monitored continuously for vibration trend stability, alarm state consistency, and relay output behaviour. Any deviation from the pre-outage baseline — particularly a sustained upward trend in 1X or 2X vibration amplitude — should be investigated before the machine is returned to full load. This structured commissioning protocol, combined with pre-staged replacement components and a documented configuration backup, consistently reduces total outage time for a single-channel Proximitor replacement to under four hours in most industrial installations.

Retrofit Support FAQ

Q: Is the 330180-92-05 a direct replacement for all 8mm Bently Nevada Proximitors used in 3300 XL systems?
A: The 330180-92-05 is a direct replacement for units sharing the same 8mm body diameter, M10 thread, –24 VDC supply, and 200 mV/mil scale factor within the 3300 XL series. Confirm the original part number before ordering to ensure the cable length (92 = 9.2m overall system length with extension) matches the installed configuration. Units with different cable length suffixes (e.g., -05 vs. -00) are electrically identical but differ in integral cable length.

Q: What commissioning steps are required after installing the 330180-92-05?
A: After mechanical installation, measure the gap voltage at the monitor card test point with the machine at rest. Confirm the reading falls within the –10 VDC to –18 VDC range for the expected air gap. Verify that all alarm and danger setpoints are intact in the monitor card configuration. Perform a functional test of relay outputs before returning the machine to service. No full system recalibration is required for a like-for-like replacement.

Q: Can the 330180-92-05 be used with a Bently Nevada 3500 series rack?
A: Yes, with the appropriate interface module. The 3500/42M Proximitor I/O module accepts the 330180-92-05 output signal, provided the monitor is configured for the correct scale factor and gap range. Confirm the 3500 rack firmware version supports the probe’s output characteristics before integration. A parallel-run validation period is recommended when migrating from a 3300 XL to a 3500 rack to verify signal continuity and alarm behaviour.

Q: What is the support terms coverage and what does pre-shipment testing include?
A: All 330180-92-05 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. Each unit undergoes pre-shipment functional testing including bias voltage verification, output scale factor confirmation, and cable continuity check. Units are shipped with a test report on request. In-stock units are available for same-week dispatch to minimise procurement lead time for urgent replacement requirements.
