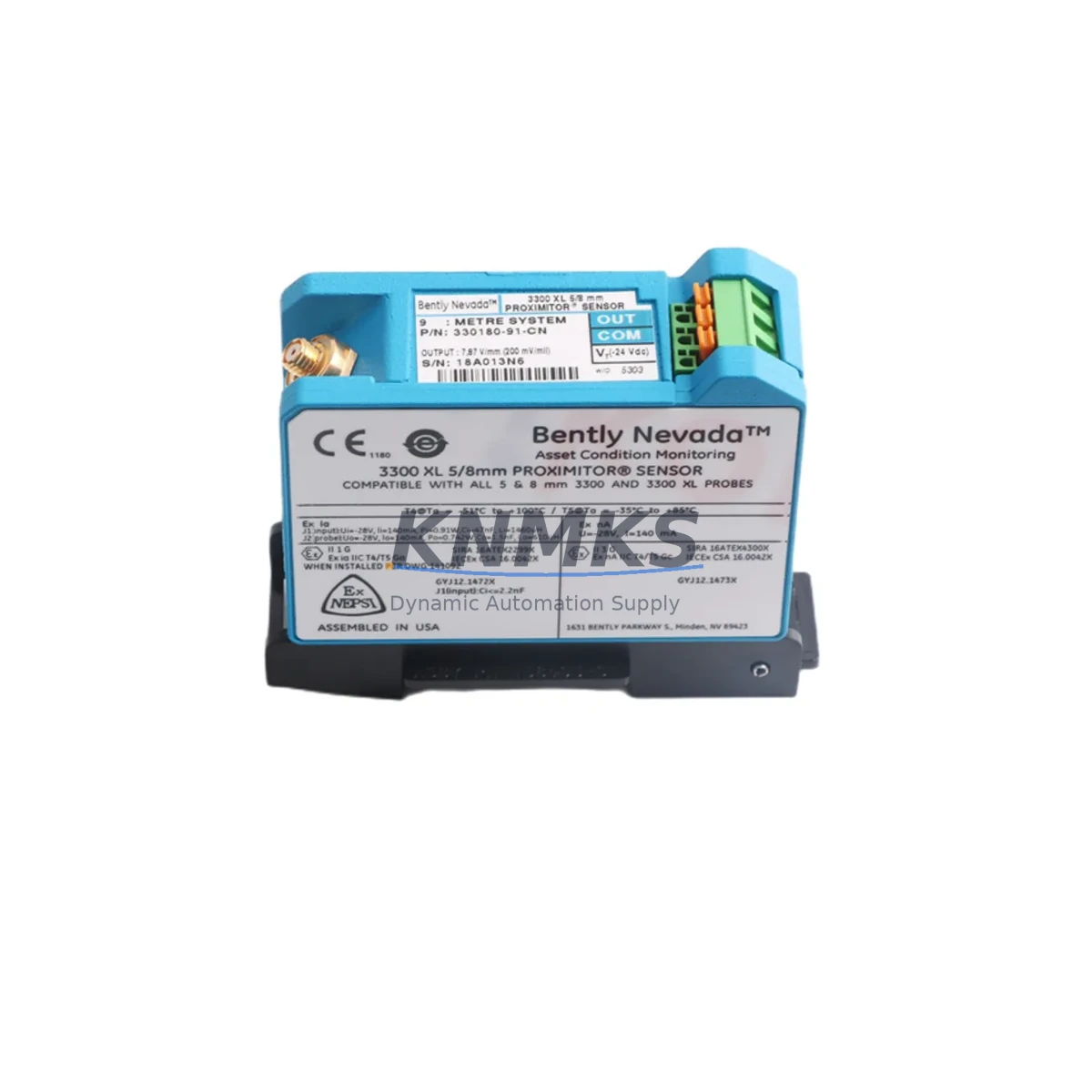

BENTLY NEVADA 330180-91-CN Fail-Safe Proximity Transducer

Overview

BENTLY NEVADA 330180-91-CN Fail-Safe Proximity Transducer: Fault Protection for Critical Industrial Control Reliability

In continuous production environments where unplanned downtime carries severe operational and safety consequences, the BENTLY NEVADA 330180-91-CN eddy-current proximity transducer from the 3300 XL Series delivers the fail-safe signal integrity that rotating machinery protection systems demand. Engineered for critical interlock loops, heavy-duty control cabinets, and high-vibration field installations, this transducer provides stable, drift-free position and vibration measurement even under sustained electromagnetic interference, moisture ingress, dust accumulation, and wide thermal cycling — conditions that routinely compromise lesser sensing components.

The 330180-91-CN operates on the proven eddy-current (non-contact) measurement principle, eliminating mechanical wear as a failure mode and ensuring that the sensor itself does not become a source of false trips or missed alarms. Its output signal remains linear and repeatable across the full operating temperature range, protecting the integrity of vibration alarm setpoints in turbine protection panels, compressor monitoring racks, and pump bearing surveillance systems. When paired with the BENTLY NEVADA 3300 XL Proximitor® Sensor (such as the 330180 series extension cables and 3300 XL signal conditioning modules), the system forms a complete, validated measurement chain that satisfies the signal fidelity requirements of safety instrumented systems (SIS) and API 670 machinery protection standards.

Control cabinet designers integrating the 330180-91-CN into protection architectures benefit from its robust coaxial cable assembly and armored extension cable compatibility, which maintain signal quality over long cable runs in electrically noisy environments. In installations where the control cabinet also houses BENTLY NEVADA 3500 Series rack-based monitoring modules or Emerson Ovation DCS I/O cards, the transducer’s low-impedance output minimizes susceptibility to ground loops and capacitive coupling — two of the most common causes of spurious vibration alarms in heavy industrial facilities. For power supply integrity within the same cabinet, pairing with a Phoenix Contact QUINT-PS redundant 24 VDC power supply ensures that transducer excitation voltage remains stable during grid disturbances, preventing the voltage-induced signal drift that can mask genuine machinery faults or trigger nuisance shutdowns.

Surge protection is equally critical in field-mounted transducer circuits. Incorporating MTL or Pepperl+Fuchs surge protection barriers on the signal lines between the field junction box and the control room rack provides the transient suppression needed to protect both the 330180-91-CN and the downstream monitoring electronics from lightning-induced surges and switching transients common in petrochemical and power generation switchyards. In high-temperature or high-vibration installations — such as gas turbine bearing pedestals or reciprocating compressor frames — the transducer’s stainless steel housing and vibration-resistant connector assembly maintain mechanical integrity without requiring frequent re-torquing or field recalibration, reducing preventive maintenance burden and extending mean time between interventions.

For facilities operating under IEC 61511 functional safety management or pursuing SIL-rated protection loop certification, the 330180-91-CN’s documented performance characteristics and traceable factory calibration records support the systematic capability assessment required during SIL verification. Its compatibility with the broader BENTLY NEVADA System 1 condition monitoring software platform enables real-time trend analysis, alarm rationalization, and predictive maintenance scheduling — transforming raw vibration data into actionable reliability intelligence without requiring additional signal conditioning hardware.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the 330180-91-CN typically integrates several complementary components to achieve full-spectrum fault coverage. The BENTLY NEVADA 3300 XL Proximitor® Sensor provides the signal conditioning and power supply for the transducer, converting the raw impedance change into a calibrated voltage output suitable for direct connection to monitoring rack inputs. Upstream of the rack, BENTLY NEVADA 3500/42M Proximitor®/Seismic Monitor modules process the conditioned signals, applying alarm and danger setpoints with voting logic that prevents single-sensor failures from causing spurious machine trips.

Cabinet power integrity is maintained by a Phoenix Contact QUINT-PS 24 VDC redundant power supply, which provides load-sharing and automatic switchover to eliminate power interruption as a common-cause failure. Signal line surge protection — implemented via Pepperl+Fuchs or MTL surge arresters on each transducer channel — clamps transient overvoltages before they reach the Proximitor® input circuitry. For facilities with Emerson DeltaV or Ovation DCS platforms, the 330180-91-CN measurement chain integrates cleanly through standard 4–20 mA or direct voltage interfaces, preserving alarm fidelity across the full control hierarchy from field sensor to control room HMI.

Critical Industrial Safety Applications

The BENTLY NEVADA 330180-91-CN is deployed across the most demanding continuous-process industries. In petrochemical and refinery facilities, it monitors radial shaft vibration on centrifugal compressors and process pumps in API 670-compliant protection systems, providing the early warning needed to prevent catastrophic seal failures and uncontrolled hydrocarbon releases. In power generation plants — both thermal and combined-cycle — it serves as the primary bearing proximity sensor on steam and gas turbines, where its high-temperature probe tip rating and drift-free output are essential for maintaining trip setpoint accuracy over extended operating campaigns.

In mining and mineral processing operations, the IP67 rating and stainless steel housing allow installation in wet, dusty crusher and mill drive environments where standard sensors fail within months. Water and wastewater treatment facilities rely on the 330180-91-CN for pump and blower shaft monitoring in corrosive, high-humidity pump stations. In metallurgical and steel mill applications, the transducer’s thermal stability supports reliable measurement on rolling mill drive trains and continuous caster pinch roll assemblies operating near high-radiant-heat sources. Port and marine installations use it on crane hoist drives and ship propulsion shaft monitoring systems, where salt-air corrosion resistance and vibration immunity are non-negotiable for safe cargo handling operations.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330180-91-CN?
The support terms confirmed by quotation cover manufacturing defects, calibration drift beyond published specification limits, and connector or cable assembly failures under normal operating conditions. Each unit shipped by KNMKS has passed pre-shipment functional verification including output sensitivity check and insulation resistance test. Support requests are supported with replacement dispatch within agreed lead times to minimize your plant downtime exposure.

Q2: How is the 330180-91-CN tested before shipment?
Every unit undergoes outgoing quality inspection including gap-versus-output linearity verification against the 200 mV/mil nominal sensitivity curve, DC resistance check of the coaxial cable assembly, and visual inspection of the probe tip, housing, and connector. Units that do not meet BENTLY NEVADA published performance specifications are quarantined and not dispatched. A test record is available upon request for critical safety loop applications.

Q3: Is the 330180-91-CN compatible with existing 3300 XL Proximitor® systems?
Yes. The 330180-91-CN is a direct form-fit-function replacement within the BENTLY NEVADA 3300 XL measurement chain. It is compatible with all standard 3300 XL Proximitor® Sensor models and 3500 Series monitoring rack inputs. No recalibration of the Proximitor® module is required when replacing a like-for-like 330180-91-CN unit, provided the target material and gap setting remain unchanged. For non-standard target materials, a field calibration against the actual target is recommended.

Q4: Can KNMKS support long-term and emergency supply of the 330180-91-CN?
KNMKS maintains stock inventory of the 330180-91-CN to support both planned maintenance schedules and emergency breakdown replacement requirements. For critical plant spares programs, we can discuss consignment stock arrangements and priority dispatch agreements. Our supply chain covers both current-production and legacy BENTLY NEVADA 3300 XL series components, ensuring continuity of supply even for older installed base systems that are no longer supported through standard OEM channels.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

BENTLY NEVADA
Bently Nevada

Model / Series

330180-91-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: BENTLY NEVADA 330180-91-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
