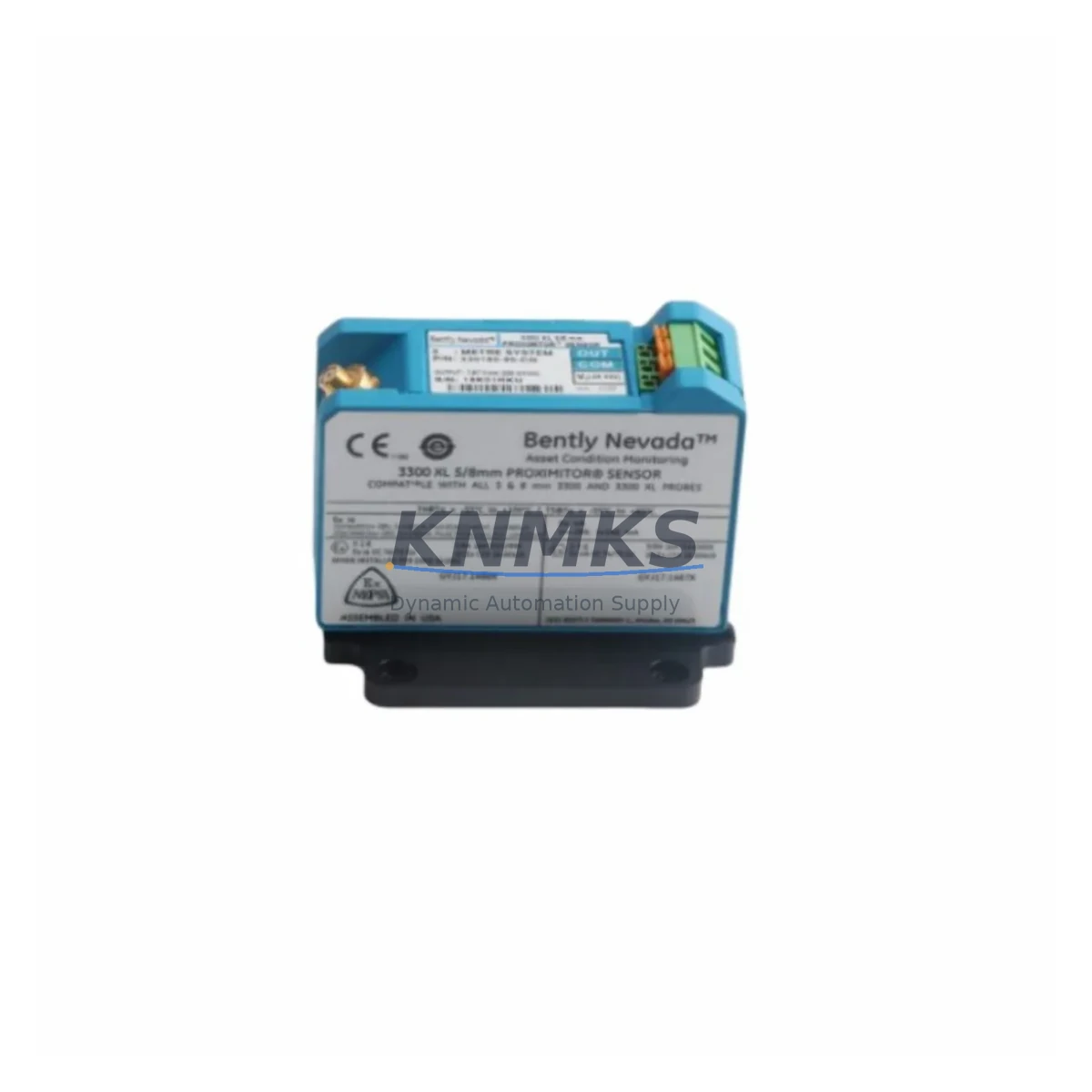

The Bently Nevada 330180-90-CN is a precision Proximitor Sensor designed for the 3300 XL Series vibration monitoring system — one of the most widely deployed condition monitoring platforms in turbomachinery, compressor trains, and rotating equipment applications worldwide. For maintenance engineers managing aging control systems or executing planned overhauls, having a verified, OEM-compatible 330180-90-CN availability confirmed by RFQ is a direct line of defense against unplanned downtime.

This unit operates as the signal conditioning interface between the eddy-current probe and the monitoring system, converting raw proximity gap signals into calibrated voltage outputs that feed into the 3300 XL rack. Its accuracy and stability are critical to vibration alarm thresholds, trip setpoints, and overall machinery protection integrity. A degraded or failed Proximitor can mask real vibration events or trigger false trips — both scenarios carry significant operational and safety risk in continuous-process environments.

KNMKS supplies the 330180-90-CN as a tested, original spare with full traceability. Each unit undergoes pre-shipment functional verification before dispatch, and is backed by a support terms confirmed by quotation covering manufacturing defects and performance conformance. We maintain forward stock to support both emergency replacement orders and planned annual maintenance procurement cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330180-90-CN in the field, a disciplined maintenance engineer will treat the swap as an opportunity to audit the entire vibration monitoring loop — not just the Proximitor itself. Signal integrity in a 3300 XL system depends on the health of every component in the measurement chain.

Begin with the 3300 XL proximity probe (typically an 8mm eddy-current probe such as the 330103 or 330104 series). Probe tip wear, contamination, or mechanical damage will corrupt the gap signal regardless of Proximitor condition. Inspect probe mounting, gap setting, and target surface finish simultaneously.

Next, verify the 330130 series extension cable connecting the probe to the Proximitor. Cable shield continuity, connector integrity, and insulation resistance are common failure points in high-vibration or high-temperature environments. A degraded cable will introduce noise or offset errors that mimic Proximitor faults.

At the rack level, inspect the 3300 XL monitor module receiving the Proximitor output. Check input impedance, alarm relay contacts, and the module’s own power supply rail. If the rack uses a 3300 XL power supply module, confirm output voltage stability under load — a sagging -24 VDC rail will shift Proximitor output and invalidate calibration.

For systems with 3300 XL keyphasor modules, confirm that the phase reference signal is clean and correctly timed. Keyphasor integrity is essential for synchronous vibration analysis and balancing operations. A faulty keyphasor can make a healthy machine appear to have a resonance problem.

Where the 3300 XL rack interfaces with a DCS or safety system via signal isolators or barriers, verify that the isolation modules are passing the analog signal without clipping or offset. Galvanic isolation barriers in particular can degrade over time in humid or corrosive environments. Finally, check terminal block connections and fuse holders within the control cabinet — loose terminations and blown fuses are among the most common root causes of apparent sensor failures that are misdiagnosed as Proximitor faults.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Confirm the monitoring channel is bypassed or inhibited at the DCS/safety system level before disconnecting the Proximitor. Avoid triggering a false trip on adjacent channels.

Step 2 — Document Existing Configuration: Record the installed gap voltage (typically -10.0 VDC ±0.5 VDC at nominal gap), alarm setpoints, and any channel-specific calibration offsets stored in the monitor module. Photograph wiring before removal.

Step 3 — Remove and Inspect: Disconnect the extension cable from the Proximitor. Inspect the connector pins for corrosion or mechanical damage. Remove the Proximitor from its mounting and inspect the housing for heat damage or moisture ingress.

Step 4 — Install 330180-90-CN Replacement: Mount the new Proximitor, reconnect the extension cable, and restore power. Allow a 5-minute warm-up period before taking gap voltage readings.

Step 5 — Verify Gap and Calibration: Confirm the gap voltage matches the documented baseline. If the new unit reads outside tolerance, re-check probe gap, cable continuity, and power supply voltage before assuming a calibration issue.

Step 6 — Restore and Test: Remove the channel bypass, restore normal monitoring, and confirm alarm and trip functions are active. Log the replacement in the maintenance management system with the new unit’s serial number and installation date.

This workflow is compatible with both hot-standby redundant systems and single-channel configurations. For redundant systems, the replacement can typically be completed without a full machine shutdown, reducing production impact to near zero.

Spare Parts Support FAQ

Q1: Is the 330180-90-CN a direct drop-in replacement for older 3300 series Proximitors?
The 330180-90-CN is designed for the 3300 XL platform. While it shares the same eddy-current operating principle as earlier 3300 series units, connector pinout and calibration range should be verified against the installed monitor module before installation. KNMKS can provide compatibility confirmation based on your rack model and probe series.

Q2: How does KNMKS verify the unit before shipment?
Each 330180-90-CN is bench-tested for output linearity across the full gap range, supply current draw, and signal noise floor before dispatch. Units that do not meet OEM performance specifications are quarantined and not shipped. A test record is available upon request.

Q3: What is the recommended spare inventory strategy for 3300 XL Proximitors?
For facilities with 10 or more 3300 XL channels, we recommend maintaining a minimum of 2 spare Proximitors on-site. For critical machinery (compressors, turbines, pumps) with no redundant monitoring, consider a 1:4 spare ratio. Annual procurement aligned with your planned maintenance schedule ensures availability without excessive carrying cost.

Q4: What does the support terms confirmed by quotation cover?
The support terms covers manufacturing defects and performance non-conformance under normal operating conditions. It does not cover damage from incorrect installation, overvoltage, or physical impact. Support requests are processed within 5 business days, with replacement units dispatched from forward stock to minimize your downtime exposure.
