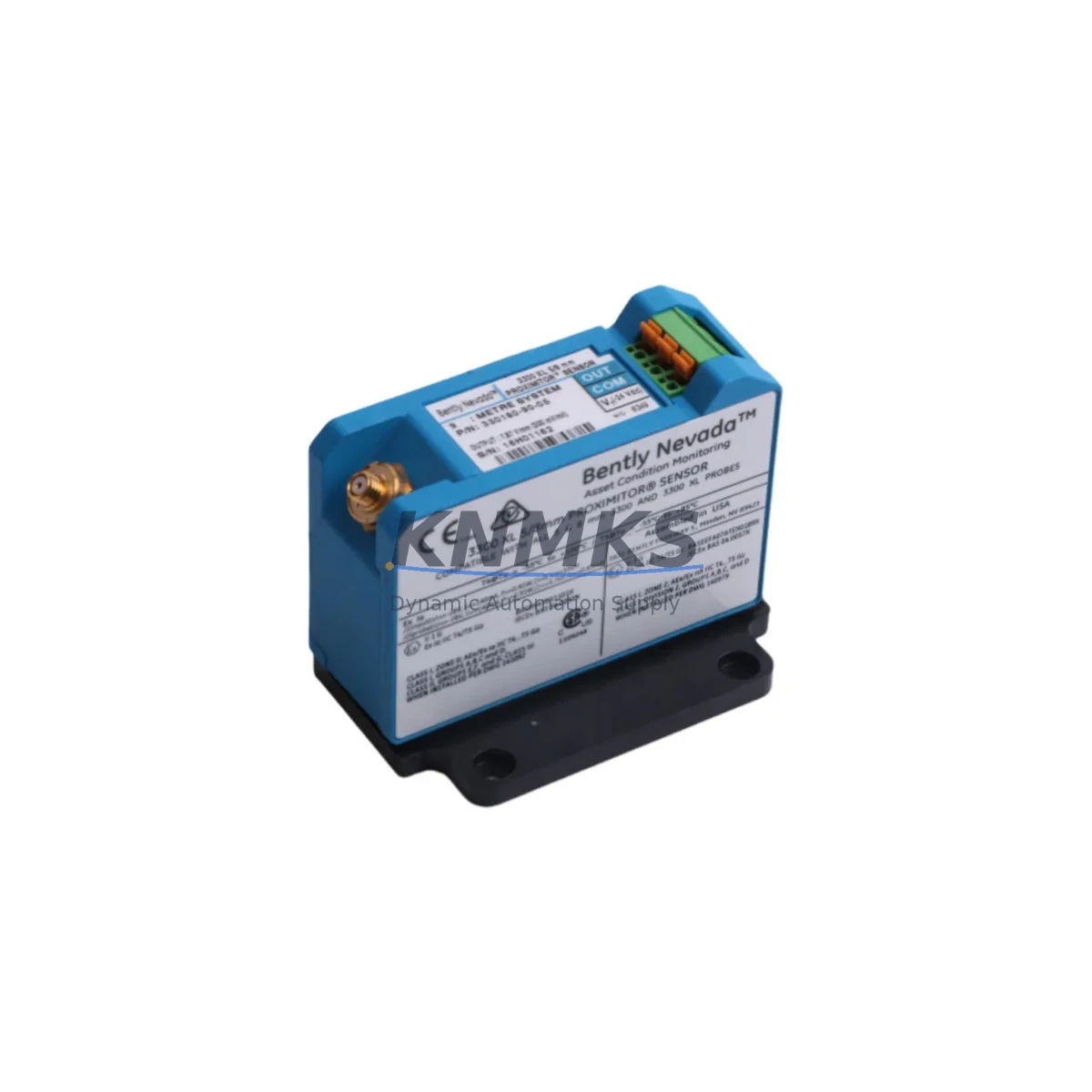

The Bently Nevada 330180-90-05 is a 3300 XL Series eddy current proximity probe engineered for direct replacement of discontinued or end-of-life transducer assemblies in legacy vibration monitoring and machinery protection systems. As OEM production timelines shorten and original spare parts become increasingly scarce, the 330180-90-05 provides a verified, migration-ready solution for facilities operating aging turbomachinery, compressors, pumps, and rotating equipment monitored by Bently Nevada 3300 XL platforms.

This probe is designed to integrate without hardware redesign into existing 3300 XL rack-mounted monitor systems. Engineers planning a retrofit or system life extension program can deploy the 330180-90-05 with confidence, knowing that the probe’s electrical characteristics — including sensitivity, gap voltage range, and cable impedance — are matched to the original specification. The probe operates with the standard 3300 XL extension cable and proximitor driver, eliminating the need to recalibrate the full measurement chain during a like-for-like swap.

Each unit is pre-shipment tested against OEM-equivalent performance benchmarks and ships with a support terms confirmed by quotation covering manufacturing defects and functional integrity under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 330180-90-05 retrofit begins with a systematic review of the existing measurement chain. In most 3300 XL installations, the probe connects through a 3300 XL extension cable — typically available in 5 m or 9 m lengths — to a proximitor driver module such as the Bently Nevada 3300/16 or 3300/20 proximitor. Before removing the legacy probe, technicians should document the current gap voltage reading and vibration baseline from the associated monitor channel, whether that is a Bently Nevada 3300/55 dual-channel monitor or a 3300/95 machinery protection monitor. These baseline values serve as the acceptance reference after the new probe is installed and gapped.

For facilities running a Bently Nevada System 1 condition monitoring platform, the 330180-90-05 data feeds directly into existing trend and alarm configurations without requiring database restructuring. If the control system interfaces with a DCS or safety instrumented system via a 3300/20 I/O module or a 3500 series rack gateway, the analog signal path remains unchanged, preserving all existing alarm setpoints and historian tags.

Where the retrofit is part of a broader control cabinet upgrade — for example, migrating from a standalone 3300 XL rack to a 3500 series modular rack — engineers should also plan for the Bently Nevada 3500/42M proximitor I/O module, which accepts the same probe and extension cable assembly. In this scenario, the 330180-90-05 can be retained as the field sensor while the back-end monitoring hardware is upgraded, protecting the capital investment in field wiring and probe brackets.

Signal isolation requirements should be reviewed if the probe output feeds into a third-party PLC or DCS input card. A signal conditioner or isolator may be required to prevent ground loop interference, particularly in older control cabinets where common-mode noise is present on the 24 VDC supply rail. Confirm that the proximitor power supply — typically −24 VDC — is within tolerance before energizing the new probe assembly.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires preparation before the machine is taken offline. The recommended approach is to pre-configure and bench-test the 330180-90-05 assembly — including the extension cable and proximitor — before the maintenance window begins. Verify gap voltage on the bench using a calibrated gap simulator or a flat steel target at the nominal 1.0 mm gap distance. This confirms probe and proximitor health before the unit enters the field.

During the swap, the original program logic in the associated PLC or DCS controller does not require modification, as the 330180-90-05 is a signal-compatible replacement. Alarm inhibit functions in the Bently Nevada monitor should be activated during the installation window to prevent spurious trips. Once the probe is installed and gapped, re-enable alarms and confirm that the vibration reading is within the expected baseline range before returning the machine to service.

For critical machinery where continuous monitoring is required, a temporary portable vibration analyzer can be connected to the proximitor output during the swap window to maintain visibility of shaft vibration. This approach is particularly valuable in compressor trains or steam turbines where bearing condition monitoring is a safety requirement. Keeping the maintenance window under four hours is achievable with pre-staged components and a documented step-by-step commissioning checklist.

Retrofit Support FAQ

Q: Is the 330180-90-05 a direct replacement for the original Bently Nevada 330180-90-05 without any wiring changes?
A: Yes. The 330180-90-05 uses the same M8 × 1.0 thread, standard 3300 XL connector, and identical electrical characteristics as the original OEM part. No wiring modifications are required when replacing a like-for-like unit in an existing 3300 XL installation.

Q: What commissioning steps are required after installation?
A: After mechanical installation, set the probe gap to the nominal value specified for your application (typically 1.0 mm for most 3300 XL configurations). Verify gap voltage at the proximitor output using a calibrated voltmeter. Confirm vibration readings are within the established baseline before re-enabling monitor alarms and returning the machine to service.

Q: Can this probe be used with a Bently Nevada 3500 series rack?
A: The 330180-90-05 is compatible with 3500 series racks when used with the appropriate 3500/42M proximitor I/O module. Confirm the proximitor module firmware version and channel configuration in the 3500 Rack Configuration Utility before commissioning.

Q: What does the support terms confirmed by quotation cover, and is stock available for immediate dispatch?
A: The support terms confirmed by quotation cover manufacturing defects and verified functional performance under normal operating conditions. Units are held in forward stock and are available for rapid dispatch. Contact [email protected] or +86 18359268345 to confirm current inventory and lead time.
