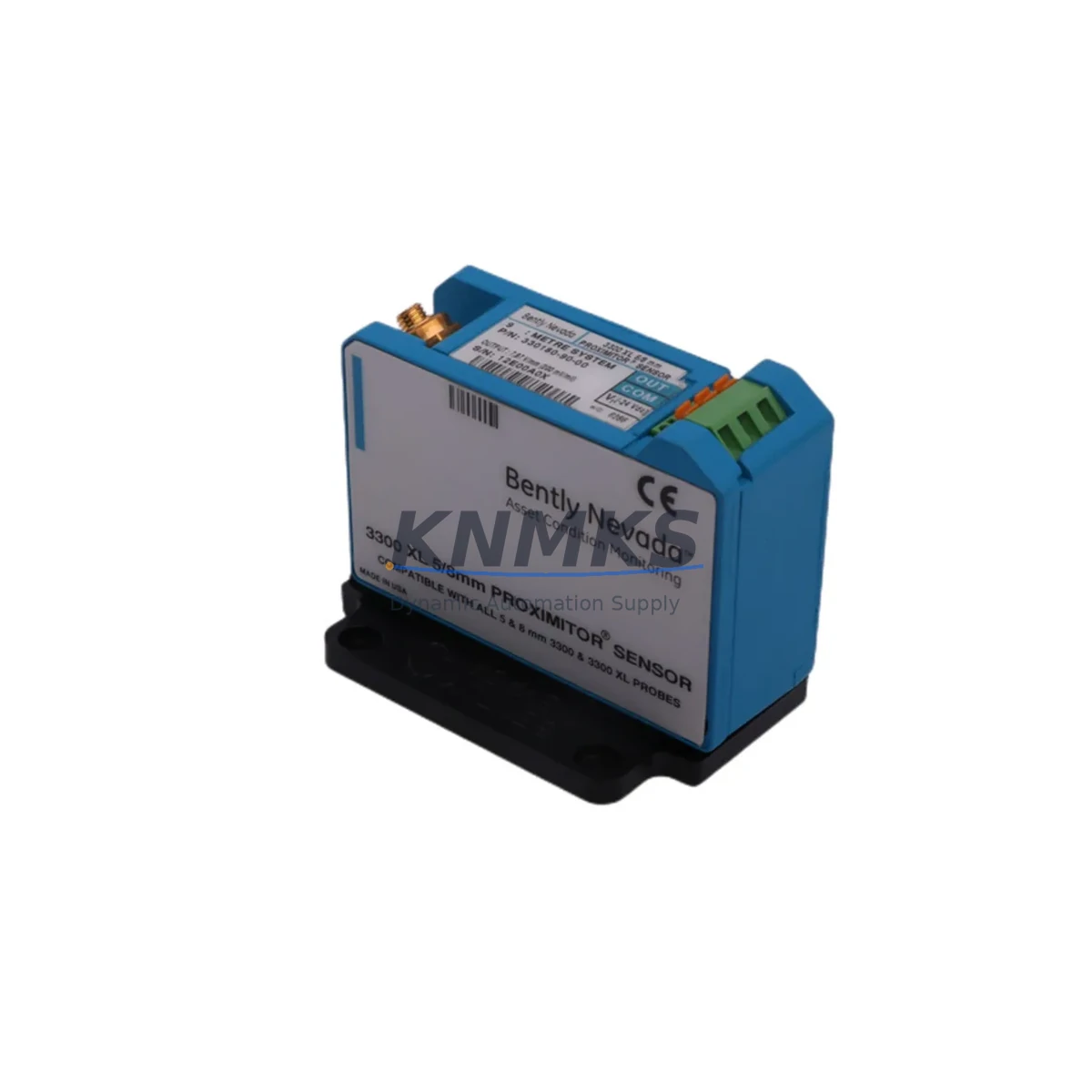

Bently Nevada 330180-90-00 Fail-Safe Proximity Transducer

Overview

Bently Nevada 330180-90-00 Fail-Safe Proximity Transducer: Fault-Proof Vibration Monitoring for Critical Industrial Sites

The Bently Nevada 330180-90-00 is an 8mm eddy-current proximity transducer engineered for the 3300 XL Series monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment industries worldwide. Designed to deliver continuous, fail-safe shaft vibration and position measurement, this transducer is the front-line sensor in safety instrumented loops where signal integrity, environmental resilience, and uninterrupted operation are non-negotiable.

In continuous production environments — petrochemical compressor trains, power generation turbines, mining mill drives, and marine propulsion systems — a single sensor failure can cascade into unplanned shutdown, equipment damage, or personnel hazard. The 330180-90-00 addresses this risk through its robust eddy-current sensing principle, which operates without physical contact, eliminating mechanical wear and ensuring consistent output even under high shaft runout, oil contamination, or extreme vibration loads.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330180-90-00 transducer does not operate in isolation — its reliability is multiplied when integrated into a properly engineered control cabinet and safety loop architecture. In high-EMI environments such as variable frequency drive (VFD) panels, arc furnace control rooms, or offshore platform switchgear enclosures, the transducer’s shielded coaxial cable must be routed away from power conductors and terminated at a Bently Nevada 3300 XL Proximitor Sensor (such as the 330130-080-00-00), which conditions the raw eddy-current signal into a clean 4–20 mA or voltage output for the monitoring rack.

Within the monitoring rack, the signal feeds into a Bently Nevada 3500/42M Proximitor / Seismic Monitor module, which performs real-time gap, vibration, and eccentricity analysis. For plants operating under IEC 61511 safety requirements, this monitor interfaces with a Safety Instrumented System (SIS) controller — such as a Triconex Tricon or Rockwell GuardLogix — via hardwired relay or HART to trigger automatic shutdown on alarm threshold breach.

Power supply stability is equally critical. Transducer signal drift caused by supply voltage fluctuation is a known failure mode in aging control cabinets. Pairing the 330180-90-00 with a dedicated Bently Nevada -24 VDC regulated power supply module or an equivalent DIN-rail isolated DC/DC converter eliminates this risk. For surge protection in lightning-prone or high-inductive-load environments, a transient voltage suppression (TVS) barrier installed at the cabinet entry point protects both the transducer cable and the Proximitor input from surge damage.

In dusty or humid field junction boxes — common in cement plants, water treatment facilities, and coastal installations — the transducer’s IP67 rating provides primary protection, but secondary sealing of the junction box with cable gland assemblies rated to IP65 or higher is strongly recommended to prevent moisture ingress that could degrade coaxial cable insulation and introduce measurement offset errors.

Critical Industrial Safety Applications

Petrochemical & Refinery: Installed on centrifugal compressor and pump shafts in API 670-compliant machinery protection systems, the 330180-90-00 provides continuous radial vibration and axial position monitoring. Early detection of rotor imbalance, bearing wear, or surge events allows operators to initiate controlled shutdown before catastrophic failure — protecting both personnel and high-value rotating assets.

Power Generation: Steam and gas turbine generators demand sub-millisecond response to shaft displacement anomalies. The 330180-90-00’s non-contact sensing principle ensures zero mechanical hysteresis, making it suitable for high-speed turbine shafts where contact-type sensors would introduce measurement error or wear-induced drift.

Mining & Mineral Processing: Ball mills, SAG mills, and crusher drives operate under extreme vibration, dust, and thermal cycling. The transducer’s armored cable and IP67 probe tip withstand abrasive particulate environments while maintaining calibrated output, reducing false trips that cause unnecessary production interruptions.

Water & Wastewater Treatment: Large vertical pump motors and blower drives in municipal water infrastructure require continuous vibration monitoring to prevent bearing failure and unplanned outages. The 330180-90-00 integrates directly into existing 3300 XL monitoring racks without system-level reconfiguration, simplifying spare-part replacement and minimizing maintenance downtime.

Metallurgy & Steel: Rolling mill main drives and continuous casting equipment generate intense electromagnetic interference from high-current bus bars and induction heating systems. The transducer’s shielded coaxial design and differential signal conditioning in the Proximitor module reject common-mode EMI, preserving measurement accuracy in electrically hostile environments.

Port & Marine: Shipboard propulsion shafting and crane hoist drives require vibration monitoring systems that tolerate salt-air corrosion, vessel motion, and wide ambient temperature swings. The 330180-90-00’s operating range of -35°C to +121°C and corrosion-resistant probe body make it a reliable choice for marine machinery protection.

Safety and Quality FAQ

Q1: What support terms coverage does the 330180-90-00 carry?
Every unit ships with a support terms confirmed by quotation from the date of dispatch. Coverage includes manufacturing defects, calibration deviation beyond specification, and premature failure under normal operating conditions. Support requests are processed with priority turnaround to minimize site downtime.

Q2: What pre-shipment testing is performed on each unit?
Each 330180-90-00 undergoes outgoing quality inspection including sensitivity verification (7.87 V/mm ± tolerance), linear range confirmation, insulation resistance check on the coaxial cable, and connector integrity test. Units are shipped with a test record available upon request.

Q3: Is the 330180-90-00 a direct drop-in replacement for existing 3300 XL installations?
Yes. The 330180-90-00 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor and 3500 Series monitor modules. No recalibration of the monitoring rack is required when replacing a like-for-like unit, provided the cable length and target material remain unchanged.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
We maintain dedicated stock of the 330180-90-00 and related 3300 XL series components to support planned maintenance schedules and emergency replacement requirements. Customers with critical spare parts programs are encouraged to contact our team to discuss reserved inventory arrangements and lead-time commitments.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330180-90-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330180-90-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
