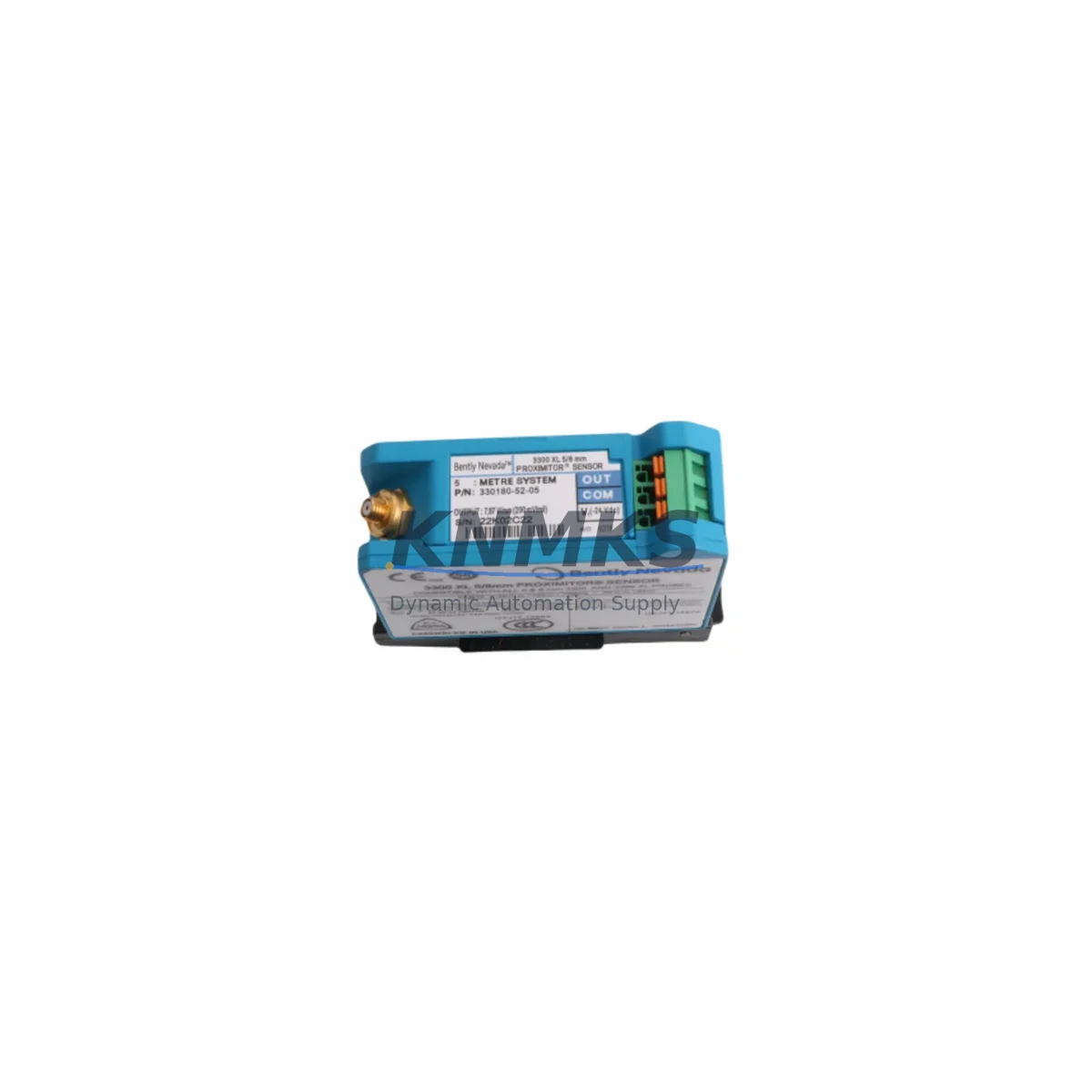

The Bently Nevada 330180-52-05 is an original proximity transducer engineered for continuous-duty vibration monitoring within the 3300 XL Series machinery protection system. Designed to deliver precise, non-contact displacement measurement, this transducer is a critical front-line component in rotating machinery protection loops covering turbines, compressors, pumps, and gearboxes across oil & gas, power generation, petrochemical, and heavy industrial facilities.

For maintenance engineers managing aging DCS or machinery protection infrastructure, the 330180-52-05 represents a direct, drop-in replacement that eliminates the need for system reconfiguration or cable re-routing. Its 5-metre integral cable length, 8 mm probe tip diameter, and -24 VDC operating range are factory-matched to the 3300 XL monitor rack, ensuring signal integrity from day one of reinstallation. Every unit dispatched from our warehouse undergoes pre-shipment functional verification against OEM electrical specifications, and is covered by a support terms confirmed by quotation from the date of delivery.

Procurement engineers sourcing emergency or planned maintenance stock will find this SKU available for rapid global dispatch, with multi-region inventory maintained to support both scheduled turnaround and unplanned outage recovery. Minimum lead time is prioritised for critical-path orders.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330180-52-05 in a live machinery protection loop, a disciplined site inspection of the surrounding signal chain is essential to avoid repeat failures and ensure measurement accuracy is fully restored. Begin by inspecting the Bently Nevada 330180-91-00 extension cable that connects the probe to the driver: cable jacket abrasion, connector corrosion, or shield continuity loss are common root causes of spurious vibration trips that are misattributed to the transducer itself.

The Bently Nevada 330130-040-01-00 proximitor/driver (or equivalent 3300 XL driver module) should be bench-tested or replaced concurrently if the system has logged intermittent gap voltage drift, as driver degradation frequently accompanies probe wear in high-temperature or high-vibration installations. Confirm the driver output gap voltage falls within the -10 VDC to -18 VDC window after probe installation.

At the monitor rack level, verify that the 3300/16 dual-channel vibration monitor input card is free of corrosion on its terminal block and that the OK relay output is functioning correctly — a latched OK fault will mask a restored transducer signal and delay return-to-service. If the installation is part of a 3500 Series migration path, confirm that the correct transducer input module is fitted, as the 3500/42M and 3500/45 cards require specific configuration for 8 mm probe systems.

For installations in hazardous-area classified zones, inspect the Bently Nevada 3300 XL Zener barrier or galvanic isolator in the intrinsic safety loop. A degraded barrier will limit the available gap voltage and produce a false low-signal alarm even with a new transducer installed. Additionally, check the 24 VDC power supply module feeding the proximitor — supply ripple exceeding 100 mV peak-to-peak can introduce noise into the vibration signal and trigger nuisance trips.

Procurement teams building annual maintenance kits for rotating machinery assets should consider stocking the 330180-52-05 alongside its companion driver and extension cable as a matched set, reducing mean-time-to-repair and eliminating compatibility uncertainty during emergency callouts.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the monitor channel at the 3300 XL rack. Place the channel in bypass mode to prevent a spurious trip during transducer removal. Do not de-energise the proximitor supply unless required by site safety rules, as a powered driver simplifies gap voltage verification after installation.

Step 2 — Probe Removal: Loosen the probe locknut and back the 330180-52-05 out of its mounting boss. Note the final gap setting (typically 1.0 mm to 1.5 mm for most shaft materials) for reference during reinstallation. Inspect the probe tip for mechanical damage, pitting, or contamination from shaft surface treatments that may have affected the previous unit’s linearity.

Step 3 — Cable & Connector Inspection: Inspect the extension cable connectors for moisture ingress, pin corrosion, or damaged locking rings. Replace the extension cable if any anomaly is found — reusing a degraded cable with a new probe negates the benefit of the replacement and risks an early repeat failure.

Step 4 — New Probe Installation: Thread the 330180-52-05 into the mounting boss and set the gap to the value recorded in Step 2 (or per the OEM gap table for the specific shaft material and diameter). Tighten the locknut to the specified torque. Connect the extension cable and verify connector seating.

Step 5 — Gap Voltage Verification: With the proximitor energised, measure the DC gap voltage at the driver output terminals. Confirm the reading is within the linear range (-10 VDC to -18 VDC). A reading outside this range indicates an incorrect gap setting, a wiring fault, or a driver issue — do not return the channel to service until resolved.

Step 6 — Return to Service: Remove the channel bypass, confirm the OK relay has reset, and verify that the vibration reading is stable and consistent with historical baseline data for the machine. Log the replacement in the asset maintenance record, including the new probe serial number and gap voltage reading.

Spare Parts Support FAQ

Q1: Is the 330180-52-05 a direct replacement for all 3300 XL proximity transducer positions?
Yes, the 330180-52-05 is a direct replacement for 8 mm, 5-metre cable positions within the 3300 XL system. For positions requiring a different cable length or probe diameter, verify the full part number suffix before ordering. The suffix encodes probe diameter, cable length, and connector type — a mismatch will result in an incorrect gap voltage range and potential monitor alarm.

Q2: What pre-shipment testing is performed before dispatch?
Every 330180-52-05 unit undergoes functional verification including gap voltage output measurement, sensitivity check against the 7.87 V/mm OEM specification, and cable continuity testing. Units that do not meet OEM electrical parameters are quarantined and not dispatched. A test report is available on request for critical-path or insurance-required orders.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and electrical performance deviations from OEM specifications under normal operating conditions. It does not cover damage resulting from incorrect installation, gap setting errors, mechanical impact, or operation outside the specified temperature and voltage range. Support requests are processed with a replacement unit dispatched upon receipt and inspection of the returned part.

Q4: Can this transducer be used in a 3500 Series system?
The 330180-52-05 can be used with 3500 Series monitor racks when the correct transducer input module (e.g., 3500/42M or 3500/45) is configured for 8 mm probe input. An adapter cable may be required depending on the connector type fitted to the 3500 rack. Confirm the full system configuration with your instrumentation engineer before ordering for a 3500 application.
