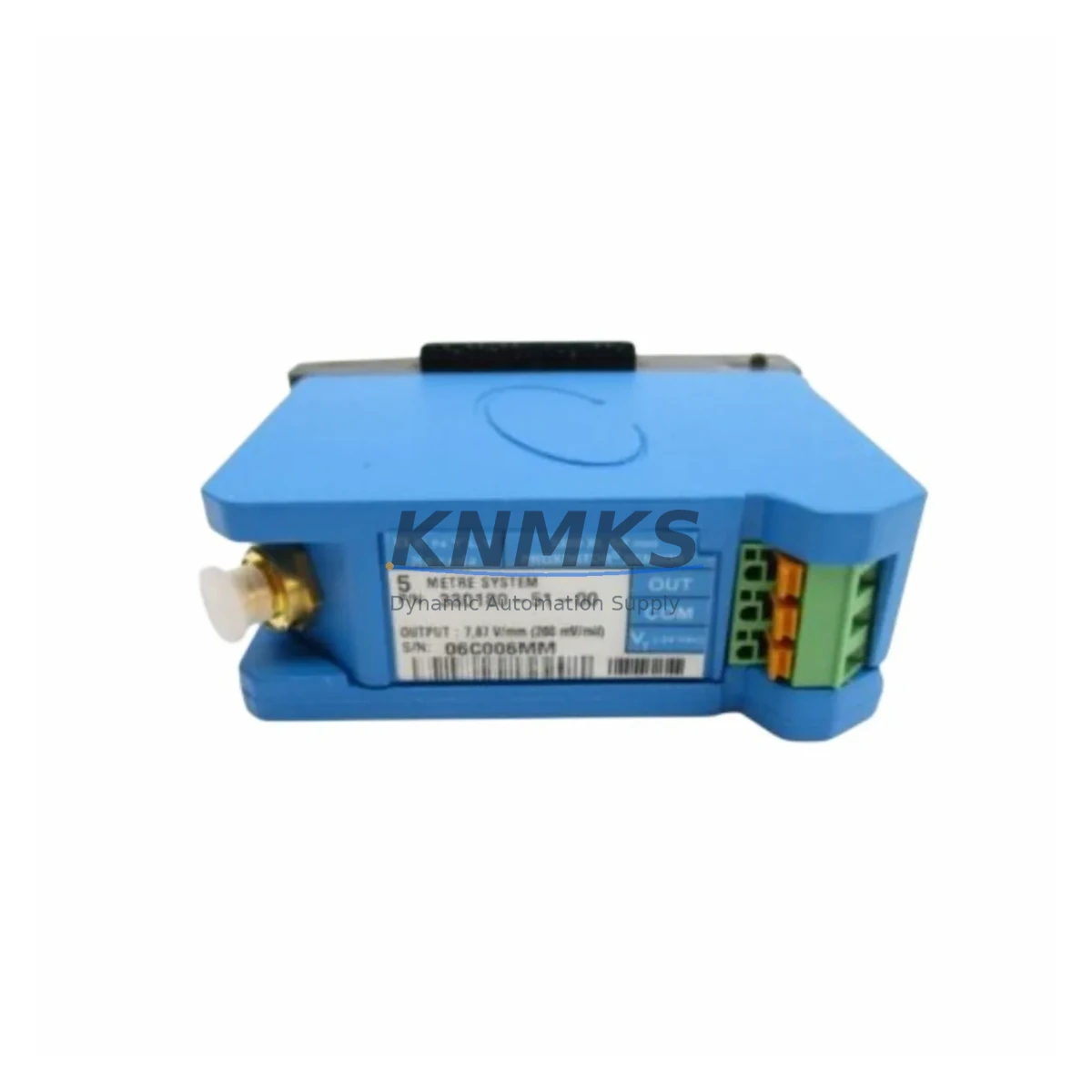

Bently Nevada 330180-51-CN Fail-Safe Proximitor Sensor

Overview

Bently Nevada 330180-51-CN Fail-Safe Proximitor Sensor: Fault Protection for Critical Industrial Reliability

The Bently Nevada 330180-51-CN is an 8mm eddy-current proximitor sensor from the 3300 XL Series, engineered for fail-safe, continuous vibration monitoring in the most demanding industrial environments. Designed to integrate directly with Bently Nevada 3300 XL signal conditioning systems, this sensor delivers high-precision, non-contact displacement measurement with exceptional immunity to electromagnetic interference, mechanical shock, and thermal cycling — making it a cornerstone component in critical machinery protection loops.

In continuous production facilities — including petrochemical plants, power generation stations, metallurgical mills, and offshore platforms — unplanned machinery downtime caused by vibration anomalies, signal drift, or sensor failure can result in catastrophic safety incidents and multi-million-dollar production losses. The 330180-51-CN addresses these risks by providing stable, drift-free output across wide temperature ranges and high-EMI environments, ensuring that your control system receives accurate, real-time shaft displacement data at all times.

This proximitor sensor is specifically designed to reduce the risk of control interruption, false trips, signal drift, and unplanned shutdowns in rotating machinery protection systems. Its robust construction withstands dust ingress, moisture exposure, high-temperature operation, and continuous mechanical vibration — conditions routinely encountered in compressor trains, turbine bearing housings, pump sets, and gearbox monitoring applications.

When deployed within a Bently Nevada 3300 XL monitoring rack alongside components such as the 330130-080-01-00 extension cable, 330104-00-06-10-02-00 proximity probe, and 3300/16 I/O module, the 330180-51-CN forms a complete, safety-validated vibration monitoring chain. This integrated architecture ensures that every element — from probe tip to control system input — operates within validated signal parameters, eliminating measurement uncertainty in safety-critical interlock loops.

For control cabinet installations requiring surge protection and power conditioning, pairing this sensor system with a dedicated 24 VDC DIN-rail power supply and signal isolator modules further enhances system resilience against power fluctuations, ground loops, and transient surges that can corrupt vibration data or trigger nuisance trips. In high-EMI environments such as variable frequency drive (VFD) cabinets or arc furnace control rooms, proper shielding and grounding of the sensor cable — combined with the inherent EMI rejection of the 3300 XL signal conditioner — ensures measurement integrity is maintained under worst-case electrical noise conditions.

The 330180-51-CN is also widely used as a direct replacement component in existing Bently Nevada 3300 and 3300 XL installations, offering full backward compatibility with legacy probe and extension cable assemblies. Its standardized connector interface and calibrated sensitivity factor (nominally -7.87 V/mm) allow drop-in replacement without recalibration of the monitoring system, minimizing maintenance downtime and reducing the risk of configuration errors during field replacement.

All units supplied by KNMKS are sourced from verified supply channels, subjected to pre-shipment functional verification, and backed by a support terms confirmed by quotation. Inventory is maintained availability confirmed by RFQ to support urgent MRO requirements, planned turnaround maintenance, and long-term spare parts programs for critical rotating equipment fleets.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection architecture built around the Bently Nevada 330180-51-CN proximitor sensor requires careful integration of complementary components across the signal chain, power distribution, and communication layers of the control cabinet.

At the sensing layer, the 330180-51-CN pairs with the Bently Nevada 330104-00-06-10-02-00 proximity probe and 330130-080-01-00 armored extension cable to form a complete, calibrated eddy-current measurement assembly. This three-component chain is factory-matched to ensure consistent sensitivity and linearity, eliminating field calibration errors that can introduce measurement uncertainty in safety interlock applications.

At the monitoring and I/O layer, the proximitor signal is conditioned and processed by the Bently Nevada 3300/16 or 3500/42M machinery protection monitor, which provides configurable alarm and trip setpoints, OK relay outputs, and Modbus/TCP or PROFIBUS communication to the plant DCS or safety PLC. Ensuring that this monitor is powered by a redundant, regulated 24 VDC DIN-rail power supply with adequate hold-up time protects against nuisance trips caused by momentary power dips during motor starts or grid disturbances.

For installations in high-EMI environments, inserting galvanic signal isolators between the proximitor output and the DCS analog input card breaks ground loops and prevents common-mode noise from corrupting the displacement signal. In cabinets housing variable frequency drives or soft starters alongside the monitoring system, additional EMC filter modules on the power feed and shielded cable routing practices are essential to maintain measurement integrity.

Surge protection devices installed on the sensor cable entry points and power supply inputs guard against lightning-induced transients and switching surges that can permanently damage proximitor electronics — a particularly important consideration for outdoor compressor stations and coastal or offshore installations exposed to frequent electrical storms.

Critical Industrial Safety Applications

The Bently Nevada 330180-51-CN is deployed across a broad range of critical industrial sectors where continuous, fail-safe vibration monitoring is a fundamental safety and operational requirement.

In petrochemical and refinery facilities, this sensor monitors shaft displacement on centrifugal compressors, boiler feed pumps, and reactor agitators — providing the early warning data needed to prevent catastrophic bearing failures, seal damage, and uncontrolled process releases. Its ability to operate reliably in hydrogen-rich, high-temperature, and corrosive atmospheres makes it a preferred choice for hazardous area machinery protection systems.

In power generation plants — including coal-fired, gas turbine, and hydroelectric stations — the 330180-51-CN is used to monitor turbine shaft eccentricity, rotor runout, and thrust position on generating sets and boiler feed pump turbines. Accurate, continuous displacement data enables operators to detect developing faults weeks before they reach trip thresholds, supporting condition-based maintenance programs that reduce forced outage rates.

In mining and mineral processing operations, where crushers, mills, conveyors, and slurry pumps operate in extreme dust, moisture, and vibration environments, the robust construction of the 330180-51-CN ensures reliable sensor operation without frequent replacement or recalibration — reducing maintenance burden and improving overall equipment effectiveness (OEE).

In water and wastewater treatment plants, the sensor monitors large vertical pump sets and blower trains that must operate continuously to maintain treatment capacity and regulatory compliance. Its fail-safe output behavior — maintaining a defined output state under power loss or cable fault conditions — ensures that the plant control system can respond appropriately to sensor faults without generating false emergency shutdowns.

In metallurgical and steel plants, the 330180-51-CN is used on rolling mill drive trains, continuous caster pinch rolls, and blast furnace blower sets — applications characterized by extreme vibration, high ambient temperatures, and intense electromagnetic interference from large DC drive systems and arc furnaces.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the Bently Nevada 330180-51-CN?
All 330180-51-CN units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides replacement support and failure analysis documentation to assist with root cause investigation and insurance claims where required.

Q2: What pre-shipment testing is performed on each unit?
Every 330180-51-CN undergoes functional verification prior to shipment, including output voltage check at defined gap distances, sensitivity confirmation, and connector integrity inspection. Units that do not meet Bently Nevada 3300 XL specification tolerances are quarantined and not shipped. Test records are available upon request for quality-critical procurement programs.

Q3: Is the 330180-51-CN compatible with existing 3300 and 3300 XL installations?
Yes. The 330180-51-CN is fully compatible with Bently Nevada 3300 XL monitors and is also backward-compatible with earlier 3300 Series installations when used with the appropriate probe and extension cable assembly. The standardized sensitivity factor and connector interface allow direct drop-in replacement without monitor reconfiguration in the majority of field applications.

Q4: Can KNMKS support long-term spare parts supply for fleet maintenance programs?
Yes. KNMKS maintains ongoing inventory of the 330180-51-CN and related 3300 XL Series components to support planned turnaround maintenance, emergency MRO requirements, and long-term spare parts agreements. Customers with critical rotating equipment fleets are encouraged to contact our sales team to discuss consignment stock arrangements and priority supply agreements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330180-51-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330180-51-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
