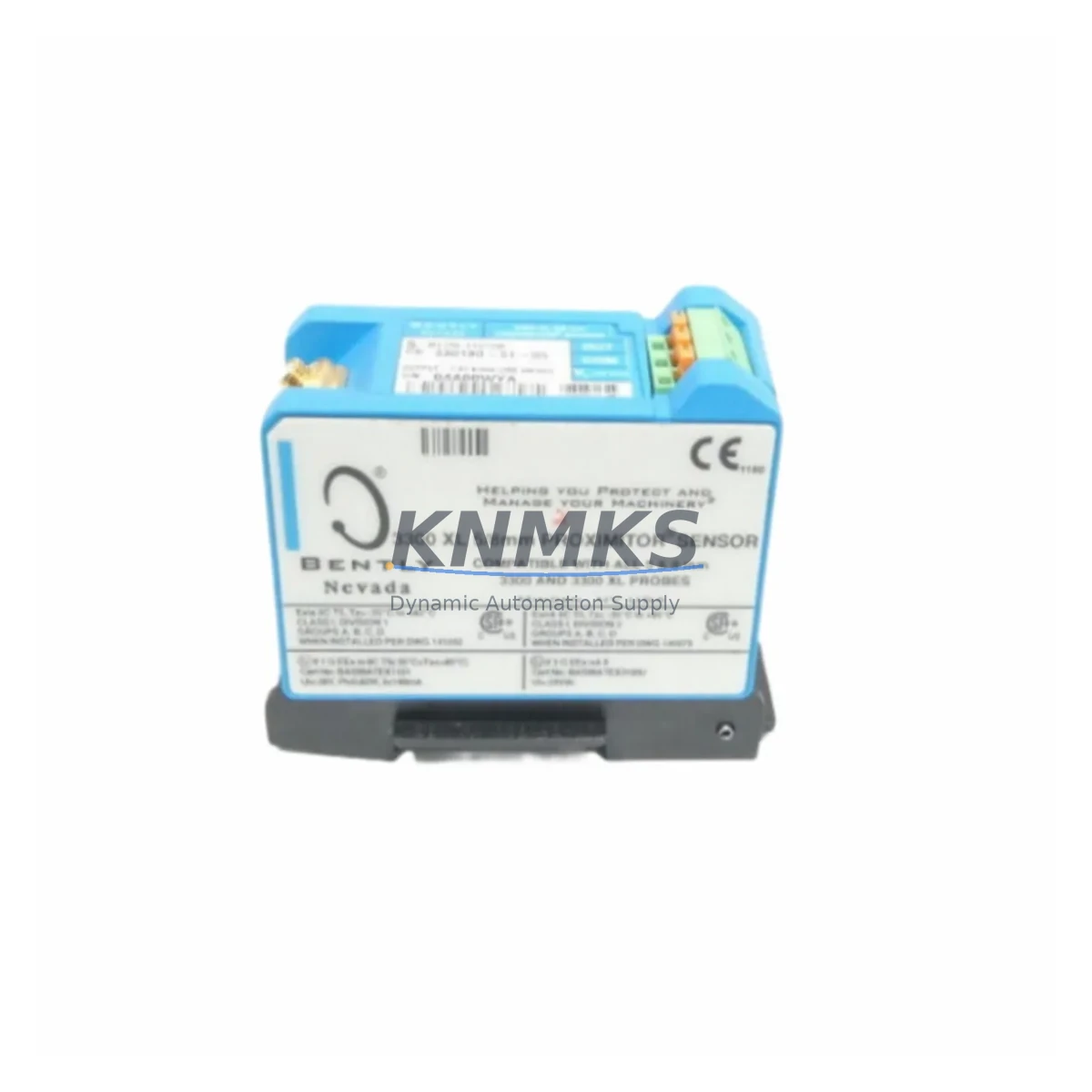

Bently Nevada 330180-51-05 Proximitor for 3300 XL

Overview

Bently Nevada 330180-51-05 Proximitor: Migration-Ready Replacement for 3300 XL Legacy Control Systems

The Bently Nevada 330180-51-05 is a Migration-Ready Proximitor Sensor engineered for direct integration into 3300 XL Series vibration monitoring systems. As legacy turbomachinery protection platforms approach end-of-life, plant engineers and reliability teams face increasing pressure to source verified replacement components that maintain signal integrity, dimensional compatibility, and firmware alignment with existing rack infrastructure. The 330180-51-05 addresses this challenge by delivering a drop-in retrofit solution that eliminates the need for full system overhaul while extending the operational life of installed 3300 XL monitoring cabinets.

This Proximitor operates on the eddy-current sensing principle, providing non-contact displacement measurement for rotating shaft monitoring in compressors, steam turbines, gas turbines, pumps, and gearboxes. When replacing a failed or end-of-life unit, engineers must confirm the supply voltage range (typically –24 VDC from the associated monitor), the output voltage range (–1 VDC to –10 VDC standard), and the cable length pairing with the extension cable and probe assembly. The 330180-51-05 is designed to pair with standard 3300 XL extension cables and eddy-current probes, preserving the existing field wiring and terminal block assignments without re-termination.

During retrofit planning, technicians should verify the gap voltage at the installed probe tip, confirm the sensitivity setting (200 mV/mil standard), and cross-reference the monitor channel configuration within the 3500 Series rack or 3300 XL monitor to ensure the replacement Proximitor’s output curve matches the programmed alarm and danger setpoints. Failure to verify these parameters before hot-swap can result in nuisance trips or missed alarm conditions during the commissioning window.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 330180-51-05 retrofit begins well before the maintenance window opens. The first step is a full audit of the existing 3300 XL monitor rack configuration, including the installed monitor cards, I/O terminal assignments, and the condition of the extension cable connecting the Proximitor to the field-mounted probe. In many legacy installations, the extension cable has accumulated insulation degradation or connector corrosion that will compromise the replacement Proximitor’s performance if not addressed simultaneously.

For plants running a Bently Nevada 3500 Series rack alongside legacy 3300 XL monitors, the retrofit window is also an opportunity to evaluate whether the channel can be migrated to a 3500/42M or 3500/40M monitor card, which offers enhanced diagnostics and Modbus/TCP communication capability. This migration path requires a new Proximitor compatible with the 3500 rack’s I/O module pinout, and the existing field probe and extension cable may be reused if the cable length code is within specification.

Where the control cabinet also houses a Bently Nevada 3500/20 Power Supply, engineers should confirm that the additional Proximitor load does not exceed the rack’s total current budget. Adding replacement Proximitors across multiple channels simultaneously is a common cause of power supply overload during phased retrofits. A 3500/15 Power Supply upgrade may be warranted in high-channel-count cabinets.

For plants integrating vibration data into a DCS or SCADA platform via a 3500/92 Communication Gateway, the replacement Proximitor’s channel data will appear automatically once the monitor channel is re-enabled and the gap voltage is within the valid measurement range. No gateway reconfiguration is required for a like-for-like Proximitor swap. However, if the retrofit includes a monitor card upgrade, the gateway’s channel mapping table must be updated to reflect any address changes.

In installations where the Proximitor feeds a Bently Nevada 1900/65A General Purpose Equipment Monitor or a third-party vibration relay, the output signal range and alarm relay logic must be re-verified after replacement. The 330180-51-05’s –1 to –10 VDC output is standard, but older relay modules may have been calibrated to a specific Proximitor’s actual output curve rather than the nominal specification.

Downtime Control During System Migration

Minimizing unplanned downtime during a Proximitor replacement requires a structured pre-outage preparation protocol. Before the maintenance window, download and archive the current monitor configuration from the 3300 XL or 3500 rack using the System 1 software or the rack’s front-panel interface. This configuration backup preserves all alarm setpoints, danger setpoints, time delays, and channel enable/disable states, allowing rapid restoration if the replacement unit requires re-commissioning.

During the swap, maintain the existing field probe in position and avoid disturbing the probe tip gap unless a gap re-calibration is planned. After installing the 330180-51-05, measure the gap voltage at the Proximitor output terminal before re-enabling the monitor channel. A gap voltage outside the –10 VDC to –2 VDC window indicates either a probe gap error or a wiring fault that must be resolved before the machine is returned to service.

For critical rotating equipment where continuous monitoring is required, consider deploying a portable vibration analyzer on the shaft during the Proximitor swap to maintain real-time displacement data and protect against undetected rotor events during the brief monitoring gap. Once the replacement Proximitor is confirmed operational and the monitor channel is re-enabled, the portable analyzer can be removed and the permanent monitoring loop is restored.

All replacement units supplied by KNMKS are functionally tested prior to shipment. A test report confirming output voltage linearity, sensitivity, and power consumption is available upon request. This pre-shipment verification reduces on-site commissioning time and supports the support terms confirmed by quotation coverage from the date of delivery.

Retrofit Support FAQ

Q1: Is the 330180-51-05 a direct replacement for all 3300 XL Proximitor variants?
The 330180-51-05 is a direct replacement for units with the same cable length code and sensitivity specification within the 3300 XL Series. Before ordering, confirm the last two digits of the part number correspond to the correct cable length (e.g., -05 = 5-meter system). Mismatched cable length codes will result in sensitivity errors and incorrect gap voltage readings.

Q2: Do I need to reconfigure the monitor after replacing the Proximitor?
For a like-for-like replacement (same part number, same cable length code), no monitor reconfiguration is required. The existing alarm setpoints, danger setpoints, and channel parameters remain valid. However, a gap voltage verification and a static output check are strongly recommended before returning the machine to service.

Q3: Can KNMKS supply the matching extension cable and probe assembly?
Yes. KNMKS maintains inventory of 3300 XL Series extension cables and eddy-current probe assemblies compatible with the 330180-51-05 Proximitor. Providing the existing probe part number and cable length code allows us to confirm the correct system configuration and ship a complete replacement kit if required.

Q4: What support terms and testing documentation is provided?
All 330180-51-05 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. Each unit is functionally tested before dispatch, and a test report is available upon request. In the event of a support terms claim, KNMKS provides direct technical support and expedited replacement to minimize impact on plant operations.
