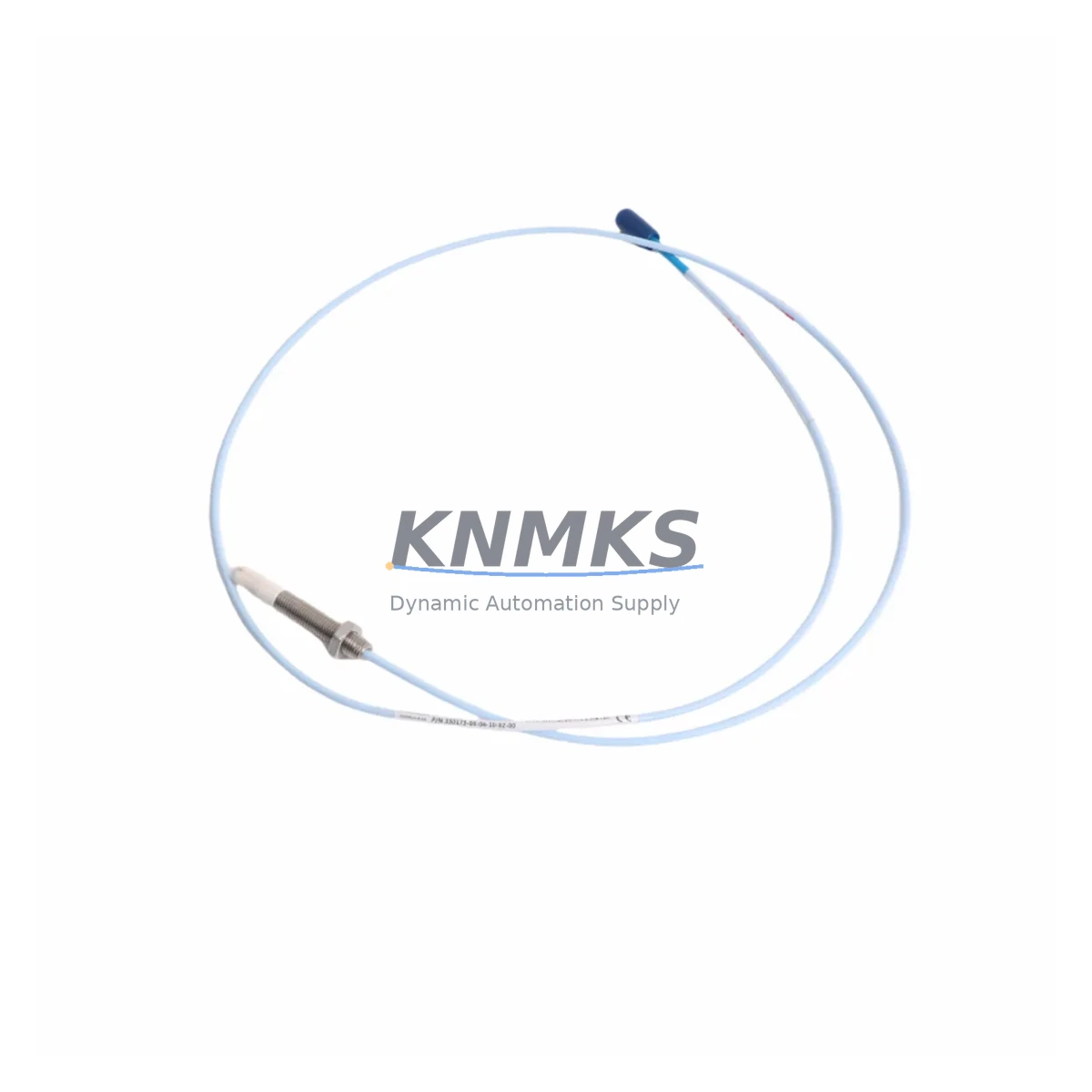

Bently Nevada 330173-00-04-10-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330173-00-04-10-02-00 Fail-Safe Proximity Probe: Critical Industrial Field Reliability

The Bently Nevada 330173-00-04-10-02-00 is an 8mm eddy-current proximity probe engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed as a core component of the Bently Nevada 3300 XL Proximity System, this probe delivers uninterrupted shaft displacement and eccentricity measurements in rotating machinery — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — where any unplanned shutdown carries severe operational and safety consequences.

In critical process industries, proximity probe failures are not merely inconvenient — they are hazardous. Signal drift, cable degradation, connector corrosion, or probe gap loss can trigger false trips, mask real vibration anomalies, or disable protective interlocks entirely. The 330173-00-04-10-02-00 is built to eliminate these failure modes through robust mechanical construction, hermetically sealed tip geometry, and a tightly controlled sensitivity specification of 200 mV/mil (7.87 V/mm), ensuring measurement accuracy is maintained across the full operating temperature range of -35°C to +177°C.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330173-00-04-10-02-00 probe does not operate in isolation — its reliability is inseparable from the integrity of the surrounding measurement chain and control cabinet architecture. In a properly configured 3300 XL system, the probe pairs with the Bently Nevada 3300 XL Extension Cable (330130-045-00-00) to maintain signal fidelity over long cable runs between the machine casing and the monitor rack. The Bently Nevada 3300/16-24-01-02-00 Proximitor Sensor provides the oscillator-demodulator function, converting the probe’s raw eddy-current signal into a clean DC voltage proportional to gap distance — a critical step for accurate vibration amplitude and DC gap measurement.

Within the control cabinet, the Bently Nevada 3500/22M Transient Data Interface captures high-resolution waveform data during transient events such as machine startup, coastdown, or trip — enabling post-event analysis without disrupting the live protection loop. For power supply integrity, the Bently Nevada 3500/15 Power Supply Module provides redundant, regulated DC power to the monitor rack, ensuring that a single power rail fault does not compromise the entire vibration protection system. In high-EMI environments — common in motor control centers, variable frequency drive (VFD) cabinets, and arc furnace control rooms — the Bently Nevada 3300 XL Proximitor housing provides additional shielding, and the coaxial cable architecture of the 330173-00-04-10-02-00 probe itself suppresses induced noise that would otherwise corrupt displacement readings.

For installations requiring SIL-rated safety loop integration, the probe measurement output is typically routed through a Bently Nevada 3500/42M Proximitor Monitor, which provides configurable alert and danger setpoints, relay outputs for safety interlock activation, and Modbus/TCP or FOUNDATION Fieldbus communication to the plant DCS or safety instrumented system (SIS). This complete measurement-to-protection chain — probe, extension cable, Proximitor, monitor, and power supply — forms a closed, fail-safe architecture that minimizes the risk of undetected shaft contact, bearing failure, or rotor instability in continuously operating machinery.

Critical Industrial Safety Applications

The Bently Nevada 330173-00-04-10-02-00 proximity probe is deployed across a wide range of critical industrial sectors where rotating machinery protection is non-negotiable:

Petrochemical and Refinery Operations: In crude distillation units, catalytic crackers, and compressor trains, continuous shaft vibration monitoring is mandated by API 670. The 330173-00-04-10-02-00 provides the real-time displacement data required to detect bearing wear, rotor imbalance, and misalignment before they escalate to catastrophic failure — protecting both personnel and high-value rotating assets operating 24/7 under elevated temperature and pressure.

Power Generation — Steam and Gas Turbines: Turbine shaft monitoring demands sub-micron measurement resolution and zero tolerance for signal interruption. In combined-cycle power plants and cogeneration facilities, this probe supports continuous eccentricity monitoring during startup and steady-state operation, feeding critical data to the turbine control system and enabling automatic trip before shaft contact occurs.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in extreme dust, vibration, and moisture environments. The IP67-rated, hermetically sealed construction of the 330173-00-04-10-02-00 ensures reliable operation in these conditions, where probe contamination or connector corrosion would otherwise cause false readings and unplanned shutdowns during peak production cycles.

Water and Wastewater Treatment: High-capacity centrifugal pumps and blowers in water treatment facilities require continuous vibration monitoring to prevent bearing failures that could interrupt municipal water supply. The probe’s wide operating temperature range and corrosion-resistant housing make it suitable for both indoor pump stations and outdoor installations subject to seasonal temperature extremes.

Metallurgy and Steel Production: In electric arc furnace (EAF) facilities and rolling mill drives, electromagnetic interference levels are among the highest in any industrial environment. The shielded coaxial construction and high EMI rejection of the 330173-00-04-10-02-00 maintain signal integrity in these conditions, ensuring that vibration protection systems remain functional even during arc ignition events and heavy motor switching transients.

Marine and Offshore Platforms: Shipboard propulsion systems, offshore compressor modules, and FPSO rotating equipment require proximity probes rated for salt-air exposure, high humidity, and continuous vibration from vessel motion. The robust mechanical construction and sealed connector interface of this probe support reliable long-term deployment in these environments without requiring frequent recalibration or replacement.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330173-00-04-10-02-00?
Every unit ships with a support terms confirmed by quotation covering parts and performance. If the probe fails to meet its specified sensitivity (200 mV/mil ± 1%) or linear range under normal operating conditions within the confirmed support period, we provide a direct replacement at no additional cost. Support requests are processed within 5 business days of return receipt.

Q2: What pre-shipment testing is performed on each unit?
Each 330173-00-04-10-02-00 undergoes full functional verification prior to dispatch, including sensitivity calibration check, cable continuity and insulation resistance test, connector integrity inspection, and gap linearity verification across the specified linear range. A test report is available upon request for quality-critical installations.

Q3: Is this probe compatible with existing 3300 XL Proximitor Sensors and 3500 Series monitors?
Yes. The 330173-00-04-10-02-00 is fully compatible with the complete Bently Nevada 3300 XL Proximitor family and integrates directly with 3500 Series vibration monitors including the 3500/42M, 3500/40M, and 3500/46M. It is a direct drop-in replacement for worn or failed probes in existing 3300 XL measurement chains without requiring reconfiguration of the monitor or Proximitor.

Q4: Can long-term supply agreements be arranged for maintenance programs?
Yes. We support planned maintenance programs and turnaround outage schedules with multi-region stock reservations and long-term supply agreements. For facilities requiring guaranteed spare parts availability for critical rotating machinery, contact our team to discuss consignment stock, annual supply contracts, and priority dispatch arrangements for emergency replacements.
