Bently Nevada 330171-00-12-05-02-CN 3300 XL Maintenance-Proven Spare Part for Factory Uptime

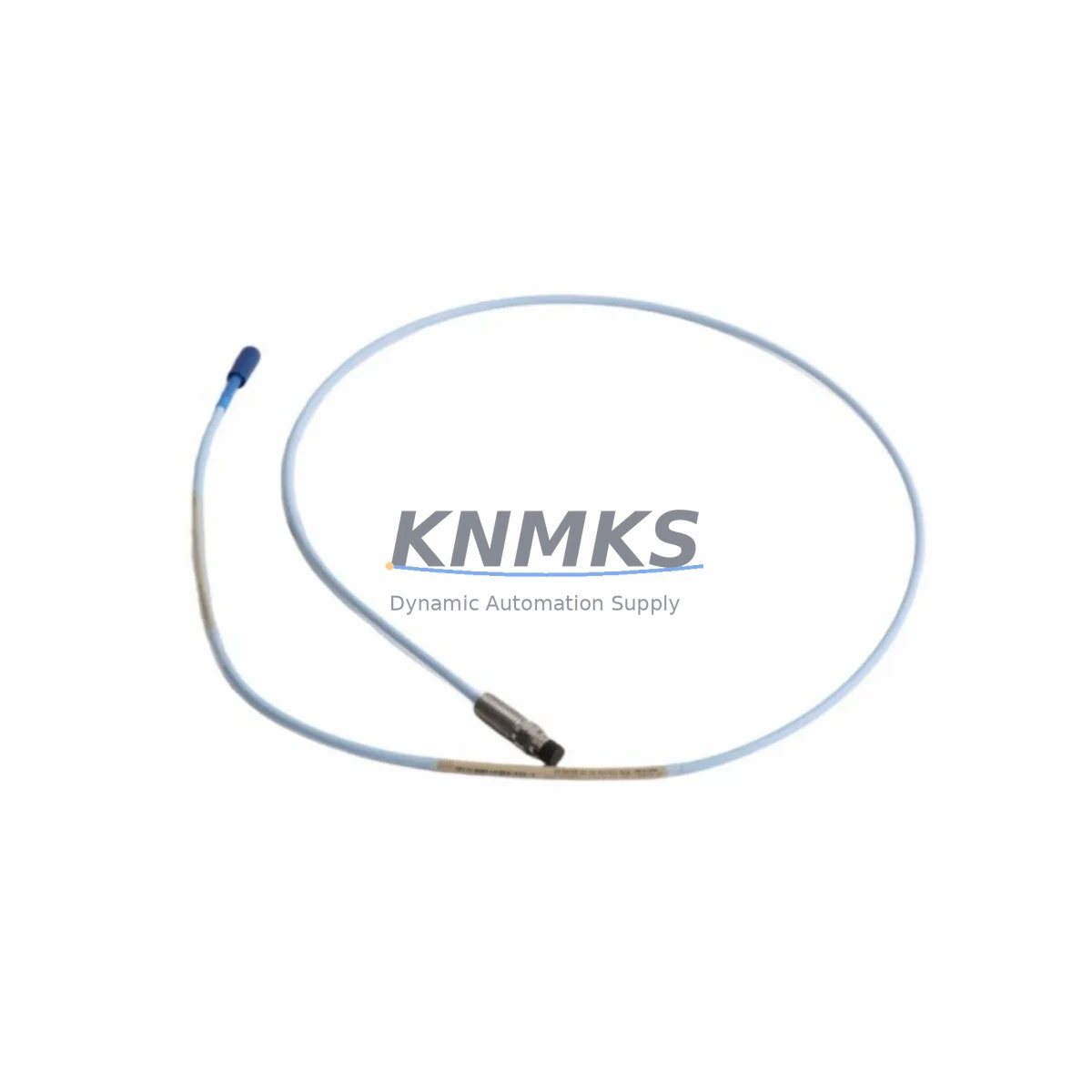

The Bently Nevada 330171-00-12-05-02-CN is an 8mm Proximitor® Sensor module within the industry-standard 3300 XL Series, engineered for continuous shaft vibration and position monitoring in rotating machinery. For maintenance engineers managing turbines, compressors, pumps, and critical rotating assets, this module is a cornerstone of predictive maintenance programs and emergency fault isolation workflows. Keeping a verified OEM spare of the 330171-00-12-05-02-CN on the shelf is not optional — it is a fundamental requirement for any facility committed to minimizing unplanned downtime and protecting high-value rotating equipment.

The 3300 XL Proximitor® system operates on eddy-current sensing principles, converting shaft displacement into a calibrated voltage signal that feeds directly into the Bently Nevada 3500 Series rack or compatible monitoring systems. When this module fails or drifts out of calibration tolerance, the entire vibration monitoring loop for that channel is compromised. Maintenance teams that lack a ready replacement face extended outages while sourcing parts through slow distribution channels. Stocking the 330171-00-12-05-02-CN as a certified spare eliminates this risk entirely.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330171-00-12-05-02-CN Proximitor® module is flagged during routine control cabinet inspection or triggered by a high-vibration alarm, the replacement workflow should extend beyond the sensor itself. Experienced maintenance engineers know that a single failed proximity transducer is often a symptom of broader system stress. Before returning the machine to service, the following associated components should be inspected and verified:

The 330130-080-00-05 extension cable connecting the probe to the Proximitor® is a frequent wear point — insulation degradation, connector corrosion, or mechanical damage can cause intermittent signal loss that mimics sensor failure. Always inspect and continuity-test the extension cable during any Proximitor® replacement. Similarly, the 330101-00-08-10-02-00 proximity probe (8mm tip, matched to this Proximitor®) should be checked for tip wear, thread damage, and gap setting accuracy using a calibrated oscillator.

At the rack level, the Bently Nevada 3500/42M Proximitor® I/O Module receives the signal from the 330171-00-12-05-02-CN and routes it to the monitoring system. If the I/O module’s input channel shows abnormal readings after Proximitor® replacement, the I/O module itself may require inspection or swap. The 3500/15 Power Supply Module within the 3500 rack provides the -24 VDC supply rail that powers the Proximitor® system — a sagging or noisy power supply can cause false vibration readings and should be load-tested during any transducer maintenance event.

For facilities running integrated condition monitoring, the 3500/22M Transient Data Interface and associated 3500/92 Communication Gateway Module should be verified for correct configuration after any channel replacement to ensure data continuity to the plant DCS or historian. Where signal isolation is required between the Bently Nevada rack and the control system, signal isolator modules (such as those in the MTL or P+F series) in the same cabinet loop should be inspected for drift or failure. Finally, confirm that all terminal block connections and cable shield grounding within the junction box meet Bently Nevada installation specifications — improper grounding is a leading cause of noise-induced false alarms in proximity measurement systems.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Isolate the -24 VDC supply to the affected Proximitor® channel at the 3500 rack power distribution point. Do not power down the entire rack unless required — the 3500 Series supports channel-level isolation to minimize monitoring interruption on adjacent channels.

Step 2 — Documentation: Record the existing gap voltage (typically -10.0 VDC ±0.5 VDC for mid-gap on an 8mm system) and the current vibration baseline from the 3500 System Monitor or Bently Nevada System 1 software before removal. This baseline is essential for post-installation verification.

Step 3 — Physical Replacement: Disconnect the extension cable from the Proximitor® output connector. Remove the 330171-00-12-05-02-CN from its mounting bracket. Install the replacement unit, ensuring the connector is fully seated and the mounting is secure. Reconnect the extension cable.

Step 4 — Gap Setting Verification: With power restored, use a calibrated digital voltmeter to confirm the gap voltage at the Proximitor® output is within the specified range (-10.0 VDC ±0.5 VDC for standard 8mm installation). Adjust probe gap if required per the 3300 XL installation manual.

Step 5 — System Verification: Confirm the 3500 rack channel is reading correctly in the System Monitor. Clear any latched alarms. Verify that the DCS or historian is receiving valid data. Run the machine at low speed if possible and confirm vibration readings are consistent with historical baseline before returning to full operation.

This workflow supports rapid fault recovery, reduces mean time to repair (MTTR), and ensures the replacement 330171-00-12-05-02-CN is correctly commissioned — not just physically installed.

Spare Parts Support FAQ

Q1: Is the 330171-00-12-05-02-CN compatible with both the 3300 XL and 3500 Series monitoring systems?
Yes. The 330171-00-12-05-02-CN Proximitor® is designed for use within the 3300 XL transducer system and is fully compatible with the Bently Nevada 3500 Series monitoring rack when used with the appropriate I/O module (e.g., 3500/42M). Always verify the I/O module channel configuration matches the transducer scale factor (7.87 V/mm) before commissioning.

Q2: What is the recommended spare parts inventory strategy for this module?
For critical rotating machinery (turbines, compressors, large pumps), industry best practice recommends holding a minimum of one spare 330171-00-12-05-02-CN per monitored machine train, plus one additional unit per site as a general pool spare. For facilities with multiple 3300 XL systems, a pooled inventory of 2–4 units is advisable to cover emergency replacement without waiting for procurement lead times.

Q3: How is each unit tested before shipment?
Every 330171-00-12-05-02-CN shipped from our inventory undergoes functional verification including output voltage check at simulated gap distances, scale factor confirmation, and connector integrity inspection. Units are packaged in anti-static, shock-protected packaging with a test record. A support terms confirmed by quotation cover any functional defect from the date of shipment.

Q4: Can you support long-term or repeat supply of this part number?
Yes. We maintain ongoing inventory of the 330171-00-12-05-02-CN and related 3300 XL and 3500 Series components to support annual maintenance contracts, shutdown planning, and emergency procurement. Contact our team to discuss blanket order arrangements, lead time commitments, and multi-unit pricing for your maintenance program.
