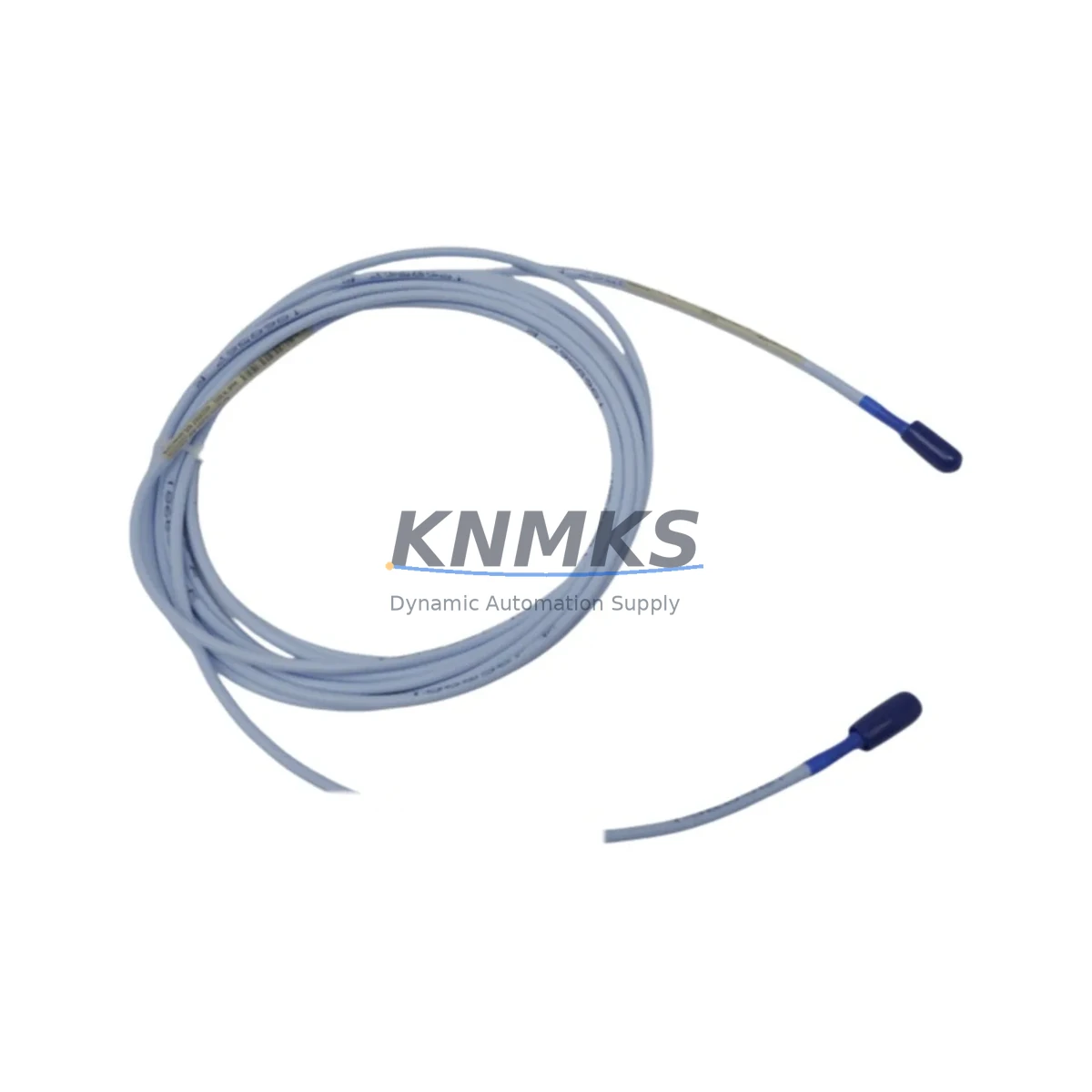

Bently Nevada 330130-130-02-05 Fail-Safe Proximity Transducer

Overview

Bently Nevada 330130-130-02-05 Fail-Safe Proximity Transducer: Fault-Protected Vibration Monitoring for Critical Industrial Sites

The Bently Nevada 330130-130-02-05 is a precision eddy-current proximity transducer engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed as a core component of the Bently Nevada 3300 XL Proximity Transducer System, this unit delivers high-resolution, non-contact measurement of shaft radial vibration, axial position, and differential expansion — all critical parameters in rotating machinery protection and safety interlock circuits.

In continuous production facilities — including petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical processing lines, port crane systems, and marine propulsion platforms — unplanned machinery downtime carries severe safety and financial consequences. The 330130-130-02-05 is purpose-built to eliminate the root causes of control interruption: signal drift under thermal cycling, false trips from electromagnetic interference, and transducer failure in high-vibration or moisture-laden enclosures. Its hardened coaxial cable assembly and hermetically sealed tip construction maintain measurement integrity even in environments with ambient temperatures up to 177°C, relative humidity up to 100%, and continuous mechanical shock.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330130-130-02-05 operates as part of a layered machinery protection architecture. In a typical critical control cabinet, it interfaces directly with the Bently Nevada 3300 XL 8-mm Proximitor® Sensor (e.g., 330180-X1-05) via a matched extension cable such as the 330130-080-00-05, ensuring the signal chain maintains calibrated sensitivity from tip to monitor input without impedance mismatch or gain error. The Proximitor output feeds into a Bently Nevada 3500/42M Proximitor®/Seismic Monitor module, which provides trip and alarm relay outputs to the safety interlock system.

Within the same control cabinet, surge protection devices — such as the Phoenix Contact TRABTECH PT 2X2-24DC-ST or equivalent DIN-rail surge arresters — are recommended on all field signal lines to absorb transient overvoltages from nearby variable-frequency drives, motor starters, or lightning-induced surges on cable runs exceeding 30 meters. Power supply stability for the Proximitor driver circuit is maintained by a dedicated 24 VDC regulated DIN-rail power supply (e.g., PULS PIANO series or equivalent), isolated from the main PLC power bus to prevent voltage sag during contactor switching events.

For facilities running Bently Nevada System 1 condition monitoring software, the 330130-130-02-05 integrates seamlessly into the data acquisition chain, enabling continuous waveform capture, orbit plot analysis, and automated alarm escalation — all without manual intervention at the field junction box. In high-EMI environments such as arc furnace bays or large motor rooms, the armored cable construction of this transducer provides measurable rejection of common-mode noise that would otherwise cause signal drift or nuisance trips in unshielded sensor installations.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the 330130-130-02-05 is deployed on centrifugal compressors, boiler feed pumps, and reactor agitators where API 670 machinery protection standards mandate continuous shaft vibration monitoring with automatic trip capability. A single undetected bearing failure in these environments can result in catastrophic seal loss, fire, or toxic release — making the fail-safe signal integrity of this transducer a non-negotiable safety requirement.

In power generation — both thermal and hydroelectric — the transducer monitors turbine shaft eccentricity and journal bearing clearance in real time. Any signal interruption is treated as a fault condition by the 3500 series monitor, triggering a controlled shutdown before mechanical damage propagates to the rotor or casing. This fail-to-trip behavior is a fundamental safety design principle that the 330130-130-02-05 fully supports.

In mining and mineral processing, where crusher drives, ball mills, and slurry pumps operate in high-dust, high-vibration environments with frequent electrical transients from large motor starts, the armored coaxial construction of this transducer resists both mechanical abrasion and EMI-induced measurement errors. Replacement cycles are predictable, and the standardized 3300 XL form factor allows hot-swap replacement during scheduled maintenance windows without recalibration of the monitor card.

In water and wastewater treatment, the transducer is used on vertical turbine pumps and blower trains where continuous uptime is mandated by municipal service agreements. Its sealed tip construction resists condensation and chemical vapor ingress common in wet well and aeration basin environments.

In metallurgical and steel processing plants, the 330130-130-02-05 withstands the radiated heat and electromagnetic interference generated by induction furnaces and rolling mill drives, maintaining accurate shaft position measurement on rolling mill main drives and continuous caster pinch roll assemblies.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330130-130-02-05?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, calibration drift beyond published tolerance, and premature failure under normal operating conditions. Support requests are processed with priority turnaround to minimize site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 330130-130-02-05 undergoes outgoing quality inspection including sensitivity verification (target: 7.87 V/mm ±10%), cable continuity and insulation resistance testing, and connector integrity check before dispatch. Units are shipped with test records available upon request for traceability documentation.

Q3: Is this transducer compatible with existing 3300 XL extension cables and monitor cards?
Yes. The 330130-130-02-05 is fully compatible with the Bently Nevada 3300 XL extension cable family and all 3500 series monitor modules that accept 3300 XL transducer inputs. No recalibration of the monitor card is required when replacing a like-for-like unit, provided the target material and gap setting are maintained per the original installation specification.

Q4: Can long-term or blanket order supply be arranged for maintenance programs?
Yes. KNMKS supports scheduled blanket orders and consignment stock arrangements for facilities with planned maintenance intervals. Multi-unit pricing and priority allocation are available for customers with documented annual replacement programs. Contact our sales team to discuss a supply agreement tailored to your site’s maintenance schedule.
