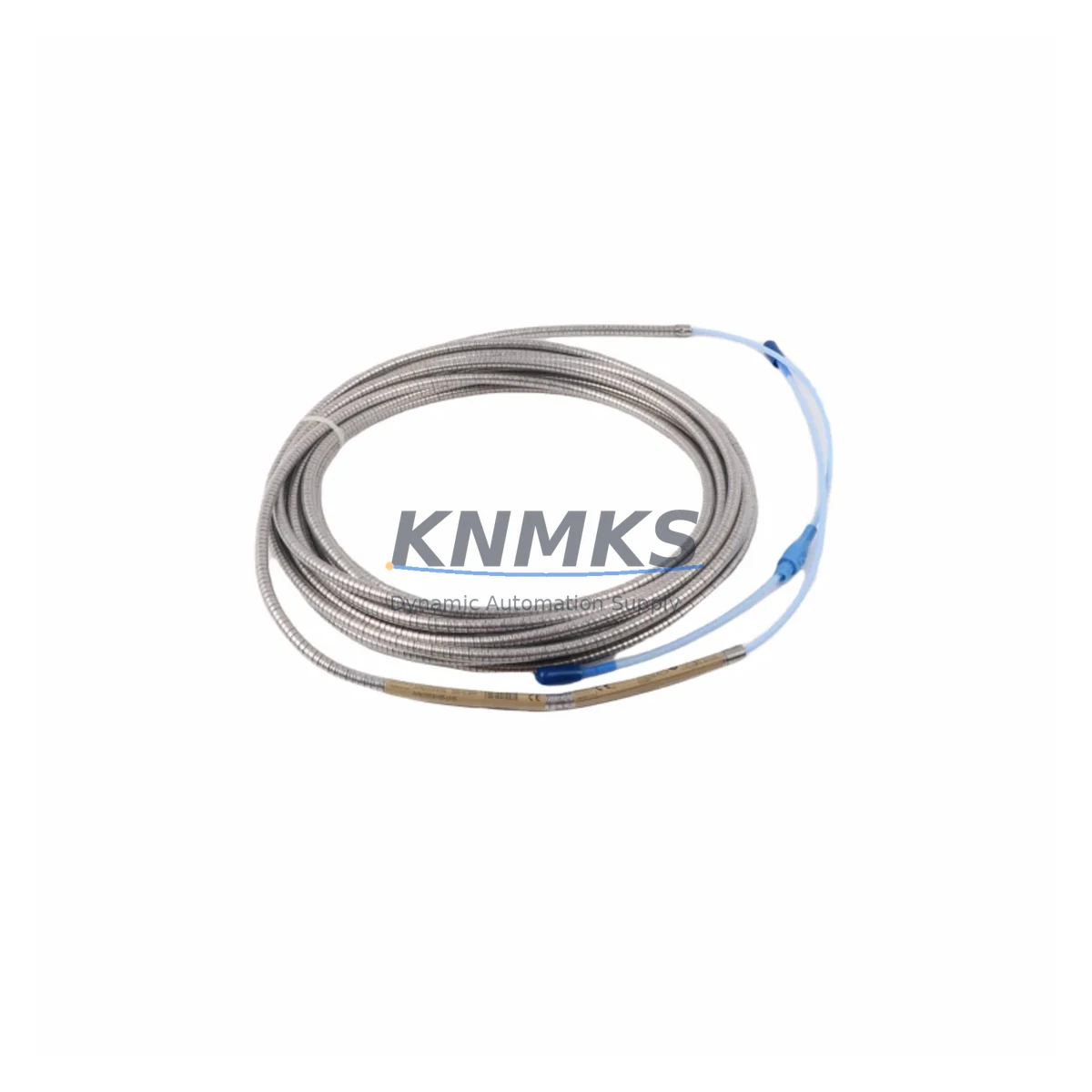

Bently Nevada 330130-085-13-05 Migration-Ready Extension Cable

Overview

Bently Nevada 330130-085-13-05 Migration-Ready Extension Cable for Legacy Control Systems

The Bently Nevada 330130-085-13-05 is an 8.5-metre (28-foot) extension cable engineered for the 3300 XL Proximity Transducer System — one of the most widely deployed vibration monitoring platforms in rotating machinery protection across power generation, oil and gas, petrochemical, and heavy industrial facilities. As legacy 3300 XL installations approach end-of-support milestones, plant engineers and reliability teams are increasingly sourcing migration-ready replacement cables that can be installed without modifying existing transducer mounts, monitor rack wiring, or field junction boxes. The 330130-085-13-05 fulfils this requirement precisely: it is a direct, pin-compatible drop-in replacement for the original factory cable, maintaining the same connector geometry, cable impedance, and shielding specification required by the 3300 XL signal chain.

In retrofit and upgrade projects, the extension cable is the critical link between the 3300 XL proximitor/driver — typically a 330180 or 330100 series proximitor — and the eddy-current probe tip mounted on the bearing housing. Incorrect cable length, mismatched impedance, or degraded shielding integrity will shift the system’s gap voltage calibration and introduce noise into the vibration and position signals fed to the 3500 Series Machinery Protection System rack or the legacy 3300 rack. The 330130-085-13-05 eliminates these risks by preserving the original electrical parameters, allowing engineers to focus retrofit effort on the monitor rack migration rather than recalibrating the transducer chain.

Pre-shipment testing is performed on every unit prior to dispatch. Each cable assembly is verified for continuity, shield integrity, and connector seating to confirm it meets the 3300 XL system specification. A support terms confirmed by quotation cover the cable against manufacturing defects, connector failure, and shielding breakdown under normal industrial operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3300 XL cable retrofit begins with a complete audit of the existing transducer chain. Engineers should document the installed proximitor model — most commonly a 330180-91-00 or 330180-51-00 — and confirm the cable routing path from the bearing housing junction box to the proximitor enclosure or directly to the monitor rack. Where the original 330130-085-13-05 cable has been routed through conduit, the replacement cable must be pulled through the same conduit run; verify that conduit fill capacity accommodates the cable diameter without exceeding NEC or IEC fill limits.

At the monitor rack end, the 3500 Series rack accepts the proximitor output via a standard BNC or TNC interface on the 3500/42M Proximitor/Seismic Monitor module. If the site is migrating from a legacy 3300 rack to a 3500 rack as part of a broader control system upgrade, the cable replacement can be staged independently of the rack swap, reducing the scope of any single maintenance window. The 3500/20 Rack Interface Module and 3500/22M Transient Data Interface should be confirmed as compatible with the proximitor model in use before the rack migration is finalised.

Power supply integrity is a frequently overlooked factor in cable retrofit projects. The 3300 XL proximitor requires a stable −24 VDC supply; if the site is also replacing the 3500/15 Power Supply Module or transitioning to a redundant power supply configuration, the cable installation should be sequenced after power supply commissioning to avoid energising the transducer chain on an unregulated supply. Signal isolators — such as those used to break ground loops between the proximitor output and the DCS analogue input card — should be inspected and replaced if they show signs of insulation degradation, as a compromised isolator will mask cable-related noise issues during post-installation verification.

For sites running Bently Nevada System 1 condition monitoring software, the transducer chain configuration — including cable length, probe sensitivity, and gap voltage setpoints — is stored in the System 1 database. After the 330130-085-13-05 replacement, engineers should perform a live gap voltage check using the System 1 interface or a calibrated voltmeter at the proximitor output terminals, confirming the reading falls within the −10 VDC to −18 VDC linear range specified for the probe-cable-proximitor combination. Any deviation outside this range indicates a seating issue at the MIL-spec connector or a probe gap adjustment requirement.

Downtime Control During System Migration

Minimising unplanned downtime during a 3300 XL cable replacement requires pre-staging the replacement 330130-085-13-05 unit on-site before the maintenance window opens. With the cable pre-tested and connectors inspected, the physical swap can typically be completed within a single shift, provided the conduit routing is accessible and the junction box cover can be removed without disturbing adjacent wiring. The original program logic in the 3500 Series rack is unaffected by the cable replacement — no rack configuration download or firmware update is required, and the monitor’s alarm and trip setpoints remain active throughout the swap.

To maintain field control continuity during the replacement, the affected channel should be placed in bypass mode via the 3500 rack keyswitch or System 1 software before the cable is disconnected. This prevents a spurious trip signal from propagating to the turbine control system or the DCS during the brief period when the transducer chain is open. Once the replacement cable is seated and the gap voltage is confirmed within specification, the channel bypass can be released and the monitor returned to normal protection mode. The entire sequence — bypass, swap, verify, release — can be executed without interrupting adjacent channels in the same rack, preserving protection coverage on all other monitored bearing positions throughout the maintenance activity.

For sites where the 3300 XL installation is integrated with a Bently Nevada Trendmaster 2000 or a third-party vibration data collector, the replacement cable does not alter the wiring at the data collector interface; only the transducer chain between the probe and the proximitor is affected. Post-replacement, a single vibration spectrum acquisition from the data collector will confirm that the signal quality and noise floor are consistent with pre-replacement baseline readings.

Retrofit Support FAQ

Q: Is the 330130-085-13-05 a direct replacement for the original Bently Nevada factory cable?
A: Yes. The 330130-085-13-05 is a pin-compatible, impedance-matched drop-in replacement for the original 3300 XL extension cable of the same part number. No field termination, re-routing, or connector modification is required. The replacement cable maintains the same electrical parameters as the factory original, ensuring the transducer chain calibration is preserved after installation.

Q: Does replacing the extension cable require a firmware update or rack reconfiguration?
A: No. The 3500 Series rack and legacy 3300 rack configurations are not affected by the cable replacement. Alarm setpoints, trip levels, and channel configurations remain unchanged. The only post-installation action required is a gap voltage verification at the proximitor output to confirm the transducer chain is operating within the specified linear range.

Q: How is the cable tested before shipment, and what does the support terms confirmed by quotation cover?
A: Every 330130-085-13-05 unit undergoes pre-shipment testing covering electrical continuity, full-length shield integrity, and MIL-spec connector seating. The support terms confirmed by quotation cover manufacturing defects, connector failure, and shielding breakdown under normal industrial operating conditions from the date of shipment. Support requests are supported by our technical team at [email protected].

Q: What is the typical lead time, and do you maintain stock for emergency replacement orders?
A: We maintain multi-region stock of the 330130-085-13-05 to support both scheduled outage replacements and emergency dispatch requirements. Standard orders are processed and dispatched within 1–3 business days. For urgent requirements, contact our team directly at [email protected] or +86 18359268345 to confirm current stock availability and expedited shipping options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330130-085-13-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 330130-085-13-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
