Bently Nevada 330130-085-12-05 Maintenance-Proven Spare Part for Factory Uptime

Overview

Bently Nevada 330130-085-12-05 Maintenance-Proven Spare Part for Factory Uptime

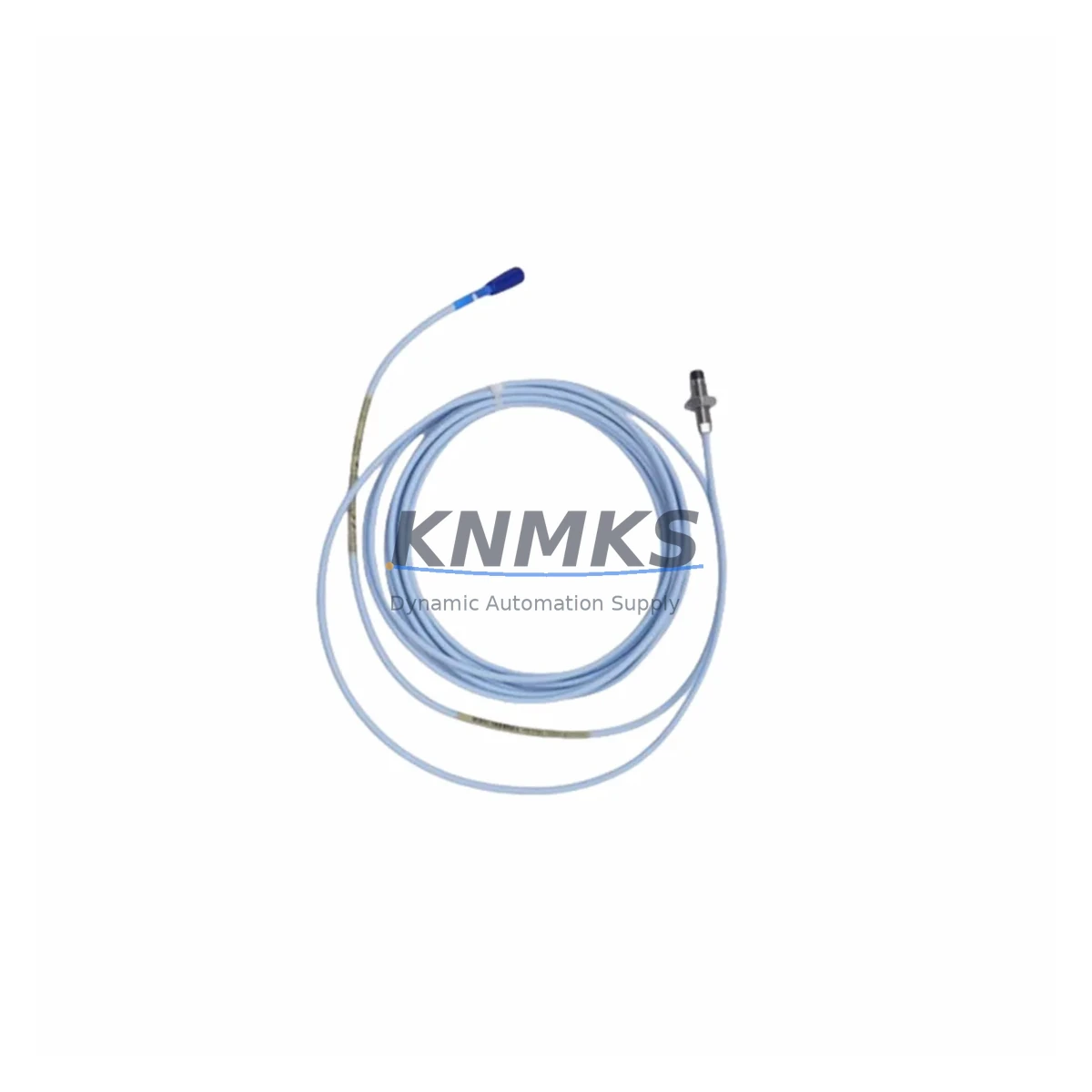

The Bently Nevada 330130-085-12-05 is a factory-original Proximitor extension cable engineered for the 3300 XL vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications across oil & gas, power generation, petrochemical, and heavy industry. This extension cable serves as the critical signal link between the 3300 XL 8mm Proximitor sensor and the monitor module, transmitting eddy-current displacement signals with precision and reliability. Maintaining a verified spare of the 330130-085-12-05 in your site inventory is a fundamental step in any proactive maintenance strategy for turbines, compressors, pumps, and gearboxes monitored by the 3300 XL system.

Unplanned downtime caused by cable degradation, connector corrosion, or mechanical damage to the extension cable is a common and preventable failure mode in rotating equipment monitoring. The 330130-085-12-05 is a direct OEM-compatible replacement, pre-tested before shipment, and backed by a support terms confirmed by quotation — ensuring your maintenance team can restore system integrity quickly and with confidence during both emergency callouts and scheduled outages.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330130-085-12-05 extension cable during a planned outage or emergency callout, a thorough inspection of the surrounding signal chain and monitoring infrastructure is essential to prevent repeat failures and ensure system accuracy is fully restored. Maintenance engineers should treat cable replacement as an opportunity to audit the complete Proximitor loop.

Begin with the 3300 XL 8mm Proximitor Sensor (typically a 330130-085-12-00 or equivalent tip assembly) — inspect the probe tip for mechanical damage, contamination, or gap drift. Verify the gap voltage at the monitor input is within the calibrated linear range (typically -10 VDC ±0.5 VDC for standard setups). Next, inspect the 3300 XL Monitor Module in the rack: check for alarm LED status, verify channel configuration in the System 1 or Rack Configuration Software, and confirm that OK relay outputs are functioning correctly.

Inspect the 3300 XL Power Supply Module supplying the rack — voltage sag or ripple on the 24 VDC rail can cause erratic Proximitor output and false alarms. If the rack has been in service for more than five years, consider scheduling a power supply module replacement as part of the same outage window. Review the terminal strip and field wiring at the junction box: check for corrosion on coaxial connectors, verify shield continuity, and confirm that the cable routing avoids high-voltage conductors that could introduce EMI into the displacement signal.

For systems integrated with a Bently Nevada 3500 Series or legacy 7200 Series rack, confirm that the extension cable length and Proximitor driver combination remain within the qualified gap range for the target material. If the plant is running a System 1 Evolution or System 1 Condition Monitoring platform, verify that the channel data is updating correctly after cable replacement and that no latched alarms are masking a residual fault. Where signal isolators or barriers are installed in the loop (common in Zone 1/Zone 2 hazardous area installations), test the isolator output after cable swap to confirm signal fidelity is maintained end-to-end.

Procurement engineers sourcing the 330130-085-12-05 for annual maintenance kits or emergency stock should also consider holding a buffer quantity of coaxial connector assemblies, Proximitor mounting brackets, and cable conduit fittings to support rapid field replacement without waiting on secondary procurement cycles.

Site Replacement Workflow

Step 1 — Isolate and de-energize: Follow site LOTO procedures. Confirm the monitor channel is bypassed or the machine is in a safe state before disconnecting the extension cable. Note the existing gap voltage reading before removal for post-installation comparison.

Step 2 — Remove the old cable: Disconnect the coaxial connectors at both the Proximitor sensor end and the monitor rack end. Inspect connectors for corrosion, bent pins, or damaged threads. If connector damage is found, replace the connector assembly before installing the new cable.

Step 3 — Install 330130-085-12-05: Route the new extension cable following the original cable path. Avoid sharp bends below the minimum bend radius. Secure with cable ties at the same intervals as the original installation. Hand-tighten coaxial connectors — do not over-torque.

Step 4 — Verify gap voltage: Re-energize the Proximitor and measure the gap voltage at the monitor input. Adjust the probe gap if necessary to return to the calibrated setpoint. Confirm the OK LED on the monitor module is illuminated.

Step 5 — Functional check: Confirm vibration and position readings in the DCS or System 1 platform are within expected baseline values. Clear any latched alarms. Document the replacement in the site maintenance log with the new cable serial number and installation date.

This workflow supports a typical replacement time of under 60 minutes for a trained technician, minimizing machine downtime and restoring full protection coverage quickly.

Spare Parts Support FAQ

Q1: Is the 330130-085-12-05 compatible with both 3300 XL and 3500 Series monitor racks?
The 330130-085-12-05 is designed and qualified for use with the 3300 XL 8mm Proximitor system. Compatibility with 3500 Series racks depends on the specific Proximitor driver and gap range configuration. Always verify the driver part number and qualified cable length against the 3500 Series rack documentation before installation in a 3500 application.

Q2: What is included in the support terms confirmed by quotation and pre-shipment testing?
Every 330130-085-12-05 unit is functionally tested before dispatch to verify connector integrity, cable continuity, and shield isolation. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. Support requests are supported with replacement dispatch and technical documentation.

Q3: How should I store the 330130-085-12-05 as a long-term site spare?
Store in the original packaging or an ESD-safe bag in a dry, temperature-controlled environment (10°C to 40°C, <70% RH non-condensing). Avoid coiling the cable tightly below the minimum bend radius. Inspect connectors annually for oxidation and apply a light coat of contact protector if the spare is held for more than 12 months before installation.

Q4: Can KNMKS supply the 330130-085-12-05 on a long-term or blanket order basis?
Yes. KNMKS maintains multi-region stock of the 330130-085-12-05 and supports scheduled blanket orders for annual maintenance programs, turnaround outages, and emergency buffer stock agreements. Contact [email protected] or +86 18359268345 to discuss volume pricing, lead time commitments, and long-term supply arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330130-085-12-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: Bently Nevada 330130-085-12-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
