Bently Nevada 330130-085-12-00 Migration-Ready Extension Cable

Overview

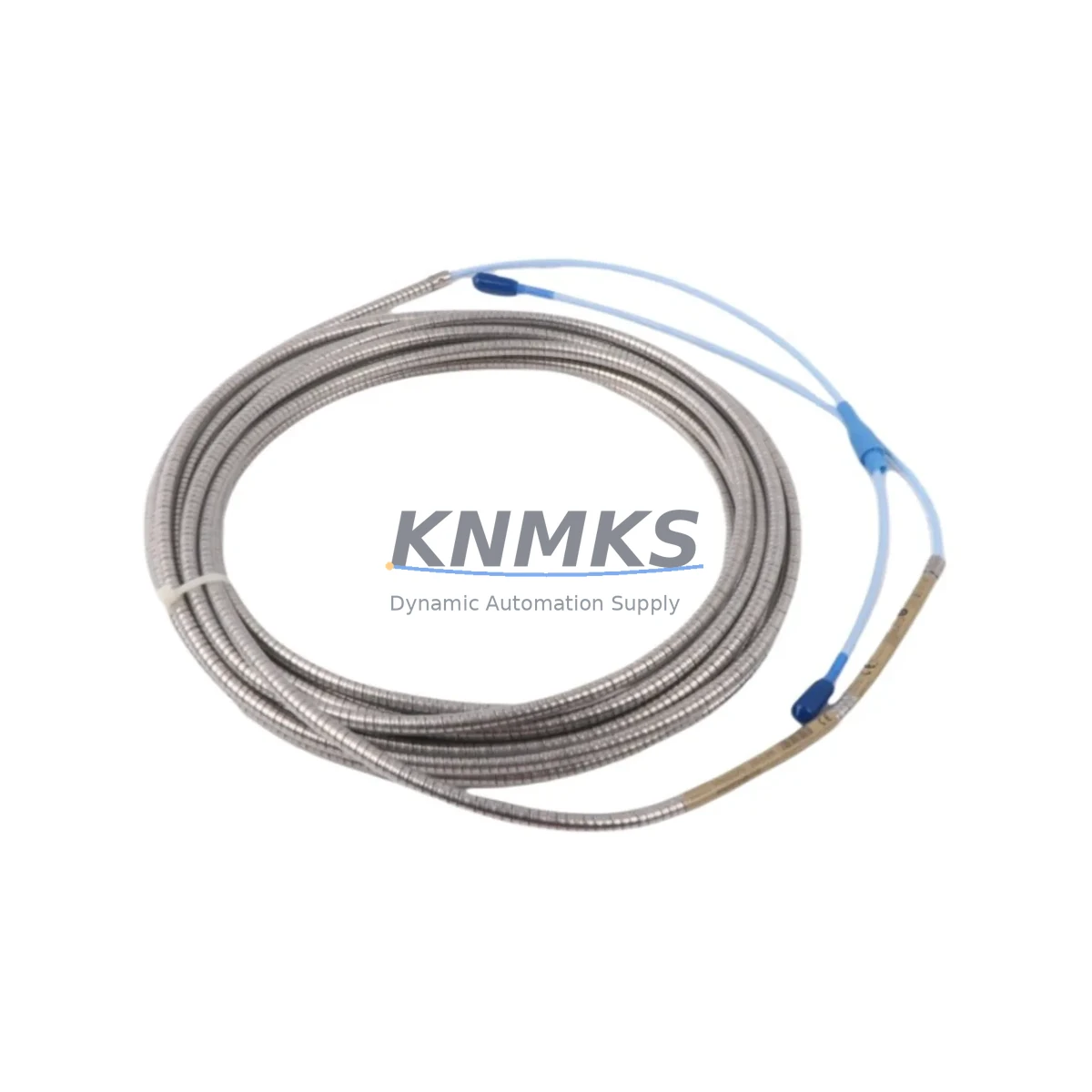

Bently Nevada 330130-085-12-00 Migration-Ready Extension Cable for Legacy Control Systems

The Bently Nevada 330130-085-12-00 is a precision-engineered proximity transducer extension cable designed for seamless integration into existing 3300 XL Proximity Transducer Systems. As industrial facilities face increasing pressure to maintain aging vibration monitoring infrastructure, this extension cable serves as a critical drop-in replacement that eliminates the need for full system overhauls. Whether you are managing a planned shutdown, responding to an unexpected cable failure, or executing a phased modernization of your machinery protection system, the 330130-085-12-00 delivers the electrical and mechanical compatibility required to restore system integrity with minimal disruption.

This cable is engineered to interface directly with the Bently Nevada 3300 XL series proximity transducer and its associated signal conditioning hardware. The 3300 XL platform remains widely deployed across turbomachinery, compressors, pumps, and rotating equipment in oil and gas, power generation, and petrochemical industries. When the original extension cable degrades due to environmental exposure, mechanical stress, or connector wear, the 330130-085-12-00 provides a verified replacement path that preserves the integrity of the eddy-current measurement chain from the probe tip through to the monitor rack.

Before installing the 330130-085-12-00, engineers should confirm several key parameters to ensure a successful retrofit. The cable length must match the physical routing distance between the transducer probe and the proximitor or extension driver — incorrect length introduces signal attenuation or excess slack that creates mechanical hazards in rotating equipment environments. Terminal connector types at both ends must be verified against the existing probe and proximitor housing to avoid adapter mismatches that compromise shielding continuity. The cable’s coaxial impedance and capacitance specifications must align with the 3300 XL system’s calibration constants, as deviations will shift the gap voltage output and trigger false alarms or mask genuine vibration events.

In retrofit scenarios where the original Bently Nevada 330104 series proximity probe is being replaced alongside the extension cable, technicians should treat the probe, extension cable, and proximitor as a matched set. The Bently Nevada 330180 proximitor or its equivalent signal conditioner must be recalibrated after any cable substitution to re-establish the correct voltage-to-displacement scale factor. If the installation involves a Bently Nevada 3500/42M or 3500/40M vibration monitor module in the rack, the channel configuration in the monitor’s software must reflect the updated transducer system sensitivity, typically expressed in mV/mil or mV/µm.

For facilities migrating from older Bently Nevada 7200 series or 9000 series transducer systems to the 3300 XL platform, the 330130-085-12-00 extension cable is a foundational component in the upgrade bill of materials. The migration process typically involves replacing the probe, extension cable, and proximitor as a complete transducer system, then updating the 3500 series monitor rack configuration to accept the new sensitivity and gap range. During this process, the existing field wiring from the junction box to the monitor rack can often be retained, reducing installation time and minimizing the scope of intrusive work in hazardous areas.

Downtime planning for extension cable replacement should account for the time required to de-energize the measurement loop, disconnect and remove the failed cable, route and secure the new 330130-085-12-00, reconnect all terminals with correct torque values, verify shield grounding at one end only to prevent ground loops, and perform a static gap check before returning the machine to service. In many installations, this process can be completed within a single four-hour maintenance window when replacement parts are staged in advance. Having the 330130-085-12-00 in local inventory eliminates procurement lead time as the primary driver of extended unplanned downtime.

KNMKS maintains verified stock of the 330130-085-12-00 and conducts pre-shipment functional inspection on every unit. Each cable is tested for continuity, insulation resistance, and connector integrity before dispatch. All units are supplied with a support terms confirmed by quotation covering manufacturing defects and are packaged to prevent transit damage to the precision coaxial connectors.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the 330130-085-12-00 extension cable rarely occurs in isolation. In most field scenarios, the cable replacement is part of a broader effort to restore or upgrade the complete vibration monitoring chain. Technicians should begin by auditing the condition of the associated Bently Nevada 330104 proximity probe, checking for tip damage, thread wear, and housing corrosion that would compromise measurement accuracy even with a new extension cable installed. If the probe shows signs of degradation, replacing both the probe and the 330130-085-12-00 simultaneously eliminates the risk of a second unplanned outage within a short interval.

The Bently Nevada 330180 proximitor, which conditions the raw eddy-current signal from the probe-cable assembly, must be inspected for output voltage stability and connector integrity. A proximitor that has been in service for more than ten years in a high-vibration or high-temperature environment may exhibit drift that masks the improvement gained from installing a new extension cable. In such cases, replacing the proximitor alongside the 330130-085-12-00 and the probe delivers a fully restored transducer system with a known baseline performance.

At the monitor rack level, the Bently Nevada 3500/42M or 3500/40M module configuration must be reviewed to confirm that the channel’s OK limit, gap range, and sensitivity settings match the specifications of the replacement transducer system. If the facility is also upgrading from an older Bently Nevada 3300 rack to a 3500 series rack as part of a broader control system modernization, the I/O wiring from the field junction boxes must be re-terminated to match the 3500 rack’s terminal block layout. In parallel, any Bently Nevada 1900/65A or equivalent machinery protection relay that receives trip signals from the monitor must be verified for compatibility with the updated channel configuration.

For facilities that use a DCS or SCADA system to display vibration data, the signal path from the 3500 rack’s communication gateway — often a Bently Nevada 3500/92 communication gateway module — to the control room historian must be validated after the retrofit. Changes to channel numbering or rack slot assignments during the upgrade can disrupt tag mapping in the DCS, causing vibration trends to disappear from operator displays. Coordinating with the control system team before the maintenance window to pre-configure the updated tag assignments prevents this common post-retrofit issue.

Downtime Control During System Migration

Minimizing downtime during a proximity transducer extension cable replacement requires disciplined pre-work and a clearly sequenced execution plan. Before the maintenance window opens, the replacement 330130-085-12-00 should be physically staged at the work site, pre-inspected for connector condition, and confirmed against the as-built drawing for the specific measurement point. The technician team should have the correct torque specifications for all connector types, a calibrated gap-setting tool, and a portable voltmeter capable of reading the proximitor output voltage to the nearest millivolt.

During execution, the measurement loop should be placed in bypass mode at the 3500 monitor before any field disconnection occurs, preventing spurious trips from propagating to the machinery protection system while the cable is open-circuit. The original cable routing path should be documented with photographs before removal to ensure the replacement cable follows the same mechanical protection path and avoids heat sources, vibration nodes, and areas of potential abrasion. After the 330130-085-12-00 is installed and all connectors are secured, the static gap voltage should be measured and compared against the target value specified in the transducer system calibration record before the bypass is removed.

If the facility operates under a safety instrumented system that includes vibration-based shutdown logic, the SIS bypass management procedure must be followed throughout the cable replacement activity. Returning the measurement point to service without completing the SIS reinstatement checklist creates a latent safety risk that may not be detected until the next functional test interval. Proper documentation of the replacement activity, including the new cable’s serial number and the post-installation gap voltage reading, should be entered into the plant maintenance management system before the work order is closed.

Retrofit Support FAQ

Q: Is the 330130-085-12-00 a direct drop-in replacement for the original Bently Nevada cable?
A: Yes, the 330130-085-12-00 is designed as a direct replacement for the original Bently Nevada part of the same number. It maintains the same coaxial construction, connector types, and electrical characteristics required by the 3300 XL Proximity Transducer System. A gap voltage recalibration check is recommended after installation to confirm the measurement chain is performing within specification.

Q: Does KNMKS test the 330130-085-12-00 before shipment?
A: Yes. Every unit undergoes pre-shipment inspection covering continuity, insulation resistance, and connector integrity. Units that do not meet specification are not dispatched. Each cable is supplied with a support terms confirmed by quotation from the date of shipment covering manufacturing defects.

Q: What should I verify before installing the replacement cable?
A: Confirm the cable length matches your routing distance, verify connector types at both the probe end and the proximitor end, check that the coaxial impedance matches the 3300 XL system calibration constants, and ensure the shield is grounded at one end only. If replacing the cable as part of a broader transducer system upgrade, recalibrate the 330180 proximitor and verify the 3500 monitor channel settings after installation.

Q: Can KNMKS supply the 330130-085-12-00 for urgent unplanned maintenance?
A: Yes. KNMKS maintains ready stock of the 330130-085-12-00 to support both planned maintenance schedules and emergency breakdown situations. Contact [email protected] or call +86 18359268345 to confirm current availability and arrange expedited dispatch.
