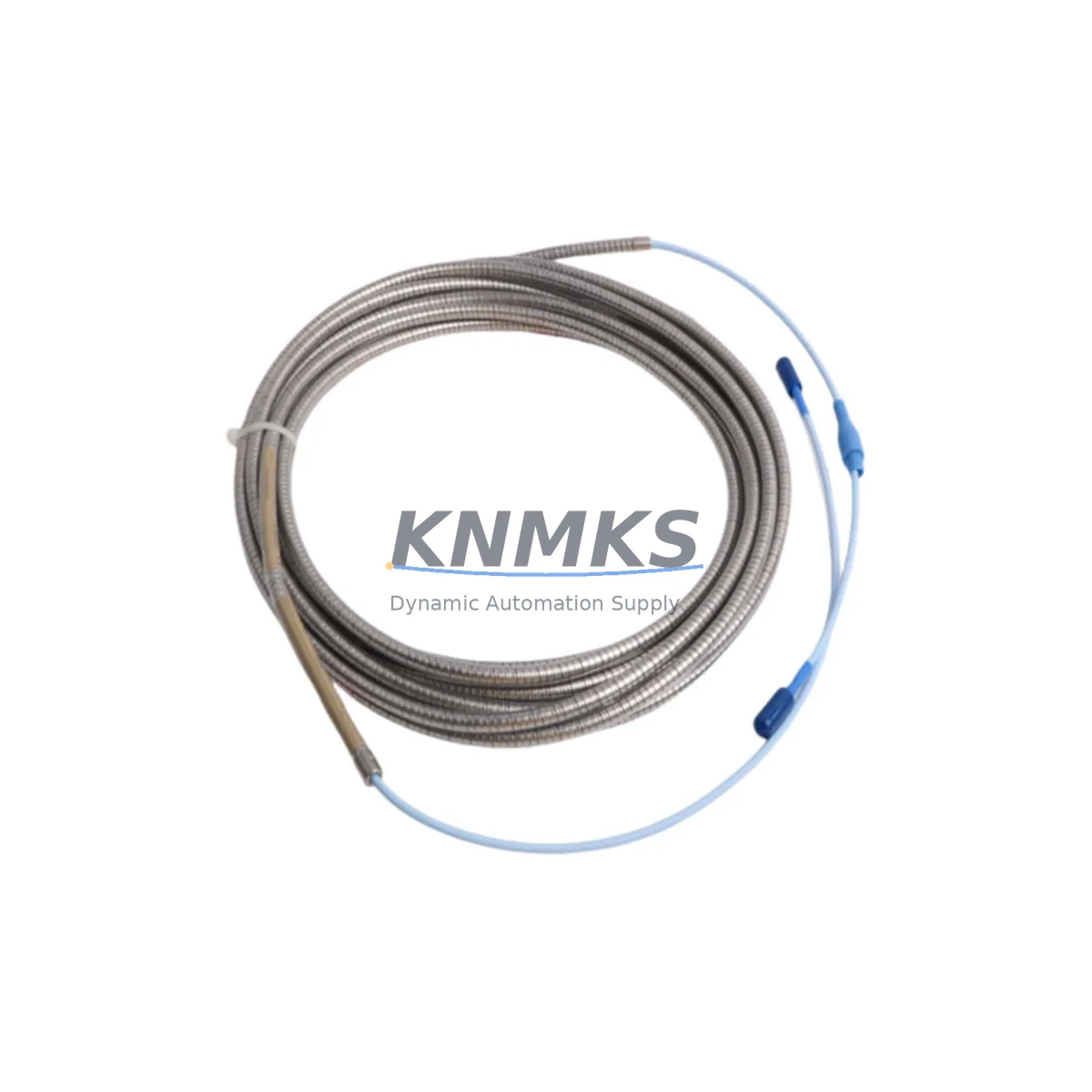

Bently Nevada 330130-085-03-05 Spare Extension Cable: Maintenance-Proven Proximity Cable for Factory Uptime

The Bently Nevada 330130-085-03-05 is an original proximity extension cable engineered for the Bently Nevada 3300 XL continuous vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment-intensive industries worldwide. With an 8.5-metre cable length and precision-matched electrical characteristics, this extension cable forms the critical signal path between the proximity probe and the 3300 XL monitor, ensuring accurate, low-noise eddy-current displacement measurements on turbines, compressors, pumps, and gearboxes operating in continuous production environments.

For maintenance engineers responsible for turbomachinery protection systems, the 330130-085-03-05 is a non-negotiable spare. Cable degradation — caused by mechanical abrasion, thermal cycling, chemical exposure, or connector corrosion — is one of the most common root causes of false trips and signal dropouts in proximity-based vibration monitoring circuits. Stocking a verified replacement eliminates the risk of extended downtime while sourcing a compatible cable under emergency conditions. Every unit supplied by KNMKS undergoes full functional verification prior to dispatch, with a support terms confirmed by quotation covering manufacturing defects and signal integrity failure.

This cable is designed to maintain the precise system sensitivity of −7.87 V/mm (−200 mV/mil) when used with the matching Bently Nevada 3300 XL proximity probe and driver/oscillator. Substituting non-OEM cables with incorrect capacitance or impedance characteristics introduces measurement error that can mask real shaft displacement events or generate nuisance alarms — both of which carry serious operational and safety consequences in critical machinery protection applications.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330130-085-03-05 extension cable during a scheduled outage or emergency repair, a thorough maintenance engineer will treat the cable replacement as an opportunity to inspect the entire proximity measurement chain — not just the cable in isolation. The 3300 XL proximity transducer system is a three-component assembly: the Bently Nevada 3300 XL proximity probe (typically an 8mm or 11mm tip diameter probe such as the 330103 or 330104 series), the extension cable itself, and the Bently Nevada 3300 XL driver/oscillator (such as the 330180 series). All three components must be matched and calibrated as a system — replacing the cable without verifying probe tip condition and driver output voltage can introduce residual measurement error that persists after the repair.

At the monitor rack level, the signal from the driver/oscillator feeds into a Bently Nevada 3300/16 or 3300/20 monitor module housed in the 3300 rack chassis. During cable replacement, it is good practice to verify that the monitor’s OK relay output is functioning correctly and that the gap voltage reading at the monitor front panel falls within the specified linear range (typically −10 VDC ±1 VDC for a correctly gapped probe). If the gap voltage is outside this range after cable replacement, the probe-to-shaft gap must be re-adjusted before returning the machine to service.

For installations in high-EMI environments — such as those near large variable frequency drives, motor control centers, or high-current bus bars — the extension cable routing should be inspected for proximity to power cables. The coaxial construction of the 330130-085-03-05 provides inherent EMI shielding, but shield continuity at both connectors must be confirmed. A damaged or corroded shield connection is a common source of 50/60 Hz noise injection into the proximity signal, which can appear as a false vibration reading on the monitor. Pairing the cable with a properly grounded Bently Nevada junction box or field wiring terminal ensures shield grounding is maintained at a single point, preventing ground loop interference.

In control cabinet environments, the 24 VDC or ±24 VDC power supply feeding the 3300 XL rack should also be checked during maintenance. A regulated, low-ripple industrial DIN-rail power supply (such as a Phoenix Contact QUINT or Siemens SITOP series unit) is recommended to maintain stable driver/oscillator excitation voltage. Power supply ripple exceeding the driver’s specification can introduce modulation artifacts into the proximity signal that mimic real shaft motion. Replacing the extension cable without addressing a degraded power supply will not fully resolve signal quality issues.

Site Replacement Workflow

Replacing the 330130-085-03-05 in the field follows a structured sequence to minimize downtime and ensure measurement integrity is restored before the machine is returned to service:

Step 1 — Isolate and document: Before disconnecting the existing cable, record the current gap voltage reading from the 3300 XL monitor. This baseline confirms the probe-to-shaft gap setting and provides a reference for post-replacement verification. Note the cable routing path, tie-wrap positions, and connector orientation to ensure the replacement cable follows the same physical path.

Step 2 — Inspect connectors and probe: With the cable disconnected, inspect the probe tip for wear, pitting, or contamination. Check the driver/oscillator connector for corrosion or bent pins. If the probe tip shows visible wear or the driver connector is corroded, replace those components concurrently — a new cable connected to a worn probe will not restore full system accuracy.

Step 3 — Install and route the 330130-085-03-05: Connect the new cable to the probe and driver/oscillator, ensuring both connectors are fully seated and hand-tightened. Route the cable away from high-voltage power cables and secure with appropriate cable ties or conduit. Maintain a minimum bend radius of at least 10× the cable diameter to avoid signal degradation from mechanical stress on the coaxial core.

Step 4 — Verify gap voltage and system OK status: Power up the 3300 XL rack and confirm the monitor’s OK relay is energized and the gap voltage reading matches the pre-replacement baseline (±0.5 VDC tolerance is acceptable for most applications). If the gap voltage has shifted significantly, re-adjust the probe gap before proceeding.

Step 5 — Functional test and return to service: With the machine at rest, verify that the vibration reading on the monitor is at or near zero (accounting for any residual runout). Confirm that the alarm and danger setpoints are correctly configured in the monitor before restarting the machine. Document the replacement in the maintenance management system with the new cable serial number and post-replacement gap voltage reading.

This structured approach eliminates the most common causes of repeat failures after cable replacement and ensures the 3300 XL system is fully restored to its specified measurement performance before the machine returns to production.

Spare Parts Support FAQ

Q1: What support terms does the Bently Nevada 330130-085-03-05 carry?
Every 330130-085-03-05 supplied by KNMKS is backed by a support terms confirmed by quotation covering manufacturing defects and signal integrity failure under normal operating conditions. Support terms support includes direct technical assistance and advance replacement options to minimize production impact.

Q2: What pre-shipment testing is performed on each cable?
Each unit undergoes full electrical verification before dispatch: coaxial continuity, shield integrity, connector insertion/extraction force, and impedance spot-check. A test record is maintained for every unit shipped. This ensures that the cable arrives ready for installation without requiring incoming inspection on your end.

Q3: Is the 330130-085-03-05 compatible with all 3300 XL proximity probes and drivers?
Yes, within the Bently Nevada 3300 XL system family. The cable is designed to match the electrical characteristics of the 3300 XL probe and driver/oscillator series. It is not interchangeable with cables from the older 3300 (non-XL) system or the 7200 series without recalibration. Always confirm the full three-component system (probe + cable + driver) is matched before installation.

Q4: Can long-term spare parts supply be arranged for the 330130-085-03-05?
Yes. KNMKS maintains dedicated stock of the 330130-085-03-05 and can support forward supply agreements covering 12 to 36 months of inventory commitment. This is particularly suited to power generation, petrochemical, and continuous process facilities that require guaranteed spare parts availability for critical machinery protection systems. Contact our sales team to discuss volume, lead time, and multi-site supply requirements.
